MZ11-HCPQF (1981)

Toyota Soarer

Production Feb 1981 - Jan 1985
Engine 5MGEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8102- )

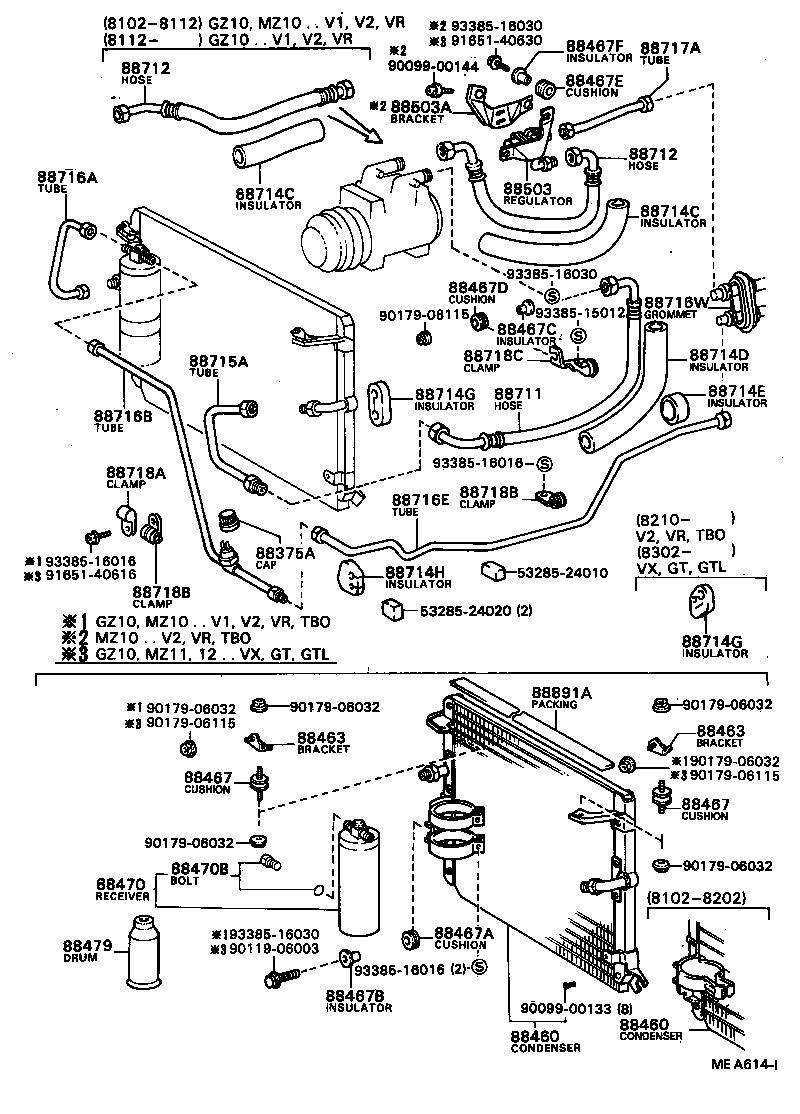

Click highlighted areas on diagram

diagram 5328524010 5328524020 88375A 88460 88460 88463 88463 88467 88467 88467A 88467B 88467C 88467D 88467E 88467F 88470 88470B 88479 88503 88503A 88711 88712 88712 88714C 88714C 88714D 88714E 88714G 88714G 88714H 88715A 88716A 88716B 88716E 88716W 88717A 88718A 88718B 88718B 88718C 88891A 9009900133 9009900144 9011906003 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9017906115 9017906115 9017906115 9165140616 9165140630 9338515012 9338516016 9338516016 9338516016 9338516030 9338516030 9338516030
Part # Description Qty Price
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30270

GZ10,MZ11,12..GT,GTL,VX

 1
88460 - CONDENSER ASSY, COOLER
88460-24010

GZ10,MZ11

 1
88460 - CONDENSER ASSY, COOLER
88460-24010

GZ10,MZ11

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-24010

GZ10,MZ1#

 2
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-24010

GZ10,MZ1#

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-14040

GZ10,MZ1#

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-14040

GZ10,MZ1#

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
90099-32100

GZ10,MZ1#

 1
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-14050

GZ10,MZ1#

 2
88467C - INSULATOR, COOLER REFRIGERANT PIPE CLAMP
88467-24010

GZ10,MZ11,12..GT,GTL,VX

 1
88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP
90099-32100

GZ10,MZ1#

 1
88467E - CUSHION, PRESSURE REGULATOR
90099-32100

GZ10,MZ11,12..GT,GTL,VX

 2
88467F - INSULATOR, PRESSURE REGULATOR
88467-14050

GZ10,MZ11,12..GT,GTL,VX

 2
88470 - RECEIVER & DRYER ASSY, COOLER
88470-12070

GZ10,MZ1#

 1
88470B - BOLT, FUSE
88475-12020

GZ10,MZ1#

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

GZ10,MZ1#

400G

 2
88503 - REGULATOR ASSY, PRESSURE
88503-24010

GZ10,MZ11,12..GT,GTL,VX

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-24020

MZ11

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-24060

GZ10,MZ11..GT

 1
88712-24030

MZ11

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-24060

GZ10,MZ11..GT

 1
88712-24030

MZ11

 1
88714C - INSULATOR, COOLER REFRIGERANT HOSE, NO.1
88714-14040

GZ10,MZ1#

 1
88714C - INSULATOR, COOLER REFRIGERANT HOSE, NO.1
88714-14040

GZ10,MZ1#

 1
88714D - INSULATOR, COOLER REFRIGERANT HOSE, NO.2
88714-24020

MZ11,12

 1
88714G - INSULATOR, COOLER REFRIGERANT PIPE, NO.1
88714-24010

GZ10,MZ1#

 1
88714-24010

GZ10,MZ11..GT,VX

 1
88714G - INSULATOR, COOLER REFRIGERANT PIPE, NO.1
88714-24010

GZ10,MZ1#

 1
88714-24010

GZ10,MZ11..GT,VX

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-24010

GZ10,MZ11,12

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-24020

GZ10,MZ11

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-24031

GZ10,MZ1#

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-24041

GZ10,MZ11..GT,VX

 1
88716W - GROMMET(FOR COOLER REFRIGERANT PIPE)
90480-24008

GZ10,MZ1#

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-24010

GZ10,MZ11,12..GT,GTL,VX

 1
88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)
88718-14450

GZ10,MZ1#

 1
88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)
88718-12280

GZ10,MZ1#

 2
88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)
88718-12280

GZ10,MZ1#

 2
88718C - CLAMP, NO.3(FOR COOLER REFRIGERANT PIPE)
88718-24010

GZ10,MZ1#

 1
Common parts
53285-24010
53285-24020
90099-00133
90099-00144
90119-06003
90179-06032
90179-06115
91651-40616
91651-40630
93385-15012
93385-16016
93385-16030
