MZ11-HCPQF (1981)

Toyota Soarer

Production Feb 1981 - Jan 1985
Engine 5MGEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8102- )

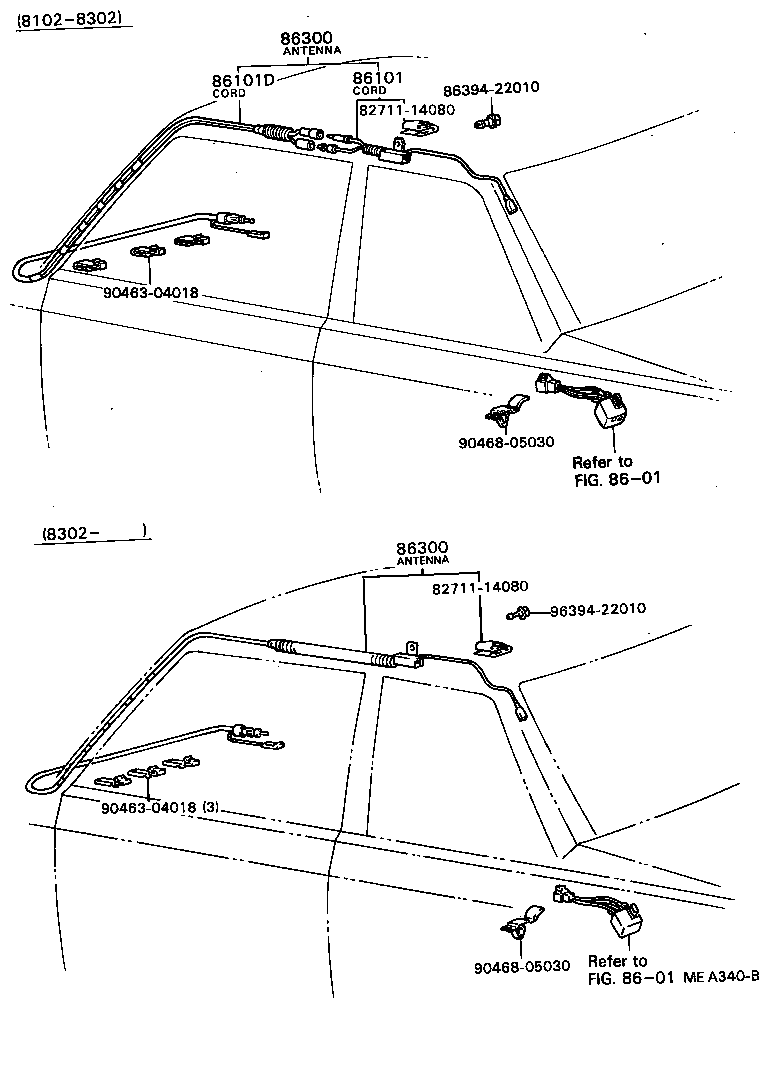

Click highlighted areas on diagram

diagram 8271114080 8271114080 8601 8601 86101 86101D 86300 86300 8639422010 9046304018 9046304018 9046805030 9046805030 9639422010
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-24010

GZ10,MZ1#

 1
86101D - CORD SUB-ASSY, ANTENNA, NO.3
86101-24020

GZ10,MZ1#

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-24010

GZ10,MZ1#

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-24010

GZ10,MZ1#

 1
Common parts
82711-14080
86394-22010
90463-04018
90468-05030
96394-22010
Linked diagrams
8601
