MZ11-HCPQF (1981)
Toyota Soarer

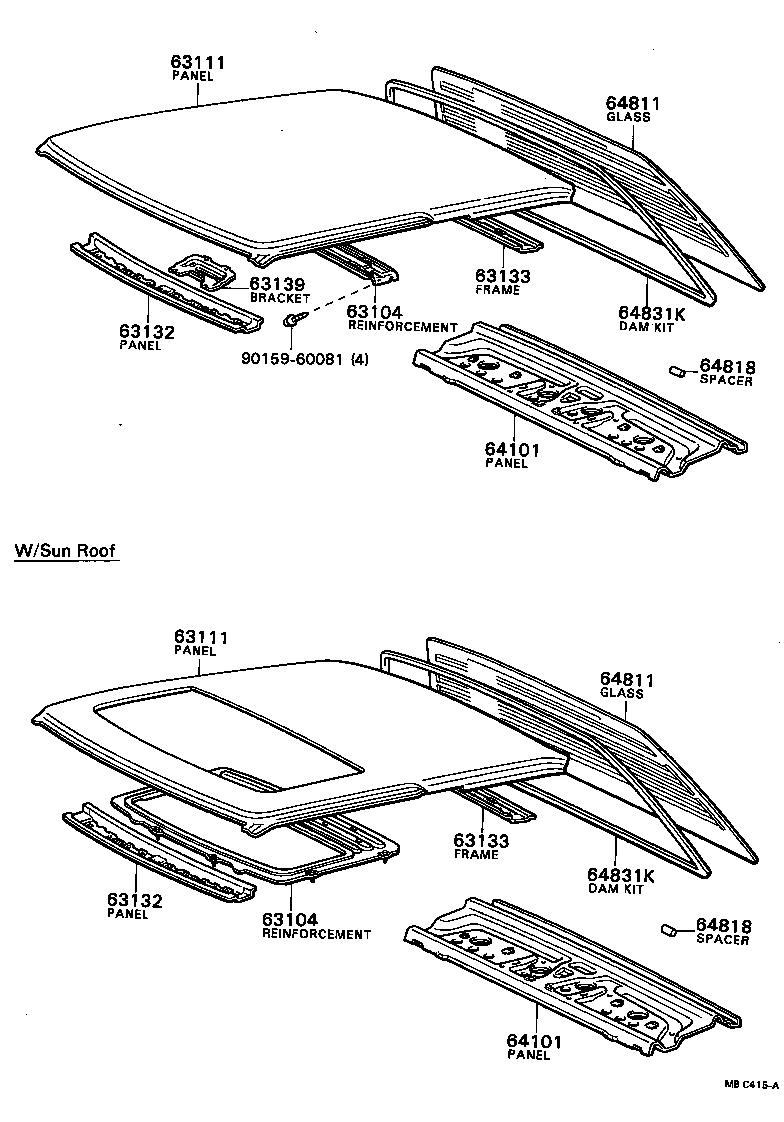

ILLUST NO. 1 OF 2(8102- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER | ||||
| 63142-24010 |
GZ10,MZ1#..GT,TBO,VR,VX W/SUN ROOF |
1 | ||
| 63141-24010 |
GZ10,MZ1# |
1 | ||
| 63142-24010 |
GZ10,MZ1#..GT,TBO,V2,VR,VX W/SUN ROOF |
1 | ||
| 63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER | ||||
| 63142-24010 |
GZ10,MZ1#..GT,TBO,VR,VX W/SUN ROOF |
1 | ||
| 63141-24010 |
GZ10,MZ1# |
1 | ||
| 63142-24010 |
GZ10,MZ1#..GT,TBO,V2,VR,VX W/SUN ROOF |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-24020 |
GZ10,MZ1#..GT,TBO,VR,VX W/SUN ROOF |
1 | ||
| 63111-24010 |
GZ10,MZ1# |
1 | ||
| 63111-24020 |
GZ10,MZ1#..GT,TBO,V2,VR,VX W/SUN ROOF |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-24020 |
GZ10,MZ1#..GT,TBO,VR,VX W/SUN ROOF |
1 | ||
| 63111-24010 |
GZ10,MZ1# |
1 | ||
| 63111-24020 |
GZ10,MZ1#..GT,TBO,V2,VR,VX W/SUN ROOF |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-24010 |
GZ10,MZ1# |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-24010 |
GZ10,MZ1# |
1 | ||
| 63133 - FRAME, BACK WINDOW OPENING, UPPER | ||||
| 63133-24010 |
GZ10,MZ1# |
1 | ||
| 63133 - FRAME, BACK WINDOW OPENING, UPPER | ||||
| 63133-24010 |
GZ10,MZ1# |
1 | ||
| 63139 - BRACKET, DOME LAMP, NO.3 | ||||
| 63137-24010 |
GZ10,MZ1#..GT,TBO,VR,VX |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-24010 |
GZ10,MZ1# |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-24010 |
GZ10,MZ1# |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-24020 |
MZ11 W/*RW,*EHTT,T=4.0 |
1 | ||
| 64811-24010 |
GZ10,MZ1# *EHTT,T=4.0 |
1 | ||
| 64811-24030 |
GZ10,MZ11..GT,VR,VX BRONZE,*EHT,T=4.0 |
1 | ||
| 64811-24030 |
MZ11 BRONZE,*EHT,T=4.0 |
1 | ||
| 64811-24040 |
MZ11,12 W/*RW,BRONZE,*EHT,T=4.0 |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-24020 |
MZ11 W/*RW,*EHTT,T=4.0 |
1 | ||
| 64811-24010 |
GZ10,MZ1# *EHTT,T=4.0 |
1 | ||
| 64811-24030 |
GZ10,MZ11..GT,VR,VX BRONZE,*EHT,T=4.0 |
1 | ||
| 64811-24030 |
MZ11 BRONZE,*EHT,T=4.0 |
1 | ||
| 64811-24040 |
MZ11,12 W/*RW,BRONZE,*EHT,T=4.0 |
1 | ||
| 64818 - SPACER, BACK WINDOW GLASS | ||||
| 56116-30020 |
GZ10,MZ1# |
2 | ||
| 64818 - SPACER, BACK WINDOW GLASS | ||||
| 56116-30020 |
GZ10,MZ1# |
2 | ||
| 64831K - DAM KIT, BACK WINDOW GLASS | ||||
| 04562-30030 |
GZ10,MZ1# |
1 | ||
| 64831K - DAM KIT, BACK WINDOW GLASS | ||||
| 04562-30030 |
GZ10,MZ1# |
1 | ||
| Common parts | ||||
| 90159-60081 | ||||

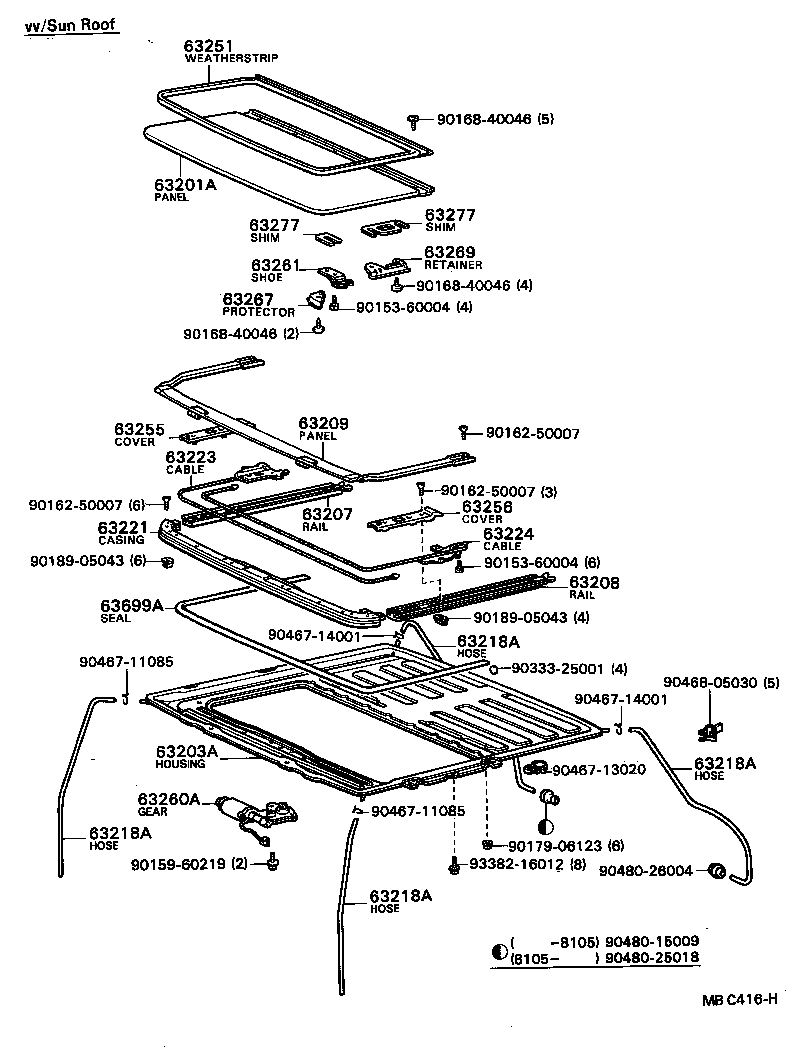

ILLUST NO. 2 OF 2(8102- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201A - PANEL SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF | ||||
| 63201-24010 |
GZ10,MZ1#..GT,TBO,VR,VX |
1 | ||
| 63201-24010 |
GZ10,MZ1#..GT,TBO,V2,VR,VX |
1 | ||
| 63203A - HOUSING SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF | ||||
| 63203-24010 |
GZ10,MZ1#..GT,TBO,VR,VX |
1 | ||
| 63203-24010 |
GZ10,MZ1#..GT,TBO,V2,VR,VX |
1 | ||
| 63203-24010 |
GZ10,MZ1#..GT,TBO,VR,VX |
1 | ||
| 63203-24020 |
GZ10,MZ1#..GT,TBO,VR,VX |
1 | ||
| 63207 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, RH | ||||
| 63207-20010 |
GZ10,MZ1#..GT,TBO,V2,VR,VX |
1 | ||
| 63207-20010 |
GZ10,MZ1#..GT,TBO,VR,VX |
1 | ||
| 63207-20010 |
GZ10,MZ1#..GT,TBO,VR,VX |
1 | ||
| 63207-12030 |
GZ10,MZ1#..GT,TBO,VR,VX |
1 | ||
| 63208 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, LH | ||||
| 63208-20010 |
GZ10,MZ1#..GT,TBO,V2,VR,VX |
1 | ||
| 63208-20010 |
GZ10,MZ1#..GT,TBO,VR,VX |
1 | ||
| 63208-12030 |
GZ10,MZ1#..GT,TBO,VR,VX |
1 | ||
| 63208-20010 |
GZ10,MZ1#..GT,TBO,VR,VX |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-20010 |
GZ10,MZ1#..GT,TBO,VR,VX |
1 | ||
| 63209-20010 |
GZ10,MZ1#..GT,TBO,V2,VR,VX |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-24010 |
GZ10,MZ1#..GT,TBO,VR,VX RR RH,L=1580 |
1 | ||
| 63249-24020 |
GZ10,MZ1#..GT,TBO,VR,VX RR LH,L=1500 |
1 | ||
| 63249-24020 |
GZ10,MZ1#..GT,TBO,V2,VR,VX RR LH,L=1500 |
1 | ||
| 63249-24010 |
GZ10,MZ1#..GT,TBO,V2,VR,VX RR RH,L=1580 |
1 | ||
| 90446-15004 |
GZ10,MZ11..GT,V2,VR,VX RR,L=1700 |
2 | ||
| 90446-12023 |
GZ10,MZ1#..GT,TBO,V2,VR,VX FR,L=1400 |
2 | ||
| 90446-12023 |
GZ10,MZ1#..GT,TBO,VR,VX FR,L=1400 |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-24010 |
GZ10,MZ1#..GT,TBO,VR,VX RR RH,L=1580 |
1 | ||
| 63249-24020 |
GZ10,MZ1#..GT,TBO,VR,VX RR LH,L=1500 |
1 | ||
| 63249-24020 |
GZ10,MZ1#..GT,TBO,V2,VR,VX RR LH,L=1500 |
1 | ||
| 63249-24010 |
GZ10,MZ1#..GT,TBO,V2,VR,VX RR RH,L=1580 |
1 | ||
| 90446-15004 |
GZ10,MZ11..GT,V2,VR,VX RR,L=1700 |
2 | ||
| 90446-12023 |
GZ10,MZ1#..GT,TBO,V2,VR,VX FR,L=1400 |
2 | ||
| 90446-12023 |
GZ10,MZ1#..GT,TBO,VR,VX FR,L=1400 |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-24010 |
GZ10,MZ1#..GT,TBO,VR,VX RR RH,L=1580 |
1 | ||
| 63249-24020 |
GZ10,MZ1#..GT,TBO,VR,VX RR LH,L=1500 |
1 | ||
| 63249-24020 |
GZ10,MZ1#..GT,TBO,V2,VR,VX RR LH,L=1500 |
1 | ||
| 63249-24010 |
GZ10,MZ1#..GT,TBO,V2,VR,VX RR RH,L=1580 |
1 | ||
| 90446-15004 |
GZ10,MZ11..GT,V2,VR,VX RR,L=1700 |
2 | ||
| 90446-12023 |
GZ10,MZ1#..GT,TBO,V2,VR,VX FR,L=1400 |
2 | ||
| 90446-12023 |
GZ10,MZ1#..GT,TBO,VR,VX FR,L=1400 |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-24010 |
GZ10,MZ1#..GT,TBO,VR,VX RR RH,L=1580 |
1 | ||
| 63249-24020 |
GZ10,MZ1#..GT,TBO,VR,VX RR LH,L=1500 |
1 | ||
| 63249-24020 |
GZ10,MZ1#..GT,TBO,V2,VR,VX RR LH,L=1500 |
1 | ||
| 63249-24010 |
GZ10,MZ1#..GT,TBO,V2,VR,VX RR RH,L=1580 |
1 | ||
| 90446-15004 |
GZ10,MZ11..GT,V2,VR,VX RR,L=1700 |
2 | ||
| 90446-12023 |
GZ10,MZ1#..GT,TBO,V2,VR,VX FR,L=1400 |
2 | ||
| 90446-12023 |
GZ10,MZ1#..GT,TBO,VR,VX FR,L=1400 |
2 | ||
| 63221 - CASING, SLIDING ROOF CABLE GUIDE | ||||
| 63221-20010 |
GZ10,MZ1#..GT,TBO,VR,VX |
1 | ||
| 63221-20010 |
GZ10,MZ1#..GT,TBO,VR,VX |
1 | ||
| 63221-20010 |
GZ10,MZ1#..GT,TBO,V2,VR,VX |
1 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-20010 |
GZ10,MZ1#..GT,TBO,V2,VR,VX |
1 | ||
| 63223-20010 |
GZ10,MZ1#..GT,TBO,VR,VX |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-20010 |
GZ10,MZ1#..GT,TBO,VR,VX |
1 | ||
| 63224-20010 |
GZ10,MZ1#..GT,TBO,V2,VR,VX |
1 | ||
| 63251 - WEATHERSTRIP, SLIDING ROOF PANEL OR REMOVABLE ROOF | ||||
| 63251-20010 |
GZ10,MZ1#..GT,TBO,V2,VR,VX |
1 | ||
| 63251-20010 |
GZ10,MZ1#..GT,TBO,VR,VX |
1 | ||
| 63255 - COVER, SLIDING ROOF GUIDE RAIL, RH | ||||
| 63255-20010 |
GZ10,MZ1#..GT,TBO,VR,VX |
1 | ||
| 63255-20010 |
GZ10,MZ1#..GT,TBO,V2,VR,VX |
1 | ||
| 63256 - COVER, SLIDING ROOF GUIDE RAIL, LH | ||||
| 63255-20010 |
GZ10,MZ1#..GT,TBO,V2,VR,VX |
1 | ||
| 63255-20010 |
GZ10,MZ1#..GT,TBO,VR,VX |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-20010 |
GZ10,MZ1#..GT,TBO,VR,VX |
1 | ||
| 63260-20010 |
GZ10,MZ1#..GT,TBO,V2,VR,VX |
1 | ||
| 63260-20010 |
GZ10,MZ1#..GT,TBO,VR,VX |
1 | ||
| 63261 - SHOE, SLIDING ROOF, FRONT | ||||
| 63261-20010 |
GZ10,MZ1#..GT,TBO,VR,VX |
2 | ||
| 63261-20010 |
GZ10,MZ1#..GT,TBO,V2,VR,VX |
2 | ||
| 63261-20010 |
GZ10,MZ1#..GT,TBO,VR,VX |
2 | ||
| 63267 - PROTECTOR, SLIDING ROOF WEATHERSTRIP | ||||
| 63267-20010 |
GZ10,MZ1#..GT,TBO,VR,VX RH |
1 | ||
| 63268-20010 |
GZ10,MZ1#..GT,TBO,VR,VX LH |
1 | ||
| 63267-20010 |
GZ10,MZ1#..GT,TBO,VR,VX RH |
1 | ||
| 63267-20010 |
GZ10,MZ1#..GT,TBO,V2,VR,VX RH |
1 | ||
| 63268-20010 |
GZ10,MZ1#..GT,TBO,V2,VR,VX LH |
1 | ||
| 63268-20010 |
GZ10,MZ1#..GT,TBO,VR,VX LH |
1 | ||
| 63269 - RETAINER, SLIDING ROOF WEATHERSTRIP | ||||
| 63269-20010 |
GZ10,MZ1#..GT,TBO,V2,VR,VX RH |
1 | ||
| 63269-20010 |
GZ10,MZ1#..GT,TBO,VR,VX RH |
1 | ||
| 63279-20010 |
GZ10,MZ1#..GT,TBO,V2,VR,VX LH |
1 | ||
| 63279-20010 |
GZ10,MZ1#..GT,TBO,VR,VX LH |
1 | ||
| 63277 - SHIM, SLIDING ROOF RAIL | ||||
| 63277-14020 |
GZ10,MZ1#..GT,TBO,VR,VX L=48X28,T=1.0 |
1 | ||
| 63277-14020 |
GZ10,MZ1#..GT,TBO,V2,VR,VX L=48X28,T=1.0 |
1 | ||
| 63277-20010 |
GZ10,MZ1#..GT,TBO,VR,VX L=91.5X55,T=1.0 |
1 | ||
| 63277-20010 |
GZ10,MZ1#..GT,TBO,V2,VR,VX L=91.5X55,T=1.0 |
1 | ||
| 63277 - SHIM, SLIDING ROOF RAIL | ||||
| 63277-14020 |
GZ10,MZ1#..GT,TBO,VR,VX L=48X28,T=1.0 |
1 | ||
| 63277-14020 |
GZ10,MZ1#..GT,TBO,V2,VR,VX L=48X28,T=1.0 |
1 | ||
| 63277-20010 |
GZ10,MZ1#..GT,TBO,VR,VX L=91.5X55,T=1.0 |
1 | ||
| 63277-20010 |
GZ10,MZ1#..GT,TBO,V2,VR,VX L=91.5X55,T=1.0 |
1 | ||
| Common parts | ||||
| 90153-60004 | ||||
| 90159-60219 | ||||
| 90162-50007 | ||||
| 90168-40046 | ||||
| 90179-06123 | ||||
| 90189-05043 | ||||
| 90333-25001 | ||||
| 90467-11085 | ||||
| 90467-13020 | ||||
| 90467-14001 | ||||
| 90468-05030 | ||||
| 90480-15009 | ||||
| 90480-25018 | ||||
| 90480-26004 | ||||
| 93382-16012 | ||||
