MZ11-HCPQF (1981)

Toyota Soarer

Production Feb 1981 - Jan 1985
Engine 5MGEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8102- )5MGEU,6MGEU

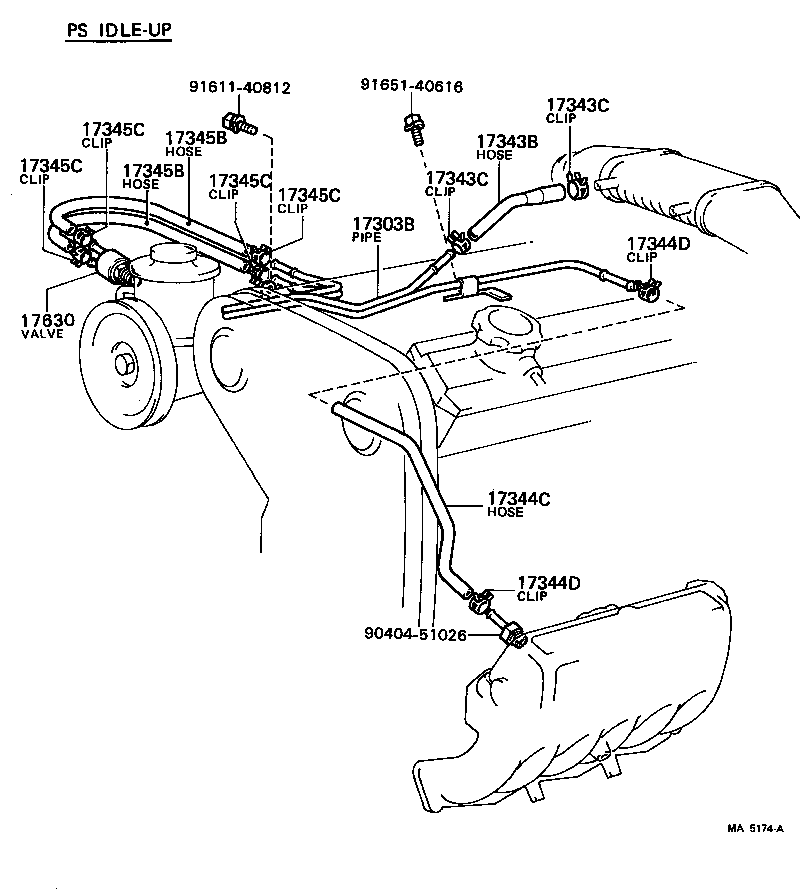

Click highlighted areas on diagram

diagram 17303B 17343B 17343C 17343C 17344C 17344D 17344D 17345B 17345B 17345C 17345C 17345C 17345C 17630 9040451026 9161140812 9165140616
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-43050

5MGEU,6MGEU..MZ11,12

 1
17343B - HOSE, NO.3(FOR IDLE-UP)
17343-43020

5MGEU,6MGEU..MZ11,12

 1
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
96132-30400

5MGEU,6MGEU..MZ11,12

PIPE SIDE

 1
96132-30800

5MGEU,6MGEU..MZ11,12

CONNECTOR SIDE

 1
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
96132-30400

5MGEU,6MGEU..MZ11,12

PIPE SIDE

 1
96132-30800

5MGEU,6MGEU..MZ11,12

CONNECTOR SIDE

 1
17344C - HOSE, NO.4(FOR IDLE-UP)
17344-43030

5MGEU,6MGEU..MZ11,12

 1
17344D - CLIP, NO.4(FOR IDLE-UP HOSE)
96132-30400

5MGEU,6MGEU..MZ11,12

 2
17344D - CLIP, NO.4(FOR IDLE-UP HOSE)
96132-30400

5MGEU,6MGEU..MZ11,12

 2
17345B - HOSE, NO.5(FOR IDLE-UP)
17345-43020

5MGEU,6MGEU..MZ11,12

 2
17345B - HOSE, NO.5(FOR IDLE-UP)
17345-43020

5MGEU,6MGEU..MZ11,12

 2
17345C - CLIP, NO.5(FOR IDLE-UP HOSE)
96132-30400

5MGEU,6MGEU..MZ11,12

 4
17345C - CLIP, NO.5(FOR IDLE-UP HOSE)
96132-30400

5MGEU,6MGEU..MZ11,12

 4
17345C - CLIP, NO.5(FOR IDLE-UP HOSE)
96132-30400

5MGEU,6MGEU..MZ11,12

 4
17345C - CLIP, NO.5(FOR IDLE-UP HOSE)
96132-30400

5MGEU,6MGEU..MZ11,12

 4
17630 - VALVE ASSY, AIR CONTROL
17630-28010

5MGEU..MZ11

 1
Common parts
90404-51026
91611-40812
91651-40616

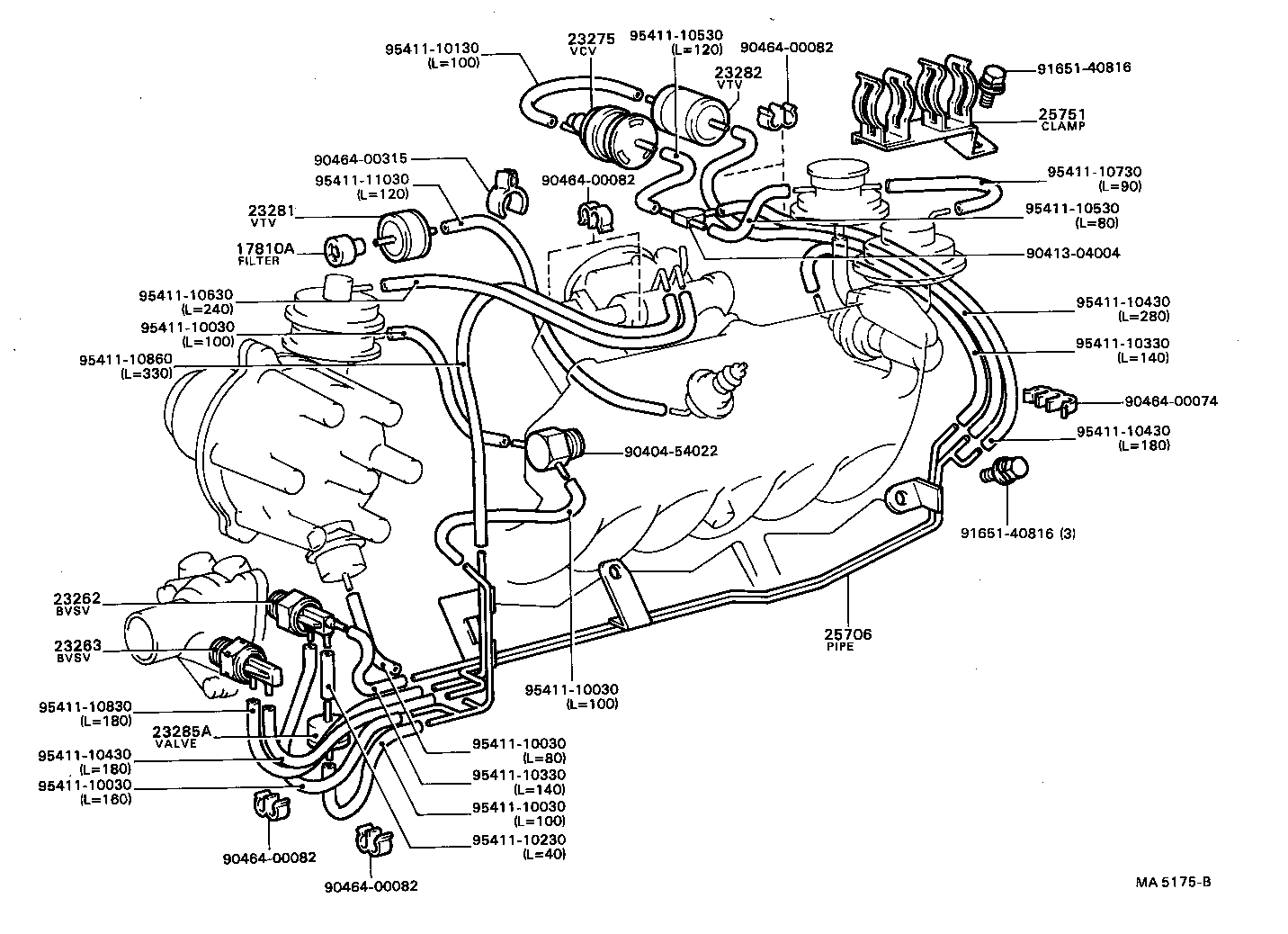

ILLUST NO. 1 OF 2(8102-8203)5MGEU ; (8203-8302)5MGEU..5F

Click highlighted areas on diagram

diagram 17810A 23262 23263 23275 23281 23282 23285A 25706 25751 9040454022 9041304004 9046400074 9046400082 9046400082 9046400082 9046400082 9046400315 9165140816 9165140816 9541110030 9541110030 9541110030 9541110030 9541110030 9541110130 9541110230 9541110330 9541110330 9541110430 9541110430 9541110430 9541110530 9541110530 9541110630 9541110730 9541110830 9541110860 9541111030
Part # Description Qty Price
17810A - FILTER ASSY, AIR
90925-06006

5MGEU,6MGEU..MZ11,12

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
25810-27010

5MGEU..MZ11

 1
90925-05046

5MGEU..MZ11..4FC

 1
23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2
90925-05046

5MGEU,MTEU..MZ1#

 1
23275 - VALVE, VACUUM CONTROL, NO.1
90925-03096

5MGEU..MZ11

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01014

5MGEU,6MGEU..MZ11,12

 1
23282 - VALVE, VACUUM TRANSMITTING, NO.2
90925-01067

5MGEU..MZ11

 1
23285A - VALVE, CHECK, NO.1
90917-10059

5MGEU..MZ11

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-43030

5MGEU..MZ11

 1
25706-43040

5MGEU..MZ11..4FC

 1
25751 - CLAMP, VACUUM CONTROL VALVE, NO.1
25751-43030

5MGEU..MZ11

 1
Common parts
90404-54022
90413-04004
90464-00074
90464-00082
90464-00315
91651-40816
95411-10030
95411-10130
95411-10230
95411-10330
95411-10430
95411-10530
95411-10630
95411-10730
95411-10830
95411-10860
95411-11030

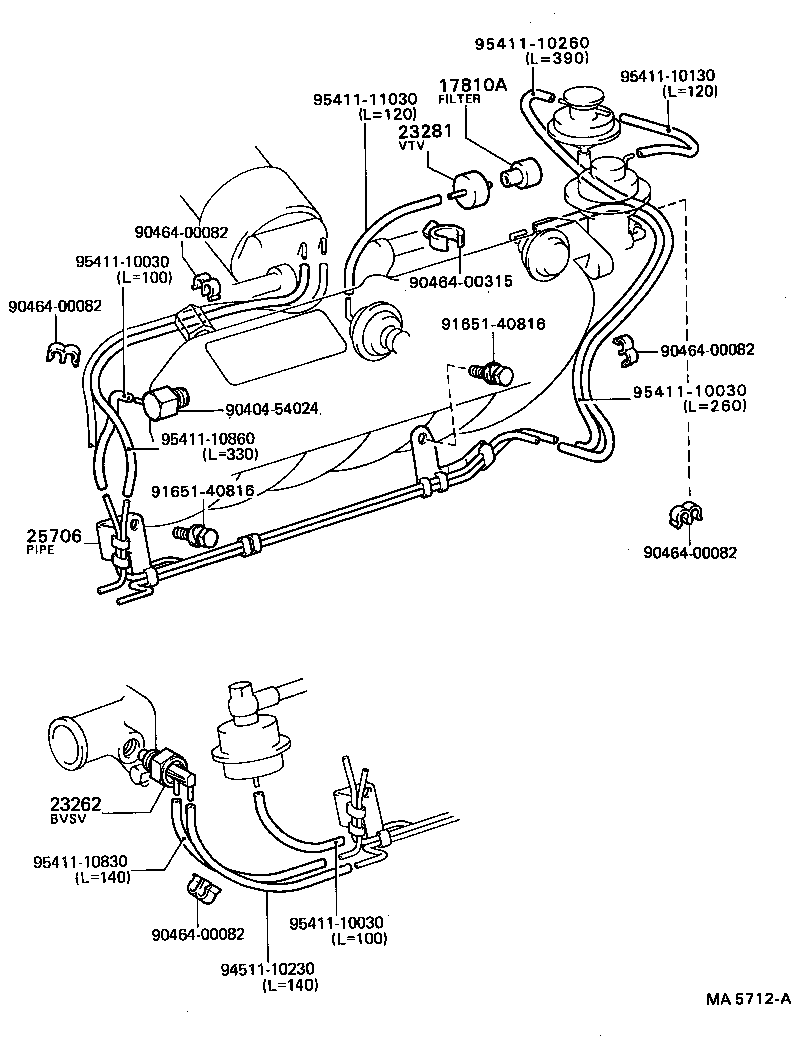

ILLUST NO. 1 OF 2(8203-8302)5MGEU..4FC

Click highlighted areas on diagram

diagram 17810A 23262 23281 25706 9040454024 9046400082 9046400082 9046400082 9046400082 9046400082 9046400315 9165140816 9165140816 9451110230 9541110030 9541110030 9541110030 9541110130 9541110260 9541110830 9541110860 9541111030
Part # Description Qty Price
17810A - FILTER ASSY, AIR
90925-06006

5MGEU,6MGEU..MZ11,12

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
25810-27010

5MGEU..MZ11

 1
90925-05046

5MGEU..MZ11..4FC

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01014

5MGEU,6MGEU..MZ11,12

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-43030

5MGEU..MZ11

 1
25706-43040

5MGEU..MZ11..4FC

 1
Common parts
90404-54024
90464-00082
90464-00315
91651-40816
94511-10230
95411-10030
95411-10130
95411-10260
95411-10830
95411-10860
95411-11030

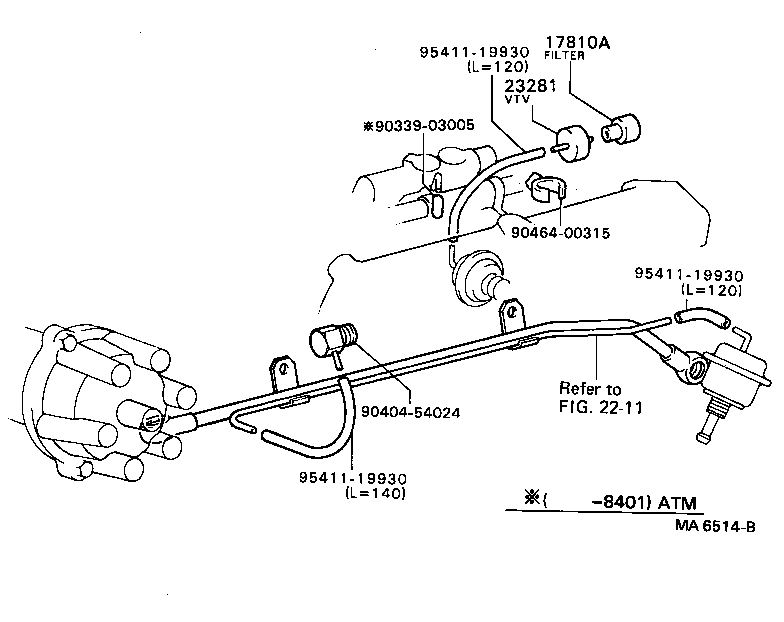

ILLUST NO. 1 OF 2(8302- )5MGEU,6MGEU

Click highlighted areas on diagram

diagram 17810A 2211 23281 9033903005 9040454024 9046400315 9541119930 9541119930 9541119930
Part # Description Qty Price
17810A - FILTER ASSY, AIR
90925-06006

5MGEU,6MGEU..MZ11,12

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01014

5MGEU,6MGEU..MZ11,12

 1
Common parts
90339-03005
90404-54024
90464-00315
95411-19930
Linked diagrams
2211

(8102- )5MGEU,6MGEU,MTEU

Click highlighted areas on diagram

diagram 9041304005 9041404001 9041404002 9046400074 9046400081 9046400082 9092501004 9092501005 9092501006 9092501008 9092501009 9092501011 9092501014 9092501015 9092501018 9092501019 9092501021 9092501027 9092501029 9092501032 9092501035 9092501036 9092501037 9092501038 9092501040 9092501041 9092501042 9092501043 9092501045 9092501046 9092501047 9092501052 9092501053 9092501055 9092501056 9092501058 9092501059 9092501060
Part # Description Qty Price
Common parts
90413-04005
90414-04001
90414-04002
90464-00074
90464-00081
90464-00082
90925-01004
90925-01005
90925-01006
90925-01008
90925-01009
90925-01011
90925-01014
90925-01015
90925-01018
90925-01019
90925-01021
90925-01027
90925-01029
90925-01032
90925-01035
90925-01036
90925-01037
90925-01038
90925-01040
90925-01041
90925-01042
90925-01043
90925-01045
90925-01046
90925-01047
90925-01052
90925-01053
90925-01055
90925-01056
90925-01058
90925-01059
90925-01060
