MZ11-HCMQF (1981)

Toyota Soarer

Production Feb 1981 - Jan 1985
Engine 5MGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8102- )GT,GTL,VX

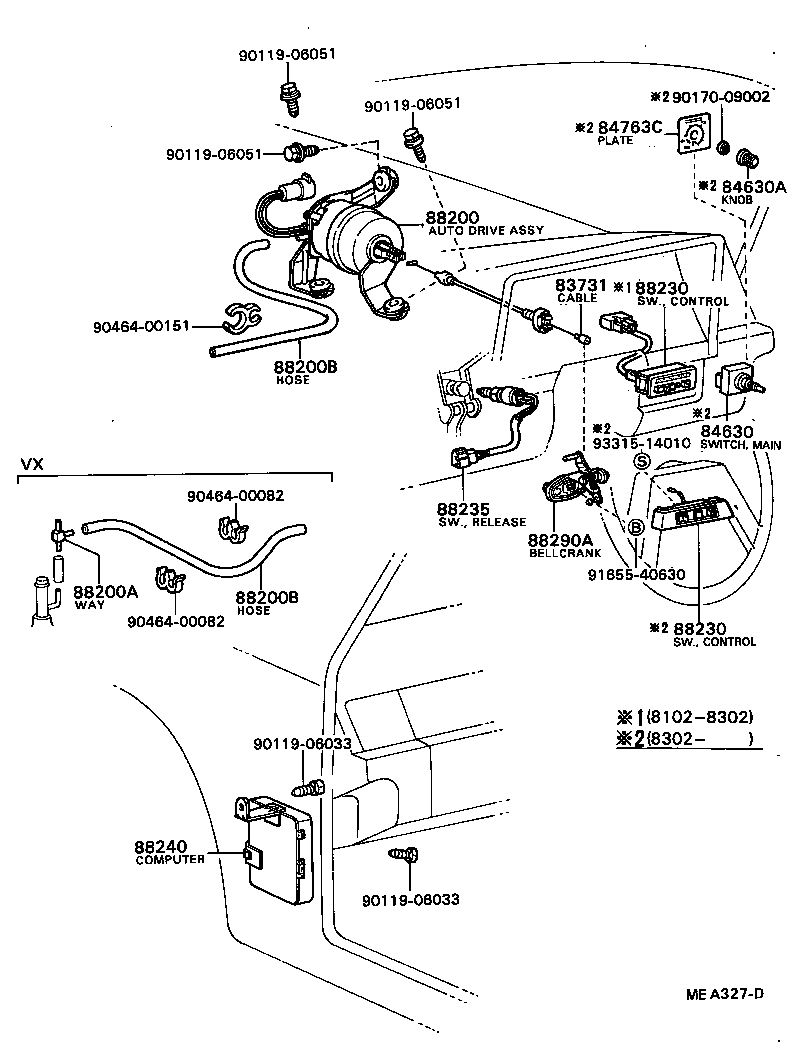

Click highlighted areas on diagram

diagram 83731 84630 84630A 84763C 88200 88200A 88200B 88200B 88230 88230 88235 88240 88290A 9011906033 9011906033 9011906051 9011906051 9011906051 9017009002 9046400082 9046400082 9046400151 9165540630 9331514010
Part # Description Qty Price
83731 - CABLE, CRUISE CONTROL
83731-24010

GZ10,MZ11,12..GT,GTL,VX

 1
84630 - SWITCH ASSY, CRUISE CONTROL MAIN
84630-24010

GZ10,MZ11..GT,VX

 1
84630A - KNOB, CRUISE CONTROL MAIN SWITCH
84115-24010

GZ10,MZ11..GT,VX

 1
84763C - PLATE, SWITCH
84763-24020

GZ10,MZ11..GT,VX

 1
88200 - CRUISE CONTROL ASSY
88200-24010

GZ10,MZ11,12..GT,GTL,VX

 1
88200B - HOSE, CRUISE CONTROL VACUUM
95411-19960

GZ10,MZ11,12..GT,GTL

*H,L=480,ﾏｰｸ=#*

 1
88200B - HOSE, CRUISE CONTROL VACUUM
95411-19960

GZ10,MZ11,12..GT,GTL

*H,L=480,ﾏｰｸ=#*

 1
88230 - SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) CONTROL
88230-22030

GZ10,MZ11..GT,VX

 1
88230 - SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) CONTROL
88230-22030

GZ10,MZ11..GT,VX

 1
88235 - SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) RELEASE
88280-14011

GZ10,MZ11,12..5F..(GT,GTL,VX)

 1
88240 - COMPUTER ASSY, CRUISE CONTROL
88240-24011

GZ10,MZ11..GT,VX

 1
88240-24010

GZ10,MZ11..GT,VX

 1
88240-24020

GZ10,MZ11..GT,VX

 1
88290A - BELLCRANK ASSY, CRUISE CONTROL
88290-24010

GZ10,MZ11,12..GT,GTL,VX

 1
Common parts
90119-06033
90119-06051
90170-09002
90464-00082
90464-00151
91655-40630
93315-14010
