MZ11-HCMQF (1981)
Toyota Soarer
Production
Feb 1981
-
Jan 1985
Engine
5MGEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8102-8302)

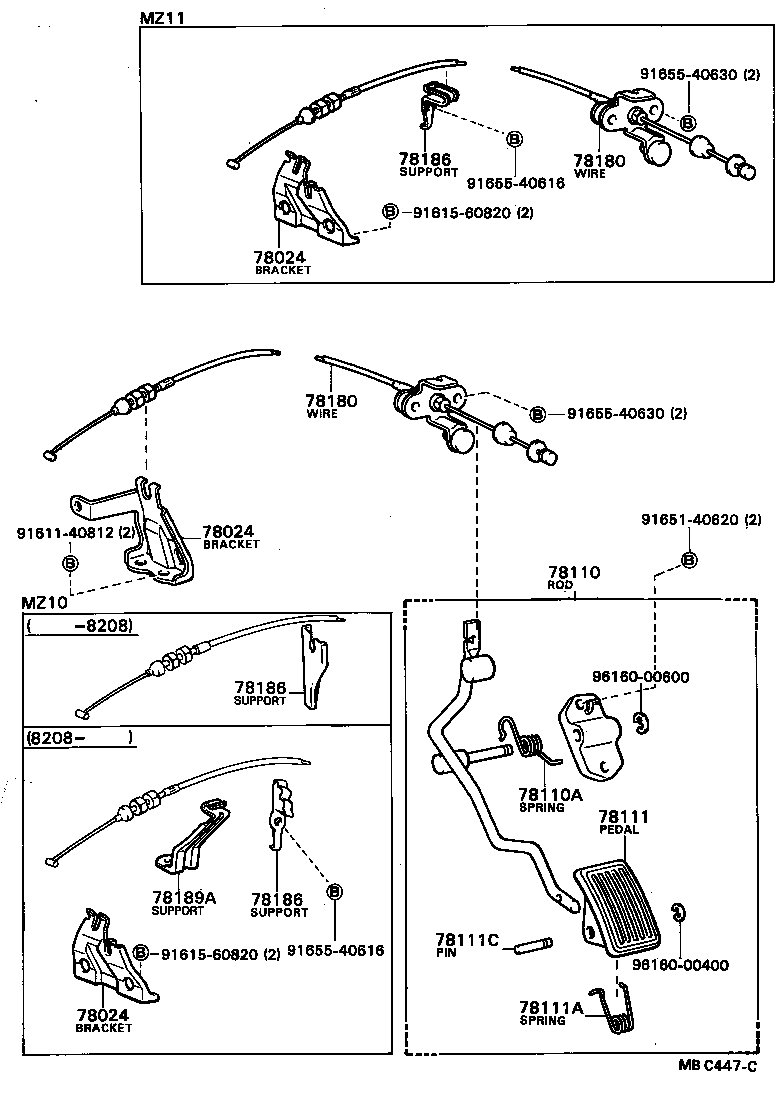

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78184-24010 |
MZ11 |
1 | ||
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78184-24010 |
MZ11 |
1 | ||
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78184-24010 |
MZ11 |
1 | ||
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-24010 |
GZ10,MZ11..5F |
1 | ||
| 78120-24021 |
MZ11 |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-29012 |
GZ10,MZ11..5F |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-12100 |
GZ10,MZ1# |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-23003 |
GZ10,MZ1# |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
GZ10,MZ1# |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-24020 |
MZ11 |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-24020 |
MZ11 |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-24020 |
MZ11,12 |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-24020 |
MZ11,12 |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-24020 |
MZ11,12 |
1 | ||
| Common parts | ||||
| 91611-40812 | ||||
| 91615-60820 | ||||
| 91651-40620 | ||||
| 91655-40616 | ||||
| 91655-40630 | ||||
| 96160-00400 | ||||
| 96160-00600 | ||||
(8302- )

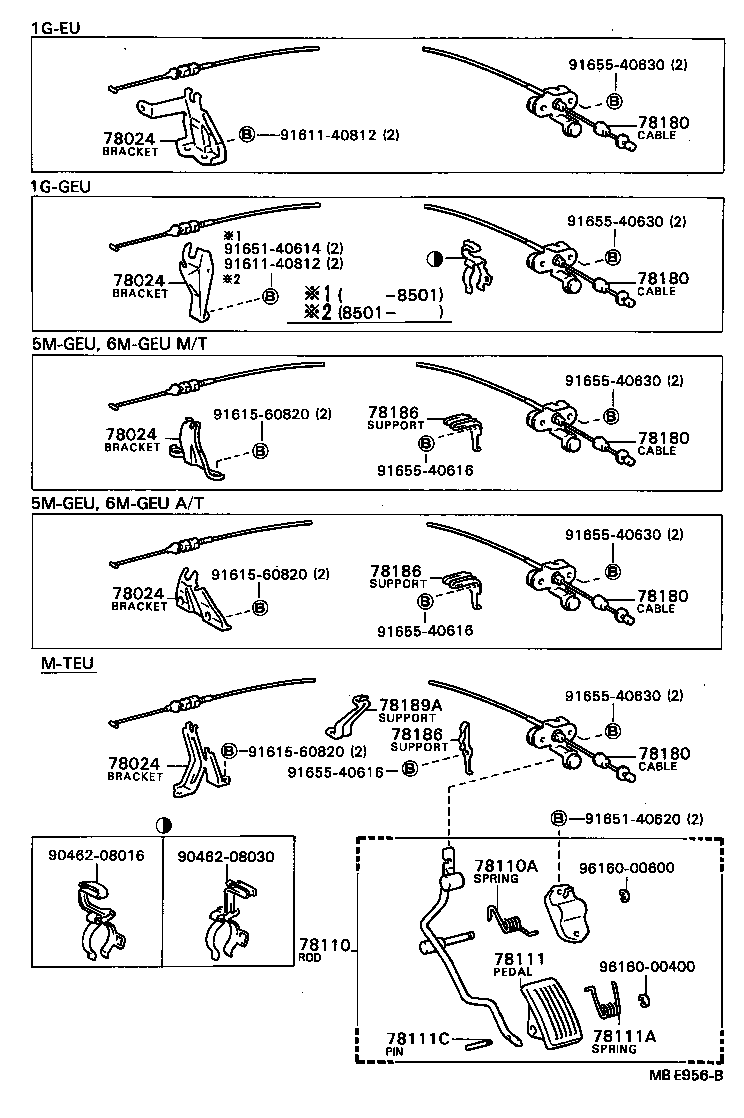

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78184-24010 |
MZ11 |
1 | ||
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78184-24010 |
MZ11 |
1 | ||
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78184-24010 |
MZ11 |
1 | ||
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78184-24010 |
MZ11 |
1 | ||
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78184-24010 |
MZ11 |
1 | ||
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-24010 |
GZ10,MZ11..5F |
1 | ||
| 78120-24021 |
MZ11 |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-29012 |
GZ10,MZ11..5F |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-12100 |
GZ10,MZ1# |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-23003 |
GZ10,MZ1# |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
GZ10,MZ1# |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-24020 |
MZ11 |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-24020 |
MZ11 |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-24020 |
MZ11 |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-24020 |
MZ11 |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-24020 |
MZ11 |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-24020 |
MZ11,12 |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-24020 |
MZ11,12 |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-24020 |
MZ11,12 |
1 | ||
| Common parts | ||||
| 90462-08016 | ||||
| 90462-08030 | ||||
| 91611-40812 | ||||
| 91615-60820 | ||||
| 91651-40614 | ||||
| 91651-40620 | ||||
| 91655-40616 | ||||
| 91655-40630 | ||||
| 96160-00400 | ||||
| 96160-00600 | ||||
