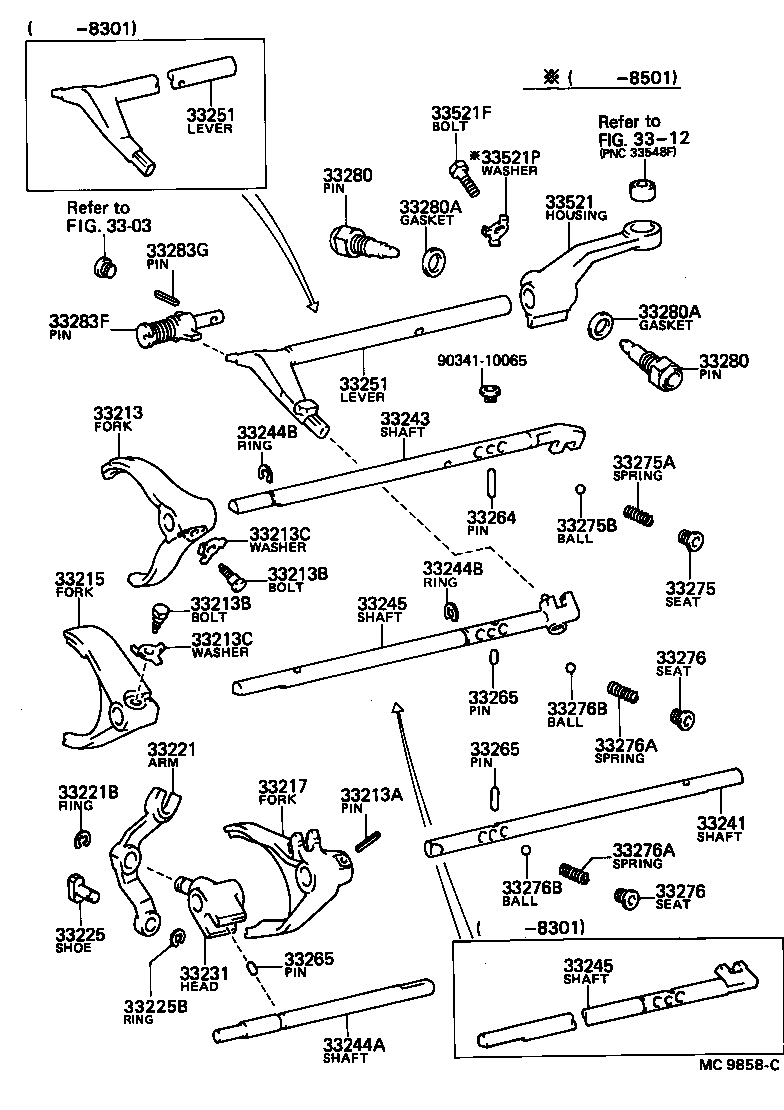

MZ11-HCMQF (1981)
Toyota Soarer
(8102- )5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33213 - FORK, 1ST & 2ND SHIFT | ||||
| 33212-22020 |
GZ10,MZ11,12..5F |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05016 |
GZ10,MZ11,12..5F |
1 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90113-06005 |
GZ10,MZ11,12..5F |
2 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90113-06005 |
GZ10,MZ11,12..5F |
2 | ||
| 33213C - WASHER, LOCK(FOR SHIFT FORK SET) | ||||
| 90215-09002 |
GZ10,MZ11,12..5F |
2 | ||
| 33213C - WASHER, LOCK(FOR SHIFT FORK SET) | ||||
| 90215-09002 |
GZ10,MZ11,12..5F |
2 | ||
| 33215 - FORK, 3RD & 4TH SHIFT | ||||
| 33213-22030 |
GZ10,MZ11,12..5F |
1 | ||
| 33217 - FORK, 5TH & REVERSE SHIFT | ||||
| 33214-22020 |
GZ10,MZ11..5F |
1 | ||
| 33221 - ARM, REVERSE SHIFT | ||||
| 33221-22010 |
GZ10,MZ11,12..5F |
1 | ||
| 33221B - RING, E(FOR REVERSE SHIFT ARM) | ||||
| 90523-10002 |
GZ10,MZ11..5F |
1 | ||
| 33225 - SHOE, SHIFT ARM | ||||
| 33225-22010 |
GZ10,MZ11,12..5F |
1 | ||
| 33225B - RING, E(FOR SHIFT ARM SHOE) | ||||
| 96160-00800 |
GZ10,MZ11,12..5F |
1 | ||
| 33231 - HEAD, REVERSE SHIFT | ||||
| 33231-22010 |
GZ10,MZ11,12..5F |
1 | ||
| 33241 - SHAFT, REVERSE SHIFT FORK | ||||
| 33244-22020 |
GZ10,MZ11,12..5F |
1 | ||
| 33243 - SHAFT, 1ST & 2ND SHIFT FORK | ||||
| 33242-22020 |
GZ10,MZ11,12..5F |
1 | ||
| 33244A - SHAFT, 5TH SHIFT FORK | ||||
| 33245-22010 |
GZ10,MZ11,12..5F |
1 | ||
| 33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
GZ10,MZ11,12..5F |
2 | ||
| 33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
GZ10,MZ11,12..5F |
2 | ||
| 33245 - SHAFT, 3RD & 4TH SHIFT FORK | ||||
| 33243-22030 |
GZ10,MZ11..5F |
1 | ||
| 33245 - SHAFT, 3RD & 4TH SHIFT FORK | ||||
| 33243-22030 |
GZ10,MZ11..5F |
1 | ||
| 33251 - LEVER, SHIFT & SELECT | ||||
| 33251-22030 |
GZ10,MZ11..5F |
1 | ||
| 33251 - LEVER, SHIFT & SELECT | ||||
| 33251-22030 |
GZ10,MZ11..5F |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 33264-22010 |
GZ10,MZ11,12..5F |
1 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 33265-22010 |
GZ10,MZ11,12..5F 長さ=11.2,外径=4,L=11.2 |
1 | ||
| 33266-22010 |
GZ10,MZ11,12..5F 長さ=13.6,外径=6,L=13.6 |
1 | ||
| 90250-06007 |
GZ10,MZ11,12..5F 長さ=8.6,外径=6,L=8.6 |
1 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 33265-22010 |
GZ10,MZ11,12..5F 長さ=11.2,外径=4,L=11.2 |
1 | ||
| 33266-22010 |
GZ10,MZ11,12..5F 長さ=13.6,外径=6,L=13.6 |
1 | ||
| 90250-06007 |
GZ10,MZ11,12..5F 長さ=8.6,外径=6,L=8.6 |
1 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 33265-22010 |
GZ10,MZ11,12..5F 長さ=11.2,外径=4,L=11.2 |
1 | ||
| 33266-22010 |
GZ10,MZ11,12..5F 長さ=13.6,外径=6,L=13.6 |
1 | ||
| 90250-06007 |
GZ10,MZ11,12..5F 長さ=8.6,外径=6,L=8.6 |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12004 |
GZ10,MZ11,12..5F 外径=18 |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-13004 |
GZ10,MZ11,12..5F 長さ=20.65 |
1 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
GZ10,MZ11,12..5F |
1 | ||
| 33276 - SEAT, SHIFT DETENT BALL SPRING, NO.2 | ||||
| 90341-12005 |
GZ10,MZ11,12..5F |
2 | ||
| 33276 - SEAT, SHIFT DETENT BALL SPRING, NO.2 | ||||
| 90341-12005 |
GZ10,MZ11,12..5F |
2 | ||
| 33276A - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL) | ||||
| 90501-13004 |
GZ10,MZ11,12..5F |
2 | ||
| 33276A - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL) | ||||
| 90501-13004 |
GZ10,MZ11,12..5F |
2 | ||
| 33276B - BALL, SHIFT DETENT, NO.2 | ||||
| 90360-10003 |
GZ10,MZ11,12..5F |
2 | ||
| 33276B - BALL, SHIFT DETENT, NO.2 | ||||
| 90360-10003 |
GZ10,MZ11,12..5F |
2 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-22020 |
GZ10,MZ11,12..5F RH |
1 | ||
| 33280-22030 |
GZ10,MZ11,12..5F LH |
1 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-22020 |
GZ10,MZ11,12..5F RH |
1 | ||
| 33280-22030 |
GZ10,MZ11,12..5F LH |
1 | ||
| 33280A - GASKET, REVERSE RESTRICT PIN | ||||
| 90430-18007 |
GZ10,MZ11..5F |
2 | ||
| 33280A - GASKET, REVERSE RESTRICT PIN | ||||
| 90430-18007 |
GZ10,MZ11..5F |
2 | ||
| 33283F - PIN, REVERSE RESTRICT | ||||
| 33280-22010 |
GZ10,MZ11,12..5F |
1 | ||
| 33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) | ||||
| 90254-05016 |
GZ10,MZ11,12..5F |
1 | ||
| 33521 - HOUSING, SHIFT LEVER | ||||
| 33502-22180 |
GZ10,MZ11,12..5F |
1 | ||
| 33521F - PIN OR BOLT (FOR SHIFT LEVER HOUSING) | ||||
| 90113-08001 |
GZ10,MZ11..5F |
1 | ||
| 33521P - WASHER, LOCK (FOR SHIFT LEVER HOUSING) | ||||
| 90215-09001 |
GZ10,MZ11..5F |
1 | ||
| Common parts | ||||
| 90341-10065 | ||||
| Linked diagrams | ||||
| 3303 | ||||
| 3312 | ||||
