MZ11-HCMQF (1981)

Toyota Soarer

Production Feb 1981 - Jan 1985
Engine 5MGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8102- )5MGEU,6MGEU

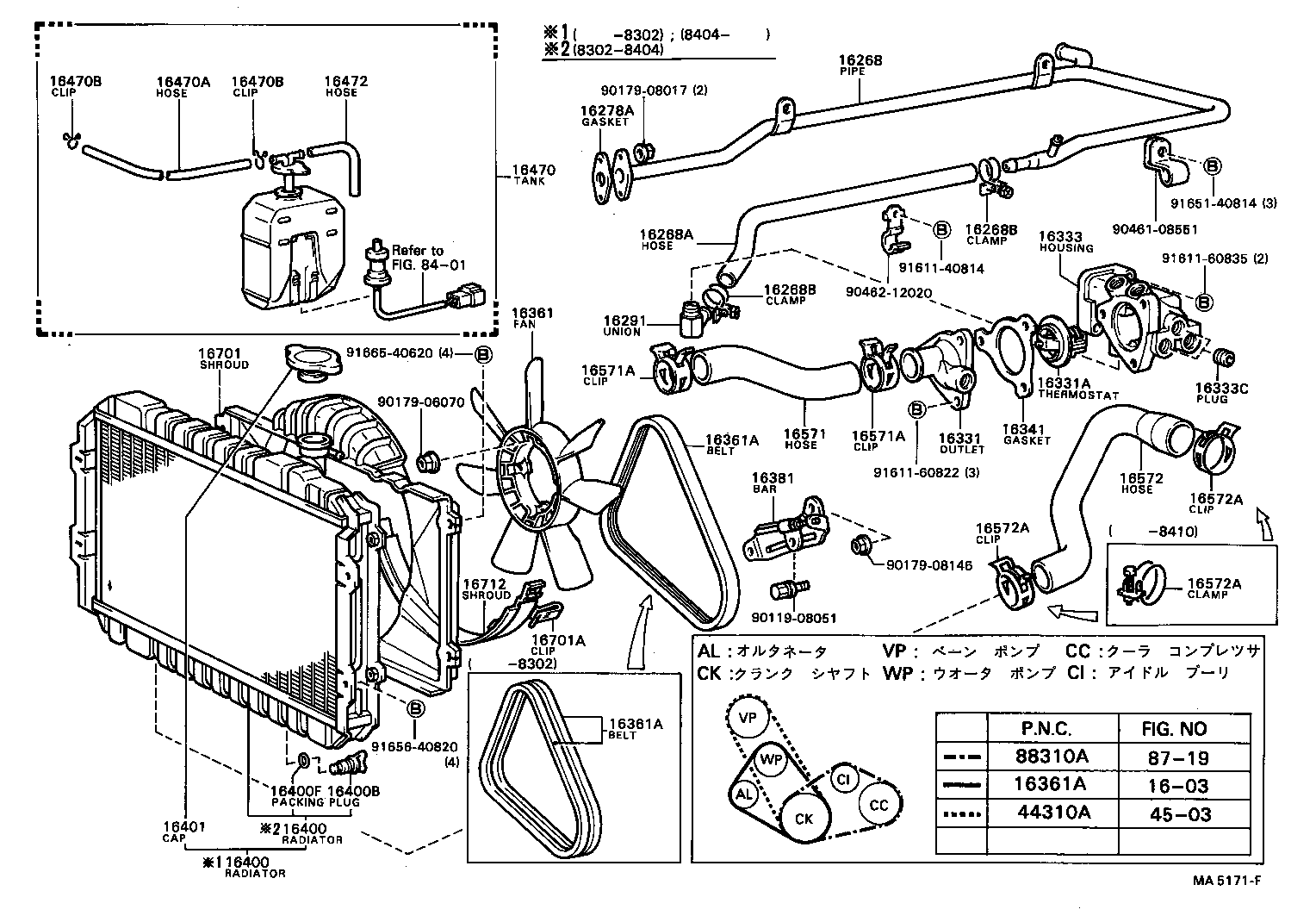

Click highlighted areas on diagram

diagram 1603 16268 16268A 16268B 16268B 16278A 16291 16331 16331A 16333 16333C 16341 16361 16361A 16361A 16361A 16381 16400 16400 16400B 16400F 16401 16470 16470A 16470B 16470B 16472 16571 16571A 16571A 16572 16572A 16572A 16572A 16701 16701A 16712 44310A 4503 8401 8719 88310A 9011908051 9017906070 9017908017 9017908146 9046108551 9046212020 9161140814 9161160822 9161160835 9165140814 9165640820 9166540620
Part # Description Qty Price
16268 - PIPE, WATER BY-PASS, NO.1
16268-41140

5MGEU,6MGEU,MTEU..MZ1#

 1
16268A - HOSE(FOR WATER BY-PASS PIPE)
16267-43010

5MGEU,6MGEU..MZ11,12

 1
16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE)
96112-10220

5MGEU,6MGEU,MTEU..MZ1#

 2
16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE)
96112-10220

5MGEU,6MGEU,MTEU..MZ1#

 2
16278A - GASKET, WATER BY-PASS
16347-45010

5MGEU,6MGEU,MTEU..MZ1#

 1
16291 - JOINT, WATER HOSE
90404-53031

5MGEU..MZ11..5F

 1
16331 - OUTLET, WATER
16331-43010

5MGEU,6MGEU..MZ11,12

 1
16331A - THERMOSTAT
90916-03055

5MGEU,6MGEU..MZ11,12

*WAX 88−100,*WAX 88-100

 1
16333 - HOUSING, WATER OUTLET
16333-43010

5MGEU..MZ11

 1
16333-43011

5MGEU..MZ11

 1
16333C - PLUG, W/HEAD TAPER SCREW
90344-53011

5MGEU,6MGEU..MZ11,12

 3
16341 - GASKET, WATER OUTLET
16341-43010

5MGEU,6MGEU..MZ11,12

 1
16361 - FAN
16361-41090

5MGEU,6MGEU,MTEU..MZ1#

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02076

5MGEU,MTEU..MZ1#

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02076

5MGEU,MTEU..MZ1#

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02076

5MGEU,MTEU..MZ1#

 1
16381 - BAR, FAN BELT ADJUSTING
16381-45011

5MGEU,MTEU..MZ1#

 1
16400 - RADIATOR ASSY
16400-43010

5MGEU..MZ11..5F

 1
16410-70060

5MGEU..MZ11..5F

 1
16400 - RADIATOR ASSY
16400-43010

5MGEU..MZ11..5F

 1
16410-70060

5MGEU..MZ11..5F

 1
16400B - PLUG, RADIATOR DRAIN COCK
90910-09054

5MGEU,6MGEU,MTEU..MZ1#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
96710-01007

5MGEU,MTEU..MZ1#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-36011

5MGEU,6MGEU,MTEU..MZ1#

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-70010

5MGEU,MTEU..MZ1#

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12043

5MGEU,6MGEU,MTEU..MZ1#

*H,L=360

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

5MGEU,6MGEU,MTEU..MZ1#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

5MGEU,6MGEU,MTEU..MZ1#

 2
16472 - HOSE, BREATHER
85338-30010

5MGEU,MTEU..MZ1#

 1
16571 - HOSE, RADIATOR, INLET
16571-43010

5MGEU,6MGEU..MZ11,12

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37001

5MGEU,6MGEU,MTEU..MZ1#

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37001

5MGEU,6MGEU,MTEU..MZ1#

 2
16572 - HOSE, RADIATOR, OUTLET
16572-43010

5MGEU..MZ11

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96111-10460

5MGEU,MTEU..MZ1#

 2
96111-10460

5MGEU,MTEU..MZ1#

 2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96111-10460

5MGEU,MTEU..MZ1#

 2
96111-10460

5MGEU,MTEU..MZ1#

 2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96111-10460

5MGEU,MTEU..MZ1#

 2
96111-10460

5MGEU,MTEU..MZ1#

 2
16701 - SHROUD SUB-ASSY, FAN
16711-43020

5MGEU..MZ11

 1
16701A - CLIP(FOR FAN SHROUD)
90468-06013

5MGEU,6MGEU,MTEU..MZ1#

W/COOLER

 2
16712 - SHROUD, FAN, NO.2
16712-43020

5MGEU,MTEU..MZ1#

W/COOLER

 1
44310A - BELT, V(FOR VANE PUMP)
90916-02107

MZ1#

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99322-00980

MZ11,12

 1
Common parts
90119-08051
90179-06070
90179-08017
90179-08146
90461-08551
90462-12020
91611-40814
91611-60822
91611-60835
91651-40814
91656-40820
91665-40620
Linked diagrams
1603
4503
8401
8719
