MZ10-HCPZT (1981)

Toyota Soarer

Production Jul 1981 - Dec 1985
Engine MTEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8107- )MTEU

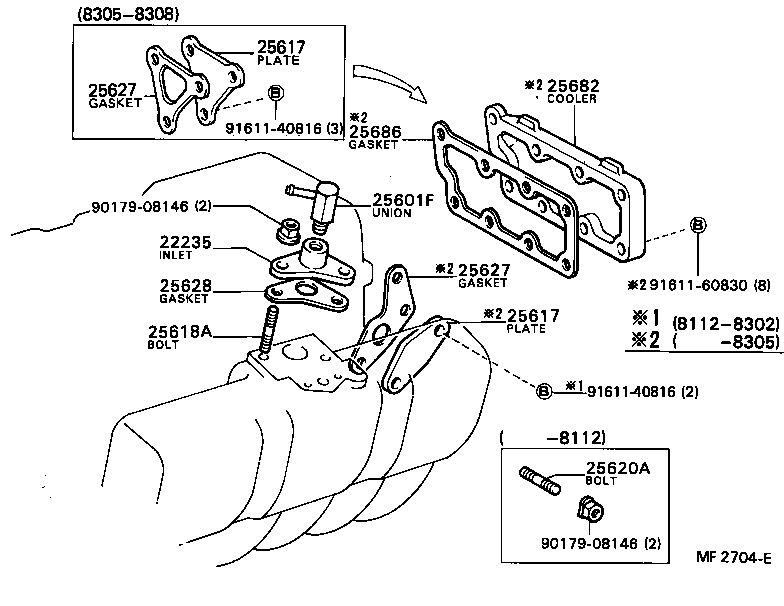

Click highlighted areas on diagram

diagram 22235 25601F 25617 25617 25618A 25620A 25627 25627 25628 25682 25686 9017908146 9017908146 9161140816 9161140816 9161160830
Part # Description Qty Price
22235 - INLET, AUXILIARY AIR
22235-43010

MTEU..MZ10

 1
25601F - UNION(FOR EGR PIPE, NO.1)
90404-53027

MTEU..MZ10

 1
25617 - PLATE, EGR HOLE COVER
25617-43010

MTEU..MZ10

 1
25617-43030

MTEU..MZ10

EGR

 1
25617 - PLATE, EGR HOLE COVER
25617-43010

MTEU..MZ10

 1
25617-43030

MTEU..MZ10

EGR

 1
25618A - BOLT, STUD(FOR EGR INLET)
90116-08025

MTEU..MZ10

 2
25620A - BOLT, STUD(FOR EGR VALVE)
90116-08025

5MGEU,MTEU..MZ1#

L=34,S=16&11

 2
25627 - GASKET, EGR VALVE
25627-43040

MTEU..MZ10

 1
25627-41020

MTEU..MZ10

 1
25627 - GASKET, EGR VALVE
25627-43040

MTEU..MZ10

 1
25627-41020

MTEU..MZ10

 1
25628 - GASKET, EGR INLET
25628-45020

MTEU..MZ10

 1
25682 - COOLER, EGR, NO.2
25682-45020

MTEU..MZ10

 1
25686 - GASKET, EGR COOLER, NO.2
25686-45010

MTEU..MZ10

 1
Common parts
90179-08146
91611-40816
91611-60830
