MZ10-HCPNT (1981)

Toyota Soarer

Production Jul 1981 - Feb 1983
Engine MTEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8102-8302)

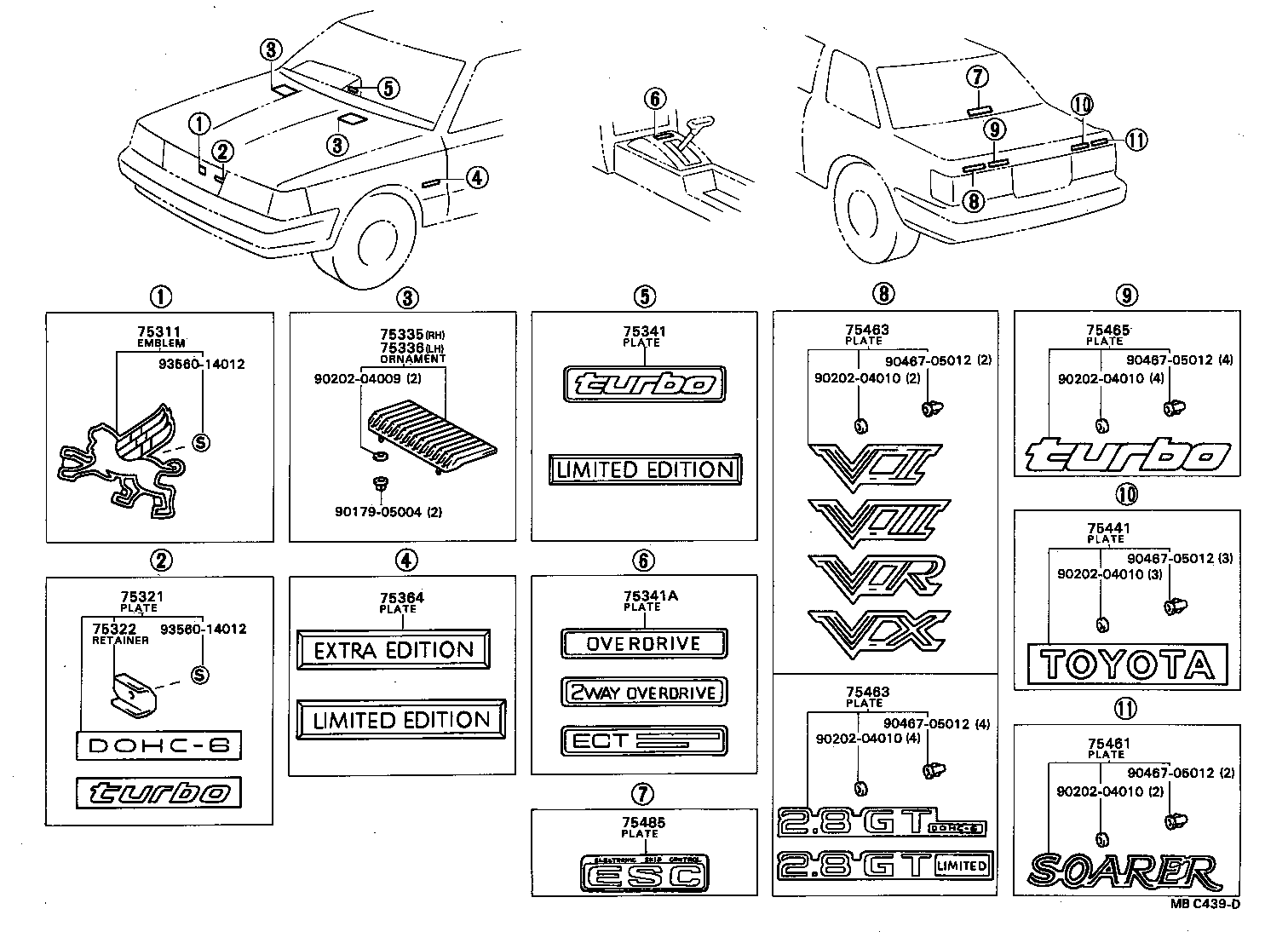

Click highlighted areas on diagram

diagram 75311 75321 75322 75335 75336 75341 75341A 75364 75441 75461 75463 75463 75465 75485 9017905004 9020204009 9020204010 9020204010 9020204010 9020204010 9020204010 9046705012 9046705012 9046705012 9046705012 9046705012 9356014012 9356014012
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-29265

GZ10,MZ1#

 1
75321 - PLATE, RADIATOR GRILLE OR FRONT PANEL NAME
75312-29025

MZ10

TURBO

 1
75322 - RETAINER, RADIATOR GRILLE NAME PLATE
75318-24010

MZ1#

 1
75335 - ORNAMENT, HOOD RELIEF, RH
75335-2401001

GZ10,MZ1#

BLACK,BLACK,TRIM2#

 1
75335-2401008

GZ10,MZ1#

SUPER WHITE,IVORY

 1
75335-2401005

GZ10,MZ1#

BEIGE-M,BEIGE,TRIM4#

 1
75335-2401003

GZ10,MZ1#

SILVER GRAY-M,GRAY,TRIM1#

 1
75336 - ORNAMENT, HOOD RELIEF, LH
75336-2401005

GZ10,MZ1#

BEIGE-M,BEIGE,TRIM4#

 1
75336-2401001

GZ10,MZ1#

BLACK,BLACK,TRIM2#

 1
75336-2401003

GZ10,MZ1#

SILVER GRAY-M,GRAY,TRIM1#

 1
75336-2401008

GZ10,MZ1#

SUPER WHITE,IVORY

 1
75341 - PLATE, INSTRUMENT PANEL NAME, NO.1
55511-24020

MZ10

TURBO

 1
75341A - PLATE, CONSOLE BOX NAME, NO.1
58835-20020

MZ1#..4FC

OVER DRIVE

 1
75441 - PLATE, REAR NAME, NO.1
75441-24010

GZ10,MZ1#

TOYOTA

 1
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75442-24010

GZ10,MZ1#

SOARER

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75443-24020

GZ10,MZ10..V2

V2

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75443-24020

GZ10,MZ10..V2

V2

 1
75465 - PLATE, REAR NAME, NO.5 (MECHANISM)
75444-2401006

MZ10

TURBO,ORENGE & BLACK,BROWN,TRIM2#

 1
75444-2401008

MZ10

TURBO,WHITE & BLACK,IVORY,TRIM2#

 1
Common parts
90179-05004
90202-04009
90202-04010
90467-05012
93560-14012
