JZZ31-ACPVF (1994)

Toyota Soarer

Production Jan 1994 - Dec 2000
Engine 2JZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9401- )

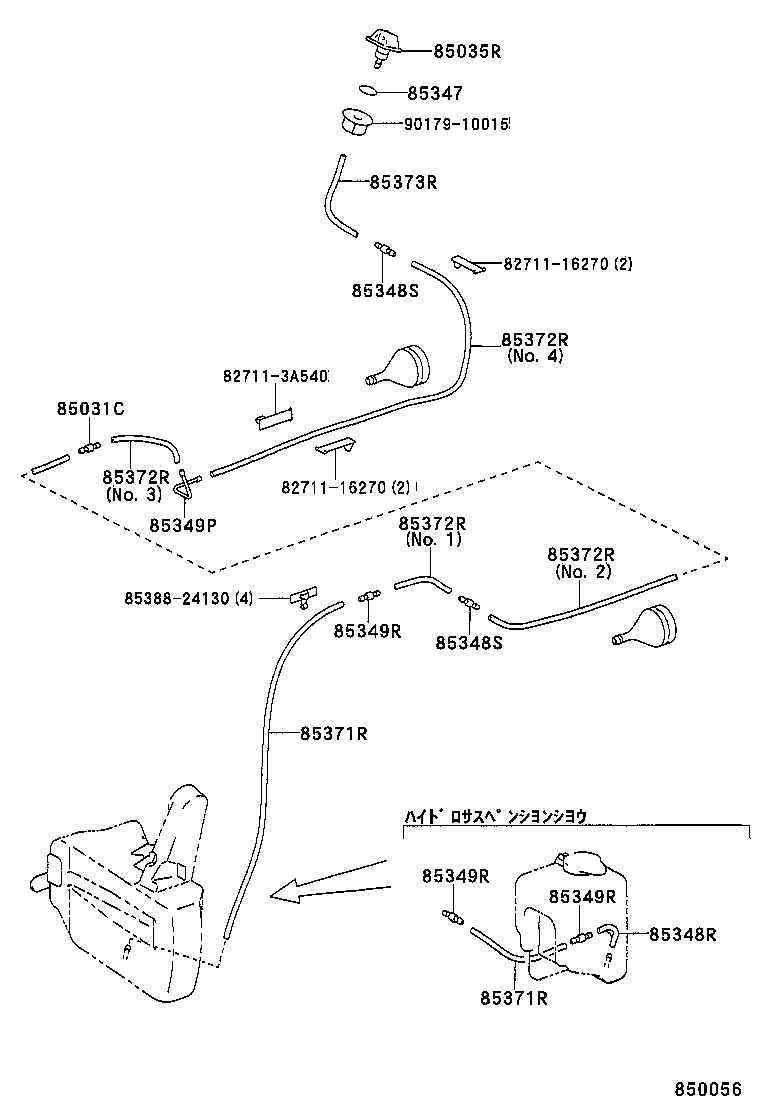

Click highlighted areas on diagram

diagram 8271116270 8271116270 827113A540 85031C 85035R 85347 85348R 85348S 85348S 85349P 85349R 85349R 85349R 85371R 85371R 85372R 85372R 85372R 85372R 85373R 8538824130 9017910015
Part # Description Qty Price
85031C - VALVE SUB-ASSY, WASHER
85031-90A00

JZZ3#,UZZ3#

 1
85035R - NOZZLE SUB-ASSY, REAR WASHER
85391-22010

JZZ3#,UZZ31

 1
85035-12370

JZZ3#,UZZ3#

 1
85347 - PACKING, REAR WASHER
85347-12010

JZZ3#,UZZ3#

 1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85349-89122

JZZ3#,UZZ3#

 2
85348S - JOINT, REAR WASHER ELBOW, NO.1
85349-89122

JZZ3#,UZZ3#

 2
85349P - JOINT, REAR WASHER ELBOW, NO.3
85375-24180

JZZ3#,UZZ3#

 1
85349R - JOINT, REAR WASHER HOSE, NO.5
85349-89122

JZZ3#,UZZ30,31

 1
85349R - JOINT, REAR WASHER HOSE, NO.5
85349-89122

JZZ3#,UZZ30,31

 1
85349R - JOINT, REAR WASHER HOSE, NO.5
85349-89122

JZZ3#,UZZ30,31

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90446-07001

JZZ3#,UZZ30,31

*H,L=1200

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90446-07001

JZZ3#,UZZ30,31

*H,L=1200

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90099-33589

JZZ3#,UZZ3#

*H,L=2100,NO.4

 1
90446-07001

JZZ30,UZZ30,31

*H,L=1000,NO.5

 1
90099-33080

JZZ3#,UZZ3#

*H,L=40,NO.1

 1
90446-07001

JZZ3#,UZZ3#

*H,L=780,NO.3,NO.2

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90099-33589

JZZ3#,UZZ3#

*H,L=2100,NO.4

 1
90446-07001

JZZ30,UZZ30,31

*H,L=1000,NO.5

 1
90099-33080

JZZ3#,UZZ3#

*H,L=40,NO.1

 1
90446-07001

JZZ3#,UZZ3#

*H,L=780,NO.3,NO.2

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90099-33589

JZZ3#,UZZ3#

*H,L=2100,NO.4

 1
90446-07001

JZZ30,UZZ30,31

*H,L=1000,NO.5

 1
90099-33080

JZZ3#,UZZ3#

*H,L=40,NO.1

 1
90446-07001

JZZ3#,UZZ3#

*H,L=780,NO.3,NO.2

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90099-33589

JZZ3#,UZZ3#

*H,L=2100,NO.4

 1
90446-07001

JZZ30,UZZ30,31

*H,L=1000,NO.5

 1
90099-33080

JZZ3#,UZZ3#

*H,L=40,NO.1

 1
90446-07001

JZZ3#,UZZ3#

*H,L=780,NO.3,NO.2

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33080

JZZ3#,UZZ3#

*H,L=130

 1
Common parts
82711-16270
82711-3A540
85388-24130
90179-10015
