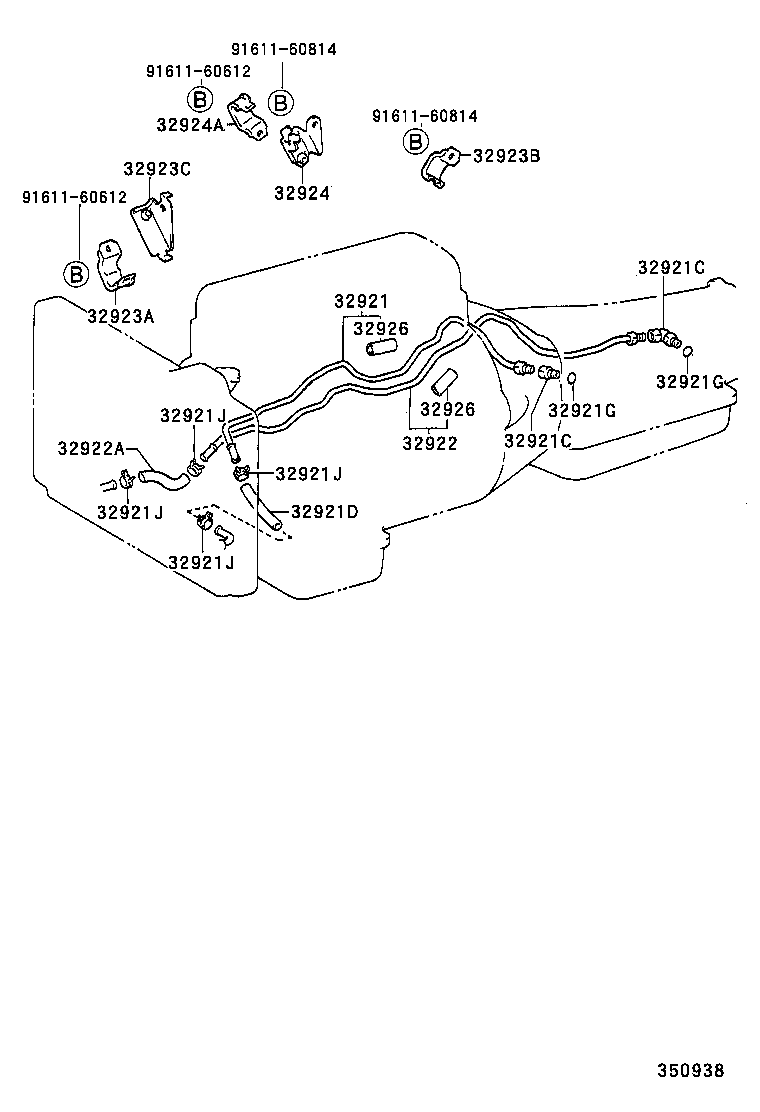

JZZ31-ACPVF (1994)
Toyota Soarer
(9105-9709)JZZ3#..ATM ; (9709- )JZZ30..ATM
A340E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-24150 |
UZZ30,31 |
1 | ||
| 32921-24200 |
JZZ31 |
1 | ||
| 32921-24130 |
JZZ31 |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-16029 |
JZZ3#,UZZ3#..ATM ﾌﾛﾝﾄ |
1 | ||
| 90407-16009 |
JZZ3#,UZZ3#..ATM ﾘﾔ |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-16029 |
JZZ3#,UZZ3#..ATM ﾌﾛﾝﾄ |
1 | ||
| 90407-16009 |
JZZ3#,UZZ3#..ATM ﾘﾔ |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 32942-35011 |
JZZ3#..ATM |
1 | ||
| 90445-17100 |
JZZ31 |
1 | ||
| 90445-17103 |
UZZ30,31 |
1 | ||
| 90445-17124 |
JZZ31 |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
JZZ3#,UZZ3#..ATM |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
JZZ3#,UZZ3#..ATM |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
JZZ3#,UZZ31..ATM |
4 | ||
| 90467-16013 |
JZZ3#,UZZ3#..ATM |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
JZZ3#,UZZ31..ATM |
4 | ||
| 90467-16013 |
JZZ3#,UZZ3#..ATM |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
JZZ3#,UZZ31..ATM |
4 | ||
| 90467-16013 |
JZZ3#,UZZ3#..ATM |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
JZZ3#,UZZ31..ATM |
4 | ||
| 90467-16013 |
JZZ3#,UZZ3#..ATM |
4 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-24160 |
UZZ30,31 |
1 | ||
| 32922-24210 |
JZZ31 |
1 | ||
| 32922-24140 |
JZZ31 |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 32942-22161 |
UZZ30,31 |
1 | ||
| 90445-17104 |
JZZ31 |
1 | ||
| 32941-22201 |
JZZ31 |
1 | ||
| 90445-17100 |
JZZ31 |
1 | ||
| 32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 32929-24070 |
JZZ3#..ATM |
1 | ||
| 90462-12074 |
UZZ30,31 |
1 | ||
| 32929-24070 |
JZZ31 |
1 | ||
| 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 32929-24060 |
JZZ31 |
1 | ||
| 32929-24060 |
JZZ3#..ATM |
1 | ||
| 32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4 | ||||
| 32924-22090 |
JZZ3#..ATM |
1 | ||
| 32924-24070 |
UZZ30,31 |
1 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32923-30161 |
JZZ31 |
1 | ||
| 32924-30230 |
JZZ31 |
1 | ||
| 32924A - CLAMP(FOR OIL COOLER TUBE, NO.2) | ||||
| 32929-24070 |
JZZ31 |
1 | ||
| 32929-24070 |
JZZ3#..ATM |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
JZZ3#..ATM 長さ=35,内径=10 |
6 | ||
| 32926-30020 |
JZZ31 NO.1 |
4 | ||
| 32926-30030 |
JZZ31 NO.2 |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
JZZ3#..ATM 長さ=35,内径=10 |
6 | ||
| 32926-30020 |
JZZ31 NO.1 |
4 | ||
| 32926-30030 |
JZZ31 NO.2 |
2 | ||
| Common parts | ||||
| 91611-60612 | ||||
| 91611-60814 | ||||

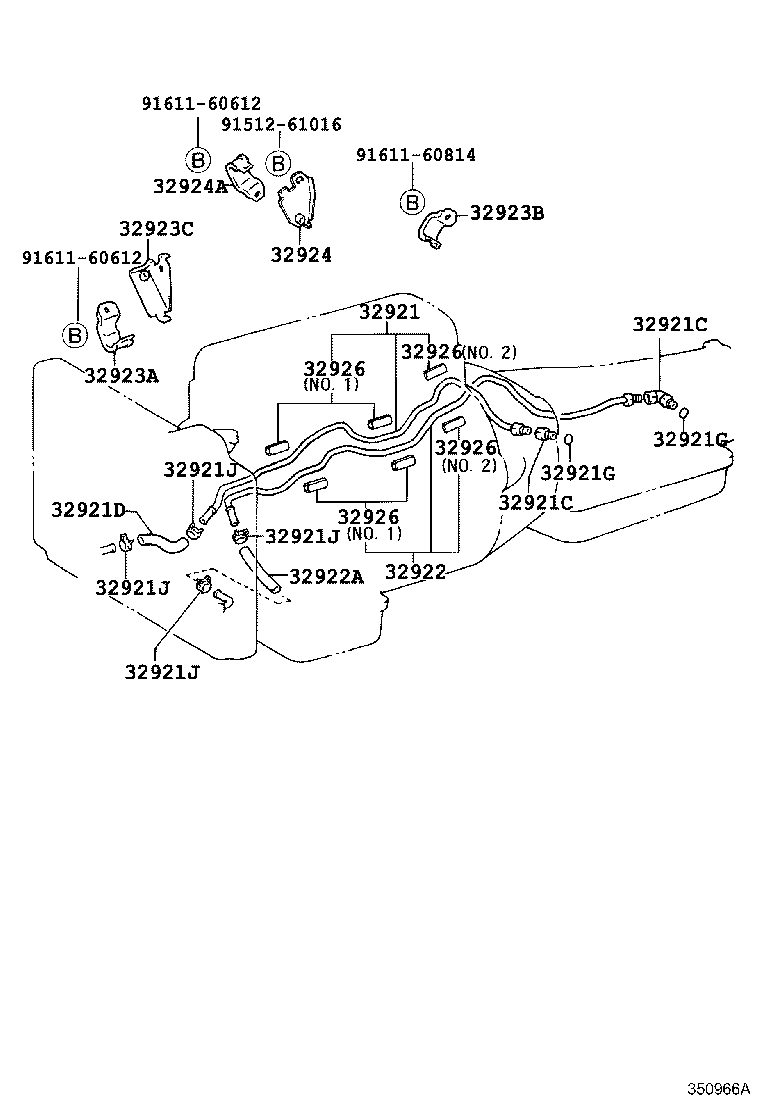

(9709- )JZZ31
A340E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-24150 |
UZZ30,31 |
1 | ||
| 32921-24200 |
JZZ31 |
1 | ||
| 32921-24130 |
JZZ31 |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-16029 |
JZZ3#,UZZ3#..ATM ﾌﾛﾝﾄ |
1 | ||
| 90407-16009 |
JZZ3#,UZZ3#..ATM ﾘﾔ |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-16029 |
JZZ3#,UZZ3#..ATM ﾌﾛﾝﾄ |
1 | ||
| 90407-16009 |
JZZ3#,UZZ3#..ATM ﾘﾔ |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 32942-35011 |
JZZ3#..ATM |
1 | ||
| 90445-17100 |
JZZ31 |
1 | ||
| 90445-17103 |
UZZ30,31 |
1 | ||
| 90445-17124 |
JZZ31 |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
JZZ3#,UZZ3#..ATM |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
JZZ3#,UZZ3#..ATM |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
JZZ3#,UZZ31..ATM |
4 | ||
| 90467-16013 |
JZZ3#,UZZ3#..ATM |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
JZZ3#,UZZ31..ATM |
4 | ||
| 90467-16013 |
JZZ3#,UZZ3#..ATM |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
JZZ3#,UZZ31..ATM |
4 | ||
| 90467-16013 |
JZZ3#,UZZ3#..ATM |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
JZZ3#,UZZ31..ATM |
4 | ||
| 90467-16013 |
JZZ3#,UZZ3#..ATM |
4 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-24160 |
UZZ30,31 |
1 | ||
| 32922-24210 |
JZZ31 |
1 | ||
| 32922-24140 |
JZZ31 |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 32942-22161 |
UZZ30,31 |
1 | ||
| 90445-17104 |
JZZ31 |
1 | ||
| 32941-22201 |
JZZ31 |
1 | ||
| 90445-17100 |
JZZ31 |
1 | ||
| 32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 32929-24070 |
JZZ3#..ATM |
1 | ||
| 90462-12074 |
UZZ30,31 |
1 | ||
| 32929-24070 |
JZZ31 |
1 | ||
| 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 32929-24060 |
JZZ31 |
1 | ||
| 32929-24060 |
JZZ3#..ATM |
1 | ||
| 32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4 | ||||
| 32924-22090 |
JZZ3#..ATM |
1 | ||
| 32924-24070 |
UZZ30,31 |
1 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32923-30161 |
JZZ31 |
1 | ||
| 32924-30230 |
JZZ31 |
1 | ||
| 32924A - CLAMP(FOR OIL COOLER TUBE, NO.2) | ||||
| 32929-24070 |
JZZ31 |
1 | ||
| 32929-24070 |
JZZ3#..ATM |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
JZZ3#..ATM 長さ=35,内径=10 |
6 | ||
| 32926-30020 |
JZZ31 NO.1 |
4 | ||
| 32926-30030 |
JZZ31 NO.2 |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
JZZ3#..ATM 長さ=35,内径=10 |
6 | ||
| 32926-30020 |
JZZ31 NO.1 |
4 | ||
| 32926-30030 |
JZZ31 NO.2 |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
JZZ3#..ATM 長さ=35,内径=10 |
6 | ||
| 32926-30020 |
JZZ31 NO.1 |
4 | ||
| 32926-30030 |
JZZ31 NO.2 |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
JZZ3#..ATM 長さ=35,内径=10 |
6 | ||
| 32926-30020 |
JZZ31 NO.1 |
4 | ||
| 32926-30030 |
JZZ31 NO.2 |
2 | ||
| Common parts | ||||
| 91512-61016 | ||||
| 91611-60612 | ||||
| 91611-60814 | ||||
