JZZ30-ACPZZ (1991)
Toyota Soarer
Production
May 1991
-
Jan 1994
Engine
1JZGTE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

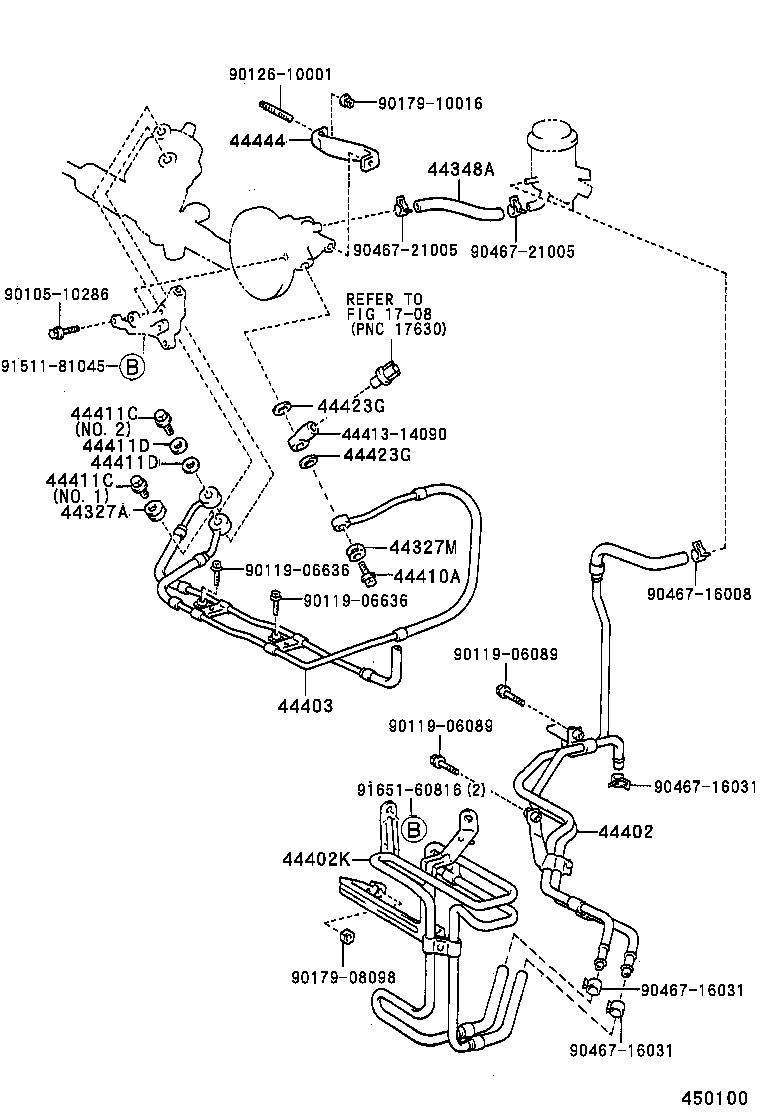

(9105-9106)JZZ30
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-12010 |
JZZ30,UZZ30,31 |
1 | ||
| 44327M - GASKET, PRESSURE PORT, NO.2 | ||||
| 44327-12010 |
JZZ30 |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-24040 |
JZZ30 |
1 | ||
| 44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1 | ||||
| 44402-24080 |
JZZ30 |
1 | ||
| 44402-24081 |
JZZ30 |
1 | ||
| 44402K - COOLER SUB-ASSY, POWER STEERING OIL, NO.2 | ||||
| 44402-24101 |
JZZ30 |
1 | ||
| 44402-24100 |
JZZ30 |
1 | ||
| 44403 - TUBE SUB-ASSY, PRESSURE FEED, NO.1 | ||||
| 44403-24010 |
JZZ30 |
1 | ||
| 44403-24011 |
JZZ30 |
1 | ||
| 44403-24012 |
JZZ30 |
1 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90401-16013 |
JZZ30 |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16013 |
JZZ30,UZZ30,31 NO.1 |
1 | ||
| 90401-17002 |
JZZ3#,UZZ30,31 NO.2 |
1 | ||
| 96341-11703 |
JZZ3#,UZZ30,31 |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16013 |
JZZ30,UZZ30,31 NO.1 |
1 | ||
| 90401-17002 |
JZZ3#,UZZ30,31 NO.2 |
1 | ||
| 96341-11703 |
JZZ3#,UZZ30,31 |
1 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-17005 |
JZZ30,UZZ30,31 |
2 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-17005 |
JZZ30,UZZ30,31 |
2 | ||
| 44423G - GASKET, UNION BOLT | ||||
| 90430-16242 |
JZZ30,UZZ32 |
2 | ||
| 44423G - GASKET, UNION BOLT | ||||
| 90430-16242 |
JZZ30,UZZ32 |
2 | ||
| 44444 - STAY, PUMP, REAR | ||||
| 44444-22090 |
JZZ30 |
1 | ||
| Common parts | ||||
| 44413-14090 | ||||
| 90105-10286 | ||||
| 90119-06089 | ||||
| 90119-06636 | ||||
| 90126-10001 | ||||
| 90179-08098 | ||||
| 90179-10016 | ||||
| 90467-16008 | ||||
| 90467-16031 | ||||
| 90467-21005 | ||||
| 91511-81045 | ||||
| 91651-60816 | ||||
| Linked diagrams | ||||
| 1708 | ||||

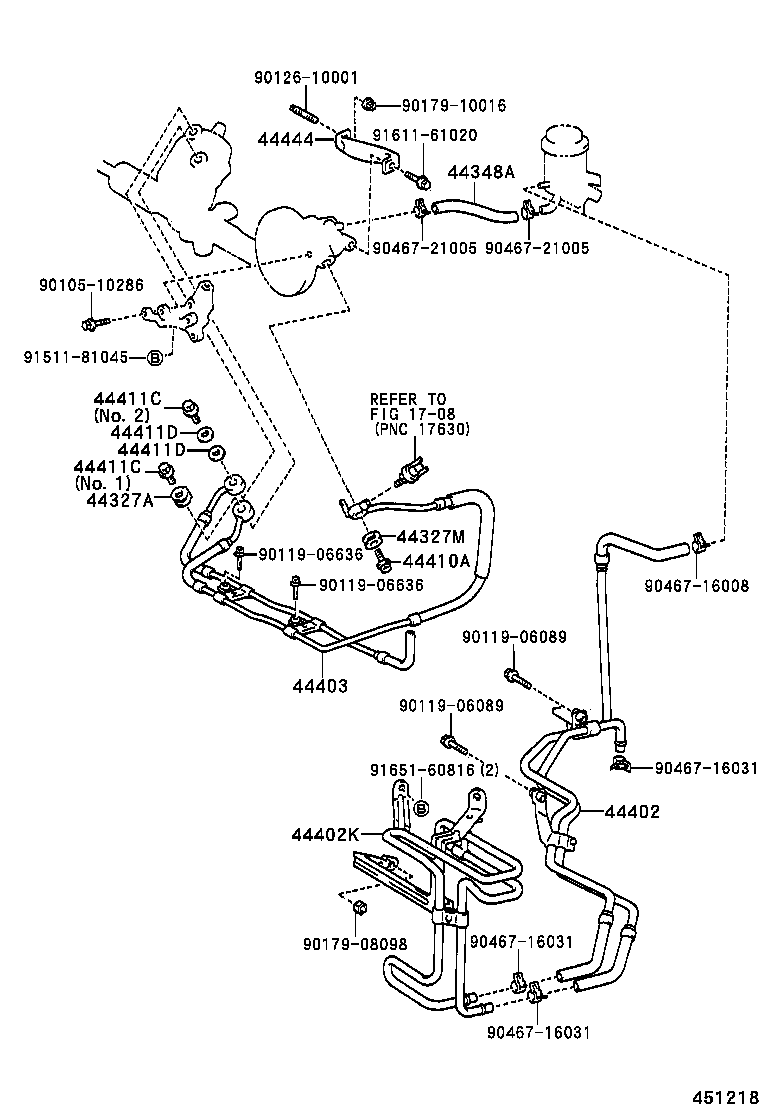

(9106- )JZZ30
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-12010 |
JZZ30,UZZ30,31 |
1 | ||
| 44327M - GASKET, PRESSURE PORT, NO.2 | ||||
| 44327-12010 |
JZZ30 |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-24040 |
JZZ30 |
1 | ||
| 44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1 | ||||
| 44402-24080 |
JZZ30 |
1 | ||
| 44402-24081 |
JZZ30 |
1 | ||
| 44402K - COOLER SUB-ASSY, POWER STEERING OIL, NO.2 | ||||
| 44402-24101 |
JZZ30 |
1 | ||
| 44402-24100 |
JZZ30 |
1 | ||
| 44403 - TUBE SUB-ASSY, PRESSURE FEED, NO.1 | ||||
| 44403-24010 |
JZZ30 |
1 | ||
| 44403-24011 |
JZZ30 |
1 | ||
| 44403-24012 |
JZZ30 |
1 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90401-16013 |
JZZ30 |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16013 |
JZZ30,UZZ30,31 NO.1 |
1 | ||
| 90401-17002 |
JZZ3#,UZZ30,31 NO.2 |
1 | ||
| 96341-11703 |
JZZ3#,UZZ30,31 |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16013 |
JZZ30,UZZ30,31 NO.1 |
1 | ||
| 90401-17002 |
JZZ3#,UZZ30,31 NO.2 |
1 | ||
| 96341-11703 |
JZZ3#,UZZ30,31 |
1 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-17005 |
JZZ30,UZZ30,31 |
2 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-17005 |
JZZ30,UZZ30,31 |
2 | ||
| 44444 - STAY, PUMP, REAR | ||||
| 44444-22090 |
JZZ30 |
1 | ||
| Common parts | ||||
| 90105-10286 | ||||
| 90119-06089 | ||||
| 90119-06636 | ||||
| 90126-10001 | ||||
| 90179-08098 | ||||
| 90179-10016 | ||||
| 90467-16008 | ||||
| 90467-16031 | ||||
| 90467-21005 | ||||
| 91511-81045 | ||||
| 91611-61020 | ||||
| 91651-60816 | ||||
| Linked diagrams | ||||
| 1708 | ||||
