JZZ30-ACPZZ (1991)

Toyota Soarer

Production May 1991 - Jan 1994
Engine 1JZGTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9105- )JZZ3#..ATM

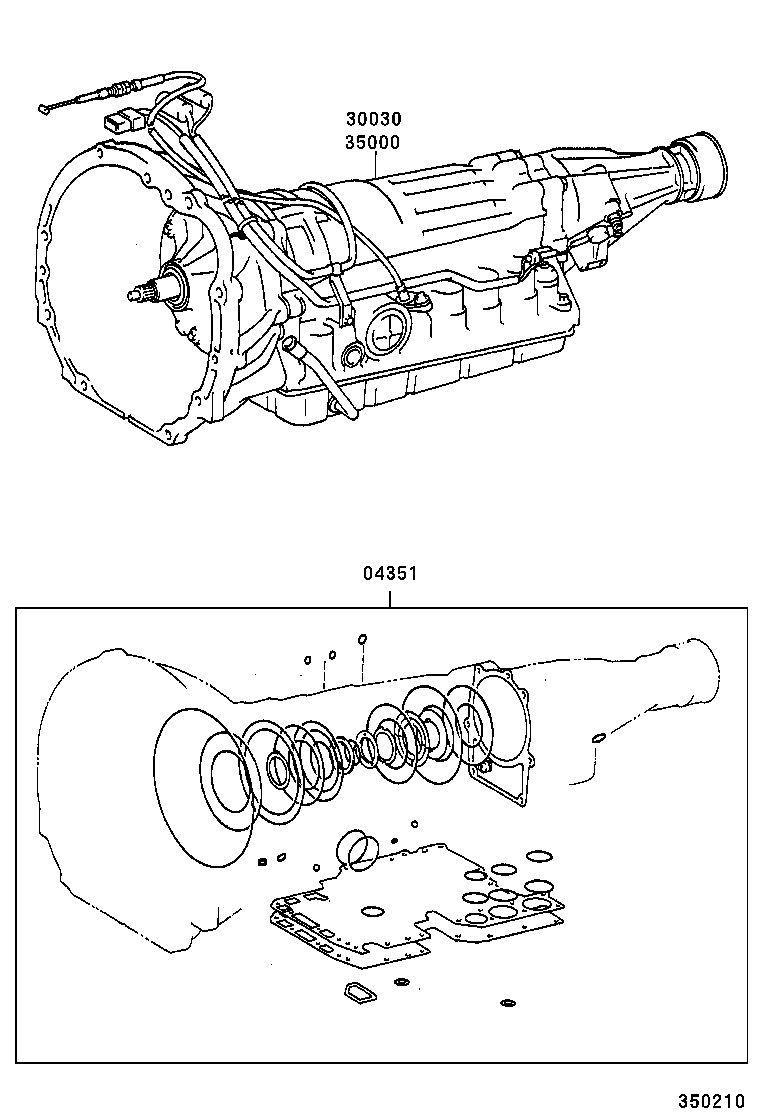

Click highlighted areas on diagram

A340E

diagram 04351 30030 35000
Part # Description Qty Price
04351 - GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL
04351-30140

JZZ3#..ATM

 1
30030 - TRANSMISSION ASSY, REBUILT
30030-24260

JZZ30..ATM

 1
35000 - TRANSMISSION ASSY, AUTOMATIC
35000-24260

JZZ30..ATM

 1
