JZZ30-ACPZZ (1991)

Toyota Soarer

Production May 1991 - Jan 1994
Engine 1JZGTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9105-9608)1JZGTE

Click highlighted areas on diagram

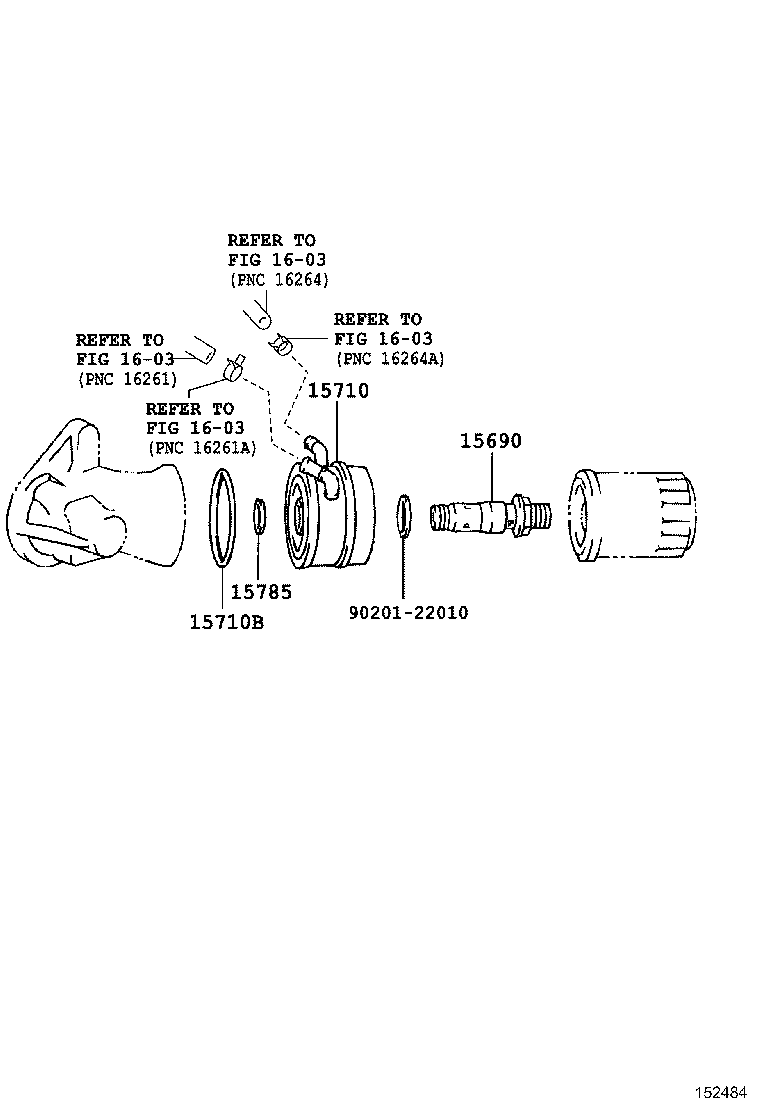

diagram 15690 15710 15710B 15785 1603 1603 1603 1603 9020122010
Part # Description Qty Price
15690 - VALVE ASSY, OIL COOLER RELIEF
15690-88400

1JZGTE..JZZ30

 1
15710 - COOLER ASSY, OIL
15710-88400

1JZGTE..JZZ30

 1
15710B - RING, O(FOR OIL COOLER)
90301-61003

1JZGTE..JZZ30

 1
15785 - GASKET, OIL COOLER
15785-35010

1JZGTE..JZZ30

 1
Common parts
90201-22010
Linked diagrams
1603
