JZZ30-ACPVZ (1991)
Toyota Soarer
Production
May 1991
-
Dec 2000
Engine
1JZGTE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9105- )JZZ30

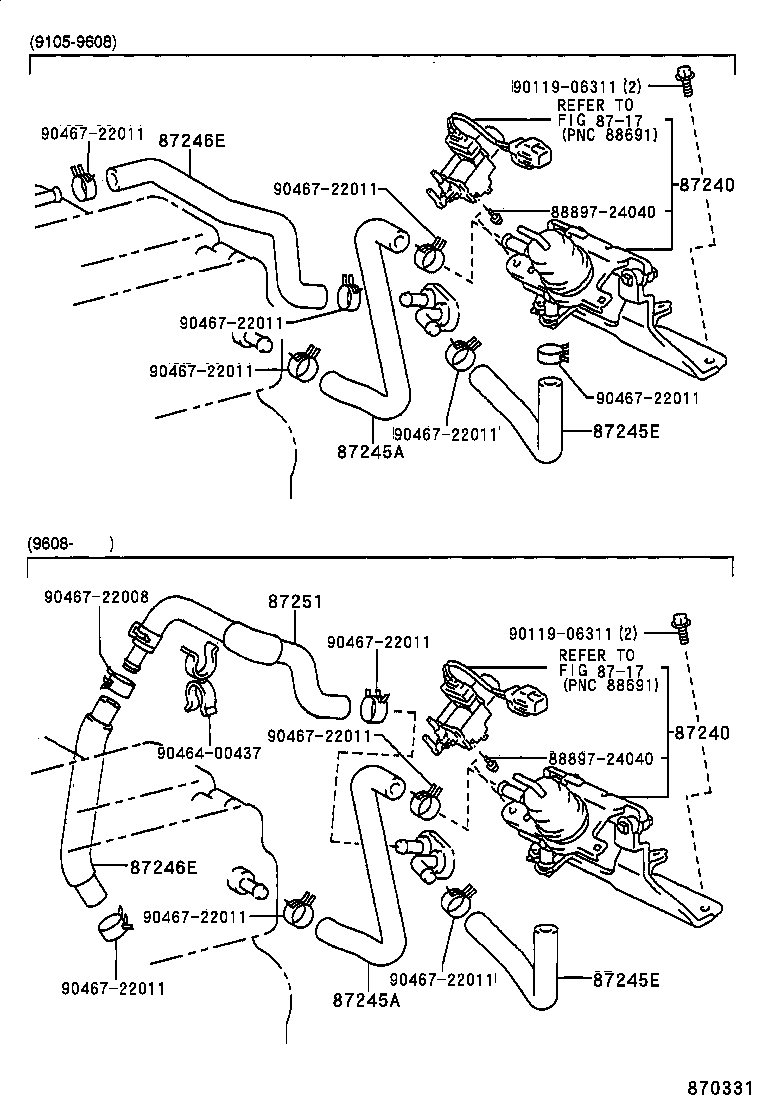

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-24030 |
JZZ30,UZZ3# |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-24030 |
JZZ30,UZZ3# |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-24240 |
JZZ30 |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-24240 |
JZZ30 |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-24280 |
JZZ30,UZZ3# |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-24280 |
JZZ30,UZZ3# |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-24250 |
JZZ30 |
1 | ||
| 87245-24390 |
JZZ30 |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-24250 |
JZZ30 |
1 | ||
| 87245-24390 |
JZZ30 |
1 | ||
| 87251 - JOINT OR UNION, WATER HOSE THROUGH | ||||
| 87251-24070 |
JZZ30 |
1 | ||
| Common parts | ||||
| 88897-24040 | ||||
| 90119-06311 | ||||
| 90464-00437 | ||||
| 90467-22008 | ||||
| 90467-22011 | ||||
| Linked diagrams | ||||
| 8717 | ||||
