JZZ30-ACPVZ (1991)

Toyota Soarer

Production May 1991 - Dec 2000
Engine 1JZGTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )JZZ3#

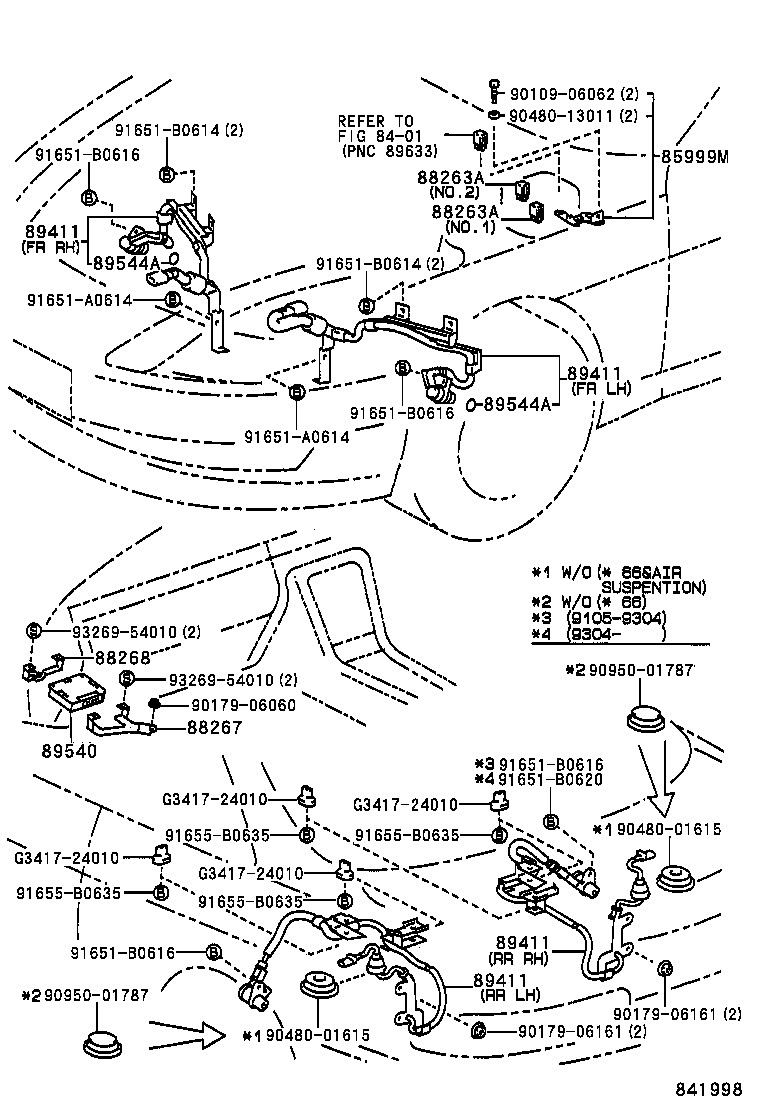

Click highlighted areas on diagram

diagram 8411 85999M 88263A 88263A 88267 88268 88278A 89411 89411 89411 89411 89540 89544A 89544A 9010906062 9017906161 9017906161 9048001615 9048001615 9048013011 91651A0614 91651A0614 91651B0614 91651B0614 91651B0616 91651B0616 91651B0620 91651B0620 9326954010 9326954010 9356055010 9356755014
Part # Description Qty Price
85999M - BRACKET, RELAY
85999-24050

JZZ3#,UZZ3#

 1
88263A - RELAY, SKID CONTROL
88263-24030

JZZ3#,UZZ3#

NO.2(ｸﾞﾚ-)

 1
88263-24020

JZZ3#,UZZ3#

NO.1(ﾌﾞﾗｳﾝ)

 1
88263A - RELAY, SKID CONTROL
88263-24020

JZZ3#,UZZ3#

NO.1(ﾌﾞﾗｳﾝ)

 1
88263-24030

JZZ3#,UZZ3#

NO.2(ｸﾞﾚ-)

 1
88267 - BRACKET, SKID CONTROL COMPUTER, NO.1
88267-24050

JZZ30,UZZ3#..ATM

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
88267-24030

JZZ30,UZZ30,31

 1
88267-24080

JZZ3#

 1
88267-24030

JZZ3#

 1
88268 - BRACKET, SKID CONTROL COMPUTER, NO.2
88268-24030

JZZ3#

 1
88268-24030

JZZ30,UZZ30,31

 1
88268-24050

JZZ30,UZZ3#..ATM

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
88268-24080

JZZ3#

 1
88278A - CUSHION, SKID CONTROL COMPUTER
88278-24020

JZZ3#

 1
89411 - SENSOR, SPEED
89545-24010

JZZ30,UZZ3#

ﾘﾔ右側

 1
89542-24010

JZZ30,UZZ3#

ﾌﾛﾝﾄ右側

 1
89545-30020

JZZ3#,UZZ3#

ﾘﾔ右側

 1
89543-24010

JZZ30,UZZ3#

ﾌﾛﾝﾄ左側

 1
89542-14030

JZZ3#,UZZ31

ﾌﾛﾝﾄ右側

 1
89546-24010

JZZ30,UZZ3#

ﾘﾔ左側

 1
89543-14020

JZZ3#,UZZ3#

ﾌﾛﾝﾄ左側

 1
89542-14020

JZZ3#,UZZ3#

ﾌﾛﾝﾄ右側

 1
89546-30030

JZZ3#,UZZ31

ﾘﾔ左側

 1
89545-24020

JZZ3#,UZZ31

ﾘﾔ右側

 1
89546-30020

JZZ3#,UZZ3#

ﾘﾔ左側

 1
89543-14030

JZZ3#,UZZ31

ﾌﾛﾝﾄ左側

 1
89411 - SENSOR, SPEED
89545-24010

JZZ30,UZZ3#

ﾘﾔ右側

 1
89542-24010

JZZ30,UZZ3#

ﾌﾛﾝﾄ右側

 1
89545-30020

JZZ3#,UZZ3#

ﾘﾔ右側

 1
89543-24010

JZZ30,UZZ3#

ﾌﾛﾝﾄ左側

 1
89542-14030

JZZ3#,UZZ31

ﾌﾛﾝﾄ右側

 1
89546-24010

JZZ30,UZZ3#

ﾘﾔ左側

 1
89543-14020

JZZ3#,UZZ3#

ﾌﾛﾝﾄ左側

 1
89542-14020

JZZ3#,UZZ3#

ﾌﾛﾝﾄ右側

 1
89546-30030

JZZ3#,UZZ31

ﾘﾔ左側

 1
89545-24020

JZZ3#,UZZ31

ﾘﾔ右側

 1
89546-30020

JZZ3#,UZZ3#

ﾘﾔ左側

 1
89543-14030

JZZ3#,UZZ31

ﾌﾛﾝﾄ左側

 1
89411 - SENSOR, SPEED
89545-24010

JZZ30,UZZ3#

ﾘﾔ右側

 1
89542-24010

JZZ30,UZZ3#

ﾌﾛﾝﾄ右側

 1
89545-30020

JZZ3#,UZZ3#

ﾘﾔ右側

 1
89543-24010

JZZ30,UZZ3#

ﾌﾛﾝﾄ左側

 1
89542-14030

JZZ3#,UZZ31

ﾌﾛﾝﾄ右側

 1
89546-24010

JZZ30,UZZ3#

ﾘﾔ左側

 1
89543-14020

JZZ3#,UZZ3#

ﾌﾛﾝﾄ左側

 1
89542-14020

JZZ3#,UZZ3#

ﾌﾛﾝﾄ右側

 1
89546-30030

JZZ3#,UZZ31

ﾘﾔ左側

 1
89545-24020

JZZ3#,UZZ31

ﾘﾔ右側

 1
89546-30020

JZZ3#,UZZ3#

ﾘﾔ左側

 1
89543-14030

JZZ3#,UZZ31

ﾌﾛﾝﾄ左側

 1
89411 - SENSOR, SPEED
89545-24010

JZZ30,UZZ3#

ﾘﾔ右側

 1
89542-24010

JZZ30,UZZ3#

ﾌﾛﾝﾄ右側

 1
89545-30020

JZZ3#,UZZ3#

ﾘﾔ右側

 1
89543-24010

JZZ30,UZZ3#

ﾌﾛﾝﾄ左側

 1
89542-14030

JZZ3#,UZZ31

ﾌﾛﾝﾄ右側

 1
89546-24010

JZZ30,UZZ3#

ﾘﾔ左側

 1
89543-14020

JZZ3#,UZZ3#

ﾌﾛﾝﾄ左側

 1
89542-14020

JZZ3#,UZZ3#

ﾌﾛﾝﾄ右側

 1
89546-30030

JZZ3#,UZZ31

ﾘﾔ左側

 1
89545-24020

JZZ3#,UZZ31

ﾘﾔ右側

 1
89546-30020

JZZ3#,UZZ3#

ﾘﾔ左側

 1
89543-14030

JZZ3#,UZZ31

ﾌﾛﾝﾄ左側

 1
89540 - COMPUTER ASSY, SKID CONTROL
89541-24010

JZZ30,UZZ30,31

 1
89541-30010

JZZ30,UZZ3#..ATM

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
89541-24030

JZZ30,UZZ3#..ATM

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
89541-30020

JZZ3#

 1
89541-24060

JZZ3#

 1
89544A - RING, O (FOR SKID CONTROL SENSOR)
96721-19016

JZZ3#,UZZ3#

 2
96721-19016

JZZ30,UZZ3#

 1
89544A - RING, O (FOR SKID CONTROL SENSOR)
96721-19016

JZZ3#,UZZ3#

 2
96721-19016

JZZ30,UZZ3#

 1
Common parts
90109-06062
90179-06161
90480-01615
90480-13011
91651-A0614
91651-B0614
91651-B0616
91651-B0620
93269-54010
93560-55010
93567-55014
Linked diagrams

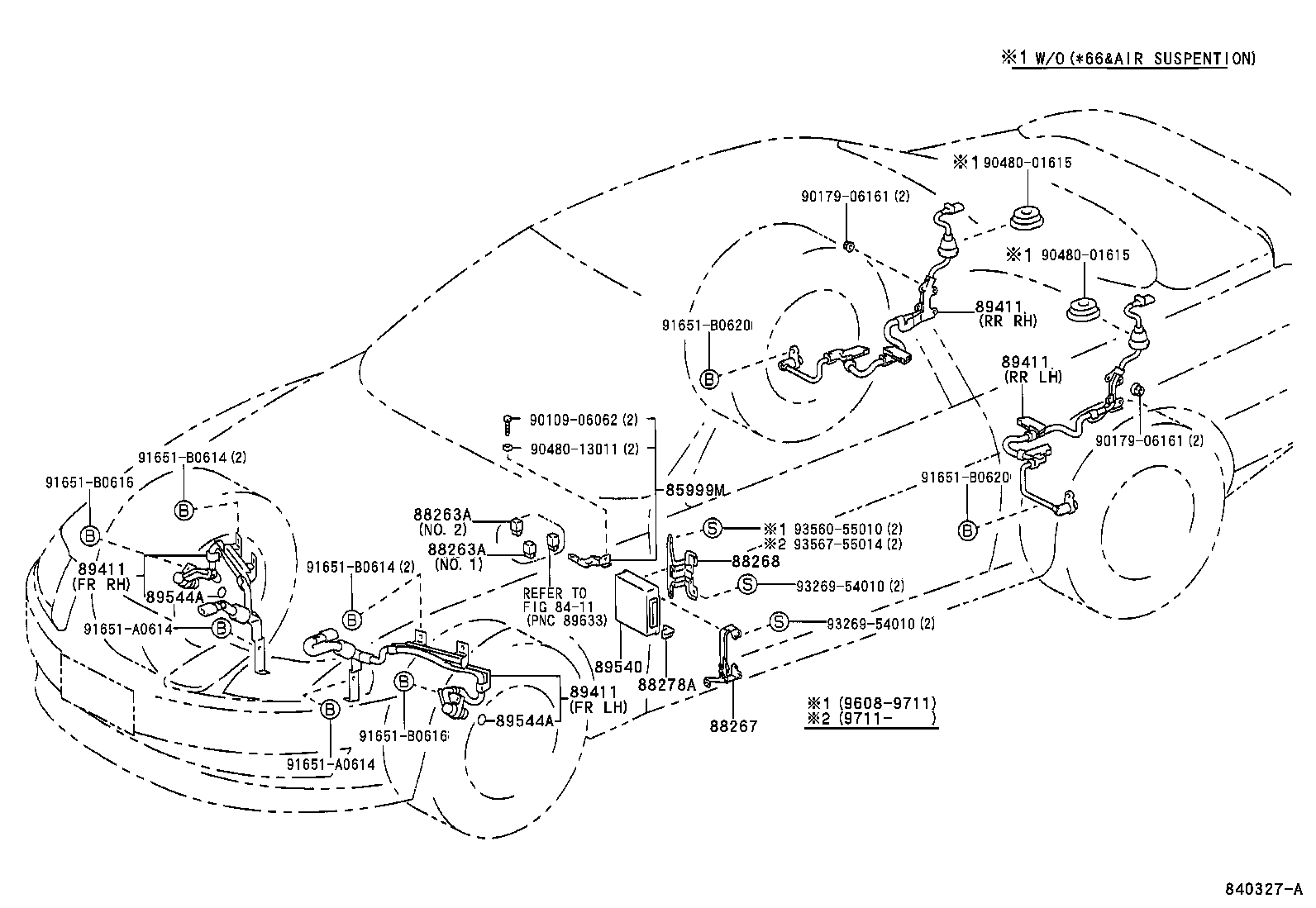

8411

(9105-9401)

Click highlighted areas on diagram

diagram 8401 85999M 88263A 88263A 88267 88268 89411 89411 89411 89411 89540 89544A 89544A 9010906062 9017906060 9017906161 9017906161 9048001615 9048001615 9048013011 9095001787 9095001787 91651A0614 91651A0614 91651B0614 91651B0614 91651B0616 91651B0616 91651B0616 91651B0616 91651B0620 91655B0635 91655B0635 91655B0635 91655B0635 9326954010 9326954010 G341724010 G341724010 G341724010 G341724010
Part # Description Qty Price
85999M - BRACKET, RELAY
85999-24050

JZZ3#,UZZ3#

 1
88263A - RELAY, SKID CONTROL
88263-24020

JZZ3#,UZZ3#

NO.1(ﾌﾞﾗｳﾝ)

 1
88263-24030

JZZ3#,UZZ3#

NO.2(ｸﾞﾚ-)

 1
88263A - RELAY, SKID CONTROL
88263-24020

JZZ3#,UZZ3#

NO.1(ﾌﾞﾗｳﾝ)

 1
88263-24030

JZZ3#,UZZ3#

NO.2(ｸﾞﾚ-)

 1
88267 - BRACKET, SKID CONTROL COMPUTER, NO.1
88267-24050

JZZ30,UZZ3#..ATM

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
88267-24030

JZZ30,UZZ30,31

 1
88267-24080

JZZ3#

 1
88267-24030

JZZ3#

 1
88268 - BRACKET, SKID CONTROL COMPUTER, NO.2
88268-24030

JZZ3#

 1
88268-24030

JZZ30,UZZ30,31

 1
88268-24050

JZZ30,UZZ3#..ATM

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
88268-24080

JZZ3#

 1
89411 - SENSOR, SPEED
89545-24010

JZZ30,UZZ3#

ﾘﾔ右側

 1
89542-24010

JZZ30,UZZ3#

ﾌﾛﾝﾄ右側

 1
89545-30020

JZZ3#,UZZ3#

ﾘﾔ右側

 1
89543-24010

JZZ30,UZZ3#

ﾌﾛﾝﾄ左側

 1
89542-14030

JZZ3#,UZZ31

ﾌﾛﾝﾄ右側

 1
89546-24010

JZZ30,UZZ3#

ﾘﾔ左側

 1
89543-14020

JZZ3#,UZZ3#

ﾌﾛﾝﾄ左側

 1
89542-14020

JZZ3#,UZZ3#

ﾌﾛﾝﾄ右側

 1
89546-30030

JZZ3#,UZZ31

ﾘﾔ左側

 1
89545-24020

JZZ3#,UZZ31

ﾘﾔ右側

 1
89546-30020

JZZ3#,UZZ3#

ﾘﾔ左側

 1
89543-14030

JZZ3#,UZZ31

ﾌﾛﾝﾄ左側

 1
89411 - SENSOR, SPEED
89545-24010

JZZ30,UZZ3#

ﾘﾔ右側

 1
89542-24010

JZZ30,UZZ3#

ﾌﾛﾝﾄ右側

 1
89545-30020

JZZ3#,UZZ3#

ﾘﾔ右側

 1
89543-24010

JZZ30,UZZ3#

ﾌﾛﾝﾄ左側

 1
89542-14030

JZZ3#,UZZ31

ﾌﾛﾝﾄ右側

 1
89546-24010

JZZ30,UZZ3#

ﾘﾔ左側

 1
89543-14020

JZZ3#,UZZ3#

ﾌﾛﾝﾄ左側

 1
89542-14020

JZZ3#,UZZ3#

ﾌﾛﾝﾄ右側

 1
89546-30030

JZZ3#,UZZ31

ﾘﾔ左側

 1
89545-24020

JZZ3#,UZZ31

ﾘﾔ右側

 1
89546-30020

JZZ3#,UZZ3#

ﾘﾔ左側

 1
89543-14030

JZZ3#,UZZ31

ﾌﾛﾝﾄ左側

 1
89411 - SENSOR, SPEED
89545-24010

JZZ30,UZZ3#

ﾘﾔ右側

 1
89542-24010

JZZ30,UZZ3#

ﾌﾛﾝﾄ右側

 1
89545-30020

JZZ3#,UZZ3#

ﾘﾔ右側

 1
89543-24010

JZZ30,UZZ3#

ﾌﾛﾝﾄ左側

 1
89542-14030

JZZ3#,UZZ31

ﾌﾛﾝﾄ右側

 1
89546-24010

JZZ30,UZZ3#

ﾘﾔ左側

 1
89543-14020

JZZ3#,UZZ3#

ﾌﾛﾝﾄ左側

 1
89542-14020

JZZ3#,UZZ3#

ﾌﾛﾝﾄ右側

 1
89546-30030

JZZ3#,UZZ31

ﾘﾔ左側

 1
89545-24020

JZZ3#,UZZ31

ﾘﾔ右側

 1
89546-30020

JZZ3#,UZZ3#

ﾘﾔ左側

 1
89543-14030

JZZ3#,UZZ31

ﾌﾛﾝﾄ左側

 1
89411 - SENSOR, SPEED
89545-24010

JZZ30,UZZ3#

ﾘﾔ右側

 1
89542-24010

JZZ30,UZZ3#

ﾌﾛﾝﾄ右側

 1
89545-30020

JZZ3#,UZZ3#

ﾘﾔ右側

 1
89543-24010

JZZ30,UZZ3#

ﾌﾛﾝﾄ左側

 1
89542-14030

JZZ3#,UZZ31

ﾌﾛﾝﾄ右側

 1
89546-24010

JZZ30,UZZ3#

ﾘﾔ左側

 1
89543-14020

JZZ3#,UZZ3#

ﾌﾛﾝﾄ左側

 1
89542-14020

JZZ3#,UZZ3#

ﾌﾛﾝﾄ右側

 1
89546-30030

JZZ3#,UZZ31

ﾘﾔ左側

 1
89545-24020

JZZ3#,UZZ31

ﾘﾔ右側

 1
89546-30020

JZZ3#,UZZ3#

ﾘﾔ左側

 1
89543-14030

JZZ3#,UZZ31

ﾌﾛﾝﾄ左側

 1
89540 - COMPUTER ASSY, SKID CONTROL
89541-24010

JZZ30,UZZ30,31

 1
89541-30010

JZZ30,UZZ3#..ATM

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
89541-24030

JZZ30,UZZ3#..ATM

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
89541-30020

JZZ3#

 1
89541-24060

JZZ3#

 1
89544A - RING, O (FOR SKID CONTROL SENSOR)
96721-19016

JZZ3#,UZZ3#

 2
96721-19016

JZZ30,UZZ3#

 1
89544A - RING, O (FOR SKID CONTROL SENSOR)
96721-19016

JZZ3#,UZZ3#

 2
96721-19016

JZZ30,UZZ3#

 1
Common parts
90109-06062
90179-06060
90179-06161
90480-01615
90480-13011
90950-01787
91651-A0614
91651-B0614
91651-B0616
91651-B0620
91655-B0635
93269-54010
G3417-24010
Linked diagrams
8401

(9401-9608)

Click highlighted areas on diagram

diagram 8411 85999M 88263A 88263A 88267 88268 89411 89411 89411 89411 89540 89544A 89544A 9010906062 9017906060 9017906161 9017906161 9048001615 9048001615 9048013011 9095001787 9095001787 91651A0614 91651A0614 91651B0614 91651B0614 91651B0616 91651B0616 91651B0620 91651B0620 91655B0640 91655B0640 91655B0640 91655B0640 9326954010 9326954010 G341724010 G341724010 G341724010 G341724010
Part # Description Qty Price
85999M - BRACKET, RELAY
85999-24050

JZZ3#,UZZ3#

 1
88263A - RELAY, SKID CONTROL
88263-24020

JZZ3#,UZZ3#

NO.1(ﾌﾞﾗｳﾝ)

 1
88263-24030

JZZ3#,UZZ3#

NO.2(ｸﾞﾚ-)

 1
88263A - RELAY, SKID CONTROL
88263-24020

JZZ3#,UZZ3#

NO.1(ﾌﾞﾗｳﾝ)

 1
88263-24030

JZZ3#,UZZ3#

NO.2(ｸﾞﾚ-)

 1
88267 - BRACKET, SKID CONTROL COMPUTER, NO.1
88267-24050

JZZ30,UZZ3#..ATM

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
88267-24030

JZZ30,UZZ30,31

 1
88267-24080

JZZ3#

 1
88267-24030

JZZ3#

 1
88268 - BRACKET, SKID CONTROL COMPUTER, NO.2
88268-24030

JZZ3#

 1
88268-24030

JZZ30,UZZ30,31

 1
88268-24050

JZZ30,UZZ3#..ATM

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
88268-24080

JZZ3#

 1
89411 - SENSOR, SPEED
89545-24010

JZZ30,UZZ3#

ﾘﾔ右側

 1
89542-24010

JZZ30,UZZ3#

ﾌﾛﾝﾄ右側

 1
89545-30020

JZZ3#,UZZ3#

ﾘﾔ右側

 1
89543-24010

JZZ30,UZZ3#

ﾌﾛﾝﾄ左側

 1
89542-14030

JZZ3#,UZZ31

ﾌﾛﾝﾄ右側

 1
89546-24010

JZZ30,UZZ3#

ﾘﾔ左側

 1
89543-14020

JZZ3#,UZZ3#

ﾌﾛﾝﾄ左側

 1
89542-14020

JZZ3#,UZZ3#

ﾌﾛﾝﾄ右側

 1
89546-30030

JZZ3#,UZZ31

ﾘﾔ左側

 1
89545-24020

JZZ3#,UZZ31

ﾘﾔ右側

 1
89546-30020

JZZ3#,UZZ3#

ﾘﾔ左側

 1
89543-14030

JZZ3#,UZZ31

ﾌﾛﾝﾄ左側

 1
89411 - SENSOR, SPEED
89545-24010

JZZ30,UZZ3#

ﾘﾔ右側

 1
89542-24010

JZZ30,UZZ3#

ﾌﾛﾝﾄ右側

 1
89545-30020

JZZ3#,UZZ3#

ﾘﾔ右側

 1
89543-24010

JZZ30,UZZ3#

ﾌﾛﾝﾄ左側

 1
89542-14030

JZZ3#,UZZ31

ﾌﾛﾝﾄ右側

 1
89546-24010

JZZ30,UZZ3#

ﾘﾔ左側

 1
89543-14020

JZZ3#,UZZ3#

ﾌﾛﾝﾄ左側

 1
89542-14020

JZZ3#,UZZ3#

ﾌﾛﾝﾄ右側

 1
89546-30030

JZZ3#,UZZ31

ﾘﾔ左側

 1
89545-24020

JZZ3#,UZZ31

ﾘﾔ右側

 1
89546-30020

JZZ3#,UZZ3#

ﾘﾔ左側

 1
89543-14030

JZZ3#,UZZ31

ﾌﾛﾝﾄ左側

 1
89411 - SENSOR, SPEED
89545-24010

JZZ30,UZZ3#

ﾘﾔ右側

 1
89542-24010

JZZ30,UZZ3#

ﾌﾛﾝﾄ右側

 1
89545-30020

JZZ3#,UZZ3#

ﾘﾔ右側

 1
89543-24010

JZZ30,UZZ3#

ﾌﾛﾝﾄ左側

 1
89542-14030

JZZ3#,UZZ31

ﾌﾛﾝﾄ右側

 1
89546-24010

JZZ30,UZZ3#

ﾘﾔ左側

 1
89543-14020

JZZ3#,UZZ3#

ﾌﾛﾝﾄ左側

 1
89542-14020

JZZ3#,UZZ3#

ﾌﾛﾝﾄ右側

 1
89546-30030

JZZ3#,UZZ31

ﾘﾔ左側

 1
89545-24020

JZZ3#,UZZ31

ﾘﾔ右側

 1
89546-30020

JZZ3#,UZZ3#

ﾘﾔ左側

 1
89543-14030

JZZ3#,UZZ31

ﾌﾛﾝﾄ左側

 1
89411 - SENSOR, SPEED
89545-24010

JZZ30,UZZ3#

ﾘﾔ右側

 1
89542-24010

JZZ30,UZZ3#

ﾌﾛﾝﾄ右側

 1
89545-30020

JZZ3#,UZZ3#

ﾘﾔ右側

 1
89543-24010

JZZ30,UZZ3#

ﾌﾛﾝﾄ左側

 1
89542-14030

JZZ3#,UZZ31

ﾌﾛﾝﾄ右側

 1
89546-24010

JZZ30,UZZ3#

ﾘﾔ左側

 1
89543-14020

JZZ3#,UZZ3#

ﾌﾛﾝﾄ左側

 1
89542-14020

JZZ3#,UZZ3#

ﾌﾛﾝﾄ右側

 1
89546-30030

JZZ3#,UZZ31

ﾘﾔ左側

 1
89545-24020

JZZ3#,UZZ31

ﾘﾔ右側

 1
89546-30020

JZZ3#,UZZ3#

ﾘﾔ左側

 1
89543-14030

JZZ3#,UZZ31

ﾌﾛﾝﾄ左側

 1
89540 - COMPUTER ASSY, SKID CONTROL
89541-24010

JZZ30,UZZ30,31

 1
89541-30010

JZZ30,UZZ3#..ATM

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
89541-24030

JZZ30,UZZ3#..ATM

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
89541-30020

JZZ3#

 1
89541-24060

JZZ3#

 1
89544A - RING, O (FOR SKID CONTROL SENSOR)
96721-19016

JZZ3#,UZZ3#

 2
96721-19016

JZZ30,UZZ3#

 1
89544A - RING, O (FOR SKID CONTROL SENSOR)
96721-19016

JZZ3#,UZZ3#

 2
96721-19016

JZZ30,UZZ3#

 1
Common parts
90109-06062
90179-06060
90179-06161
90480-01615
90480-13011
90950-01787
91651-A0614
91651-B0614
91651-B0616
91651-B0620
91655-B0640
93269-54010
G3417-24010
Linked diagrams
8411
