JZZ30-ACPVZ (1991)
Toyota Soarer

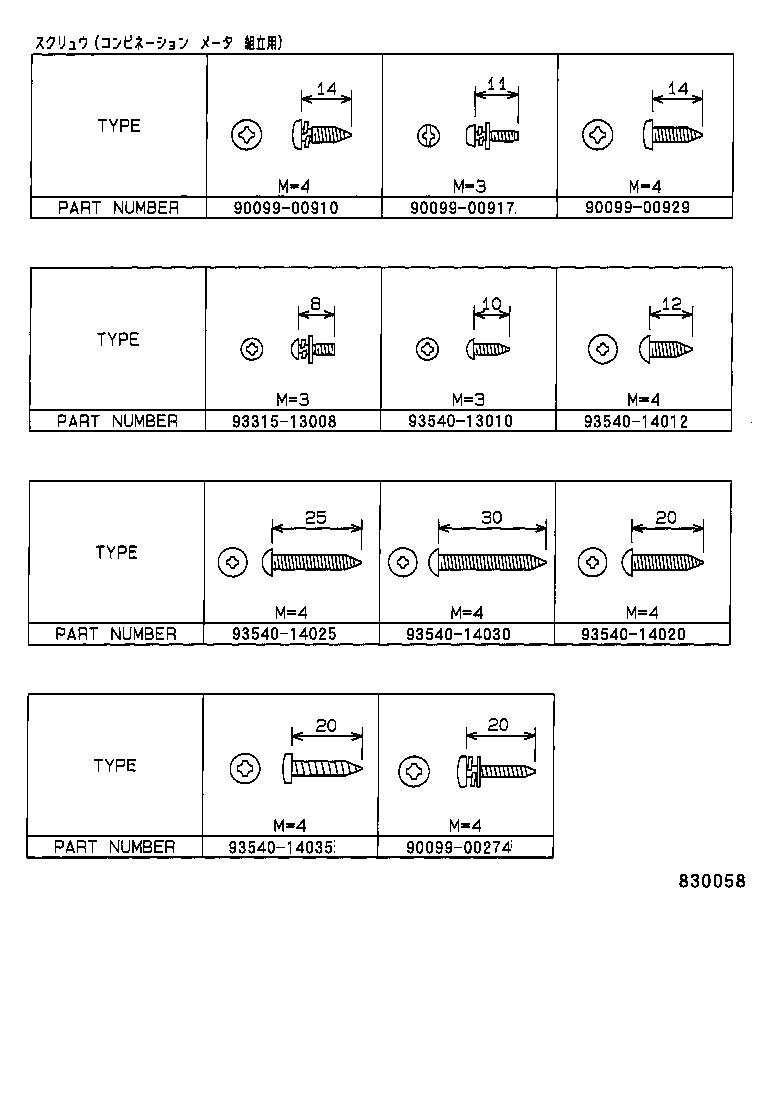

ILLUST NO. 3 OF 4(9105-9401)GTTL ; (9105- )UZZ3# ; (9608- )JZZ30..ATM
ｸﾐﾂｹｽｸﾘｭ : ｱﾘ(ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-00274 | ||||
| 90099-00910 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 93315-13008 | ||||
| 93540-13010 | ||||
| 93540-14012 | ||||
| 93540-14020 | ||||
| 93540-14025 | ||||
| 93540-14030 | ||||
| 93540-14035 | ||||

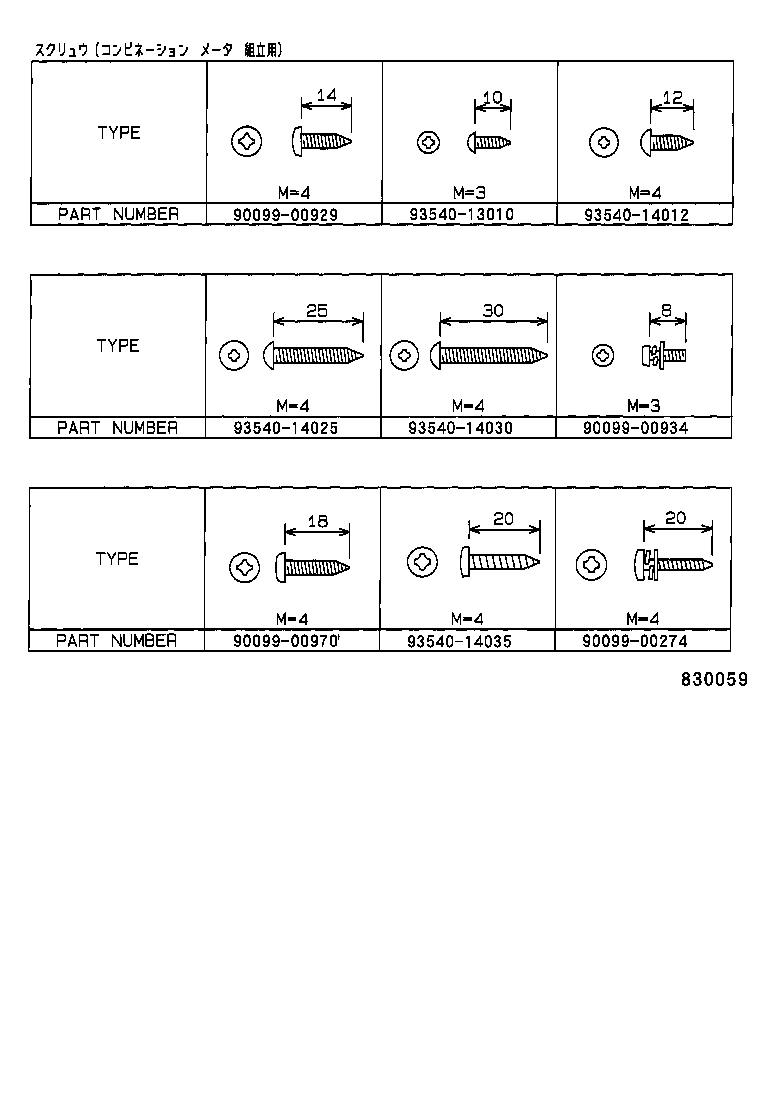

ILLUST NO. 3 OF 4(9105- )GTT ; (9401- )JZZ31
ｸﾐﾂｹｽｸﾘｭ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-00274 | ||||
| 90099-00929 | ||||
| 90099-00934 | ||||
| 90099-00970 | ||||
| 93540-13010 | ||||
| 93540-14012 | ||||
| 93540-14025 | ||||
| 93540-14030 | ||||
| 93540-14035 | ||||

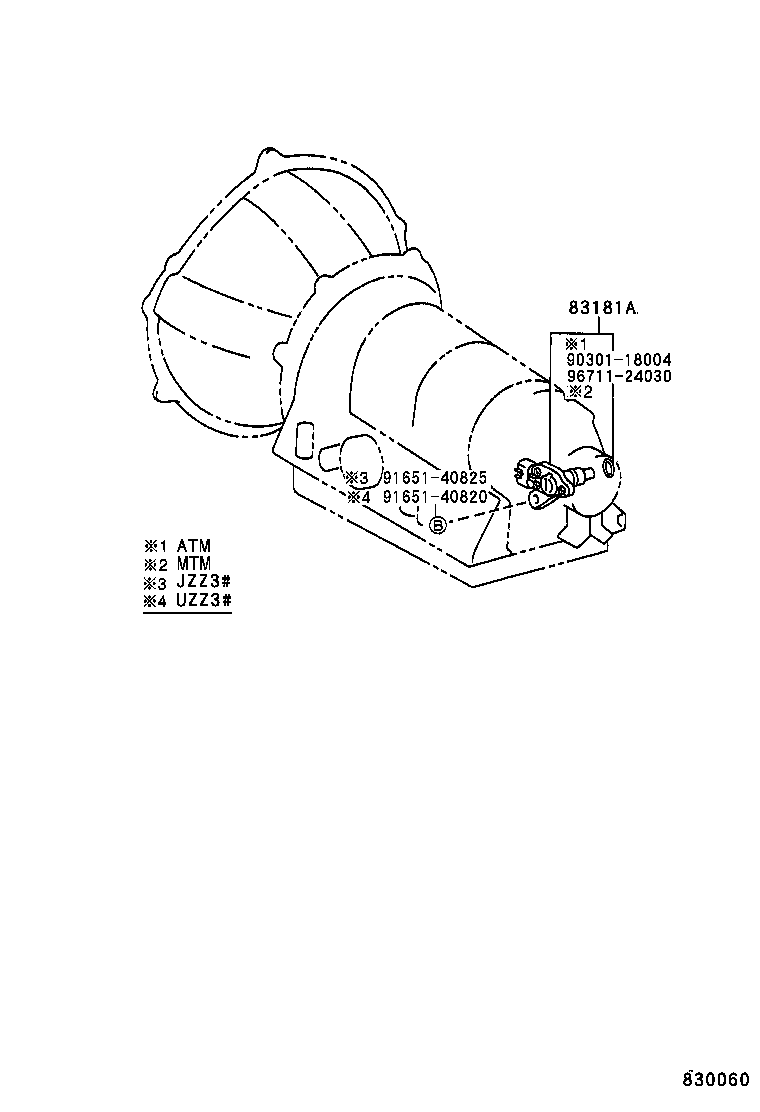

ILLUST NO. 4 OF 4(9105- )
ｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-24050 |
JZZ3#..ATM |
1 | ||
| Common parts | ||||
| 90301-18004 | ||||
| 91651-40820 | ||||
| 91651-40825 | ||||
| 96711-24030 | ||||

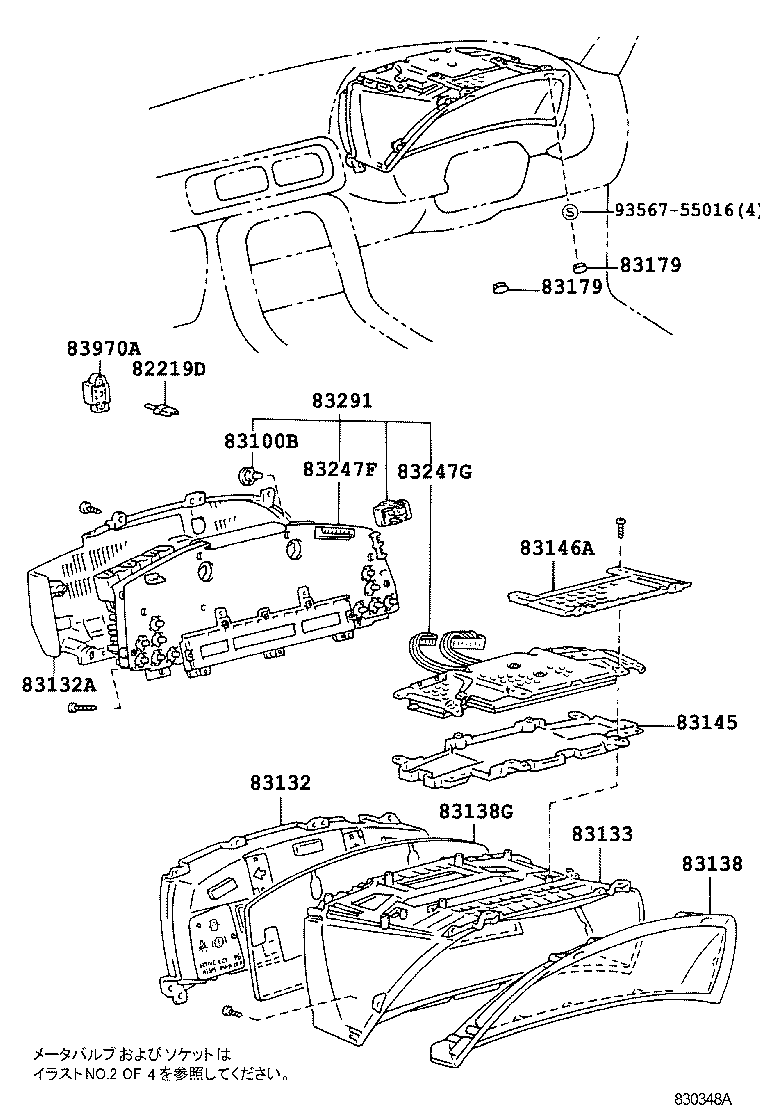

ILLUST NO. 1 OF 4(9105-9401)GTTL ; (9105- )UZZ3# ; (9608- )JZZ30..ATM
ｺﾝﾋﾞﾈｰｼｮﾝﾒｰﾀ : ｱﾘ(ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82219D - WIRE, SENSOR | ||||
| 82219-24010 |
JZZ3#,UZZ3# |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24650 |
JZZ30..ATM 14V 3.0W |
1 | ||
| 90981-11018 |
JZZ30..GTT 12V 1.2W ｿｹｯﾄ無し |
4 | ||
| 83119-24610 |
JZZ30..ATM 14V 1.4W,ｿｹｯﾄ付き,ｼﾌﾄﾎﾟｼﾞｼｮﾝ |
1 | ||
| 83101-20080 |
JZZ30..GTT 12V 1.4W,ｿｹｯﾄ付き |
12 | ||
| 83119-24630 |
JZZ3#,UZZ3# 14V 1.8W |
2 | ||
| 83101-20080 |
JZZ30..ATM 12V 1.4W,ｿｹｯﾄ付き,ｱﾘ(ﾏﾙﾁ ﾃﾞｲｽﾌﾟﾚｲ) |
11 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-24310 |
JZZ30..ATM..GTT ｱﾘ(*80 OR ABS OR ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ) |
1 | ||
| 83132-24430 |
JZZ30..ATM..GTT |
1 | ||
| 83132-24370 |
JZZ30..ATM..GTT |
1 | ||
| 83132-24410 |
JZZ30,UZZ30,31..GT,GTL,GTTL |
1 | ||
| 83132-24290 |
JZZ30,UZZ30,31..GT,GTL,GTTL |
1 | ||
| 83841-24090 |
JZZ3#..ATM |
1 | ||
| 83841-24090 |
JZZ30..ATM |
1 | ||
| 83132-24530 |
JZZ30..ATM ｱﾘ(ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ) |
1 | ||
| 83132-24550 |
JZZ3#..ATM |
1 | ||
| 83841-24070 |
JZZ30..ATM ｱﾘ(ﾏﾙﾁ ﾃﾞｲｽﾌﾟﾚｲ) |
1 | ||
| 83132A - CASE, METER | ||||
| 83132-24331 |
JZZ30 ｱﾘ(*80 OR ABS OR ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ) |
1 | ||
| 83132-24330 |
JZZ30,UZZ3#..GT,GTL,GTTL |
1 | ||
| 83132-24350 |
JZZ3#..GT,GTT |
1 | ||
| 83132-24331 |
JZZ30..ATM ｱﾘ(ﾏﾙﾁ ﾃﾞｲｽﾌﾟﾚｲ) |
1 | ||
| 83132-24330 |
JZZ30 ｱﾘ(*80 OR ABS OR ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ) |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-24570 |
JZZ3#,UZZ3# |
1 | ||
| 83811-24060 |
JZZ3#,UZZ31 |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-24210 |
JZZ3#,UZZ3# |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83138-24230 |
JZZ3#,UZZ3# |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-24570 |
JZZ3#,UZZ3# |
1 | ||
| 83146A - COVER, SPEEDMETER | ||||
| 83146-24030 |
JZZ3#,UZZ3# |
1 | ||
| 83179 - COVER, COMBINATION METER, HOLE | ||||
| 83179-24010 |
JZZ3#,UZZ3# |
2 | ||
| 83179 - COVER, COMBINATION METER, HOLE | ||||
| 83179-24010 |
JZZ3#,UZZ3# |
2 | ||
| 83247F - PLATE, METER CIRCUIT, NO.1 (FOR COMPUTER) | ||||
| 83247-2U430 |
JZZ30..ATM |
1 | ||
| 83247-2U010 |
JZZ30..ATM..GTT |
1 | ||
| 83247-24430 |
JZZ30..ATM..GTT ｱﾘ(*80 OR ABS OR ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ) |
1 | ||
| 83247-2U010 |
JZZ30..ATM..GTT ｱﾘ(*80 OR ABS OR ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ) |
1 | ||
| 83247-24470 |
JZZ30..ATM..GTT |
1 | ||
| 83247-2U050 |
JZZ30..ATM..GTT |
1 | ||
| 83247-2U431 |
JZZ30..ATM |
1 | ||
| 83247-2U370 |
JZZ30..ATM ｱﾘ(ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ OR ﾓｸﾒ ｵ-ﾅﾒﾝﾄ) |
1 | ||
| 83275-24570 |
JZZ30..ATM |
1 | ||
| 83247-2U590 |
JZZ30..ATM ｱﾘ(ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ OR ﾓｸﾒ ｵ-ﾅﾒﾝﾄ) |
1 | ||
| 83275-24540 |
JZZ30..ATM ｱﾘ(ﾏﾙﾁ ﾃﾞｲｽﾌﾟﾚｲ) |
1 | ||
| 83275-24571 |
JZZ30..ATM |
1 | ||
| 83275-24541 |
JZZ30..ATM ｱﾘ(ﾏﾙﾁ ﾃﾞｲｽﾌﾟﾚｲ) |
1 | ||
| 83247G - PLATE, METER CIRCUIT, NO.2 (FOR COMPUTER) | ||||
| 83247-24410 |
JZZ30 ｱﾘ(ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ OR ﾓｸﾒ ｵ-ﾅﾒﾝﾄ) |
1 | ||
| 83276-24570 |
JZZ30 |
1 | ||
| 83247-24490 |
JZZ30..GTT |
1 | ||
| 83276-24540 |
JZZ30..ATM ｱﾘ(ﾏﾙﾁ ﾃﾞｲｽﾌﾟﾚｲ) |
1 | ||
| 83276-24571 |
JZZ30 |
1 | ||
| 83276-24541 |
JZZ30..ATM ｱﾘ(ﾏﾙﾁ ﾃﾞｲｽﾌﾟﾚｲ) |
1 | ||
| 83291 - COMPUTER, COMBINATION METER | ||||
| 83291-24400 |
JZZ30..ATM..GTT |
1 | ||
| 83291-24381 |
JZZ30..ATM..GTT ｱﾘ(*80 OR ABS OR ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ) |
1 | ||
| 83291-24380 |
JZZ30..ATM..GTT ｱﾘ(*80 OR ABS OR ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ) |
1 | ||
| 83291-24401 |
JZZ30..ATM..GTT |
1 | ||
| 83291-24381 |
JZZ30..ATM..GTT |
1 | ||
| 83291-24383 |
JZZ30..ATM |
1 | ||
| 83291-24452 |
JZZ30..ATM ｱﾘ(ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ) |
1 | ||
| 83291-24570 |
JZZ30..ATM |
1 | ||
| 83291-24540 |
JZZ30..ATM ｱﾘ(ﾏﾙﾁ ﾃﾞｲｽﾌﾟﾚｲ) |
1 | ||
| 83291-24451 |
JZZ30..ATM ｱﾘ(ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ) |
1 | ||
| 83291-24541 |
JZZ30..ATM ｱﾘ(ﾏﾙﾁ ﾃﾞｲｽﾌﾟﾚｲ) |
1 | ||
| 83291-24382 |
JZZ30..ATM |
1 | ||
| 83291-24571 |
JZZ30..ATM |
1 | ||
| Common parts | ||||
| 93567-55016 | ||||

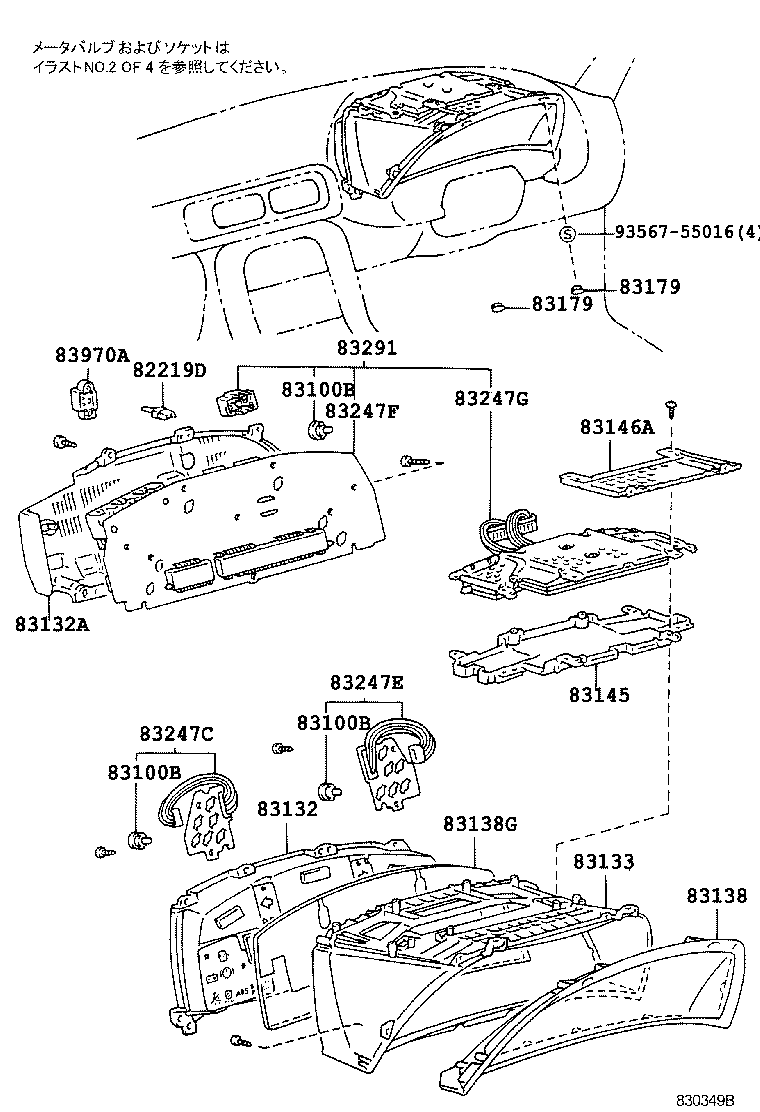

ILLUST NO. 1 OF 4(9105- )GTT ; (9401- )JZZ31
ｺﾝﾋﾞﾈｰｼｮﾝﾒｰﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82219D - WIRE, SENSOR | ||||
| 82219-24010 |
JZZ3#,UZZ3# |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24650 |
JZZ30..ATM 14V 3.0W |
1 | ||
| 90981-11018 |
JZZ30..GTT 12V 1.2W ｿｹｯﾄ無し |
4 | ||
| 83119-24610 |
JZZ30..ATM 14V 1.4W,ｿｹｯﾄ付き,ｼﾌﾄﾎﾟｼﾞｼｮﾝ |
1 | ||
| 83101-20080 |
JZZ30..GTT 12V 1.4W,ｿｹｯﾄ付き |
12 | ||
| 83119-24630 |
JZZ3#,UZZ3# 14V 1.8W |
2 | ||
| 83101-20080 |
JZZ30..ATM 12V 1.4W,ｿｹｯﾄ付き,ｱﾘ(ﾏﾙﾁ ﾃﾞｲｽﾌﾟﾚｲ) |
11 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24650 |
JZZ30..ATM 14V 3.0W |
1 | ||
| 90981-11018 |
JZZ30..GTT 12V 1.2W ｿｹｯﾄ無し |
4 | ||
| 83119-24610 |
JZZ30..ATM 14V 1.4W,ｿｹｯﾄ付き,ｼﾌﾄﾎﾟｼﾞｼｮﾝ |
1 | ||
| 83101-20080 |
JZZ30..GTT 12V 1.4W,ｿｹｯﾄ付き |
12 | ||
| 83119-24630 |
JZZ3#,UZZ3# 14V 1.8W |
2 | ||
| 83101-20080 |
JZZ30..ATM 12V 1.4W,ｿｹｯﾄ付き,ｱﾘ(ﾏﾙﾁ ﾃﾞｲｽﾌﾟﾚｲ) |
11 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24650 |
JZZ30..ATM 14V 3.0W |
1 | ||
| 90981-11018 |
JZZ30..GTT 12V 1.2W ｿｹｯﾄ無し |
4 | ||
| 83119-24610 |
JZZ30..ATM 14V 1.4W,ｿｹｯﾄ付き,ｼﾌﾄﾎﾟｼﾞｼｮﾝ |
1 | ||
| 83101-20080 |
JZZ30..GTT 12V 1.4W,ｿｹｯﾄ付き |
12 | ||
| 83119-24630 |
JZZ3#,UZZ3# 14V 1.8W |
2 | ||
| 83101-20080 |
JZZ30..ATM 12V 1.4W,ｿｹｯﾄ付き,ｱﾘ(ﾏﾙﾁ ﾃﾞｲｽﾌﾟﾚｲ) |
11 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-24310 |
JZZ30..ATM..GTT ｱﾘ(*80 OR ABS OR ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ) |
1 | ||
| 83132-24430 |
JZZ30..ATM..GTT |
1 | ||
| 83132-24370 |
JZZ30..ATM..GTT |
1 | ||
| 83132-24410 |
JZZ30,UZZ30,31..GT,GTL,GTTL |
1 | ||
| 83132-24290 |
JZZ30,UZZ30,31..GT,GTL,GTTL |
1 | ||
| 83841-24090 |
JZZ3#..ATM |
1 | ||
| 83841-24090 |
JZZ30..ATM |
1 | ||
| 83132-24530 |
JZZ30..ATM ｱﾘ(ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ) |
1 | ||
| 83132-24550 |
JZZ3#..ATM |
1 | ||
| 83841-24070 |
JZZ30..ATM ｱﾘ(ﾏﾙﾁ ﾃﾞｲｽﾌﾟﾚｲ) |
1 | ||
| 83132A - CASE, METER | ||||
| 83132-24331 |
JZZ30 ｱﾘ(*80 OR ABS OR ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ) |
1 | ||
| 83132-24330 |
JZZ30,UZZ3#..GT,GTL,GTTL |
1 | ||
| 83132-24350 |
JZZ3#..GT,GTT |
1 | ||
| 83132-24331 |
JZZ30..ATM ｱﾘ(ﾏﾙﾁ ﾃﾞｲｽﾌﾟﾚｲ) |
1 | ||
| 83132-24330 |
JZZ30 ｱﾘ(*80 OR ABS OR ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ) |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-24570 |
JZZ3#,UZZ3# |
1 | ||
| 83811-24060 |
JZZ3#,UZZ31 |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-24210 |
JZZ3#,UZZ3# |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83138-24230 |
JZZ3#,UZZ3# |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-24570 |
JZZ3#,UZZ3# |
1 | ||
| 83146A - COVER, SPEEDMETER | ||||
| 83146-24030 |
JZZ3#,UZZ3# |
1 | ||
| 83179 - COVER, COMBINATION METER, HOLE | ||||
| 83179-24010 |
JZZ3#,UZZ3# |
2 | ||
| 83179 - COVER, COMBINATION METER, HOLE | ||||
| 83179-24010 |
JZZ3#,UZZ3# |
2 | ||
| 83247C - PLATE, MATER CIRCUIT, NO.3 | ||||
| 83247-24750 |
JZZ3#..GT,GTT |
1 | ||
| 83247E - PLATE, MATER CIRCUIT, NO.4 | ||||
| 83247-24770 |
JZZ3#..GT,GTT |
1 | ||
| 83247F - PLATE, METER CIRCUIT, NO.1 (FOR COMPUTER) | ||||
| 83247-2U430 |
JZZ30..ATM |
1 | ||
| 83247-2U010 |
JZZ30..ATM..GTT |
1 | ||
| 83247-24430 |
JZZ30..ATM..GTT ｱﾘ(*80 OR ABS OR ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ) |
1 | ||
| 83247-2U010 |
JZZ30..ATM..GTT ｱﾘ(*80 OR ABS OR ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ) |
1 | ||
| 83247-24470 |
JZZ30..ATM..GTT |
1 | ||
| 83247-2U050 |
JZZ30..ATM..GTT |
1 | ||
| 83247-2U431 |
JZZ30..ATM |
1 | ||
| 83247-2U370 |
JZZ30..ATM ｱﾘ(ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ OR ﾓｸﾒ ｵ-ﾅﾒﾝﾄ) |
1 | ||
| 83275-24570 |
JZZ30..ATM |
1 | ||
| 83247-2U590 |
JZZ30..ATM ｱﾘ(ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ OR ﾓｸﾒ ｵ-ﾅﾒﾝﾄ) |
1 | ||
| 83275-24540 |
JZZ30..ATM ｱﾘ(ﾏﾙﾁ ﾃﾞｲｽﾌﾟﾚｲ) |
1 | ||
| 83275-24571 |
JZZ30..ATM |
1 | ||
| 83275-24541 |
JZZ30..ATM ｱﾘ(ﾏﾙﾁ ﾃﾞｲｽﾌﾟﾚｲ) |
1 | ||
| 83247G - PLATE, METER CIRCUIT, NO.2 (FOR COMPUTER) | ||||
| 83247-24410 |
JZZ30 ｱﾘ(ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ OR ﾓｸﾒ ｵ-ﾅﾒﾝﾄ) |
1 | ||
| 83276-24570 |
JZZ30 |
1 | ||
| 83247-24490 |
JZZ30..GTT |
1 | ||
| 83276-24540 |
JZZ30..ATM ｱﾘ(ﾏﾙﾁ ﾃﾞｲｽﾌﾟﾚｲ) |
1 | ||
| 83276-24571 |
JZZ30 |
1 | ||
| 83276-24541 |
JZZ30..ATM ｱﾘ(ﾏﾙﾁ ﾃﾞｲｽﾌﾟﾚｲ) |
1 | ||
| 83291 - COMPUTER, COMBINATION METER | ||||
| 83291-24400 |
JZZ30..ATM..GTT |
1 | ||
| 83291-24381 |
JZZ30..ATM..GTT ｱﾘ(*80 OR ABS OR ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ) |
1 | ||
| 83291-24380 |
JZZ30..ATM..GTT ｱﾘ(*80 OR ABS OR ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ) |
1 | ||
| 83291-24401 |
JZZ30..ATM..GTT |
1 | ||
| 83291-24381 |
JZZ30..ATM..GTT |
1 | ||
| 83291-24383 |
JZZ30..ATM |
1 | ||
| 83291-24452 |
JZZ30..ATM ｱﾘ(ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ) |
1 | ||
| 83291-24570 |
JZZ30..ATM |
1 | ||
| 83291-24540 |
JZZ30..ATM ｱﾘ(ﾏﾙﾁ ﾃﾞｲｽﾌﾟﾚｲ) |
1 | ||
| 83291-24451 |
JZZ30..ATM ｱﾘ(ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ) |
1 | ||
| 83291-24541 |
JZZ30..ATM ｱﾘ(ﾏﾙﾁ ﾃﾞｲｽﾌﾟﾚｲ) |
1 | ||
| 83291-24382 |
JZZ30..ATM |
1 | ||
| 83291-24571 |
JZZ30..ATM |
1 | ||
| Common parts | ||||
| 93567-55016 | ||||

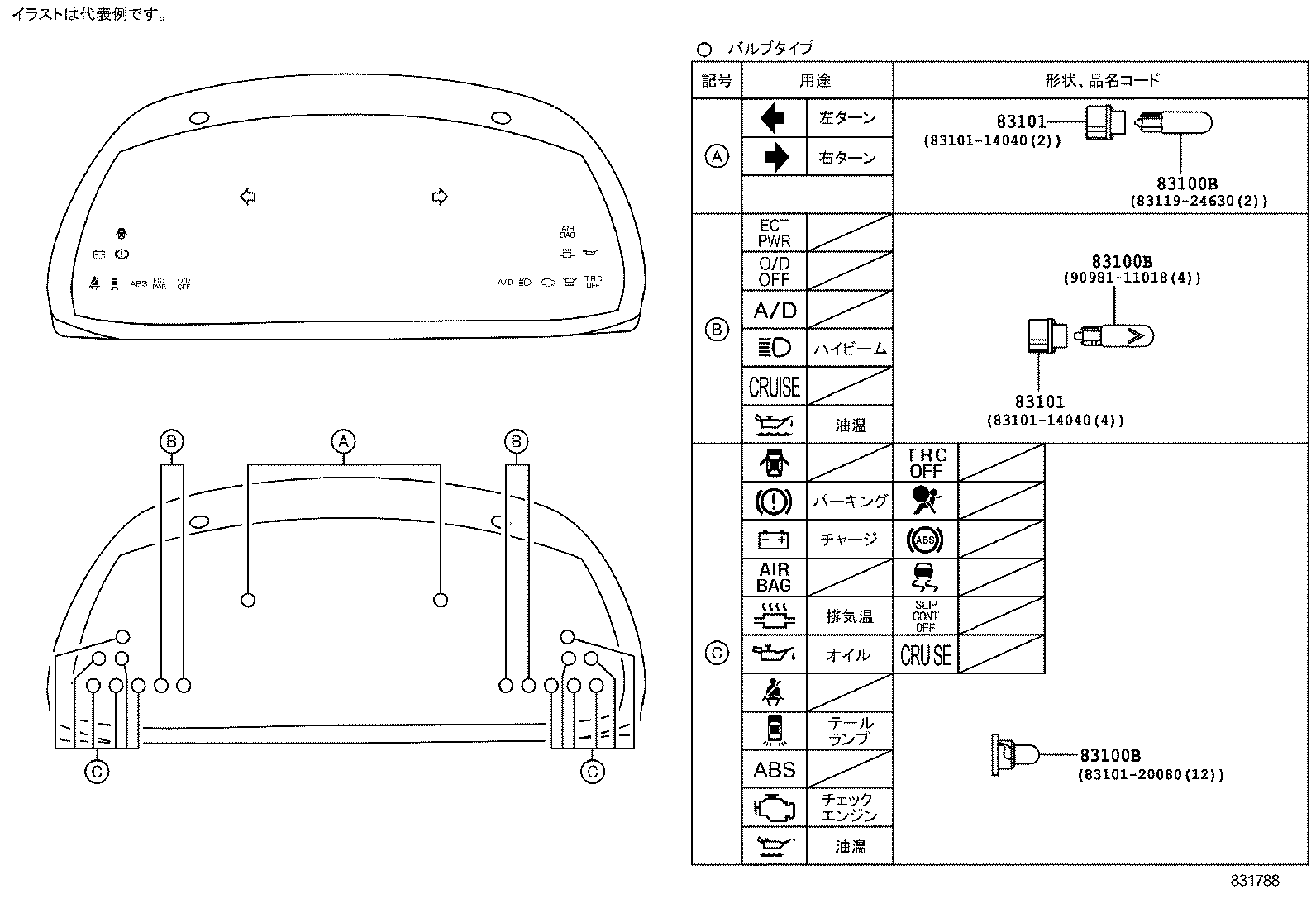

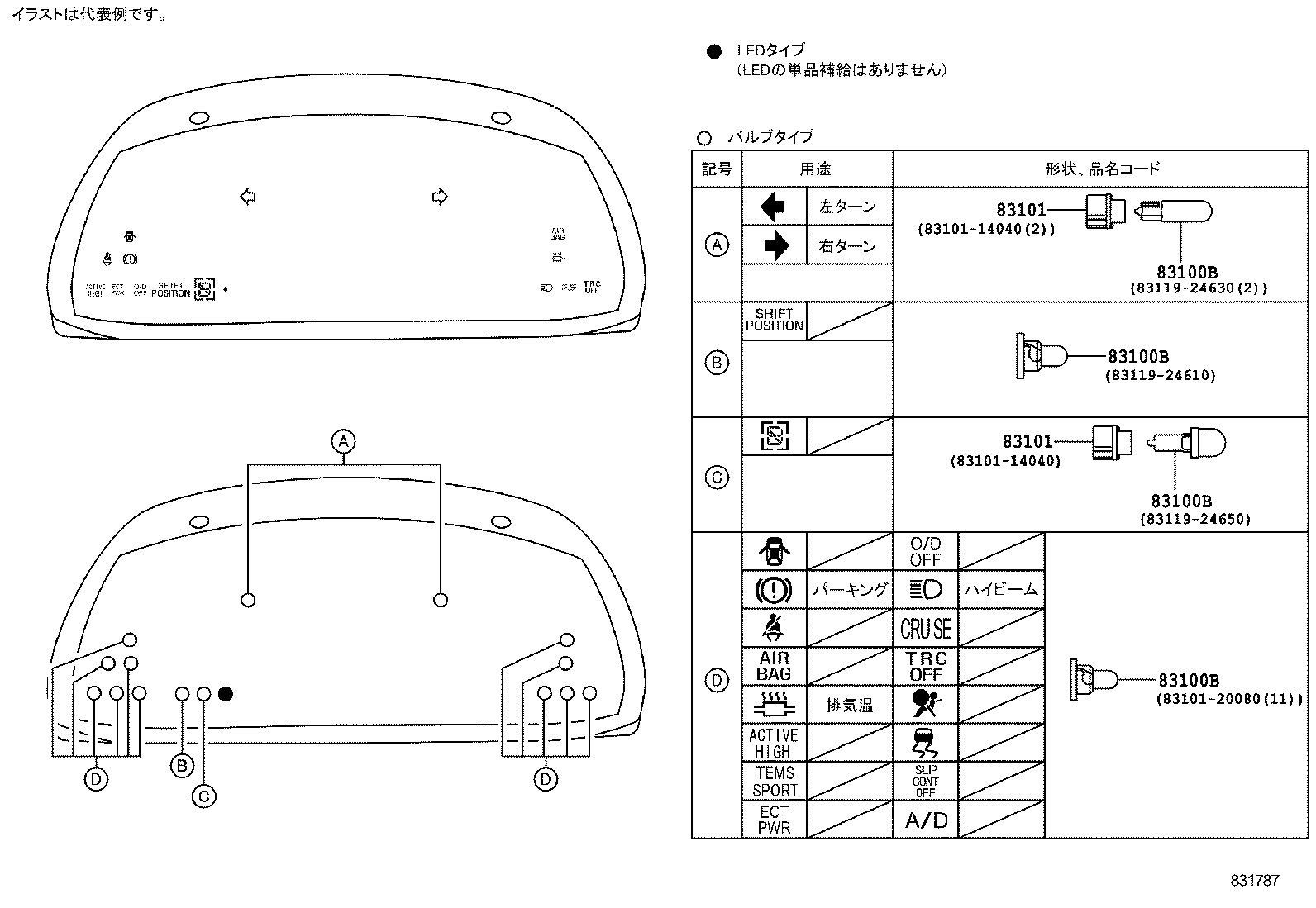

ILLUST NO. 2 OF 4(9105-9401)GTTL ; (9105- )UZZ3# ; (9608- )JZZ30..ATM
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ : ｱﾘ(ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24650 |
JZZ30..ATM 14V 3.0W |
1 | ||
| 90981-11018 |
JZZ30..GTT 12V 1.2W ｿｹｯﾄ無し |
4 | ||
| 83119-24610 |
JZZ30..ATM 14V 1.4W,ｿｹｯﾄ付き,ｼﾌﾄﾎﾟｼﾞｼｮﾝ |
1 | ||
| 83101-20080 |
JZZ30..GTT 12V 1.4W,ｿｹｯﾄ付き |
12 | ||
| 83119-24630 |
JZZ3#,UZZ3# 14V 1.8W |
2 | ||
| 83101-20080 |
JZZ30..ATM 12V 1.4W,ｿｹｯﾄ付き,ｱﾘ(ﾏﾙﾁ ﾃﾞｲｽﾌﾟﾚｲ) |
11 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24650 |
JZZ30..ATM 14V 3.0W |
1 | ||
| 90981-11018 |
JZZ30..GTT 12V 1.2W ｿｹｯﾄ無し |
4 | ||
| 83119-24610 |
JZZ30..ATM 14V 1.4W,ｿｹｯﾄ付き,ｼﾌﾄﾎﾟｼﾞｼｮﾝ |
1 | ||
| 83101-20080 |
JZZ30..GTT 12V 1.4W,ｿｹｯﾄ付き |
12 | ||
| 83119-24630 |
JZZ3#,UZZ3# 14V 1.8W |
2 | ||
| 83101-20080 |
JZZ30..ATM 12V 1.4W,ｿｹｯﾄ付き,ｱﾘ(ﾏﾙﾁ ﾃﾞｲｽﾌﾟﾚｲ) |
11 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24650 |
JZZ30..ATM 14V 3.0W |
1 | ||
| 90981-11018 |
JZZ30..GTT 12V 1.2W ｿｹｯﾄ無し |
4 | ||
| 83119-24610 |
JZZ30..ATM 14V 1.4W,ｿｹｯﾄ付き,ｼﾌﾄﾎﾟｼﾞｼｮﾝ |
1 | ||
| 83101-20080 |
JZZ30..GTT 12V 1.4W,ｿｹｯﾄ付き |
12 | ||
| 83119-24630 |
JZZ3#,UZZ3# 14V 1.8W |
2 | ||
| 83101-20080 |
JZZ30..ATM 12V 1.4W,ｿｹｯﾄ付き,ｱﾘ(ﾏﾙﾁ ﾃﾞｲｽﾌﾟﾚｲ) |
11 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24650 |
JZZ30..ATM 14V 3.0W |
1 | ||
| 90981-11018 |
JZZ30..GTT 12V 1.2W ｿｹｯﾄ無し |
4 | ||
| 83119-24610 |
JZZ30..ATM 14V 1.4W,ｿｹｯﾄ付き,ｼﾌﾄﾎﾟｼﾞｼｮﾝ |
1 | ||
| 83101-20080 |
JZZ30..GTT 12V 1.4W,ｿｹｯﾄ付き |
12 | ||
| 83119-24630 |
JZZ3#,UZZ3# 14V 1.8W |
2 | ||
| 83101-20080 |
JZZ30..ATM 12V 1.4W,ｿｹｯﾄ付き,ｱﾘ(ﾏﾙﾁ ﾃﾞｲｽﾌﾟﾚｲ) |
11 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
JZZ30..ATM ｱﾘ(ﾏﾙﾁ ﾃﾞｲｽﾌﾟﾚｲ) |
3 | ||
| 83101-14040 |
JZZ30..GTT |
6 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
JZZ30..ATM ｱﾘ(ﾏﾙﾁ ﾃﾞｲｽﾌﾟﾚｲ) |
3 | ||
| 83101-14040 |
JZZ30..GTT |
6 | ||
ILLUST NO. 2 OF 4(9105- )GTT ; (9401- )JZZ31
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24650 |
JZZ30..ATM 14V 3.0W |
1 | ||
| 90981-11018 |
JZZ30..GTT 12V 1.2W ｿｹｯﾄ無し |
4 | ||
| 83119-24610 |
JZZ30..ATM 14V 1.4W,ｿｹｯﾄ付き,ｼﾌﾄﾎﾟｼﾞｼｮﾝ |
1 | ||
| 83101-20080 |
JZZ30..GTT 12V 1.4W,ｿｹｯﾄ付き |
12 | ||
| 83119-24630 |
JZZ3#,UZZ3# 14V 1.8W |
2 | ||
| 83101-20080 |
JZZ30..ATM 12V 1.4W,ｿｹｯﾄ付き,ｱﾘ(ﾏﾙﾁ ﾃﾞｲｽﾌﾟﾚｲ) |
11 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24650 |
JZZ30..ATM 14V 3.0W |
1 | ||
| 90981-11018 |
JZZ30..GTT 12V 1.2W ｿｹｯﾄ無し |
4 | ||
| 83119-24610 |
JZZ30..ATM 14V 1.4W,ｿｹｯﾄ付き,ｼﾌﾄﾎﾟｼﾞｼｮﾝ |
1 | ||
| 83101-20080 |
JZZ30..GTT 12V 1.4W,ｿｹｯﾄ付き |
12 | ||
| 83119-24630 |
JZZ3#,UZZ3# 14V 1.8W |
2 | ||
| 83101-20080 |
JZZ30..ATM 12V 1.4W,ｿｹｯﾄ付き,ｱﾘ(ﾏﾙﾁ ﾃﾞｲｽﾌﾟﾚｲ) |
11 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24650 |
JZZ30..ATM 14V 3.0W |
1 | ||
| 90981-11018 |
JZZ30..GTT 12V 1.2W ｿｹｯﾄ無し |
4 | ||
| 83119-24610 |
JZZ30..ATM 14V 1.4W,ｿｹｯﾄ付き,ｼﾌﾄﾎﾟｼﾞｼｮﾝ |
1 | ||
| 83101-20080 |
JZZ30..GTT 12V 1.4W,ｿｹｯﾄ付き |
12 | ||
| 83119-24630 |
JZZ3#,UZZ3# 14V 1.8W |
2 | ||
| 83101-20080 |
JZZ30..ATM 12V 1.4W,ｿｹｯﾄ付き,ｱﾘ(ﾏﾙﾁ ﾃﾞｲｽﾌﾟﾚｲ) |
11 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
JZZ30..ATM ｱﾘ(ﾏﾙﾁ ﾃﾞｲｽﾌﾟﾚｲ) |
3 | ||
| 83101-14040 |
JZZ30..GTT |
6 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
JZZ30..ATM ｱﾘ(ﾏﾙﾁ ﾃﾞｲｽﾌﾟﾚｲ) |
3 | ||
| 83101-14040 |
JZZ30..GTT |
6 | ||
Part Price Details
Loading price information...
Part Number:
Price:
