JZZ30-ACPVZ (1991)
Toyota Soarer

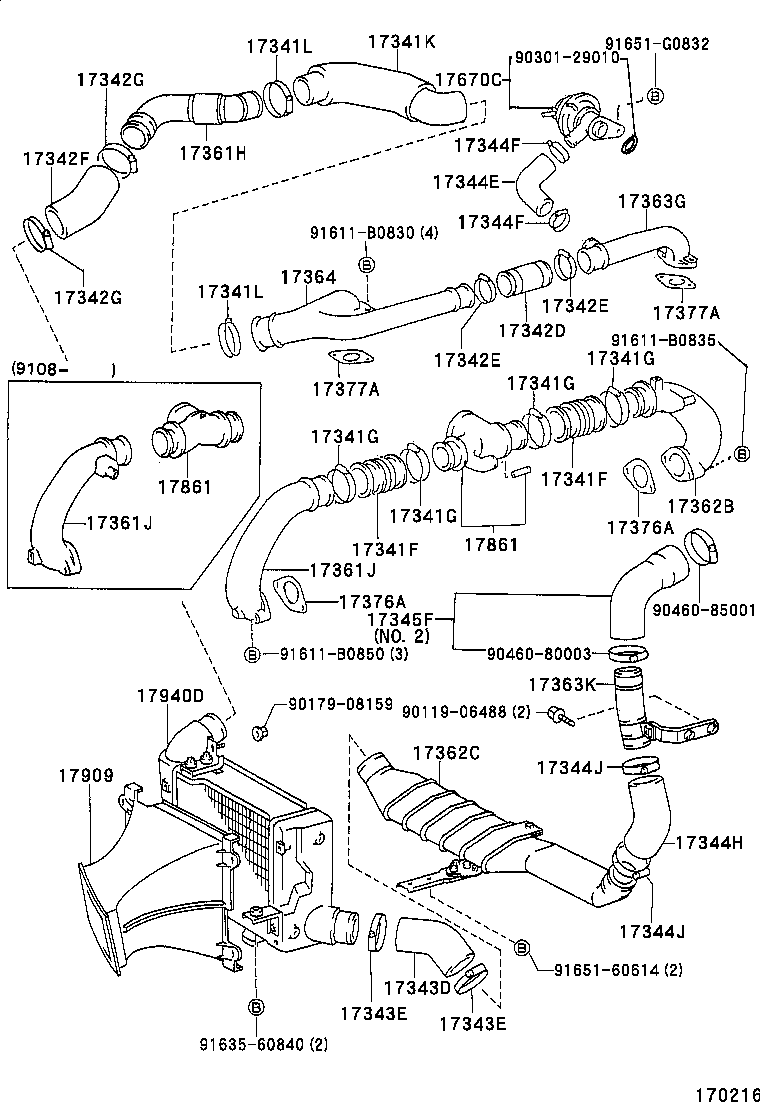

ILLUST NO. 2 OF 2(9105-9608)1JZGTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341F - HOSE, AIR, NO.1 | ||||
| 17341-88410 |
1JZGTE..JZZ30 |
1 | ||
| 17341-88400 |
1JZGTE..JZZ30 |
2 | ||
| 17341F - HOSE, AIR, NO.1 | ||||
| 17341-88410 |
1JZGTE..JZZ30 |
1 | ||
| 17341-88400 |
1JZGTE..JZZ30 |
2 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90467-33005 |
1JZGTE..JZZ30 |
2 | ||
| 90460-69007 |
1JZGTE..JZZ30 |
4 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90467-33005 |
1JZGTE..JZZ30 |
2 | ||
| 90460-69007 |
1JZGTE..JZZ30 |
4 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90467-33005 |
1JZGTE..JZZ30 |
2 | ||
| 90460-69007 |
1JZGTE..JZZ30 |
4 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90467-33005 |
1JZGTE..JZZ30 |
2 | ||
| 90460-69007 |
1JZGTE..JZZ30 |
4 | ||
| 17341K - HOSE, AIR, NO.1(FOR INTERCOOLER) | ||||
| 17341-46050 |
1JZGTE..JZZ30 |
1 | ||
| 17341-46180 |
1JZGTE..JZZ30 |
1 | ||
| 17341L - CLAMP, HOSE | ||||
| 90460-73004 |
1JZGTE..JZZ30 |
2 | ||
| 17341L - CLAMP, HOSE | ||||
| 90460-73004 |
1JZGTE..JZZ30 |
2 | ||
| 17342D - HOSE, AIR, NO.2 | ||||
| 17342-88400 |
1JZGTE..JZZ30 |
1 | ||
| 17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2) | ||||
| 90460-55014 |
1JZGTE..JZZ30 |
2 | ||
| 90460-55006 |
1JZGTE..JZZ30 |
2 | ||
| 17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2) | ||||
| 90460-55014 |
1JZGTE..JZZ30 |
2 | ||
| 90460-55006 |
1JZGTE..JZZ30 |
2 | ||
| 17342F - HOSE, AIR, NO.2(FOR INTERCOOLER) | ||||
| 17342-46050 |
1JZGTE..JZZ30 |
1 | ||
| 17342-46140 |
1JZGTE..JZZ30 |
1 | ||
| 17342G - CLAMP, HOSE, NO.2(FOR INTERCOOLER) | ||||
| 90460-80004 |
1JZGTE..JZZ30 |
2 | ||
| 90460-80003 |
1JZGTE..JZZ30 |
2 | ||
| 17342G - CLAMP, HOSE, NO.2(FOR INTERCOOLER) | ||||
| 90460-80004 |
1JZGTE..JZZ30 |
2 | ||
| 90460-80003 |
1JZGTE..JZZ30 |
2 | ||
| 17343D - HOSE, AIR, NO.3 | ||||
| 17343-46030 |
1JZGTE..JZZ30 |
1 | ||
| 17343-46080 |
1JZGTE..JZZ30 |
1 | ||
| 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) | ||||
| 90460-80003 |
1JZGTE..JZZ30 |
2 | ||
| 90460-80004 |
1JZGTE..JZZ30 |
2 | ||
| 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) | ||||
| 90460-80003 |
1JZGTE..JZZ30 |
2 | ||
| 90460-80004 |
1JZGTE..JZZ30 |
2 | ||
| 17344E - HOSE, AIR, NO.4 | ||||
| 17344-88400 |
1JZGTE..JZZ30 |
1 | ||
| 17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4) | ||||
| 90460-40001 |
1JZGTE..JZZ30 |
2 | ||
| 17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4) | ||||
| 90460-40001 |
1JZGTE..JZZ30 |
2 | ||
| 17344H - HOSE, AIR, NO.4(FOR INTERCOOLER) | ||||
| 17344-46030 |
1JZGTE..JZZ30 |
1 | ||
| 17344J - CLAMP, HOSE, NO.4(FOR INTERCOOLER) | ||||
| 90460-80003 |
1JZGTE..JZZ30 |
2 | ||
| 90460-80004 |
1JZGTE..JZZ30 |
2 | ||
| 17344J - CLAMP, HOSE, NO.4(FOR INTERCOOLER) | ||||
| 90460-80003 |
1JZGTE..JZZ30 |
2 | ||
| 90460-80004 |
1JZGTE..JZZ30 |
2 | ||
| 17345F - HOSE, AIR, NO.5 | ||||
| 17345-88400 |
1JZGTE..JZZ30 NO.1 |
1 | ||
| 17345-46060 |
1JZGTE..JZZ30 |
1 | ||
| 17345-46010 |
1JZGTE..JZZ30 NO.2 |
1 | ||
| 17361H - TUBE, AIR(FOR SUPERCHARGER) | ||||
| 17361-46030 |
1JZGTE..JZZ30 |
1 | ||
| 17361-46031 |
1JZGTE..JZZ30 |
1 | ||
| 17361J - TUBE, AIR, NO.1 | ||||
| 17361-88401 |
1JZGTE..JZZ30 |
1 | ||
| 17361-88400 |
1JZGTE..JZZ30 |
1 | ||
| 17361-88410 |
1JZGTE..JZZ30 |
1 | ||
| 17361J - TUBE, AIR, NO.1 | ||||
| 17361-88401 |
1JZGTE..JZZ30 |
1 | ||
| 17361-88400 |
1JZGTE..JZZ30 |
1 | ||
| 17361-88410 |
1JZGTE..JZZ30 |
1 | ||
| 17362B - TUBE, AIR, NO.2 | ||||
| 17362-88410 |
1JZGTE..JZZ30 |
1 | ||
| 17362-88400 |
1JZGTE..JZZ30 |
1 | ||
| 17362C - TUBE, AIR, NO.2 | ||||
| 17362-46030 |
1JZGTE..JZZ30 |
1 | ||
| 17363G - TUBE, AIR, NO.3 | ||||
| 17363-88400 |
1JZGTE..JZZ30 |
1 | ||
| 17363K - TUBE, AIR, NO.3(FOR INTERCOOLER) | ||||
| 17363-46010 |
1JZGTE..JZZ30 |
1 | ||
| 17363-46040 |
1JZGTE..JZZ30 |
1 | ||
| 17364 - TUBE, AIR, NO.4 | ||||
| 17364-88400 |
1JZGTE..JZZ30 |
1 | ||
| 17376A - GASKET, AIR TUBE | ||||
| 17376-88410 |
1JZGTE..JZZ30 |
1 | ||
| 17376-88400 |
1JZGTE..JZZ30 |
2 | ||
| 17376A - GASKET, AIR TUBE | ||||
| 17376-88410 |
1JZGTE..JZZ30 |
1 | ||
| 17376-88400 |
1JZGTE..JZZ30 |
2 | ||
| 17377A - GASKET, AIR TUBE, NO.2 | ||||
| 17377-88400 |
1JZGTE..JZZ30 |
2 | ||
| 17377-88410 |
1JZGTE..JZZ30 |
1 | ||
| 17377A - GASKET, AIR TUBE, NO.2 | ||||
| 17377-88400 |
1JZGTE..JZZ30 |
2 | ||
| 17377-88410 |
1JZGTE..JZZ30 |
1 | ||
| 17670C - VALVE ASSY, AIR BY-PASS | ||||
| 17670-88400 |
1JZGTE..JZZ30 |
1 | ||
| 17670-88410 |
1JZGTE..JZZ30 |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17861-88400 |
1JZGTE..JZZ30 |
1 | ||
| 17861-88401 |
1JZGTE..JZZ30 |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17861-88400 |
1JZGTE..JZZ30 |
1 | ||
| 17861-88401 |
1JZGTE..JZZ30 |
1 | ||
| 17909 - DUCT SUB-ASSY, INTERCOOLER COOLING AIR | ||||
| 17909-46050 |
1JZGTE..JZZ30 |
1 | ||
| 17909-46010 |
1JZGTE..JZZ30 |
1 | ||
| 17909-46060 |
1JZGTE..JZZ30 |
1 | ||
| 17940D - INTERCOOLER ASSY | ||||
| 17940-46080 |
1JZGTE..JZZ30 |
1 | ||
| 17940-46040 |
1JZGTE..JZZ30 |
1 | ||
| Common parts | ||||
| 90119-06488 | ||||
| 90179-08159 | ||||
| 90301-29010 | ||||
| 90460-80003 | ||||
| 90460-85001 | ||||
| 91611-B0830 | ||||
| 91611-B0835 | ||||
| 91611-B0850 | ||||
| 91635-60840 | ||||
| 91651-60614 | ||||
| 91651-G0832 | ||||

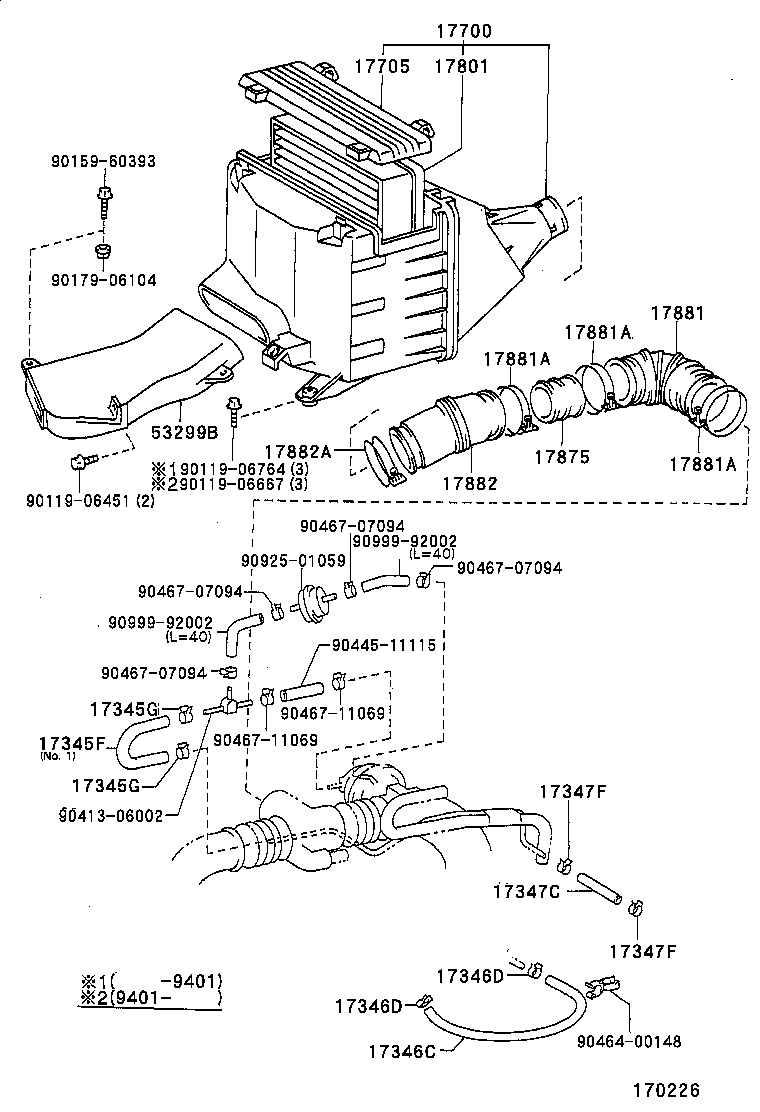

ILLUST NO. 1 OF 2(9105-9608)1JZGTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17345F - HOSE, AIR, NO.5 | ||||
| 17345-88400 |
1JZGTE..JZZ30 NO.1 |
1 | ||
| 17345-46060 |
1JZGTE..JZZ30 |
1 | ||
| 17345-46010 |
1JZGTE..JZZ30 NO.2 |
1 | ||
| 17345G - CLAMP OR CLIP(FOR AIR HOSE, NO.5) | ||||
| 90467-11069 |
1JZGTE..JZZ30 |
2 | ||
| 90460-85001 |
1JZGTE..JZZ30 NO.2 |
1 | ||
| 90467-10106 |
1JZGTE..JZZ30 |
2 | ||
| 90460-80003 |
1JZGTE..JZZ30 NO.1 |
1 | ||
| 17345G - CLAMP OR CLIP(FOR AIR HOSE, NO.5) | ||||
| 90467-11069 |
1JZGTE..JZZ30 |
2 | ||
| 90460-85001 |
1JZGTE..JZZ30 NO.2 |
1 | ||
| 90467-10106 |
1JZGTE..JZZ30 |
2 | ||
| 90460-80003 |
1JZGTE..JZZ30 NO.1 |
1 | ||
| 17346C - HOSE, NO.6 | ||||
| 17346-88400 |
1JZGTE..JZZ30 |
1 | ||
| 17346D - CLAMP OR CLIP(FOR AIR HOSE NO.6) | ||||
| 90467-10106 |
1JZGTE..JZZ30 |
2 | ||
| 17346D - CLAMP OR CLIP(FOR AIR HOSE NO.6) | ||||
| 90467-10106 |
1JZGTE..JZZ30 |
2 | ||
| 17347C - HOSE, AIR, NO.7 | ||||
| 90445-10061 |
1JZGTE..JZZ30 |
1 | ||
| 17347F - CLAMP OR CLIP(FOR AIR HOSE) | ||||
| 90467-10106 |
1JZGTE..JZZ30 |
2 | ||
| 17347F - CLAMP OR CLIP(FOR AIR HOSE) | ||||
| 90467-10106 |
1JZGTE..JZZ30 |
2 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-46100 |
1JZGTE..JZZ30 |
1 | ||
| 17700-46280 |
1JZGTE..JZZ30 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-46080 |
1JZGTE,2JZGE..JZZ3# |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-46060 |
1JZGTE,2JZGE..JZZ3# |
1 | ||
| 17875 - PIPE, INTAKE AIR CONNECTOR | ||||
| 17875-46030 |
1JZGTE..JZZ30 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-46220 |
1JZGTE..JZZ30 |
1 | ||
| 17881-46090 |
1JZGTE..JZZ30 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10830 |
1JZGTE..JZZ30 |
3 | ||
| 90460-83004 |
1JZGTE..JZZ30 |
3 | ||
| 96111-10830 |
1JZGTE..JZZ30 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10830 |
1JZGTE..JZZ30 |
3 | ||
| 90460-83004 |
1JZGTE..JZZ30 |
3 | ||
| 96111-10830 |
1JZGTE..JZZ30 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10830 |
1JZGTE..JZZ30 |
3 | ||
| 90460-83004 |
1JZGTE..JZZ30 |
3 | ||
| 96111-10830 |
1JZGTE..JZZ30 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-46050 |
1JZGTE..JZZ30 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-96001 |
1JZGTE..JZZ30 |
1 | ||
| 96111-10880 |
1JZGTE..JZZ30 |
1 | ||
| 90460-88005 |
1JZGTE..JZZ30 |
1 | ||
| 53299B - DUCT, COOL AIR INTAKE | ||||
| 53299-24010 |
JZZ3# |
1 | ||
| Common parts | ||||
| 90119-06451 | ||||
| 90119-06667 | ||||
| 90119-06764 | ||||
| 90159-60393 | ||||
| 90179-06104 | ||||
| 90413-06002 | ||||
| 90445-11115 | ||||
| 90464-00148 | ||||
| 90467-07094 | ||||
| 90467-11069 | ||||
| 90925-01059 | ||||
| 90999-92002 | ||||

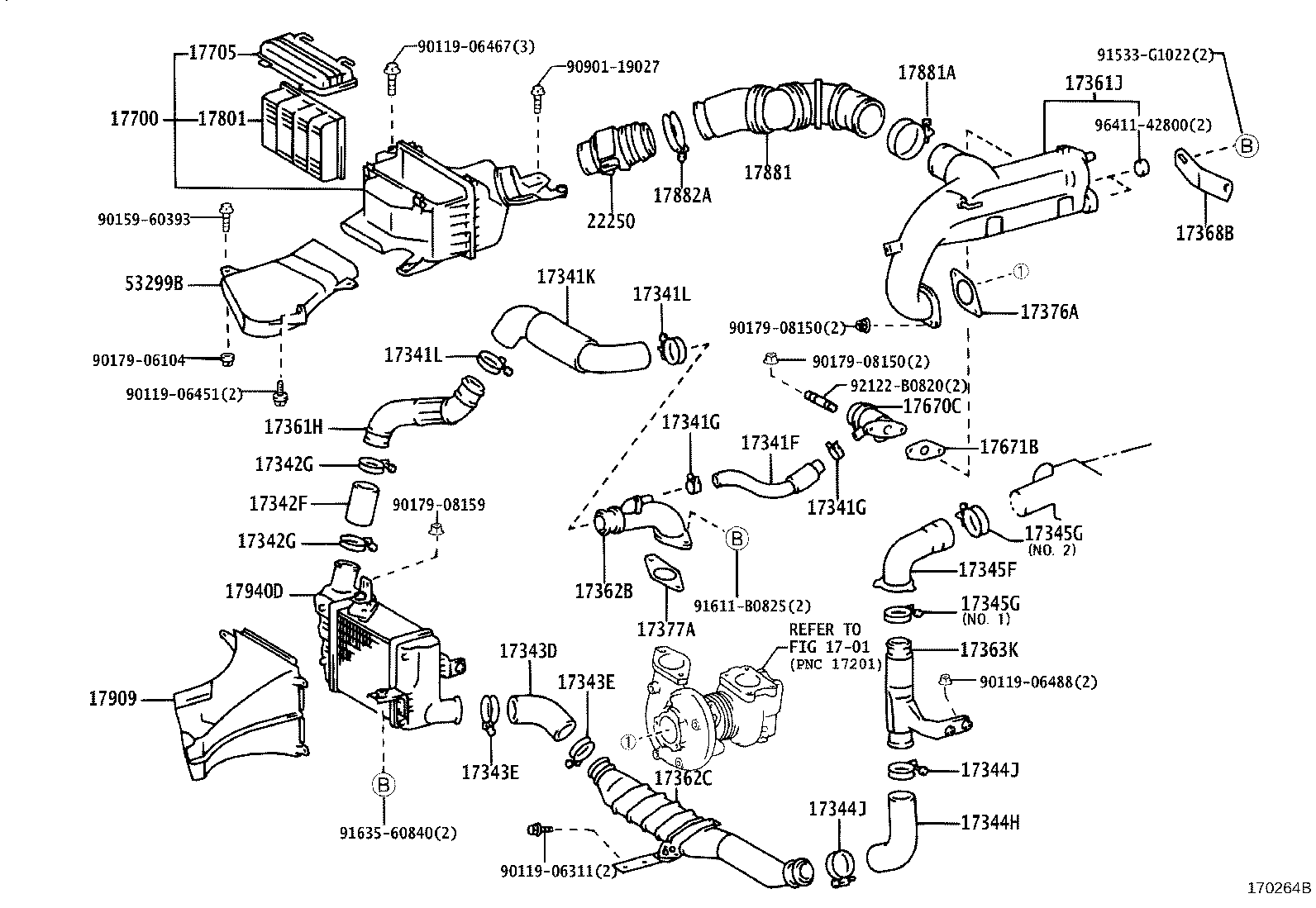

(9608- )1JZGTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341F - HOSE, AIR, NO.1 | ||||
| 17341-88410 |
1JZGTE..JZZ30 |
1 | ||
| 17341-88400 |
1JZGTE..JZZ30 |
2 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90467-33005 |
1JZGTE..JZZ30 |
2 | ||
| 90460-69007 |
1JZGTE..JZZ30 |
4 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90467-33005 |
1JZGTE..JZZ30 |
2 | ||
| 90460-69007 |
1JZGTE..JZZ30 |
4 | ||
| 17341K - HOSE, AIR, NO.1(FOR INTERCOOLER) | ||||
| 17341-46050 |
1JZGTE..JZZ30 |
1 | ||
| 17341-46180 |
1JZGTE..JZZ30 |
1 | ||
| 17341L - CLAMP, HOSE | ||||
| 90460-73004 |
1JZGTE..JZZ30 |
2 | ||
| 17341L - CLAMP, HOSE | ||||
| 90460-73004 |
1JZGTE..JZZ30 |
2 | ||
| 17342F - HOSE, AIR, NO.2(FOR INTERCOOLER) | ||||
| 17342-46050 |
1JZGTE..JZZ30 |
1 | ||
| 17342-46140 |
1JZGTE..JZZ30 |
1 | ||
| 17342G - CLAMP, HOSE, NO.2(FOR INTERCOOLER) | ||||
| 90460-80004 |
1JZGTE..JZZ30 |
2 | ||
| 90460-80003 |
1JZGTE..JZZ30 |
2 | ||
| 17342G - CLAMP, HOSE, NO.2(FOR INTERCOOLER) | ||||
| 90460-80004 |
1JZGTE..JZZ30 |
2 | ||
| 90460-80003 |
1JZGTE..JZZ30 |
2 | ||
| 17343D - HOSE, AIR, NO.3 | ||||
| 17343-46030 |
1JZGTE..JZZ30 |
1 | ||
| 17343-46080 |
1JZGTE..JZZ30 |
1 | ||
| 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) | ||||
| 90460-80003 |
1JZGTE..JZZ30 |
2 | ||
| 90460-80004 |
1JZGTE..JZZ30 |
2 | ||
| 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) | ||||
| 90460-80003 |
1JZGTE..JZZ30 |
2 | ||
| 90460-80004 |
1JZGTE..JZZ30 |
2 | ||
| 17344H - HOSE, AIR, NO.4(FOR INTERCOOLER) | ||||
| 17344-46030 |
1JZGTE..JZZ30 |
1 | ||
| 17344J - CLAMP, HOSE, NO.4(FOR INTERCOOLER) | ||||
| 90460-80003 |
1JZGTE..JZZ30 |
2 | ||
| 90460-80004 |
1JZGTE..JZZ30 |
2 | ||
| 17344J - CLAMP, HOSE, NO.4(FOR INTERCOOLER) | ||||
| 90460-80003 |
1JZGTE..JZZ30 |
2 | ||
| 90460-80004 |
1JZGTE..JZZ30 |
2 | ||
| 17345F - HOSE, AIR, NO.5 | ||||
| 17345-88400 |
1JZGTE..JZZ30 NO.1 |
1 | ||
| 17345-46060 |
1JZGTE..JZZ30 |
1 | ||
| 17345-46010 |
1JZGTE..JZZ30 NO.2 |
1 | ||
| 17345G - CLAMP OR CLIP(FOR AIR HOSE, NO.5) | ||||
| 90467-11069 |
1JZGTE..JZZ30 |
2 | ||
| 90460-85001 |
1JZGTE..JZZ30 NO.2 |
1 | ||
| 90467-10106 |
1JZGTE..JZZ30 |
2 | ||
| 90460-80003 |
1JZGTE..JZZ30 NO.1 |
1 | ||
| 17345G - CLAMP OR CLIP(FOR AIR HOSE, NO.5) | ||||
| 90467-11069 |
1JZGTE..JZZ30 |
2 | ||
| 90460-85001 |
1JZGTE..JZZ30 NO.2 |
1 | ||
| 90467-10106 |
1JZGTE..JZZ30 |
2 | ||
| 90460-80003 |
1JZGTE..JZZ30 NO.1 |
1 | ||
| 17361H - TUBE, AIR(FOR SUPERCHARGER) | ||||
| 17361-46030 |
1JZGTE..JZZ30 |
1 | ||
| 17361-46031 |
1JZGTE..JZZ30 |
1 | ||
| 17361J - TUBE, AIR, NO.1 | ||||
| 17361-88401 |
1JZGTE..JZZ30 |
1 | ||
| 17361-88400 |
1JZGTE..JZZ30 |
1 | ||
| 17361-88410 |
1JZGTE..JZZ30 |
1 | ||
| 17362B - TUBE, AIR, NO.2 | ||||
| 17362-88410 |
1JZGTE..JZZ30 |
1 | ||
| 17362-88400 |
1JZGTE..JZZ30 |
1 | ||
| 17362C - TUBE, AIR, NO.2 | ||||
| 17362-46030 |
1JZGTE..JZZ30 |
1 | ||
| 17363K - TUBE, AIR, NO.3(FOR INTERCOOLER) | ||||
| 17363-46010 |
1JZGTE..JZZ30 |
1 | ||
| 17363-46040 |
1JZGTE..JZZ30 |
1 | ||
| 17368B - SUPPORT, AIR TUBE | ||||
| 17368-88410 |
1JZGTE..JZZ30 |
1 | ||
| 17376A - GASKET, AIR TUBE | ||||
| 17376-88410 |
1JZGTE..JZZ30 |
1 | ||
| 17376-88400 |
1JZGTE..JZZ30 |
2 | ||
| 17377A - GASKET, AIR TUBE, NO.2 | ||||
| 17377-88400 |
1JZGTE..JZZ30 |
2 | ||
| 17377-88410 |
1JZGTE..JZZ30 |
1 | ||
| 17670C - VALVE ASSY, AIR BY-PASS | ||||
| 17670-88400 |
1JZGTE..JZZ30 |
1 | ||
| 17670-88410 |
1JZGTE..JZZ30 |
1 | ||
| 17671B - GASKET, AIR BY-PASS VALVE | ||||
| 17671-88410 |
1JZGTE..JZZ30 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-46100 |
1JZGTE..JZZ30 |
1 | ||
| 17700-46280 |
1JZGTE..JZZ30 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-46080 |
1JZGTE,2JZGE..JZZ3# |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-46060 |
1JZGTE,2JZGE..JZZ3# |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-46220 |
1JZGTE..JZZ30 |
1 | ||
| 17881-46090 |
1JZGTE..JZZ30 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10830 |
1JZGTE..JZZ30 |
3 | ||
| 90460-83004 |
1JZGTE..JZZ30 |
3 | ||
| 96111-10830 |
1JZGTE..JZZ30 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-96001 |
1JZGTE..JZZ30 |
1 | ||
| 96111-10880 |
1JZGTE..JZZ30 |
1 | ||
| 90460-88005 |
1JZGTE..JZZ30 |
1 | ||
| 17909 - DUCT SUB-ASSY, INTERCOOLER COOLING AIR | ||||
| 17909-46050 |
1JZGTE..JZZ30 |
1 | ||
| 17909-46010 |
1JZGTE..JZZ30 |
1 | ||
| 17909-46060 |
1JZGTE..JZZ30 |
1 | ||
| 17940D - INTERCOOLER ASSY | ||||
| 17940-46080 |
1JZGTE..JZZ30 |
1 | ||
| 17940-46040 |
1JZGTE..JZZ30 |
1 | ||
| 22250 - METER ASSY, INTAKE AIR FLOW | ||||
| 22250-50060 |
1JZGTE..JZZ30 |
1 | ||
| 53299B - DUCT, COOL AIR INTAKE | ||||
| 53299-24010 |
JZZ3# |
1 | ||
| Common parts | ||||
| 90119-06311 | ||||
| 90119-06451 | ||||
| 90119-06467 | ||||
| 90119-06488 | ||||
| 90159-60393 | ||||
| 90179-06104 | ||||
| 90179-08150 | ||||
| 90179-08159 | ||||
| 90901-19027 | ||||
| 91533-G1022 | ||||
| 91611-B0825 | ||||
| 91635-60840 | ||||
| 92122-B0820 | ||||
| 96411-42800 | ||||
| Linked diagrams | ||||
| 1701 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
