JZZ30-ACPVZ (1991)

Toyota Soarer

Production May 1991 - Dec 2000
Engine 1JZGTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9105- )1JZGTE

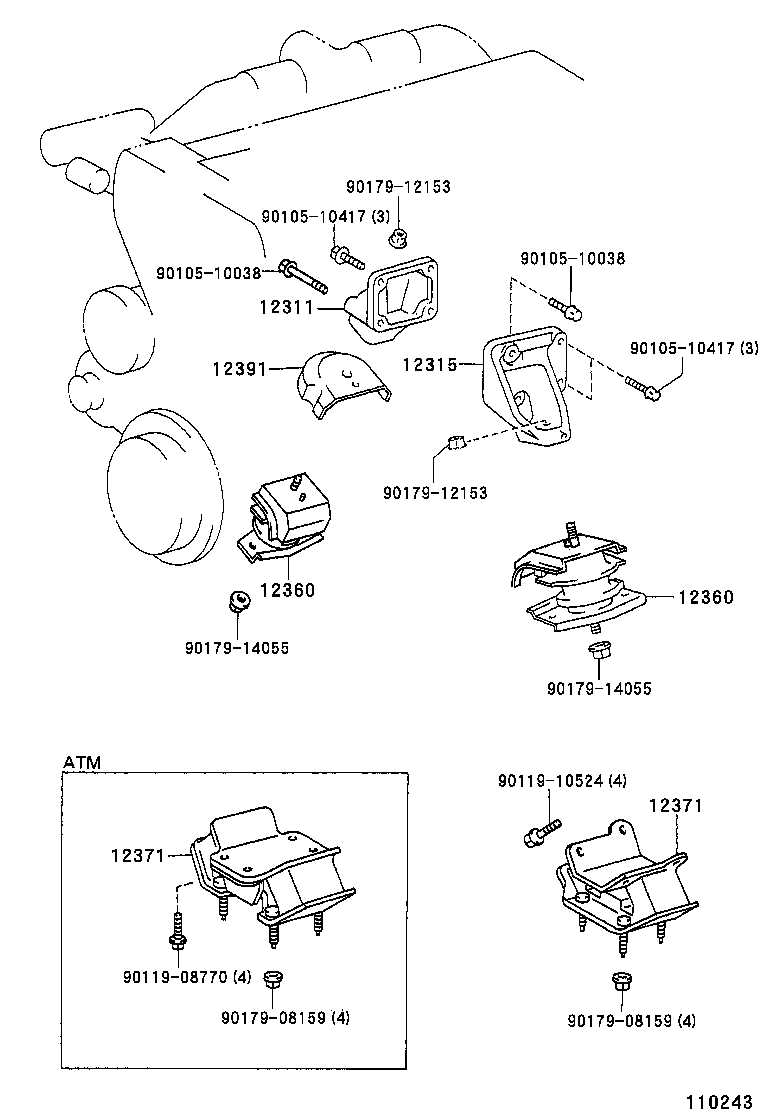

Click highlighted areas on diagram

diagram 12311 12315 12360 12360 12371 12371 12391 9010510038 9010510038 9010510417 9010510417 9011908770 9011910524 9017908159 9017908159 9017912153 9017912153 9017914055 9017914055
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-46040

1JZGTE..JZZ30

 1
12311-46040

1JZGTE,2JZGE..JZZ3#

 1
12311-46041

1JZGTE..JZZ30

 1
12311-46041

1JZGTE,2JZGE..JZZ3#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-46040

1JZGTE,2JZGE..JZZ3#

 1
12315-46040

1JZGTE..JZZ30

 1
12315-46041

1JZGTE,2JZGE..JZZ3#

 1
12360 - INSULATOR ASSY, ENGINE MOUNTING, FRONT
12360-46020

1JZGTE,2JZGE..JZZ3#

 2
12360 - INSULATOR ASSY, ENGINE MOUNTING, FRONT
12360-46020

1JZGTE,2JZGE..JZZ3#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-46020

1JZGTE,2JZGE..JZZ3#..ATM

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-46020

1JZGTE,2JZGE..JZZ3#..ATM

 1
12391 - INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH
12391-46020

1JZGTE,2JZGE..JZZ3#

 1
Common parts
90105-10038
90105-10417
90119-08770
90119-10524
90179-08159
90179-12153
90179-14055
