JZZ30-ACPVZ (1991)
Toyota Soarer

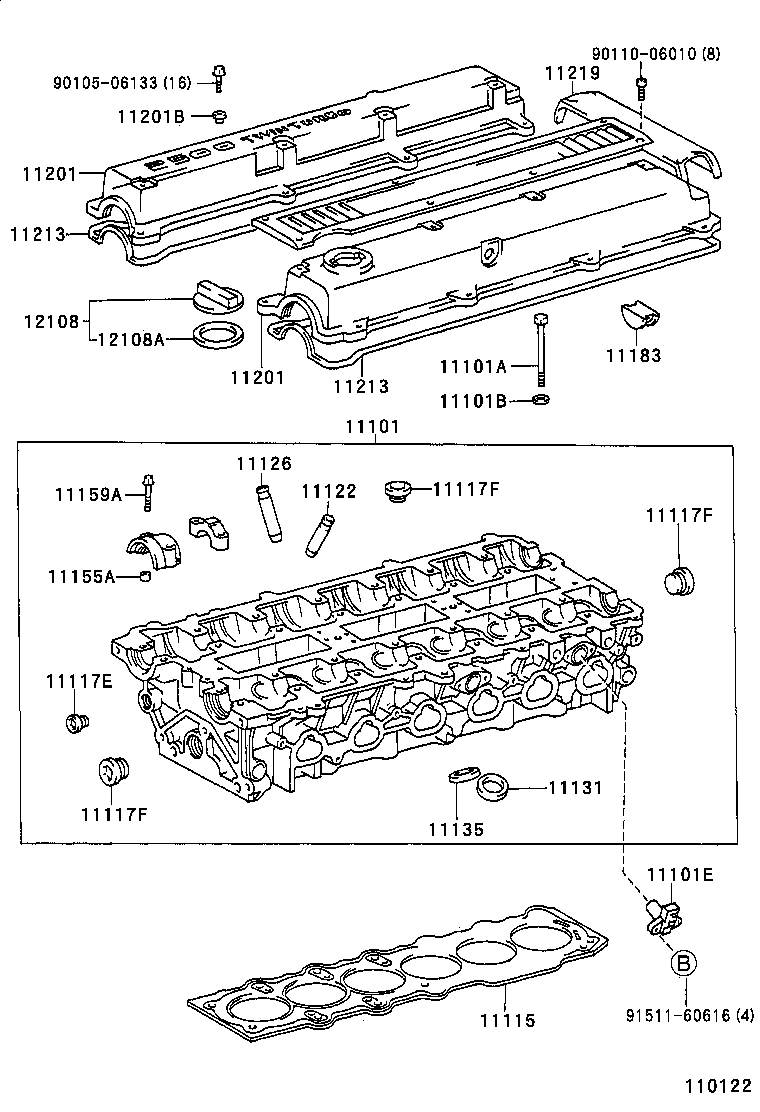

(9105-9608)1JZGTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-88410 |
1JZGTE..JZZ30 |
1 | ||
| 11101-88400 |
1JZGTE..JZZ30 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02102 |
1JZGTE,2JZGE..JZZ3# |
14 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-11018 |
1JZGTE,2JZGE..JZZ3# |
14 | ||
| 11101E - SENSOR, CAM POSITION | ||||
| 90919-05007 |
1JZGTE..JZZ30 |
1 | ||
| 90919-05007 |
1JZGTE,2JZGE..JZZ3# |
1 | ||
| 90919-05007 |
1JZGTE..JZZ30 |
2 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-88400 |
1JZGTE..JZZ30 |
1 | ||
| 11115-88410 |
1JZGTE..JZZ30 |
1 | ||
| 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||||
| 90341-18010 |
1JZGTE..JZZ30 |
4 | ||
| 11117F - PLUG, W/HEAD STRAIGHT SCREW, NO.2 | ||||
| 90341-27003 |
1JZGTE..JZZ30 |
6 | ||
| 11117F - PLUG, W/HEAD STRAIGHT SCREW, NO.2 | ||||
| 90341-27003 |
1JZGTE..JZZ30 |
6 | ||
| 11117F - PLUG, W/HEAD STRAIGHT SCREW, NO.2 | ||||
| 90341-27003 |
1JZGTE..JZZ30 |
6 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-88400 |
1JZGTE..JZZ30 STD |
12 | ||
| 11123-88400 |
1JZGTE..JZZ30 O/S 0.05 |
12 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11123-88400 |
1JZGTE..JZZ30 O/S 0.05 |
12 | ||
| 11122-88400 |
1JZGTE..JZZ30 STD |
12 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11131-46030 |
1JZGTE..JZZ30 STD |
12 | ||
| 11132-46030 |
1JZGTE..JZZ30 O/S 0.03 |
12 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-46030 |
1JZGTE..JZZ30 STD |
12 | ||
| 11136-46030 |
1JZGTE..JZZ30 O/S 0.03 |
12 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-11021 |
1JZGTE,2JZGE..JZZ3# |
28 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-08890 |
1JZGTE,2JZGE..JZZ3# |
28 | ||
| 90119-08890 |
1JZGTE..JZZ30 |
28 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-88400 |
1JZGTE..JZZ30 |
2 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-88400 |
1JZGTE..JZZ30 ｲﾝﾃｰｸ側 |
1 | ||
| 11202-88400 |
1JZGTE..JZZ30 ｴｷｿﾞｰｽﾄ側 |
1 | ||
| 11201-88410 |
1JZGTE..JZZ30 ｲﾝﾃｰｸ側 |
1 | ||
| 11202-88410 |
1JZGTE..JZZ30 ｴｷｿﾞｰｽﾄ側 |
1 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-88400 |
1JZGTE..JZZ30 ｲﾝﾃｰｸ側 |
1 | ||
| 11202-88400 |
1JZGTE..JZZ30 ｴｷｿﾞｰｽﾄ側 |
1 | ||
| 11201-88410 |
1JZGTE..JZZ30 ｲﾝﾃｰｸ側 |
1 | ||
| 11202-88410 |
1JZGTE..JZZ30 ｴｷｿﾞｰｽﾄ側 |
1 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-06014 |
1JZGTE..JZZ30 |
16 | ||
| 90210-07001 |
1JZGTE..JZZ30 |
16 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-88400 |
1JZGTE..JZZ30 |
2 | ||
| 11213-88410 |
1JZGTE..JZZ30 ｲﾝﾃｰｸ側 |
1 | ||
| 11214-88410 |
1JZGTE..JZZ30 ｴｷｿﾞｰｽﾄ側 |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-88400 |
1JZGTE..JZZ30 |
2 | ||
| 11213-88410 |
1JZGTE..JZZ30 ｲﾝﾃｰｸ側 |
1 | ||
| 11214-88410 |
1JZGTE..JZZ30 ｴｷｿﾞｰｽﾄ側 |
1 | ||
| 11219 - COVER, CYLINDER HEAD, NO.3 | ||||
| 11219-88400 |
1JZGTE..JZZ30 |
1 | ||
| 11219-88410 |
1JZGTE..JZZ30 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-46010 |
1JZGTE,2JZGE..JZZ3# |
1 | ||
| 12180-20030 |
1JZGTE,2JZGE..JZZ3# |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 12195-46011 |
1JZGTE,2JZGE..JZZ3# |
1 | ||
| 12195-46010 |
1JZGTE..JZZ30 |
1 | ||
| 12195-20020 |
1JZGTE,2JZGE..JZZ3# |
1 | ||
| Common parts | ||||
| 90105-06133 | ||||
| 90110-06010 | ||||
| 91511-60616 | ||||

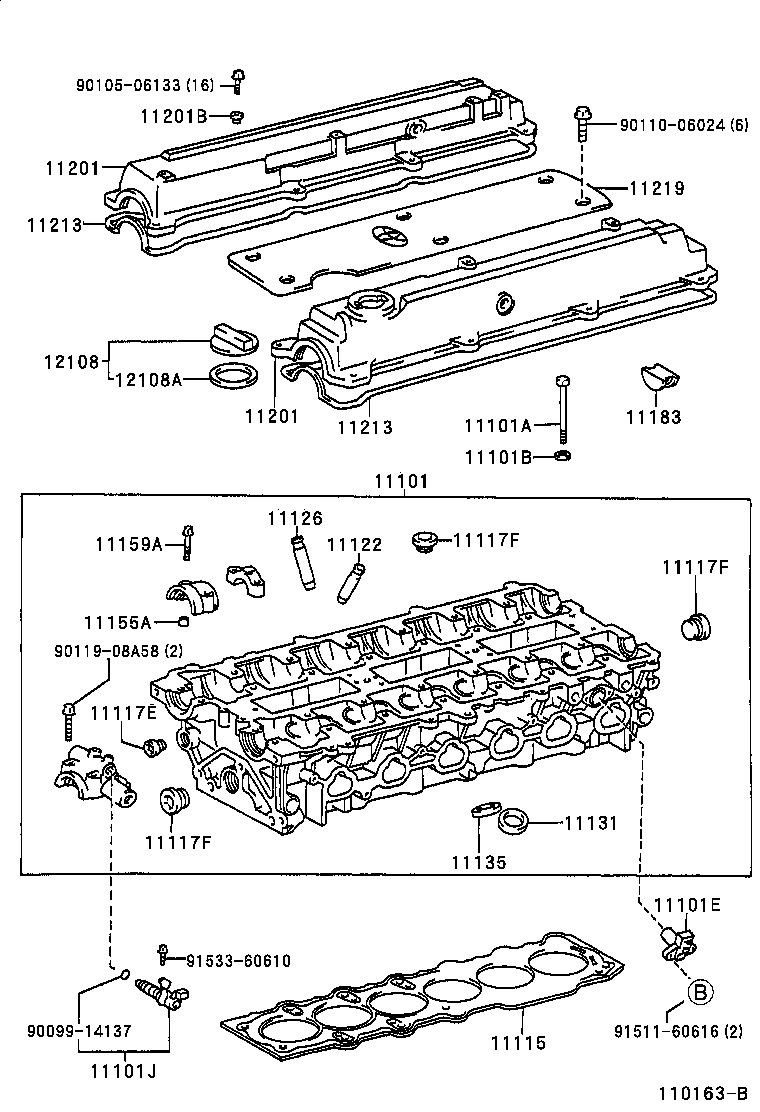

(9608- )1JZGTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-88410 |
1JZGTE..JZZ30 |
1 | ||
| 11101-88400 |
1JZGTE..JZZ30 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02102 |
1JZGTE,2JZGE..JZZ3# |
14 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-11018 |
1JZGTE,2JZGE..JZZ3# |
14 | ||
| 11101E - SENSOR, CAM POSITION | ||||
| 90919-05007 |
1JZGTE..JZZ30 |
1 | ||
| 90919-05007 |
1JZGTE,2JZGE..JZZ3# |
1 | ||
| 90919-05007 |
1JZGTE..JZZ30 |
2 | ||
| 11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL | ||||
| 15330-46010 |
1JZGTE,2JZGE..JZZ3# |
1 | ||
| 15330-46010 |
1JZGTE..JZZ30 |
1 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-88400 |
1JZGTE..JZZ30 |
1 | ||
| 11115-88410 |
1JZGTE..JZZ30 |
1 | ||
| 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||||
| 90341-18010 |
1JZGTE..JZZ30 |
4 | ||
| 11117F - PLUG, W/HEAD STRAIGHT SCREW, NO.2 | ||||
| 90341-27003 |
1JZGTE..JZZ30 |
6 | ||
| 11117F - PLUG, W/HEAD STRAIGHT SCREW, NO.2 | ||||
| 90341-27003 |
1JZGTE..JZZ30 |
6 | ||
| 11117F - PLUG, W/HEAD STRAIGHT SCREW, NO.2 | ||||
| 90341-27003 |
1JZGTE..JZZ30 |
6 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-88400 |
1JZGTE..JZZ30 STD |
12 | ||
| 11123-88400 |
1JZGTE..JZZ30 O/S 0.05 |
12 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11123-88400 |
1JZGTE..JZZ30 O/S 0.05 |
12 | ||
| 11122-88400 |
1JZGTE..JZZ30 STD |
12 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11131-46030 |
1JZGTE..JZZ30 STD |
12 | ||
| 11132-46030 |
1JZGTE..JZZ30 O/S 0.03 |
12 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-46030 |
1JZGTE..JZZ30 STD |
12 | ||
| 11136-46030 |
1JZGTE..JZZ30 O/S 0.03 |
12 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-11021 |
1JZGTE,2JZGE..JZZ3# |
28 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-08890 |
1JZGTE,2JZGE..JZZ3# |
28 | ||
| 90119-08890 |
1JZGTE..JZZ30 |
28 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-88400 |
1JZGTE..JZZ30 |
2 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-88400 |
1JZGTE..JZZ30 ｲﾝﾃｰｸ側 |
1 | ||
| 11202-88400 |
1JZGTE..JZZ30 ｴｷｿﾞｰｽﾄ側 |
1 | ||
| 11201-88410 |
1JZGTE..JZZ30 ｲﾝﾃｰｸ側 |
1 | ||
| 11202-88410 |
1JZGTE..JZZ30 ｴｷｿﾞｰｽﾄ側 |
1 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-88400 |
1JZGTE..JZZ30 ｲﾝﾃｰｸ側 |
1 | ||
| 11202-88400 |
1JZGTE..JZZ30 ｴｷｿﾞｰｽﾄ側 |
1 | ||
| 11201-88410 |
1JZGTE..JZZ30 ｲﾝﾃｰｸ側 |
1 | ||
| 11202-88410 |
1JZGTE..JZZ30 ｴｷｿﾞｰｽﾄ側 |
1 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-06014 |
1JZGTE..JZZ30 |
16 | ||
| 90210-07001 |
1JZGTE..JZZ30 |
16 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-88400 |
1JZGTE..JZZ30 |
2 | ||
| 11213-88410 |
1JZGTE..JZZ30 ｲﾝﾃｰｸ側 |
1 | ||
| 11214-88410 |
1JZGTE..JZZ30 ｴｷｿﾞｰｽﾄ側 |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-88400 |
1JZGTE..JZZ30 |
2 | ||
| 11213-88410 |
1JZGTE..JZZ30 ｲﾝﾃｰｸ側 |
1 | ||
| 11214-88410 |
1JZGTE..JZZ30 ｴｷｿﾞｰｽﾄ側 |
1 | ||
| 11219 - COVER, CYLINDER HEAD, NO.3 | ||||
| 11219-88400 |
1JZGTE..JZZ30 |
1 | ||
| 11219-88410 |
1JZGTE..JZZ30 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-46010 |
1JZGTE,2JZGE..JZZ3# |
1 | ||
| 12180-20030 |
1JZGTE,2JZGE..JZZ3# |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 12195-46011 |
1JZGTE,2JZGE..JZZ3# |
1 | ||
| 12195-46010 |
1JZGTE..JZZ30 |
1 | ||
| 12195-20020 |
1JZGTE,2JZGE..JZZ3# |
1 | ||
| Common parts | ||||
| 90099-14137 | ||||
| 90105-06133 | ||||
| 90110-06024 | ||||
| 90119-08A58 | ||||
| 91511-60616 | ||||
| 91533-60610 | ||||
