JZZ30-ACMZZ (1991)

Toyota Soarer

Production May 1991 - Jan 1994
Engine 1JZGTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9105-9608)

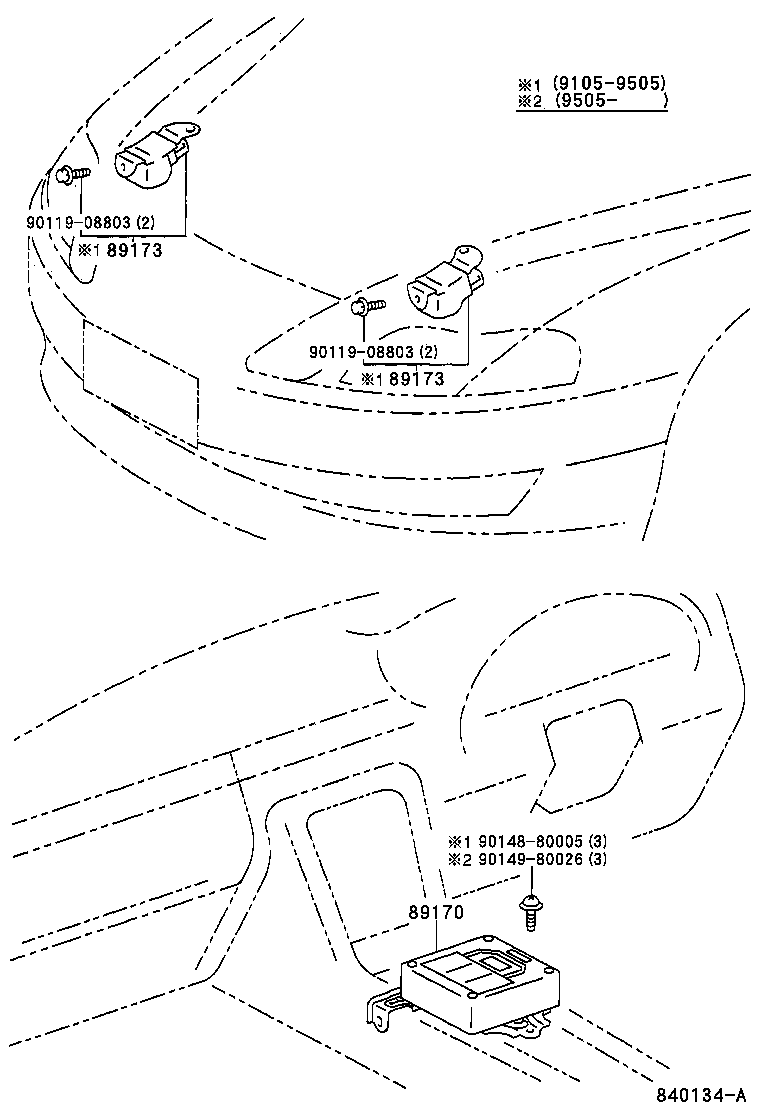

Click highlighted areas on diagram

diagram 89170 89173 89173 9011908803 9011908803 9014880005 9014980026
Part # Description Qty Price
89170 - SENSOR ASSY, AIR BAG
89170-24010

JZZ3#,UZZ3#

 1
89173 - SENSOR, AIR BAG, FRONT
89173-29025

JZZ3#,UZZ3#

左側

 1
89173-29015

JZZ3#,UZZ3#

右側

 1
89173 - SENSOR, AIR BAG, FRONT
89173-29025

JZZ3#,UZZ3#

左側

 1
89173-29015

JZZ3#,UZZ3#

右側

 1
Common parts
90119-08803
90148-80005
90149-80026
