JZZ30-ACMZZ (1991)

Toyota Soarer

Production May 1991 - Jan 1994
Engine 1JZGTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9105- )

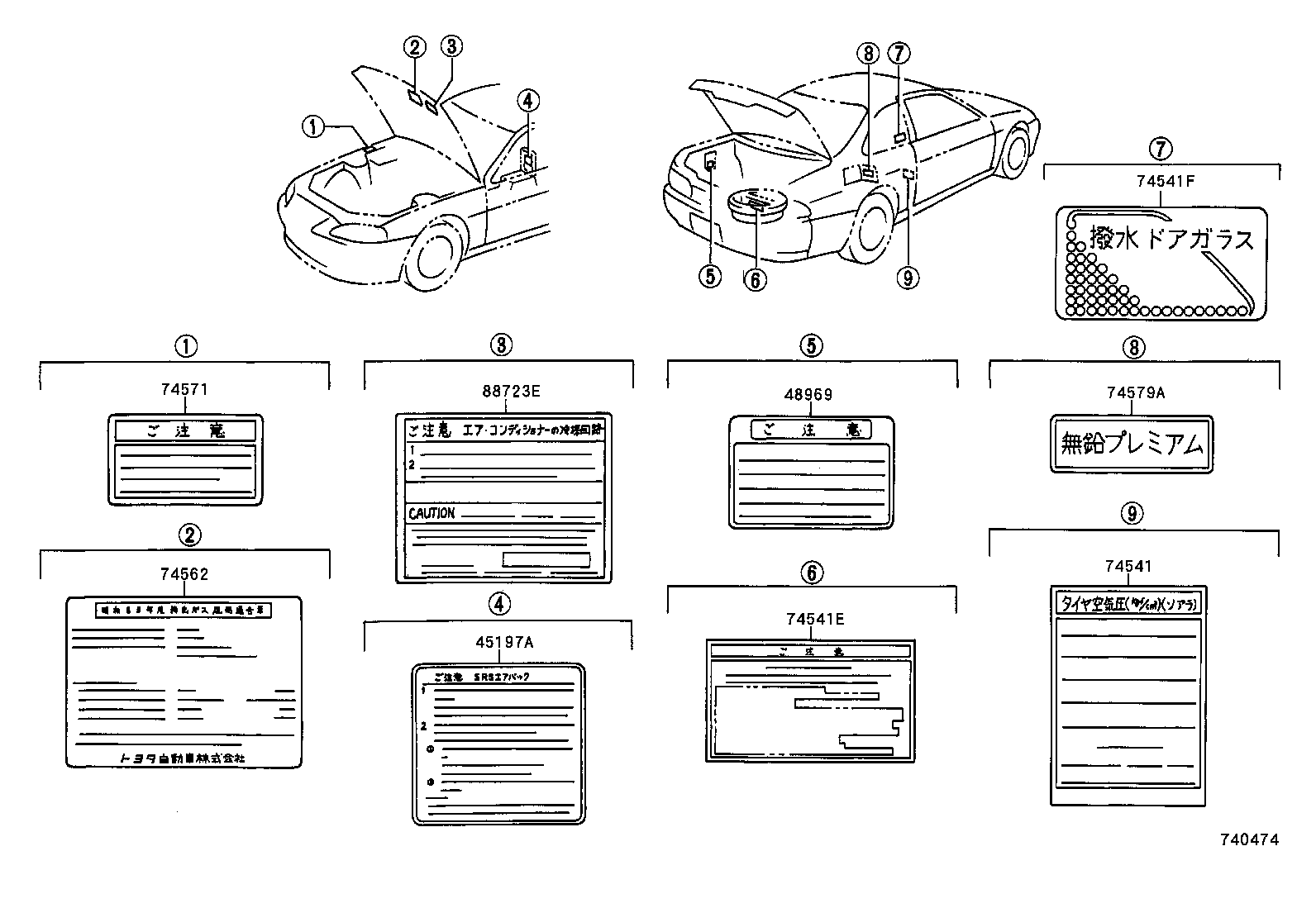

Click highlighted areas on diagram

diagram 45197A 48969 74541 74541E 74541F 74562 74571 74579A 88723E
Part # Description Qty Price
45197A - LABEL, AIR BAG CAUTION
45197-24010

JZZ3#,UZZ3#

 1
74541 - PLATE, TIRE PRESSURE CAUTION
42661-24090

JZZ30,UZZ30,31..GT,GTL,GTT

 1
42661-24100

JZZ30,UZZ3#

ｱﾘ(225/55R16 ﾀｲﾔ)

 1
42661-24101

JZZ30,UZZ3#

ｱﾘ(225/55R16 ﾀｲﾔ)

 1
74541E - PLATE, COMPACT SPARE TIRE CAUTION
42668-40010

JZZ30,UZZ30,31..GT,GTL,GTT

 1
74562 - PLATE, EMISSION CONTROL SYSTEM INFORMATION
74562-22460

JZZ30

 1
74571 - PLATE, BRAKE FLUID CAUTION
47288-32010

JZZ30,UZZ3#

 1
74579A - LABEL, UNLEADED FUEL INFORMATION
74579-24010

JZZ3#,UZZ3#

 1
88723E - LABEL, COOLER SERVICE CAUTION
88723-24010

JZZ30,UZZ3#

 1
