JZZ30-ACMZZ (1991)

Toyota Soarer

Production May 1991 - Jan 1994
Engine 1JZGTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9105-9401)1JZGTE

Click highlighted areas on diagram

12V 100A

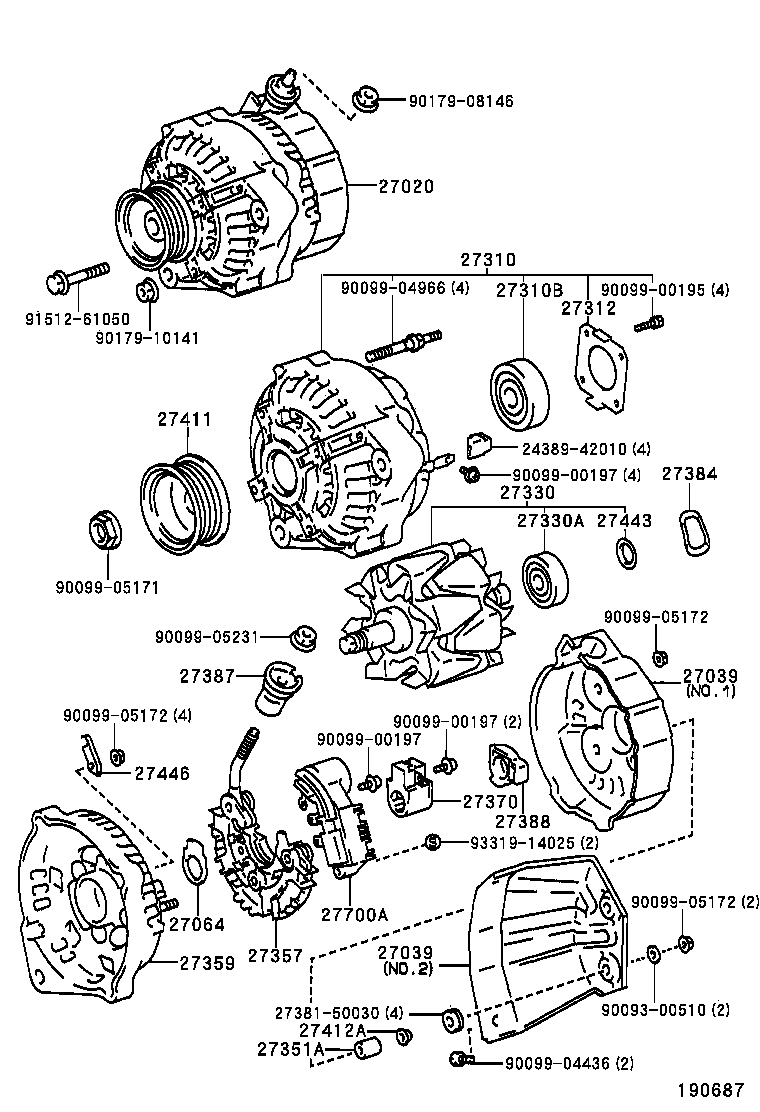

diagram 2438942010 27020 27039 27039 27064 27310 27310B 27312 27330 27330A 27351A 27357 27359 27370 2738150030 27384 27387 27388 27411 27412A 27443 27446 27700A 9009300510 9009900195 9009900197 9009900197 9009900197 9009904436 9009904966 9009905171 9009905172 9009905172 9009905172 9009905231 9017908146 9017910141 9151261050 9331914025
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-46030

1JZGTE..JZZ30

12V 100A

 1
27039 - COVER, ALTERNATOR REAR END
27039-50030

1JZGTE,1UZFE..JZZ30,UZZ30,31

NO.2

 1
27039-46120

1JZGTE..JZZ30

NO.1

 1
27039-46100

1JZGTE..JZZ30

NO.1

 1
27039 - COVER, ALTERNATOR REAR END
27039-50030

1JZGTE,1UZFE..JZZ30,UZZ30,31

NO.2

 1
27039-46120

1JZGTE..JZZ30

NO.1

 1
27039-46100

1JZGTE..JZZ30

NO.1

 1
27064 - SEAL, ALTERNATOR PLATE
27064-42010

1JZGTE,2JZGE,1UZFE..JZZ3#,UZZ3#

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-46090

1JZGTE,2JZGE..JZZ3#

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10192

1JZGTE,2JZGE,1UZFE..JZZ3#,UZZ3#

 1
27312 - PLATE, RETAINER
27312-42010

1JZGTE,2JZGE,1UZFE..JZZ3#,UZZ3#

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-46090

1JZGTE..JZZ30

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10194

1JZGTE,2JZGE,1UZFE..JZZ3#,UZZ3#

 1
27351A - COLLAR, ADJUSTING ALTERNATOR
27351-50030

1JZGTE,1UZFE..JZZ30,UZZ30,31

 2
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-46100

1JZGTE..JZZ30

 1
27357-46090

1JZGTE..JZZ30

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-46100

1JZGTE,2JZGE..JZZ3#

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060

1JZGTE,2JZGE,1UZFE..JZZ3#,UZZ3#

 1
27384 - WASHER
27384-50030

1JZGTE,2JZGE,1UZFE..JZZ3#,UZZ3#

 1
27387 - INSULATOR, TERMINAL
27387-42040

1JZGTE,2JZGE,1UZFE..JZZ3#,UZZ30,31

 1
27388 - COVER, ALTERNATOR BRUSH
27388-42010

1JZGTE,1UZFE..JZZ30,UZZ3#

 1
27411 - PULLEY, ALTERNATOR
27411-46090

1JZGTE,2JZGE..JZZ3#

 1
27412A - COLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME)
27412-50030

1JZGTE,1UZFE..JZZ30,UZZ30,31

 4
27443 - COVER, ALTERNATOR BEARING
27443-63020

1JZGTE,2JZGE,1UZFE..JZZ3#,UZZ3#

 1
27446 - CLIP, ALTERNATOR CORD
27446-62012

1JZGTE..JZZ30

 1
27700A - REGULATOR ASSY, GENERATOR
27700-46030

1JZGTE..JZZ30

 1
Common parts
24389-42010
27381-50030
90093-00510
90099-00195
90099-00197
90099-04436
90099-04966
90099-05171
90099-05172
90099-05231
90179-08146
90179-10141
91512-61050
93319-14025
