JZZ30-ACMVZ (1991)

Toyota Soarer

Production May 1991 - Dec 2000
Engine 1JZGTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

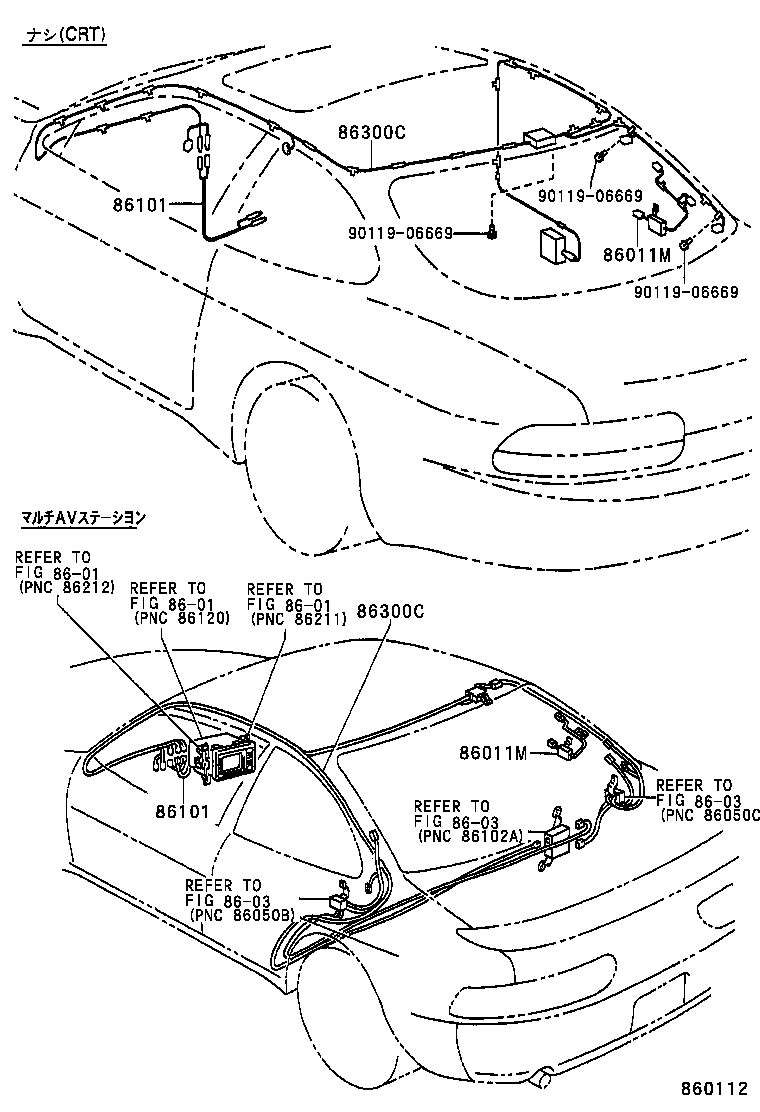

ILLUST NO. 1 OF 2(9105- )

Click highlighted areas on diagram

diagram 8601 8601 8601 86011M 86011M 8603 8603 8603 86101 86101 86300C 86300C 9011906669 9011906669 9011906669
Part # Description Qty Price
86011M - FILTER, NOISE
90980-05197

JZZ3#,UZZ3#

 1
86011M - FILTER, NOISE
90980-05197

JZZ3#,UZZ3#

 1
86101 - CORD SUB-ASSY, ANTENNA
86101-24040

JZZ3#,UZZ30,31

ｱﾘ(CD ﾌﾟﾚ-ﾔ OR CD ｵ-ﾄ ﾁｴﾝｼﾞﾔ-)

 1
86101-24040

JZZ3#

ｱﾘ(CD ﾌﾟﾚ-ﾔ OR CD ｵ-ﾄ ﾁｴﾝｼﾞﾔ-)

 1
86101-24030

JZZ3#..GT,GTT

 1
86101 - CORD SUB-ASSY, ANTENNA
86101-24040

JZZ3#,UZZ30,31

ｱﾘ(CD ﾌﾟﾚ-ﾔ OR CD ｵ-ﾄ ﾁｴﾝｼﾞﾔ-)

 1
86101-24040

JZZ3#

ｱﾘ(CD ﾌﾟﾚ-ﾔ OR CD ｵ-ﾄ ﾁｴﾝｼﾞﾔ-)

 1
86101-24030

JZZ3#..GT,GTT

 1
86300C - ANTENNA ASSY, AMPLIFIER, NO.2
86300-24110

JZZ30..GTT

ｱﾘ(CD ﾌﾟﾚ-ﾔ OR CD ｵ-ﾄ ﾁｴﾝｼﾞﾔ-)

 1
86300-24100

JZZ30..GTT

 1
86300-24230

JZZ30

ｱﾘ(ﾑ-ﾝﾙ-ﾌ & ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ)

 1
86300-24210

JZZ30

ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ)

 1
86300-24190

JZZ3#

 1
86300-24200

JZZ3#

ｱﾘ(CD ﾌﾟﾚ-ﾔ OR CD ｵ-ﾄ ﾁｴﾝｼﾞﾔ-)

 1
86300-24150

JZZ30..GTT

ｱﾘ(CD ｵ-ﾄ ﾁｴﾝｼﾞﾔ- & ﾑ-ﾝ ﾙ-ﾌ) OR ｱﾘ(CD ﾌﾟﾚ-ﾔ & ﾑ-ﾝ ﾙ-ﾌ)

 1
86300-24140

JZZ3#..GT,GTT

ｱﾘ(ﾑ-ﾝﾙ-ﾌ)

 1
86300-24220

JZZ3#

ｱﾘ(CD ｵ-ﾄ ﾁｴﾝｼﾞﾔ- & ﾑ-ﾝ ﾙ-ﾌ) OR ｱﾘ(CD ﾌﾟﾚ-ﾔ & ﾑ-ﾝ ﾙ-ﾌ)

 1
86300-24300

JZZ3#

ｱﾘ(ﾑ-ﾝﾙ-ﾌ)

 1
86300-24330

JZZ3#

ｱﾘ(ｳ-ﾊ- ｽﾋﾟ-ｶ)

 1
86300-24320

JZZ3#

ｱﾘ(ｳ-ﾊ- ｽﾋﾟ-ｶ & ﾑ-ﾝ ﾙ-ﾌ)

 1
86300-24310

JZZ3#

 1
86300C - ANTENNA ASSY, AMPLIFIER, NO.2
86300-24110

JZZ30..GTT

ｱﾘ(CD ﾌﾟﾚ-ﾔ OR CD ｵ-ﾄ ﾁｴﾝｼﾞﾔ-)

 1
86300-24100

JZZ30..GTT

 1
86300-24230

JZZ30

ｱﾘ(ﾑ-ﾝﾙ-ﾌ & ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ)

 1
86300-24210

JZZ30

ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ)

 1
86300-24190

JZZ3#

 1
86300-24200

JZZ3#

ｱﾘ(CD ﾌﾟﾚ-ﾔ OR CD ｵ-ﾄ ﾁｴﾝｼﾞﾔ-)

 1
86300-24150

JZZ30..GTT

ｱﾘ(CD ｵ-ﾄ ﾁｴﾝｼﾞﾔ- & ﾑ-ﾝ ﾙ-ﾌ) OR ｱﾘ(CD ﾌﾟﾚ-ﾔ & ﾑ-ﾝ ﾙ-ﾌ)

 1
86300-24140

JZZ3#..GT,GTT

ｱﾘ(ﾑ-ﾝﾙ-ﾌ)

 1
86300-24220

JZZ3#

ｱﾘ(CD ｵ-ﾄ ﾁｴﾝｼﾞﾔ- & ﾑ-ﾝ ﾙ-ﾌ) OR ｱﾘ(CD ﾌﾟﾚ-ﾔ & ﾑ-ﾝ ﾙ-ﾌ)

 1
86300-24300

JZZ3#

ｱﾘ(ﾑ-ﾝﾙ-ﾌ)

 1
86300-24330

JZZ3#

ｱﾘ(ｳ-ﾊ- ｽﾋﾟ-ｶ)

 1
86300-24320

JZZ3#

ｱﾘ(ｳ-ﾊ- ｽﾋﾟ-ｶ & ﾑ-ﾝ ﾙ-ﾌ)

 1
86300-24310

JZZ3#

 1
Common parts
90119-06669
Linked diagrams
8601
8603

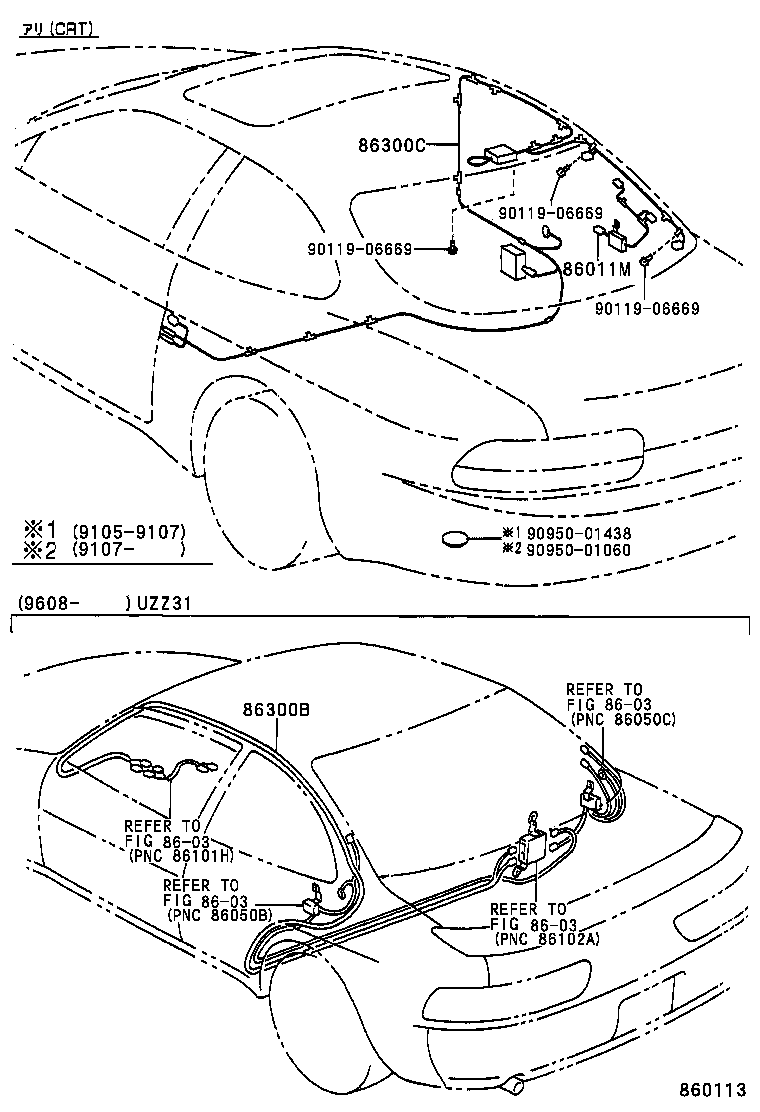

ILLUST NO. 2 OF 2(9105- )

Click highlighted areas on diagram

diagram 86011M 8603 8603 8603 8603 86300B 86300C 9011906669 9011906669 9011906669 9095001060 9095001438
Part # Description Qty Price
86011M - FILTER, NOISE
90980-05197

JZZ3#,UZZ3#

 1
86300C - ANTENNA ASSY, AMPLIFIER, NO.2
86300-24110

JZZ30..GTT

ｱﾘ(CD ﾌﾟﾚ-ﾔ OR CD ｵ-ﾄ ﾁｴﾝｼﾞﾔ-)

 1
86300-24100

JZZ30..GTT

 1
86300-24230

JZZ30

ｱﾘ(ﾑ-ﾝﾙ-ﾌ & ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ)

 1
86300-24210

JZZ30

ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ)

 1
86300-24190

JZZ3#

 1
86300-24200

JZZ3#

ｱﾘ(CD ﾌﾟﾚ-ﾔ OR CD ｵ-ﾄ ﾁｴﾝｼﾞﾔ-)

 1
86300-24150

JZZ30..GTT

ｱﾘ(CD ｵ-ﾄ ﾁｴﾝｼﾞﾔ- & ﾑ-ﾝ ﾙ-ﾌ) OR ｱﾘ(CD ﾌﾟﾚ-ﾔ & ﾑ-ﾝ ﾙ-ﾌ)

 1
86300-24140

JZZ3#..GT,GTT

ｱﾘ(ﾑ-ﾝﾙ-ﾌ)

 1
86300-24220

JZZ3#

ｱﾘ(CD ｵ-ﾄ ﾁｴﾝｼﾞﾔ- & ﾑ-ﾝ ﾙ-ﾌ) OR ｱﾘ(CD ﾌﾟﾚ-ﾔ & ﾑ-ﾝ ﾙ-ﾌ)

 1
86300-24300

JZZ3#

ｱﾘ(ﾑ-ﾝﾙ-ﾌ)

 1
86300-24330

JZZ3#

ｱﾘ(ｳ-ﾊ- ｽﾋﾟ-ｶ)

 1
86300-24320

JZZ3#

ｱﾘ(ｳ-ﾊ- ｽﾋﾟ-ｶ & ﾑ-ﾝ ﾙ-ﾌ)

 1
86300-24310

JZZ3#

 1
Common parts
90119-06669
90950-01060
90950-01438
Linked diagrams
8603
