JZZ30-ACMVZ (1991)
Toyota Soarer
Production
May 1991
-
Dec 2000
Engine
1JZGTE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

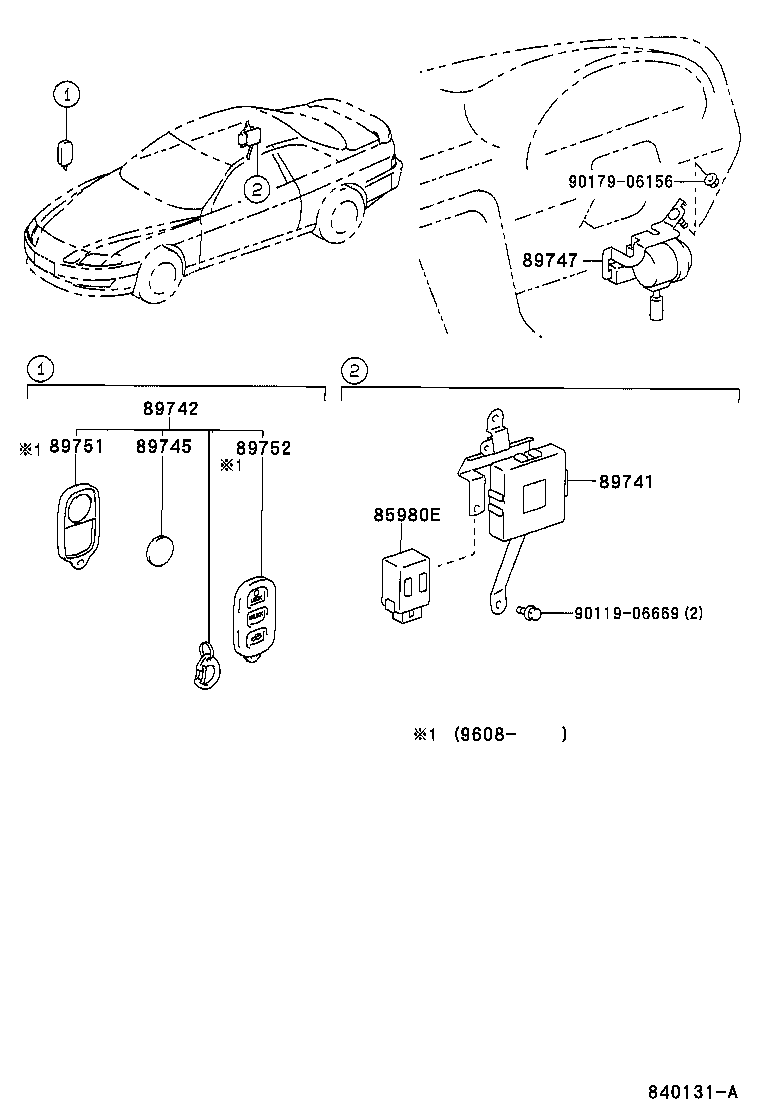

(9505-9709)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85980E - RELAY ASSY, DOOR CONTROL | ||||
| 85980-24070 |
JZZ30,UZZ3# |
1 | ||
| 85980-24070 |
JZZ3# |
1 | ||
| 89741 - RECEIVER, DOOR CONTROL | ||||
| 89741-24040 |
JZZ30,UZZ3# |
1 | ||
| 89741-24090 |
JZZ3# |
1 | ||
| 89741-24070 |
JZZ30,UZZ3# |
1 | ||
| 89742 - TRANSMITTER, DOOR CONTROL | ||||
| 89742-24060 |
JZZ30,UZZ3# |
1 | ||
| 89742-24080 |
JZZ30,UZZ3# |
1 | ||
| 89745 - BATTERY, TRANSMITTER | ||||
| 89745-50010 |
JZZ30,UZZ3# |
1 | ||
| 89745-40010 |
JZZ3# |
1 | ||
| 89747 - BUZZER, WIRELESS DOOR LOCK | ||||
| 89747-24010 |
JZZ30,UZZ3# |
1 | ||
| 89747-24010 |
JZZ3# |
1 | ||
| Common parts | ||||
| 90119-06669 | ||||
| 90179-06156 | ||||

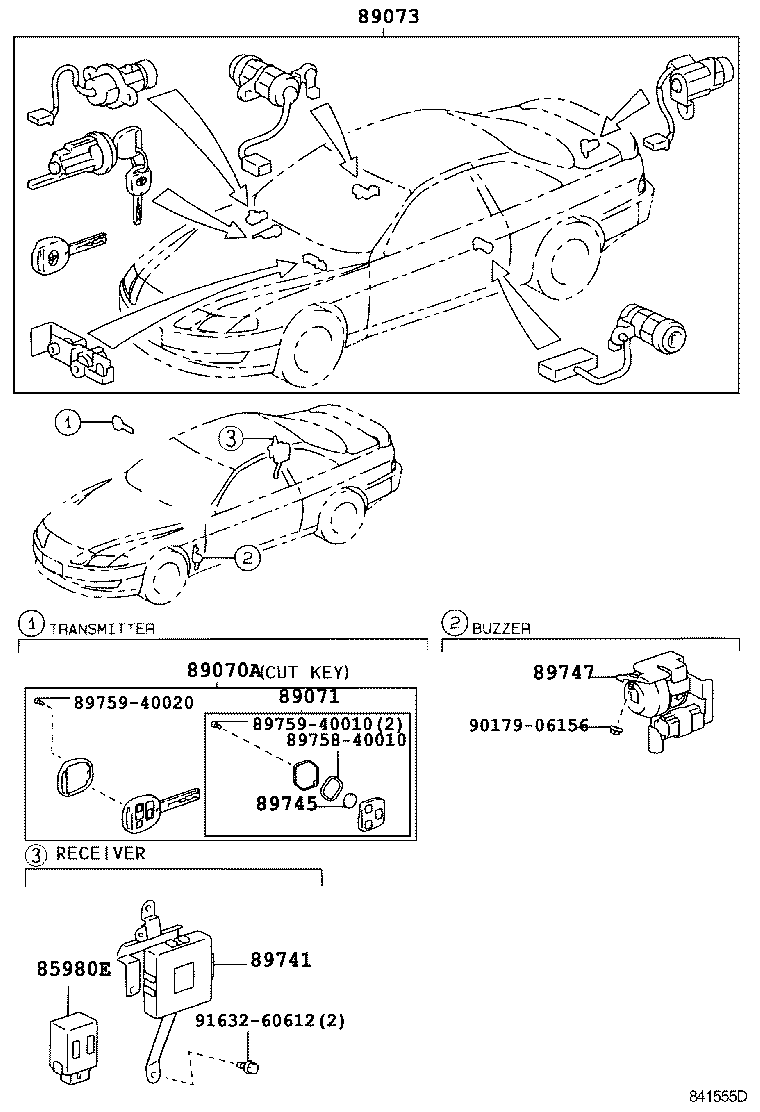

(9709- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85980E - RELAY ASSY, DOOR CONTROL | ||||
| 85980-24070 |
JZZ30,UZZ3# |
1 | ||
| 85980-24070 |
JZZ3# |
1 | ||
| 89070A - TRANSMITTER, DOOR CONTROL (CUT KEY) | ||||
| 89070-24050 |
JZZ3# |
1 | ||
| 89071 - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL | ||||
| 89071-24010 |
JZZ3# |
1 | ||
| 89071-24011 |
JZZ3# |
1 | ||
| 89073 - CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE) | ||||
| 89073-24010 |
JZZ3# |
1 | ||
| 89741 - RECEIVER, DOOR CONTROL | ||||
| 89741-24040 |
JZZ30,UZZ3# |
1 | ||
| 89741-24090 |
JZZ3# |
1 | ||
| 89741-24070 |
JZZ30,UZZ3# |
1 | ||
| 89745 - BATTERY, TRANSMITTER | ||||
| 89745-50010 |
JZZ30,UZZ3# |
1 | ||
| 89745-40010 |
JZZ3# |
1 | ||
| 89747 - BUZZER, WIRELESS DOOR LOCK | ||||
| 89747-24010 |
JZZ30,UZZ3# |
1 | ||
| 89747-24010 |
JZZ3# |
1 | ||
| Common parts | ||||
| 89758-40010 | ||||
| 89759-40010 | ||||
| 89759-40020 | ||||
| 90179-06156 | ||||
| 91632-60612 | ||||

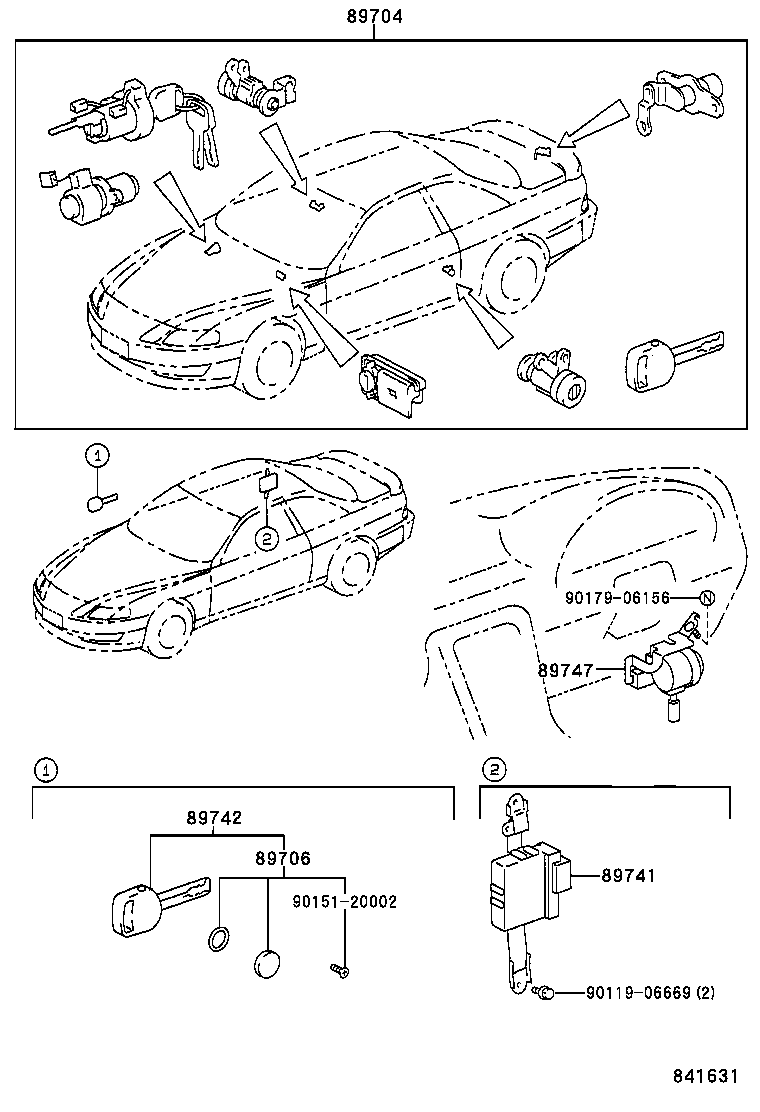

(9401-9505)JZZ30,UZZ3#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89704 - CONTROL SET, WIRELESS DOOR LOCK | ||||
| 89704-24070 |
JZZ30,UZZ3# |
1 | ||
| 89706 - BATTERY SET, TRANSMITTER | ||||
| 89706-50010 |
JZZ30,UZZ3# |
1 | ||
| 89741 - RECEIVER, DOOR CONTROL | ||||
| 89741-24040 |
JZZ30,UZZ3# |
1 | ||
| 89741-24090 |
JZZ3# |
1 | ||
| 89741-24070 |
JZZ30,UZZ3# |
1 | ||
| 89742 - TRANSMITTER, DOOR CONTROL | ||||
| 89742-24060 |
JZZ30,UZZ3# |
1 | ||
| 89742-24080 |
JZZ30,UZZ3# |
1 | ||
| 89747 - BUZZER, WIRELESS DOOR LOCK | ||||
| 89747-24010 |
JZZ30,UZZ3# |
1 | ||
| 89747-24010 |
JZZ3# |
1 | ||
| Common parts | ||||
| 90119-06669 | ||||
| 90151-20002 | ||||
| 90179-06156 | ||||
