JZZ30-ACMVZ (1991)
Toyota Soarer

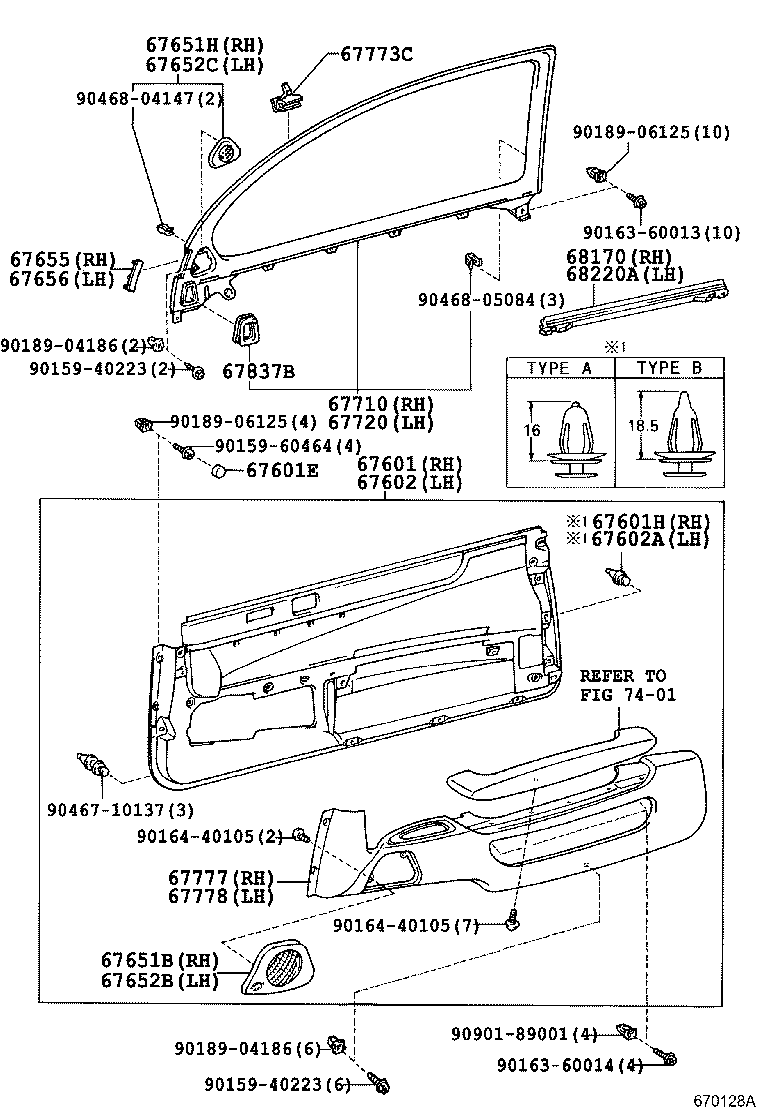

ILLUST NO. 1 OF 3(9105- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-2433008 |
JZZ30..GTT IVORY,TRIM0# |
1 | ||
| 67610-2433007 |
JZZ30..GTT SPRUCE,TRIM6# |
1 | ||
| 67610-2434007 |
JZZ30,UZZ30..GT,GTTL SPRUCE,TRIM6# |
1 | ||
| 67610-2434008 |
JZZ30,UZZ30..GT,GTTL IVORY,TRIM0# |
1 | ||
| 67610-2433003 |
JZZ30..GTT MEDIUM GRAY,TRIM1# |
1 | ||
| 67610-2434003 |
JZZ30,UZZ30..GT,GTTL MEDIUM GRAY,TRIM1# |
1 | ||
| 67610-24380B0 |
JZZ30..GTT '92 ｶ- ｵﾌﾞ ｻﾞ ｲﾔ-,MEDIUM GRAY,TRIM1# |
1 | ||
| 67610-24341G0 |
JZZ30,UZZ30..GT,GTTL SPRUCE,TRIM6# |
1 | ||
| 67610-24341A0 |
JZZ30,UZZ30..GT,GTTL IVORY,TRIM0# |
1 | ||
| 67610-24390A0 |
JZZ3# IVORY,TRIM0# |
1 | ||
| 67610-24331B0 |
JZZ30..GTT MEDIUM GRAY,TRIM1# |
1 | ||
| 67610-24380G0 |
JZZ30..GTT '92 ｶ- ｵﾌﾞ ｻﾞ ｲﾔ-,SPRUCE,TRIM6# |
1 | ||
| 67610-24341B0 |
JZZ30,UZZ30..GT,GTTL MEDIUM GRAY,TRIM1# |
1 | ||
| 67610-24341A1 |
JZZ30,UZZ30..GT,GTTL IVORY,TRIM0# |
1 | ||
| 67610-24331A0 |
JZZ30..GTT IVORY,TRIM0# |
1 | ||
| 67610-24420G0 |
JZZ3# G ﾊﾟﾂｹ-ｼﾞ OR L ﾊﾟﾂｹ-ｼﾞ-*104,LI. SPRUCE,TRIM6# |
1 | ||
| 67610-24331G0 |
JZZ30..GTT SPRUCE,TRIM6# |
1 | ||
| 67610-24390C0 |
JZZ3# BLACK,TRIM2# |
1 | ||
| 67610-24390G0 |
JZZ3# LI. SPRUCE,TRIM6# |
1 | ||
| 67610-24420A0 |
JZZ3# G ﾊﾟﾂｹ-ｼﾞ OR L ﾊﾟﾂｹ-ｼﾞ-*104,IVORY,TRIM0# |
1 | ||
| 67610-24392C0 |
JZZ3# BLACK,TRIM2# |
1 | ||
| 67610-24422A0 |
JZZ3# G ﾊﾟﾂｹ-ｼﾞ OR L ﾊﾟﾂｹ-ｼﾞ-*104,IVORY,TRIM0# |
1 | ||
| 67610-24420C0 |
JZZ3# G ﾊﾟﾂｹ-ｼﾞ OR L ﾊﾟﾂｹ-ｼﾞ-*104,BLACK,TRIM2# |
1 | ||
| 67610-24392G0 |
JZZ3# SPRUCE,TRIM6# |
1 | ||
| 67610-24392A0 |
JZZ3# IVORY,TRIM0# |
1 | ||
| 67610-24422C0 |
JZZ3# G ﾊﾟﾂｹ-ｼﾞ OR L ﾊﾟﾂｹ-ｼﾞ-*104,BLACK,TRIM2# |
1 | ||
| 67610-24393G1 |
JZZ3# SPRUCE,TRIM6# |
1 | ||
| 67610-24422G0 |
JZZ3# G ﾊﾟﾂｹ-ｼﾞ OR L ﾊﾟﾂｹ-ｼﾞ-*104,SPRUCE,TRIM6# |
1 | ||
| 67610-24393C1 |
JZZ3# BLACK,TRIM2# |
1 | ||
| 67610-24393A1 |
JZZ3# IVORY,TRIM0# |
1 | ||
| 67601E - CAP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90339-1000253 |
JZZ30,UZZ3# MEDIUM GRAY,TRIM1#,6# |
4 | ||
| 90339-10002A2 |
JZZ3#,UZZ3# IVORY,TRIM0# |
4 | ||
| 90339-1000218 |
JZZ30,UZZ3# IVORY,TRIM0# |
4 | ||
| 90339-1000253 |
JZZ30,UZZ3# MEDIUM GRAY,TRIM1# |
4 | ||
| 90339-10002C0 |
JZZ3#,UZZ3# BLACK,TRIM2# |
4 | ||
| 90339-10002G0 |
JZZ3#,UZZ3# LI. SPRUCE,TRIM6# |
4 | ||
| 90339-1000207 |
JZZ30,UZZ3# SPRUCE,TRIM6# |
4 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-28030 |
JZZ3#,UZZ3# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 67771-43010 |
JZZ3# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
6 | ||
| 67771-12050 |
JZZ30,UZZ3# |
3 | ||
| 67771-28020 |
JZZ3#,UZZ3# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-24392A0 |
JZZ3# IVORY,TRIM0# |
1 | ||
| 67620-24392G0 |
JZZ3# SPRUCE,TRIM6# |
1 | ||
| 67620-24422A0 |
JZZ3# G ﾊﾟﾂｹ-ｼﾞ OR L ﾊﾟﾂｹ-ｼﾞ-*104,IVORY,TRIM0# |
1 | ||
| 67620-2433008 |
JZZ30..GTT IVORY,TRIM0# |
1 | ||
| 67620-2433007 |
JZZ30..GTT SPRUCE,TRIM6# |
1 | ||
| 67620-2433003 |
JZZ30..GTT MEDIUM GRAY,TRIM1# |
1 | ||
| 67620-24341A0 |
JZZ30,UZZ30..GT,GTTL IVORY,TRIM0# |
1 | ||
| 67620-24380G0 |
JZZ30..GTT '92 ｶ- ｵﾌﾞ ｻﾞ ｲﾔ-,SPRUCE,TRIM6# |
1 | ||
| 67620-2434003 |
JZZ30,UZZ30..GT,GTTL MEDIUM GRAY,TRIM1# |
1 | ||
| 67620-24331A0 |
JZZ30..GTT IVORY,TRIM0# |
1 | ||
| 67620-2434008 |
JZZ30,UZZ30..GT,GTTL IVORY,TRIM0# |
1 | ||
| 67620-24341G0 |
JZZ30,UZZ30..GT,GTTL SPRUCE,TRIM6# |
1 | ||
| 67620-24380B0 |
JZZ30..GTT '92 ｶ- ｵﾌﾞ ｻﾞ ｲﾔ-,MEDIUM GRAY,TRIM1# |
1 | ||
| 67620-24331G0 |
JZZ30..GTT SPRUCE,TRIM6# |
1 | ||
| 67620-24390A0 |
JZZ3# IVORY,TRIM0# |
1 | ||
| 67620-24390G0 |
JZZ3# LI. SPRUCE,TRIM6# |
1 | ||
| 67620-24390C0 |
JZZ3# BLACK,TRIM2# |
1 | ||
| 67620-24331B0 |
JZZ30..GTT MEDIUM GRAY,TRIM1# |
1 | ||
| 67620-2434007 |
JZZ30,UZZ30..GT,GTTL SPRUCE,TRIM6# |
1 | ||
| 67620-24341A1 |
JZZ30,UZZ30..GT,GTTL IVORY,TRIM0# |
1 | ||
| 67620-24420A0 |
JZZ3# G ﾊﾟﾂｹ-ｼﾞ OR L ﾊﾟﾂｹ-ｼﾞ-*104,IVORY,TRIM0# |
1 | ||
| 67620-24341B0 |
JZZ30,UZZ30..GT,GTTL MEDIUM GRAY,TRIM1# |
1 | ||
| 67620-24420G0 |
JZZ3# G ﾊﾟﾂｹ-ｼﾞ OR L ﾊﾟﾂｹ-ｼﾞ-*104,LI. SPRUCE,TRIM6# |
1 | ||
| 67620-24420C0 |
JZZ3# G ﾊﾟﾂｹ-ｼﾞ OR L ﾊﾟﾂｹ-ｼﾞ-*104,BLACK,TRIM2# |
1 | ||
| 67620-24392C0 |
JZZ3# BLACK,TRIM2# |
1 | ||
| 67620-24422G0 |
JZZ3# G ﾊﾟﾂｹ-ｼﾞ OR L ﾊﾟﾂｹ-ｼﾞ-*104,SPRUCE,TRIM6# |
1 | ||
| 67620-24422C0 |
JZZ3# G ﾊﾟﾂｹ-ｼﾞ OR L ﾊﾟﾂｹ-ｼﾞ-*104,BLACK,TRIM2# |
1 | ||
| 67620-24393C1 |
JZZ3# BLACK,TRIM2# |
1 | ||
| 67620-24393A1 |
JZZ3# IVORY,TRIM0# |
1 | ||
| 67620-24393G1 |
JZZ3# SPRUCE,TRIM6# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-28030 |
JZZ3#,UZZ3# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 67771-12050 |
JZZ30,UZZ3# |
3 | ||
| 67771-28020 |
JZZ3#,UZZ3# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 67651B - GRILLE, SPEAKER DOOR, RH | ||||
| 67651-2403003 |
JZZ30,UZZ3# MEDIUM GRAY,TRIM1# |
1 | ||
| 67651-24030A0 |
JZZ3#,UZZ3# IVORY,TRIM0# |
1 | ||
| 67651-2403007 |
JZZ30,UZZ3# SPRUCE,TRIM6# |
1 | ||
| 67651-2403008 |
JZZ30,UZZ3# IVORY,TRIM0# |
1 | ||
| 67651-24030G0 |
JZZ3#,UZZ3# LI. SPRUCE,TRIM6# |
1 | ||
| 67651-24030C0 |
JZZ3#,UZZ3# BLACK,TRIM2# |
1 | ||
| 67651H - GRILLE, SPEAKER DOOR, RH | ||||
| 67609-2401007 |
JZZ30,UZZ3# DARK SPRUCE,TRIM6# |
1 | ||
| 67609-24010C0 |
JZZ3#,UZZ3# BLACK,TRIM2# |
1 | ||
| 67609-2401005 |
JZZ30,UZZ3# GREIGE,TRIM0# |
1 | ||
| 67609-24010G0 |
JZZ3#,UZZ3# LI. SPRUCE,TRIM6# |
1 | ||
| 67609-2401003 |
JZZ30,UZZ3# SHADOW GRAY,TRIM1# |
1 | ||
| 67609-24010E0 |
JZZ3#,UZZ3# IVORY,TRIM0# |
1 | ||
| 67652B - GRILLE, SPEAKER DOOR, LH | ||||
| 67652-2403003 |
JZZ30,UZZ3# MEDIUM GRAY,TRIM1# |
1 | ||
| 67652-2403007 |
JZZ30,UZZ3# SPRUCE,TRIM6# |
1 | ||
| 67652-24030G0 |
JZZ3#,UZZ3# LI. SPRUCE,TRIM6# |
1 | ||
| 67652-24030C0 |
JZZ3#,UZZ3# BLACK,TRIM2# |
1 | ||
| 67652-24030A0 |
JZZ3#,UZZ3# IVORY,TRIM0# |
1 | ||
| 67652-2403008 |
JZZ30,UZZ3# IVORY,TRIM0# |
1 | ||
| 67652C - GRILLE, SPEAKER DOOR, LH | ||||
| 67709-2401005 |
JZZ30,UZZ3# GREIGE,TRIM0# |
1 | ||
| 67709-2401007 |
JZZ30,UZZ3# DARK SPRUCE,TRIM6# |
1 | ||
| 67709-2401003 |
JZZ30,UZZ3# SHADOW GRAY,TRIM1# |
1 | ||
| 67709-24010C0 |
JZZ3#,UZZ3# BLACK,TRIM2# |
1 | ||
| 67709-24010E0 |
JZZ3#,UZZ3# IVORY,TRIM0# |
1 | ||
| 67709-24010G0 |
JZZ3#,UZZ3# LI. SPRUCE,TRIM6# |
1 | ||
| 67655 - GARNISH, FRONT DOOR TRIM, RH | ||||
| 67655-2401007 |
JZZ30,UZZ3# DARK SPRUCE,TRIM6# |
1 | ||
| 67655-2401005 |
JZZ30,UZZ3# GREIGE,TRIM0# |
1 | ||
| 67655-24010G0 |
JZZ3#,UZZ3# LI.SPRUCE,TRIM6# |
1 | ||
| 67655-24010E0 |
JZZ3#,UZZ3# OAK,TRIM0# |
1 | ||
| 67655-2401003 |
JZZ30,UZZ3# SHADOW GRAY,TRIM1# |
1 | ||
| 67655-24010C0 |
JZZ3#,UZZ3# BLACK,TRIM2# |
1 | ||
| 67656 - GARNISH, DOOR TRIM, LH | ||||
| 67656-2401007 |
JZZ30,UZZ3# DARK SPRUCE,TRIM6# |
1 | ||
| 67656-2401005 |
JZZ30,UZZ3# GREIGE,TRIM0# |
1 | ||
| 67656-2401003 |
JZZ30,UZZ3# SHADOW GRAY,TRIM1# |
1 | ||
| 67656-24010G0 |
JZZ3#,UZZ3# LI.SPRUCE,TRIM6# |
1 | ||
| 67656-24010E0 |
JZZ3#,UZZ3# OAK,TRIM0# |
1 | ||
| 67656-24010C0 |
JZZ3#,UZZ3# BLACK,TRIM2# |
1 | ||
| 67710 - PANEL ASSY, FRONT DOOR TRIM, UPPER RH | ||||
| 67710-2401003 |
JZZ30,UZZ3# SHADOW GRAY,TRIM1# |
1 | ||
| 67710-24010E0 |
JZZ3#,UZZ3# OAK,TRIM0# |
1 | ||
| 67710-2401007 |
JZZ30,UZZ3# DARK SPRUCE,TRIM6# |
1 | ||
| 67710-24010G0 |
JZZ3#,UZZ3# LI.SPRUCE,TRIM6# |
1 | ||
| 67710-2401005 |
JZZ30,UZZ3# GREIGE,TRIM0# |
1 | ||
| 67710-24010C0 |
JZZ3#,UZZ3# BLACK,TRIM2# |
1 | ||
| 67720 - PANEL ASSY, FRONT DOOR TRIM, UPPER LH | ||||
| 67720-2401007 |
JZZ30,UZZ3# DARK SPRUCE,TRIM6# |
1 | ||
| 67720-2401005 |
JZZ30,UZZ3# GREIGE,TRIM0# |
1 | ||
| 67720-24010C0 |
JZZ3#,UZZ3# BLACK,TRIM2# |
1 | ||
| 67720-2401003 |
JZZ30,UZZ3# SHADOW GRAY,TRIM1# |
1 | ||
| 67720-24010G0 |
JZZ3#,UZZ3# LI.SPRUCE,TRIM6# |
1 | ||
| 67720-24010E0 |
JZZ3#,UZZ3# OAK,TRIM0# |
1 | ||
| 67773C - CLIP, DOOR TRIM UPPER RETAINER, NO.1 | ||||
| 67773-24010 |
JZZ3#,UZZ3# |
12 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67770-2410008 |
JZZ30,UZZ3# IVORY,TRIM0# |
1 | ||
| 67770-2410003 |
JZZ30,UZZ3# MEDIUM GRAY,TRIM1# |
1 | ||
| 67770-24120G0 |
JZZ3#,UZZ3# LI. SPRUCE,TRIM6# |
1 | ||
| 67770-24121C0 |
JZZ3#,UZZ3# BLACK,TRIM2# |
1 | ||
| 67770-24120C0 |
JZZ3#,UZZ3# BLACK,TRIM2# |
1 | ||
| 67770-24120A0 |
JZZ3#,UZZ3# IVORY,TRIM0# |
1 | ||
| 67770-2410007 |
JZZ30,UZZ3# SPRUCE,TRIM6# |
1 | ||
| 67770-24121G0 |
JZZ3#,UZZ3# SPRUCE,TRIM6# |
1 | ||
| 67770-24121A0 |
JZZ3#,UZZ3# IVORY,TRIM0# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67780-2404007 |
JZZ30,UZZ3# SPRUCE,TRIM6# |
1 | ||
| 67780-2404003 |
JZZ30,UZZ3# MEDIUM GRAY,TRIM1# |
1 | ||
| 67780-24061A0 |
JZZ3#,UZZ3# IVORY,TRIM0# |
1 | ||
| 67780-24061G0 |
JZZ3#,UZZ3# SPRUCE,TRIM6# |
1 | ||
| 67780-24060C0 |
JZZ3#,UZZ3# BLACK,TRIM2# |
1 | ||
| 67780-24060G0 |
JZZ3#,UZZ3# LI. SPRUCE,TRIM6# |
1 | ||
| 67780-24061C0 |
JZZ3#,UZZ3# BLACK,TRIM2# |
1 | ||
| 67780-2404008 |
JZZ30,UZZ3# IVORY,TRIM0# |
1 | ||
| 67780-24060A0 |
JZZ3#,UZZ3# IVORY,TRIM0# |
1 | ||
| 67837B - SEAL, FRONT DOOR DUST PROOF | ||||
| 67657-24010 |
JZZ3#,UZZ3# 右側 |
1 | ||
| 67658-24010 |
JZZ3#,UZZ3# 左側 |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-24040 |
JZZ3#,UZZ3# |
1 | ||
| 68220A - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH | ||||
| 68220-24040 |
JZZ3#,UZZ3# |
1 | ||
| Common parts | ||||
| 90159-40223 | ||||
| 90159-60464 | ||||
| 90163-60013 | ||||
| 90163-60014 | ||||
| 90164-40105 | ||||
| 90189-04186 | ||||
| 90189-06125 | ||||
| 90467-10137 | ||||
| 90468-04147 | ||||
| 90468-05084 | ||||
| 90901-89001 | ||||
| Linked diagrams | ||||
| 7401 | ||||

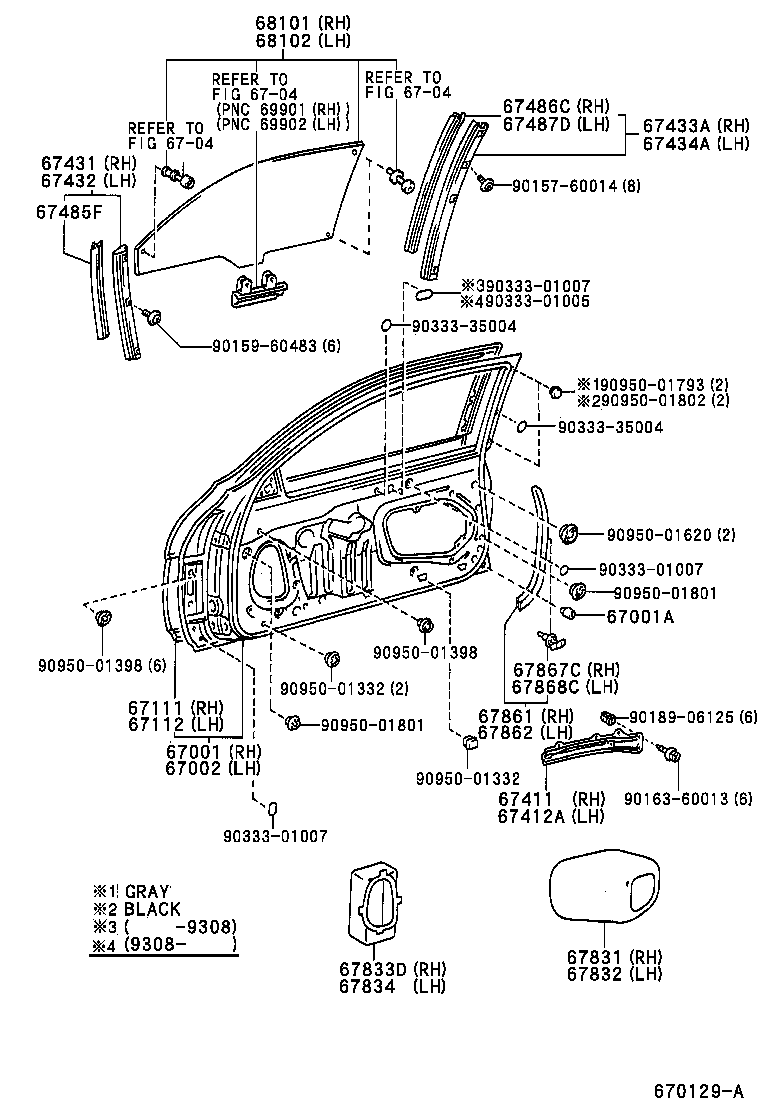

ILLUST NO. 2 OF 3(9105- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-24050 |
JZZ3#,UZZ3# |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09017 |
JZZ3#,UZZ3# |
2 | ||
| 90541-09084 |
JZZ30,UZZ3# |
2 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-24050 |
JZZ3#,UZZ3# |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-24040 |
JZZ3#,UZZ3# |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-24040 |
JZZ3#,UZZ3# |
1 | ||
| 67411 - FRAME, FRONT DOOR WINDOW, FRONT UPPER RH | ||||
| 67411-24040 |
JZZ3#,UZZ3# |
1 | ||
| 67412A - FRAME, FRONT DOOR WINDOW, FRONT UPPER LH | ||||
| 67412-24040 |
JZZ3#,UZZ3# |
1 | ||
| 67431 - GUIDE, FRONT DOOR WINDOW, FRONT RH | ||||
| 67431-24030 |
JZZ3#,UZZ3# |
1 | ||
| 67432 - GUIDE, FRONT DOOR WINDOW, FRONT LH | ||||
| 67432-24030 |
JZZ3#,UZZ3# |
1 | ||
| 67433A - GUIDE, FRONT DOOR WINDOW, REAR RH | ||||
| 67433-24030 |
JZZ3#,UZZ3# |
1 | ||
| 67434A - GUIDE, FRONT DOOR WINDOW, REAR LH | ||||
| 67434-24030 |
JZZ3#,UZZ3# |
1 | ||
| 67485F - WEATHERSTRIP, FRONT DOOR GLASS GUIDE, NO.1 | ||||
| 67485-24040 |
JZZ3#,UZZ3# 左側 |
1 | ||
| 67485-24030 |
JZZ3#,UZZ3# 右側 |
1 | ||
| 67486C - WEATHERSTRIP, FRONT DOOR GLASS GUIDE, NO.2 | ||||
| 67486-24020 |
JZZ3#,UZZ3# |
1 | ||
| 67487D - WEATHERSTRIP, FRONT DOOR GLASS GUIDE, NO.3 | ||||
| 67487-24020 |
JZZ3#,UZZ3# |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67801-24020 |
JZZ3#,UZZ3# |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67802-24030 |
JZZ3#,UZZ3# |
1 | ||
| 67833D - COVER, FRONT DOOR SERVICE HOLE, NO.2 RH | ||||
| 67833-24060 |
JZZ3#,UZZ3# |
1 | ||
| 67834 - COVER, FRONT DOOR SERVICE HOLE, NO.2 LH | ||||
| 67834-24030 |
JZZ3#,UZZ3# |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-24030 |
JZZ3#,UZZ3# |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-24030 |
JZZ3#,UZZ3# |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67868-50010 |
JZZ3#,UZZ3# |
9 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67868-50010 |
JZZ3#,UZZ3# |
9 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-24140 |
JZZ30..GTT *TT,厚さ=5.0,ｸﾞﾘｰﾝ,'92 ｶ- ｵﾌﾞ ｻﾞ ｲﾔ- |
1 | ||
| 68101-24190 |
JZZ3# *TT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68101-24180 |
JZZ30 *TT,厚さ=5.0,ｸﾞﾚｰ,ｱﾘ(ﾊﾂｽｲ ｶｺｳ) |
1 | ||
| 68101-24120 |
JZZ30,UZZ30 *TT,厚さ=5.0,ｸﾞﾚｰ |
1 | ||
| 68101-24150 |
JZZ3# *TT,厚さ=5.0,ｸﾞﾚｰ |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-24140 |
JZZ30..GTT *TT,厚さ=5.0,ｸﾞﾘｰﾝ,'92 ｶ- ｵﾌﾞ ｻﾞ ｲﾔ- |
1 | ||
| 68102-24180 |
JZZ30 *TT,厚さ=5.0,ｸﾞﾚｰ,ｱﾘ(ﾊﾂｽｲ ｶｺｳ) |
1 | ||
| 68102-24150 |
JZZ3# *TT,厚さ=5.0,ｸﾞﾚｰ |
1 | ||
| 68102-24120 |
JZZ30,UZZ30 *TT,厚さ=5.0,ｸﾞﾚｰ |
1 | ||
| 68102-24190 |
JZZ3# *TT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| Common parts | ||||
| 90157-60014 | ||||
| 90159-60483 | ||||
| 90163-60013 | ||||
| 90189-06125 | ||||
| 90333-01005 | ||||
| 90333-01007 | ||||
| 90333-35004 | ||||
| 90950-01332 | ||||
| 90950-01398 | ||||
| 90950-01620 | ||||
| 90950-01793 | ||||
| 90950-01801 | ||||
| 90950-01802 | ||||
| Linked diagrams | ||||
| 6704 | ||||
ILLUST NO. 3 OF 3(9401-9608)
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 3 OF 3(9608- )
| Part # | Description | Qty | Price |
|---|
Part Price Details
Loading price information...
Part Number:
Price:
