JZZ30-ACMVZ (1991)

Toyota Soarer

Production May 1991 - Dec 2000
Engine 1JZGTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9105- )

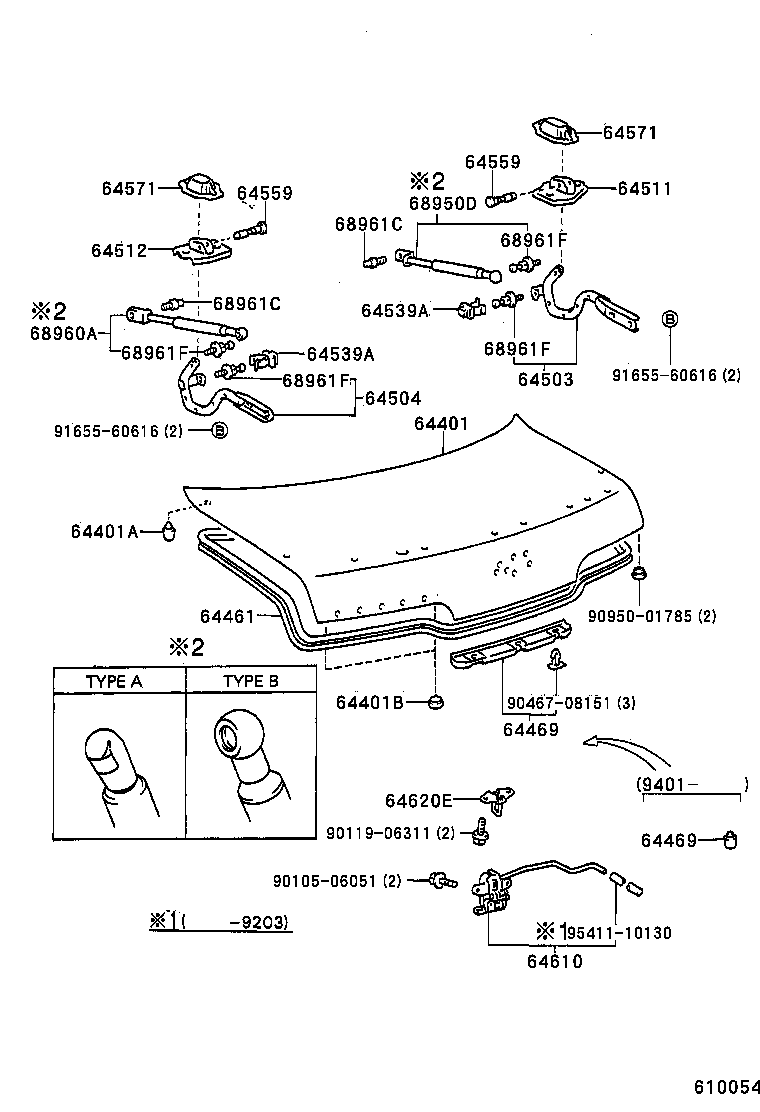

Click highlighted areas on diagram

diagram 64401 64401A 64401B 64461 64469 64469 64503 64504 64511 64512 64539A 64539A 64559 64559 64571 64571 64610 64620E 68950D 68960A 68961C 68961C 68961F 68961F 68961F 68961F 9010506051 9011906311 9046708151 9095001785 9165560616 9165560616 9541110130
Part # Description Qty Price
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-24100

JZZ3#,UZZ3#

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
64401-24130

JZZ3#,UZZ31

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
64401-24080

JZZ3#,UZZ3#

 1
64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-06059

JZZ3#,UZZ3#

 2
64401B - PLUG, HOLE(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-06054

JZZ3#,UZZ3#

 4
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-24050

JZZ3#,UZZ3#

 1
64469 - CUSHION, LUGGAGE COMPARTMENT DOOR, NO.2
64469-24010

JZZ30,UZZ3#

 1
90541-06059

JZZ3#,UZZ3#

 3
64469 - CUSHION, LUGGAGE COMPARTMENT DOOR, NO.2
64469-24010

JZZ30,UZZ3#

 1
90541-06059

JZZ3#,UZZ3#

 3
64503 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH
64503-24030

JZZ3#,UZZ3#

 1
64504 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH
64504-24020

JZZ3#,UZZ3#

 1
64511 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH
64511-24030

JZZ3#,UZZ3#

 1
64512 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH
64512-24030

JZZ3#,UZZ3#

 1
64539A - PLATE, LUGGAGE DOOR HINGE ARM
64539-24020

JZZ3#,UZZ3#

 2
64539A - PLATE, LUGGAGE DOOR HINGE ARM
64539-24020

JZZ3#,UZZ3#

 2
64559 - PIN, LUGGAGE DOOR HINGE
64559-24010

JZZ3#,UZZ3#

 2
64559 - PIN, LUGGAGE DOOR HINGE
64559-24010

JZZ3#,UZZ3#

 2
64571 - COVER, LUGGAGE COMPARTMENT DOOR HINGE
64571-24010

JZZ3#,UZZ3#

 2
64571-24010

JZZ3#,UZZ31

 2
64571 - COVER, LUGGAGE COMPARTMENT DOOR HINGE
64571-24010

JZZ3#,UZZ3#

 2
64571-24010

JZZ3#,UZZ31

 2
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64600-24010

JZZ30,UZZ3#

 1
64600-24020

JZZ3#,UZZ3#

 1
64620E - STRIKER ASSY, LUGGAGE COMPARTMENT DOOR
64620-24020

JZZ3#,UZZ3#

 1
68950D - STAY ASSY, LUGGAGE DOOR, RH
64530-29015

JZZ30,UZZ3#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
64530-29035

JZZ30,UZZ3#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
64530-29015

JZZ3#,UZZ3#

 1
64530-29115

JZZ3#,UZZ31

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
64530-29045

JZZ30,UZZ3#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
64530-29025

JZZ30,UZZ3#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
64530-29025

JZZ3#,UZZ3#

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
68960A - STAY ASSY, LUGGAGE DOOR, LH
64530-29025

JZZ3#,UZZ3#

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
64530-29035

JZZ30,UZZ3#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
64530-29015

JZZ30,UZZ3#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
64530-29025

JZZ30,UZZ3#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
64530-29045

JZZ30,UZZ3#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
64530-29115

JZZ3#,UZZ31

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
64530-29015

JZZ3#,UZZ3#

 1
68961C - BOLT, LUGGAGE DOOR STAY
68961-24020

JZZ3#,UZZ3#

 2
68961C - BOLT, LUGGAGE DOOR STAY
68961-24020

JZZ3#,UZZ3#

 2
68961F - BOLT, BACK DOOR STAY
68961-23010

JZZ3#,UZZ3#

 2
68961F - BOLT, BACK DOOR STAY
68961-23010

JZZ3#,UZZ3#

 2
68961F - BOLT, BACK DOOR STAY
68961-23010

JZZ3#,UZZ3#

 2
68961F - BOLT, BACK DOOR STAY
68961-23010

JZZ3#,UZZ3#

 2
Common parts
90105-06051
90119-06311
90467-08151
90950-01785
91655-60616
95411-10130
