JZZ30-ACMVZ (1991)

Toyota Soarer

Production May 1991 - Dec 2000
Engine 1JZGTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9105- )1JZGTE

Click highlighted areas on diagram

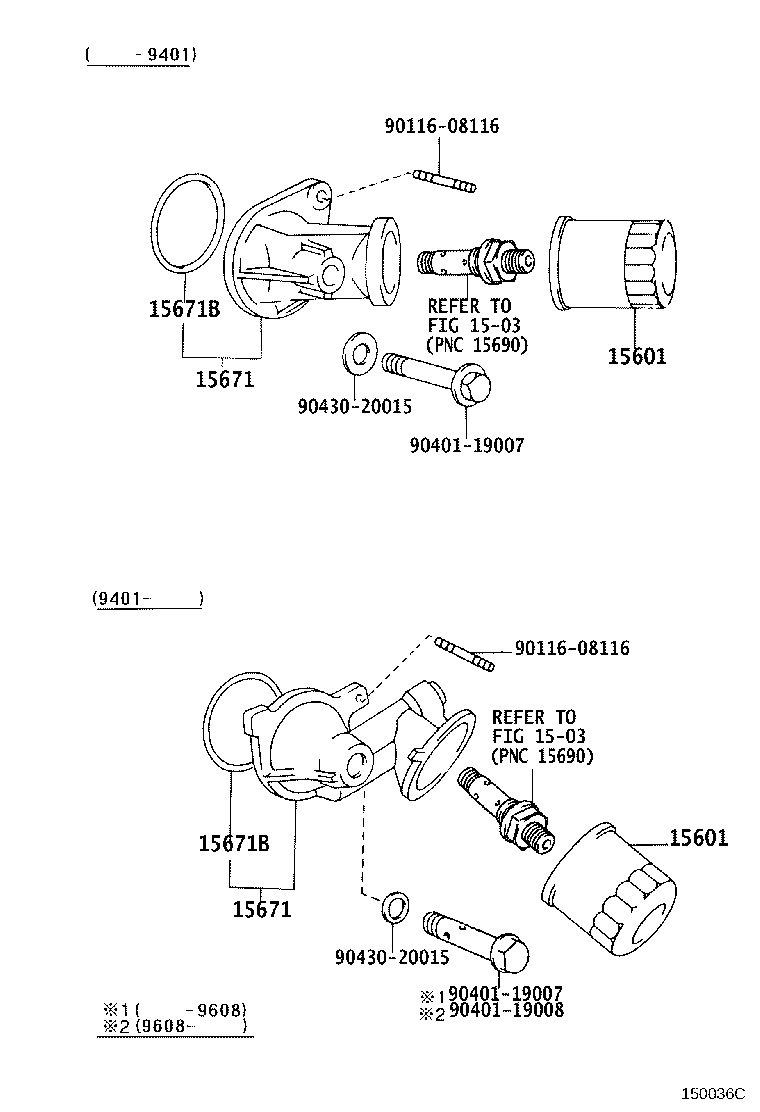

diagram 1503 1503 15601 15601 15671 15671 15671B 15671B 9011608116 9011608116 9040119007 9040119007 9040119008 9043020015 9043020015
Part # Description Qty Price
15601 - FILTER SUB-ASSY, OIL
90915-20001

1JZGTE,2JZGE..JZZ3#

 1
90915-03002

1JZGTE..JZZ30

 1
90915-20003

1JZGTE,2JZGE..JZZ3#

 1
15601 - FILTER SUB-ASSY, OIL
90915-20001

1JZGTE,2JZGE..JZZ3#

 1
90915-03002

1JZGTE..JZZ30

 1
90915-20003

1JZGTE,2JZGE..JZZ3#

 1
15671 - BRACKET, OIL FILTER
15670-46080

1JZGTE..JZZ30

 1
15670-88400

1JZGTE..JZZ30

 1
15671 - BRACKET, OIL FILTER
15670-46080

1JZGTE..JZZ30

 1
15670-88400

1JZGTE..JZZ30

 1
15671B - GASKET, OIL FILTER BRACKET
90301-68004

1JZGTE,2JZGE..JZZ3#

 1
15671B - GASKET, OIL FILTER BRACKET
90301-68004

1JZGTE,2JZGE..JZZ3#

 1
Common parts
90116-08116
90401-19007
90401-19008
90430-20015
Linked diagrams
1503
