GZ10-HCPZE (1981)
Toyota Soarer

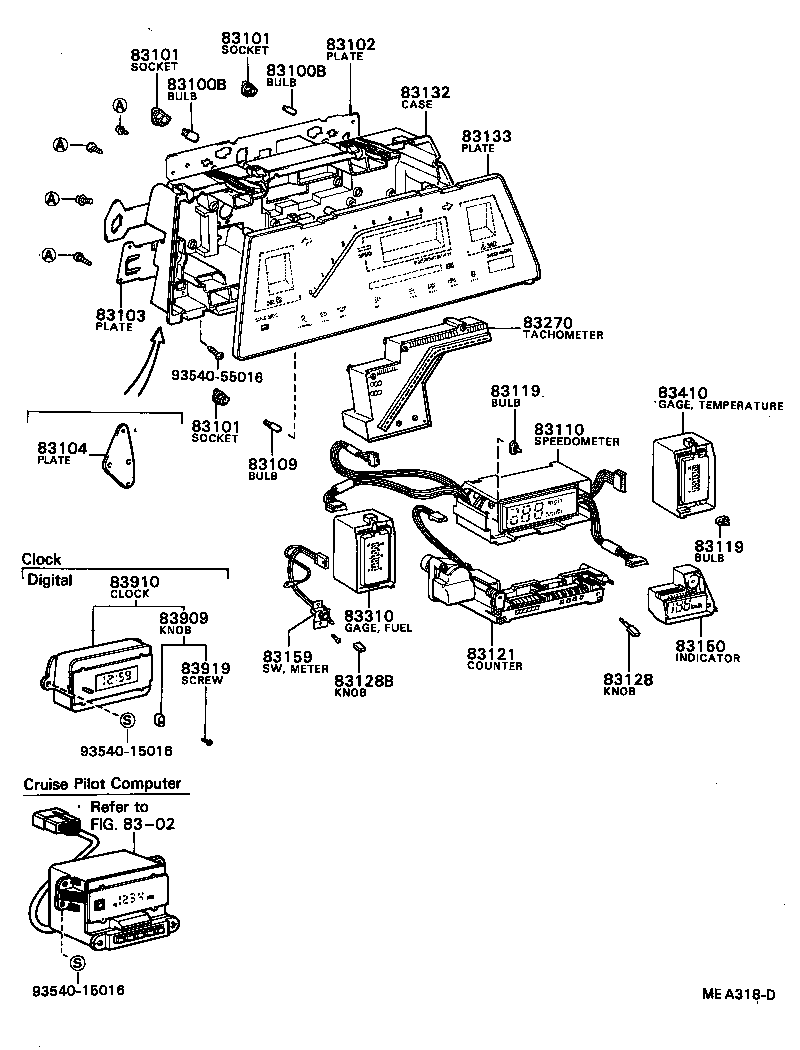

ILLUST NO. 1 OF 3(8102-8203)GT,TBO,VR,VX ; (8203-8302)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
GZ10,MZ1# 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
11 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
GZ10,MZ1# 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
11 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
GZ10,MZ1# 12V 3.4W,SHORT |
4 | ||
| 83101-14040 |
GZ10,MZ1# 12V 1.4W,SHORT |
13 | ||
| 83101-32010 |
GZ10,MZ1# 12V 1.4W,LONG |
2 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
GZ10,MZ1# 12V 3.4W,SHORT |
4 | ||
| 83101-14040 |
GZ10,MZ1# 12V 1.4W,SHORT |
13 | ||
| 83101-32010 |
GZ10,MZ1# 12V 1.4W,LONG |
2 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
GZ10,MZ1# 12V 3.4W,SHORT |
4 | ||
| 83101-14040 |
GZ10,MZ1# 12V 1.4W,SHORT |
13 | ||
| 83101-32010 |
GZ10,MZ1# 12V 1.4W,LONG |
2 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-24130 |
GZ10,MZ1# |
1 | ||
| 83247-24150 |
GZ10,MZ1# |
1 | ||
| 83247-24050 |
GZ10,MZ1# |
1 | ||
| 83247-24170 |
GZ10,MZ1# |
1 | ||
| 83247-24050 |
GZ10,MZ1#..GT,TBO,VR,VX |
1 | ||
| 83103 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2 | ||||
| 83247-24070 |
GZ10,MZ1#..GT,TBO,VR,VX |
1 | ||
| 83247-24070 |
GZ10,MZ1# |
1 | ||
| 83104 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.3 | ||||
| 83247-24090 |
GZ10,MZ1#..GT,TBO,VR,VX |
1 | ||
| 83247-24090 |
GZ10,MZ1# |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24020 |
GZ10,MZ1# 12V 3.4W ｷｬｯﾌﾟ付き,12V 3.4W,W/GREEN CAP |
4 | ||
| 83109-24020 |
GZ10,MZ1#..GT,TBO,VR,VX 12V 3.4W ｷｬｯﾌﾟ付き,12V 3.4W,W/GREEN CAP |
4 | ||
| 83109-24010 |
GZ10,MZ1# 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ,12V 1.4W,W/GREEN CAP |
2 | ||
| 83109-24040 |
GZ10,MZ1# 12V 1.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,12V 1.4W,W/GREEN CAP |
4 | ||
| 83109-24010 |
GZ10,MZ1#..GT,TBO,VR,VX 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ,12V 1.4W,W/GREEN CAP |
2 | ||
| 83109-24030 |
GZ10,MZ1# 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,12V 3.4W,W/GREEN CAP |
2 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-24041 |
GZ10,MZ1# |
1 | ||
| 83110-24040 |
GZ10,MZ1#..GT,TBO,VR,VX |
1 | ||
| 83119 - BULB, COMBINATION METER, NO.3 | ||||
| 83119-24010 |
GZ10,MZ1#..GT,TBO,VR,VX 12V 1.4W ｿｹｯﾄ付き,12V 1.4W |
2 | ||
| 83119-24010 |
GZ10,MZ1# 12V 1.4W ｿｹｯﾄ付き,12V 1.4W |
2 | ||
| 83119 - BULB, COMBINATION METER, NO.3 | ||||
| 83119-24010 |
GZ10,MZ1#..GT,TBO,VR,VX 12V 1.4W ｿｹｯﾄ付き,12V 1.4W |
2 | ||
| 83119-24010 |
GZ10,MZ1# 12V 1.4W ｿｹｯﾄ付き,12V 1.4W |
2 | ||
| 83121 - COUNTER, TOTAL | ||||
| 83121-24030 |
GZ10,MZ1# |
1 | ||
| 83121-24010 |
GZ10,MZ1# |
1 | ||
| 83121-24010 |
GZ10,MZ1#..GT,TBO,VR,VX |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-24010 |
GZ10,MZ1#..GT,TBO,VR,VX |
1 | ||
| 83128-24010 |
GZ10,MZ1# |
1 | ||
| 83128B - KNOB, METER SWITCH | ||||
| 83128-24010 |
GZ10,MZ1# |
1 | ||
| 83128-24030 |
GZ10,MZ1#..GT,TBO,VR,VX |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-24030 |
GZ10,MZ1#..GT,TBO,VR,VX |
1 | ||
| 83132-24030 |
GZ10,MZ1# |
1 | ||
| 83132-24050 |
GZ10,MZ1# |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-24030 |
GZ10 |
1 | ||
| 83133-24030 |
GZ10..VR,VX |
1 | ||
| 83133-24150 |
GZ10,MZ12 |
1 | ||
| 83133-24150 |
GZ10,MZ1# |
1 | ||
| 83133-24110 |
GZ10,MZ1# |
1 | ||
| 83150 - INDICATOR ASSY (FOR SPEED ALARM) | ||||
| 83150-24011 |
GZ10,MZ1# |
1 | ||
| 83150-24010 |
GZ10,MZ1#..GT,TBO,VR,VX |
1 | ||
| 83159 - SWITCH, METER, NO.1 | ||||
| 83159-24010 |
GZ10,MZ1#..GT,TBO,VR,VX |
1 | ||
| 83159-24010 |
GZ10,MZ1# |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83270-24010 |
GZ10..VR,VX |
1 | ||
| 83270-24010 |
GZ10 |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83310-24011 |
GZ10,MZ1# |
1 | ||
| 83310-24010 |
GZ10,MZ1#..GT,TBO,VR,VX |
1 | ||
| 83310-24010 |
GZ10,MZ1# |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83410-24010 |
GZ10,MZ1#..GT,TBO,VR,VX |
1 | ||
| 83410-24011 |
GZ10,MZ1# |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-14200 |
MZ12..4FC;GZ10,MZ10,11;MZ12..5F..GT |
1 | ||
| 83909-14200 |
GZ10,MZ10..TBO,VR |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-24020 |
GZ10,MZ10..TBO,VR DIGITAL |
1 | ||
| 83910-24020 |
MZ12..4FC;GZ10,MZ10,11;MZ12..5F..GT DIGITAL |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-12230 |
MZ12..4FC;GZ10,MZ10,11;MZ12..5F..GT |
1 | ||
| 83919-12230 |
GZ10,MZ10..TBO,VR |
1 | ||
| Common parts | ||||
| 93540-15016 | ||||
| 93540-55016 | ||||
| Linked diagrams | ||||
| 8302 | ||||

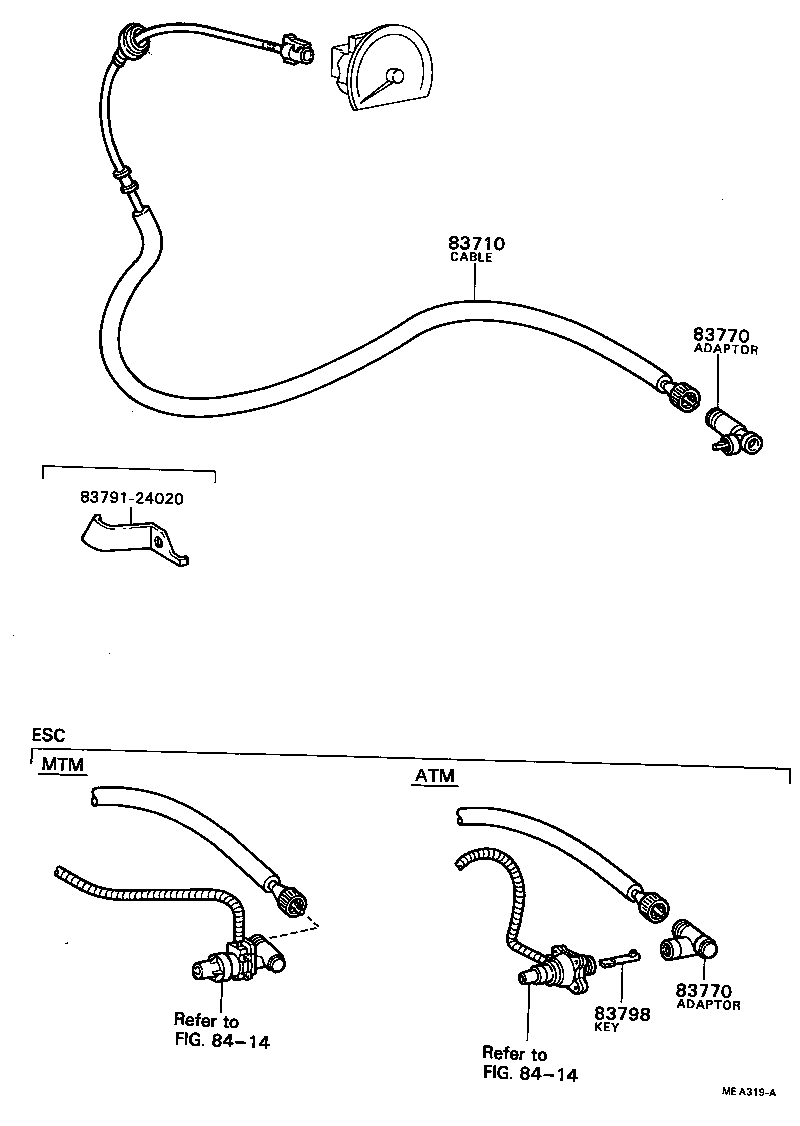

ILLUST NO. 3 OF 3(8102- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-24030 |
GZ10,MZ11..4FC L=1400 |
1 | ||
| 83710-24031 |
GZ10,MZ11,12..4FC L=1407 |
1 | ||
| 83770 - ADAPTER ASSY, SPEEDOMETER CABLE | ||||
| 83770-22060 |
GZ10,MZ1# |
1 | ||
| 83770 - ADAPTER ASSY, SPEEDOMETER CABLE | ||||
| 83770-22060 |
GZ10,MZ1# |
1 | ||
| Common parts | ||||
| 83791-24020 | ||||
| Linked diagrams | ||||
| 8414 | ||||
ILLUST NO. 1 OF 3(8302- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
GZ10,MZ1# 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
11 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83133-24130 |
GZ10,MZ1# |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
GZ10,MZ1# 12V 3.4W,SHORT |
4 | ||
| 83101-14040 |
GZ10,MZ1# 12V 1.4W,SHORT |
13 | ||
| 83101-32010 |
GZ10,MZ1# 12V 1.4W,LONG |
2 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
GZ10,MZ1# 12V 3.4W,SHORT |
4 | ||
| 83101-14040 |
GZ10,MZ1# 12V 1.4W,SHORT |
13 | ||
| 83101-32010 |
GZ10,MZ1# 12V 1.4W,LONG |
2 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
GZ10,MZ1# 12V 3.4W,SHORT |
4 | ||
| 83101-14040 |
GZ10,MZ1# 12V 1.4W,SHORT |
13 | ||
| 83101-32010 |
GZ10,MZ1# 12V 1.4W,LONG |
2 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-24130 |
GZ10,MZ1# |
1 | ||
| 83247-24150 |
GZ10,MZ1# |
1 | ||
| 83247-24050 |
GZ10,MZ1# |
1 | ||
| 83247-24170 |
GZ10,MZ1# |
1 | ||
| 83247-24050 |
GZ10,MZ1#..GT,TBO,VR,VX |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24020 |
GZ10,MZ1# 12V 3.4W ｷｬｯﾌﾟ付き,12V 3.4W,W/GREEN CAP |
4 | ||
| 83109-24020 |
GZ10,MZ1#..GT,TBO,VR,VX 12V 3.4W ｷｬｯﾌﾟ付き,12V 3.4W,W/GREEN CAP |
4 | ||
| 83109-24010 |
GZ10,MZ1# 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ,12V 1.4W,W/GREEN CAP |
2 | ||
| 83109-24040 |
GZ10,MZ1# 12V 1.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,12V 1.4W,W/GREEN CAP |
4 | ||
| 83109-24010 |
GZ10,MZ1#..GT,TBO,VR,VX 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ,12V 1.4W,W/GREEN CAP |
2 | ||
| 83109-24030 |
GZ10,MZ1# 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,12V 3.4W,W/GREEN CAP |
2 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24020 |
GZ10,MZ1# 12V 3.4W ｷｬｯﾌﾟ付き,12V 3.4W,W/GREEN CAP |
4 | ||
| 83109-24020 |
GZ10,MZ1#..GT,TBO,VR,VX 12V 3.4W ｷｬｯﾌﾟ付き,12V 3.4W,W/GREEN CAP |
4 | ||
| 83109-24010 |
GZ10,MZ1# 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ,12V 1.4W,W/GREEN CAP |
2 | ||
| 83109-24040 |
GZ10,MZ1# 12V 1.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,12V 1.4W,W/GREEN CAP |
4 | ||
| 83109-24010 |
GZ10,MZ1#..GT,TBO,VR,VX 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ,12V 1.4W,W/GREEN CAP |
2 | ||
| 83109-24030 |
GZ10,MZ1# 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,12V 3.4W,W/GREEN CAP |
2 | ||
| 83119 - BULB, COMBINATION METER, NO.3 | ||||
| 83119-24010 |
GZ10,MZ1#..GT,TBO,VR,VX 12V 1.4W ｿｹｯﾄ付き,12V 1.4W |
2 | ||
| 83119-24010 |
GZ10,MZ1# 12V 1.4W ｿｹｯﾄ付き,12V 1.4W |
2 | ||
| 83121 - COUNTER, TOTAL | ||||
| 83121-24030 |
GZ10,MZ1# |
1 | ||
| 83121-24010 |
GZ10,MZ1# |
1 | ||
| 83121-24010 |
GZ10,MZ1#..GT,TBO,VR,VX |
1 | ||
| 83131 - DIAL, METER, NO.1 | ||||
| 83131-24010 |
GZ10..V2,VR,VX |
1 | ||
| 83131-24011 |
GZ10..V2,VR,VX |
1 | ||
| 83131-24210 |
GZ10..V2,VR,VX |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-24030 |
GZ10,MZ1#..GT,TBO,VR,VX |
1 | ||
| 83132-24030 |
GZ10,MZ1# |
1 | ||
| 83132-24050 |
GZ10,MZ1# |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-24030 |
GZ10 |
1 | ||
| 83133-24030 |
GZ10..VR,VX |
1 | ||
| 83133-24150 |
GZ10,MZ12 |
1 | ||
| 83133-24150 |
GZ10,MZ1# |
1 | ||
| 83133-24110 |
GZ10,MZ1# |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83146-24010 |
GZ10,MZ1# |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-24090 |
GZ10,MZ10..TBO,V2,VR |
1 | ||
| 83145-24030 |
GZ10,MZ10..TBO,V2,VR |
1 | ||
| 83291 - COMPUTER, COMBINATION METER | ||||
| 83291-24010 |
GZ10..V2,VR |
1 | ||
| 83291-24011 |
GZ10..V2,VR |
1 | ||
| 83291-24012 |
GZ10..V2,VR |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-14200 |
MZ12..4FC;GZ10,MZ10,11;MZ12..5F..GT |
1 | ||
| 83909-14200 |
GZ10,MZ10..TBO,VR |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-24020 |
GZ10,MZ10..TBO,VR DIGITAL |
1 | ||
| 83910-24020 |
MZ12..4FC;GZ10,MZ10,11;MZ12..5F..GT DIGITAL |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-12230 |
MZ12..4FC;GZ10,MZ10,11;MZ12..5F..GT |
1 | ||
| 83919-12230 |
GZ10,MZ10..TBO,VR |
1 | ||
| Common parts | ||||
| 93540-15016 | ||||
| 93540-55016 | ||||

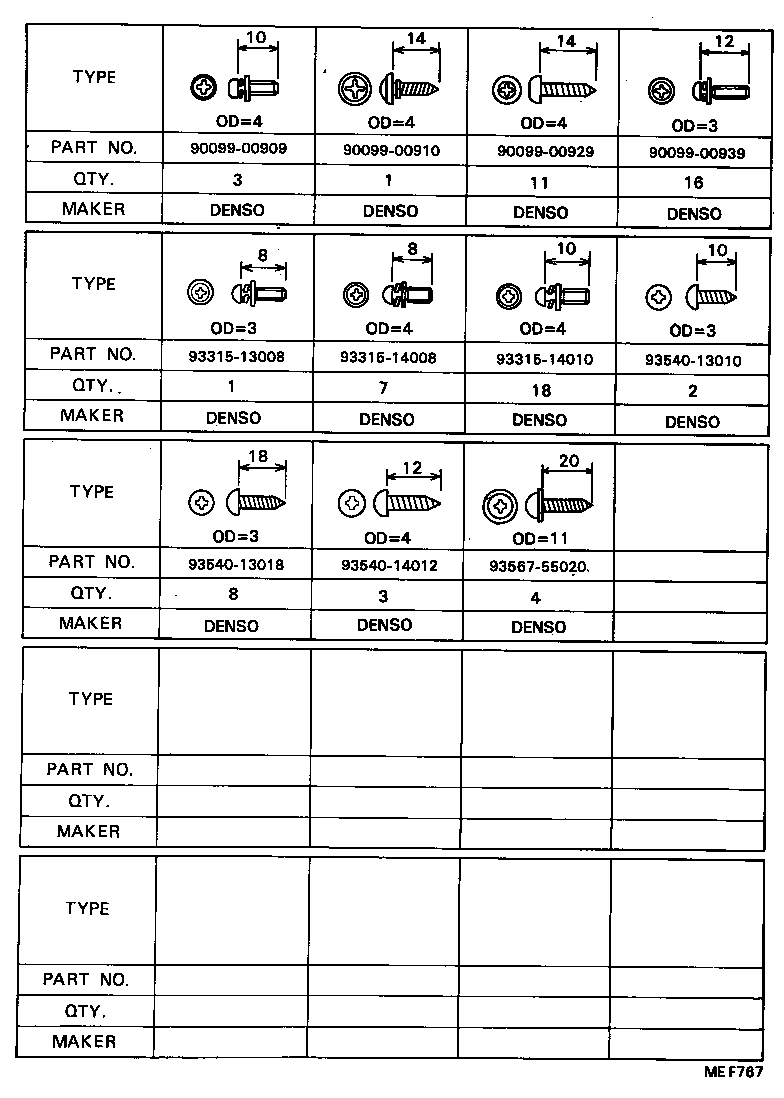

ILLUST NO. 2 OF 3(8102- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-00909 | ||||
| 90099-00910 | ||||
| 90099-00929 | ||||
| 90099-00939 | ||||
| 93315-13008 | ||||
| 93315-14008 | ||||
| 93315-14010 | ||||
| 93540-13010 | ||||
| 93540-13018 | ||||
| 93540-14012 | ||||
| 93567-55020 | ||||
