GZ10-HCPZE (1981)

Toyota Soarer

Production Feb 1981 - Dec 1985
Engine 1GEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8102- )

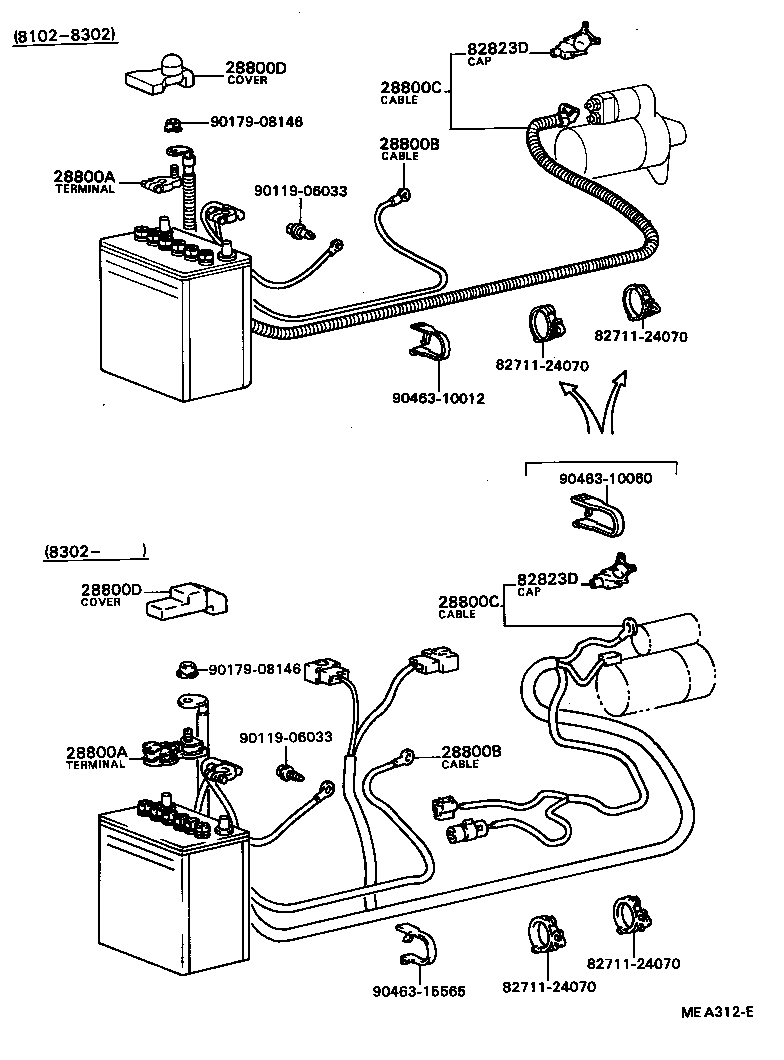

Click highlighted areas on diagram

diagram 28800A 28800A 28800B 28800B 28800C 28800C 28800D 28800D 8271124070 8271124070 8271124070 8271124070 82823D 82823D 9011906033 9011906033 9017908146 9017908146 9046310012 9046310060 9046315565
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90982-05004

1GEU,5MGEU,MTEU..GZ10,MZ1#

NS40ZAL,NS60L

 1
90982-05005

1GEU,5MGEU,MTEU..GZ10,MZ1#

N50ZL,NX110-5L

 1
90982-05018

1G#,5MGEU,MTEU..GZ10,MZ10,11

NS40ZAL,NS60L

 1
90982-05022

1G#,5MGEU,6MGEU,MTEU..GZ10,MZ1#

N50ZL,NX110-5L,55D23L,75D26L

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05004

1GEU,5MGEU,MTEU..GZ10,MZ1#

NS40ZAL,NS60L

 1
90982-05005

1GEU,5MGEU,MTEU..GZ10,MZ1#

N50ZL,NX110-5L

 1
90982-05018

1G#,5MGEU,MTEU..GZ10,MZ10,11

NS40ZAL,NS60L

 1
90982-05022

1G#,5MGEU,6MGEU,MTEU..GZ10,MZ1#

N50ZL,NX110-5L,55D23L,75D26L

 1
28800B - CABLE, BATTERY TO GROUND
90982-02216

1GEU,5MGEU,MTEU..GZ10,MZ1#

NS40ZAL,NS60L

 1
90982-02226

1G#,5MGEU,6MGEU,MTEU..GZ10,MZ1#

N50ZL,NX110-5L,55D23L,75D26L

 1
90982-02225

1G#,5MGEU,MTEU..GZ10,MZ10,11

NS40ZAL,NS60L

 1
90982-02217

1GEU,5MGEU,MTEU..GZ10,MZ1#

N50ZL,NX110-5L

 1
28800B - CABLE, BATTERY TO GROUND
90982-02216

1GEU,5MGEU,MTEU..GZ10,MZ1#

NS40ZAL,NS60L

 1
90982-02226

1G#,5MGEU,6MGEU,MTEU..GZ10,MZ1#

N50ZL,NX110-5L,55D23L,75D26L

 1
90982-02225

1G#,5MGEU,MTEU..GZ10,MZ10,11

NS40ZAL,NS60L

 1
90982-02217

1GEU,5MGEU,MTEU..GZ10,MZ1#

N50ZL,NX110-5L

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
90982-01376

1GEU,MTEU..GZ10,MZ10

 1
90982-01376

1GEU,5MGEU,MTEU..GZ10,MZ1#

 1
82122-24030

1GEU..GZ10

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
90982-01376

1GEU,MTEU..GZ10,MZ10

 1
90982-01376

1GEU,5MGEU,MTEU..GZ10,MZ1#

 1
82122-24030

1GEU..GZ10

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-24010

1G#,5MGEU,6MGEU,MTEU..GZ10,MZ1#

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-24010

1G#,5MGEU,6MGEU,MTEU..GZ10,MZ1#

 1
82823D - CAP, TERMINAL
82823-14080

GZ10,MZ1#

 1
82823D - CAP, TERMINAL
82823-14080

GZ10,MZ1#

 1
Common parts
82711-24070
90119-06033
90179-08146
90463-10012
90463-10060
90463-15565
