GZ10-HCPZE (1981)

Toyota Soarer

Production Feb 1981 - Dec 1985
Engine 1GEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8102- )

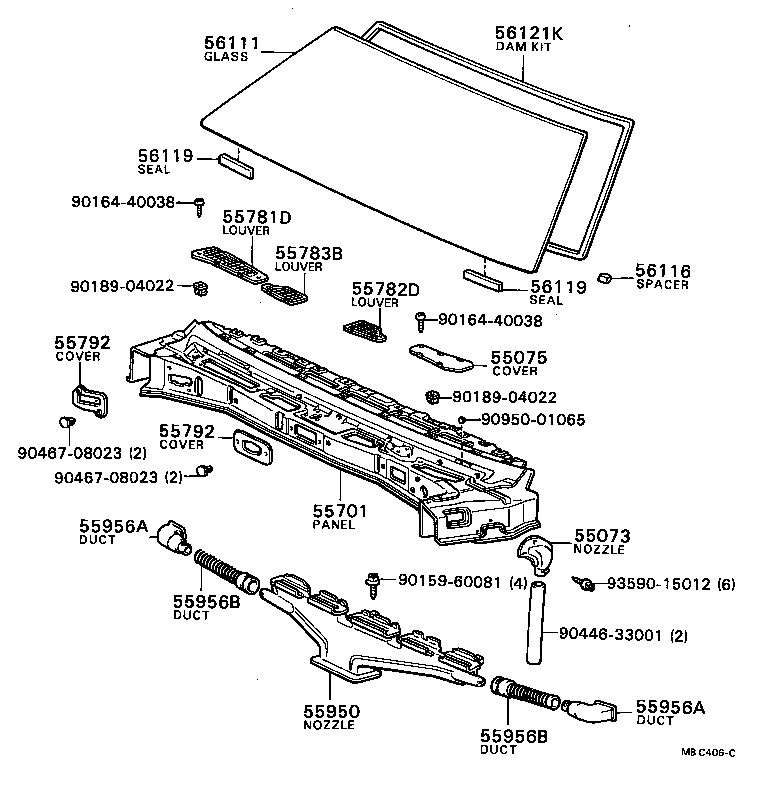

Click highlighted areas on diagram

diagram 55073 55075 55701 55781D 55782D 55783B 55792 55792 55950 55956A 55956A 55956B 55956B 56111 56116 56119 56119 56121K 9015960081 9016440038 9016440038 9018904022 9018904022 9044633001 9046708023 9046708023 9095001065 9359015012
Part # Description Qty Price
55073 - NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT
55073-24010

GZ10,MZ1#

 2
55075 - COVER SUB-ASSY, HEATER AIR DUCT HOLE
55792-24010

GZ10,MZ1#

 1
55701 - PANEL SUB-ASSY, COWL
55700-24011

GZ10..V2,VR,VX

 1
55700-24010

GZ10

 1
55781D - LOUVER, COWL TOP VENTILATOR, RH
55781-24010

GZ10,MZ1#

 1
55782D - LOUVER, COWL TOP VENTILATOR, LH
55782-24020

GZ10,MZ1#

 1
55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1
55781-24020

GZ10,MZ1#

 1
55792 - COVER, WIPER MOTOR SERVICE HOLE
55793-24010

GZ10,MZ1#

CTR

 1
55793-24030

GZ10,MZ1#

RH

 1
55792 - COVER, WIPER MOTOR SERVICE HOLE
55793-24010

GZ10,MZ1#

CTR

 1
55793-24030

GZ10,MZ1#

RH

 1
55950 - NOZZLE ASSY, DEFROSTER
55950-24010

GZ10,MZ1#

 1
55956A - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-24010

GZ10,MZ1#

 2
55956A - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-24010

GZ10,MZ1#

 2
55956B - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55972-24010

GZ10,MZ1#

 2
55956B - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55972-24010

GZ10,MZ1#

 2
56111 - GLASS, WINDSHIELD
56111-24020

GZ10,MZ10..TBO,V1,V2,VR

*TZT,T=5.0

 1
56111-24030

GZ10,MZ11..GT,VR,VX

BRONZE,*LAM,T=5.7

 1
56111-24021

GZ10..V2,VR

*TZT,T=5.0

 1
56116 - SPACER, WINDSHIELD GLASS
56116-24010

GZ10,MZ1#

 2
56119 - SEAL, WINDSHIELD GLASS
56119-24010

GZ10,MZ1#

 2
56119 - SEAL, WINDSHIELD GLASS
56119-24010

GZ10,MZ1#

 2
56121K - DAM KIT, WINDSHIELD GLASS
04562-30040

GZ10,MZ1#

 1
04562-30030

GZ10,MZ1#

 1
Common parts
90159-60081
90164-40038
90189-04022
90446-33001
90467-08023
90950-01065
93590-15012
