GZ10-HCPZE (1981)

Toyota Soarer

Production Feb 1981 - Dec 1985
Engine 1GEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8102- )1GEU

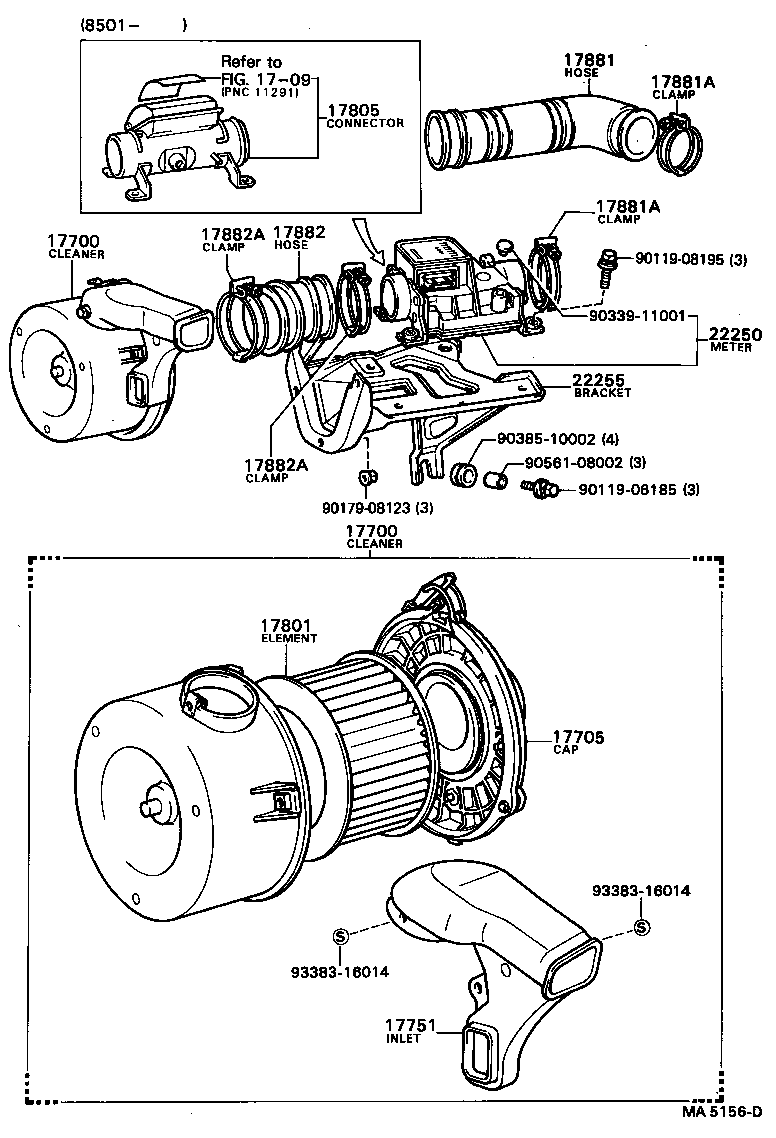

Click highlighted areas on diagram

diagram 1709 17700 17700 17705 17751 17801 17805 17881 17881A 17881A 17882 17882A 17882A 22250 22255 9011906185 9011908195 9017908123 9033911001 9038510002 9056108002 9338316014 9338316014
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-43040

1G#..GZ10

 1
17700 - CLEANER ASSY, AIR
17700-43040

1G#..GZ10

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-43030

1G#..GZ10

 1
17751 - INLET, AIR CLEANER, NO.1
17751-43020

1GEU..GZ10

 1
17751-43020

1G#..GZ10

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-41110

1GEU..GZ10

 1
17801-41110

1G#..GZ10

 1
17805 - CONNECTOR SUB-ASSY, INTAKE AIR
17805-70040

1GEU..GZ10

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-70020

1GEU..GZ10

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10800

1GEU..GZ10

AIR FLOW METER SIDE

 1
96111-10710

1GEU..GZ10

THROTTLE BODY SIDE

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10800

1GEU..GZ10

AIR FLOW METER SIDE

 1
96111-10710

1GEU..GZ10

THROTTLE BODY SIDE

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-70020

1GEU..GZ10

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10900

1GEU..GZ10

AIR CLEANER SIDE

 1
96111-10800

1GEU..GZ10

AIR FLOW METER SIDE,ID=80

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10900

1GEU..GZ10

AIR CLEANER SIDE

 1
96111-10800

1GEU..GZ10

AIR FLOW METER SIDE,ID=80

 1
22250 - METER ASSY, INTAKE AIR FLOW
22250-70020

1GEU..GZ10

 1
22250-70070

1GEU..GZ10

 1
22255 - BRACKET, AIR FLOW METER
22255-43040

1G#..GZ10

 1
Common parts
90119-06185
90119-08195
90179-08123
90339-11001
90385-10002
90561-08002
93383-16014
