GZ10-HCPQF (1983)

Toyota Soarer

Production Feb 1983 - Dec 1985
Engine 1GGEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

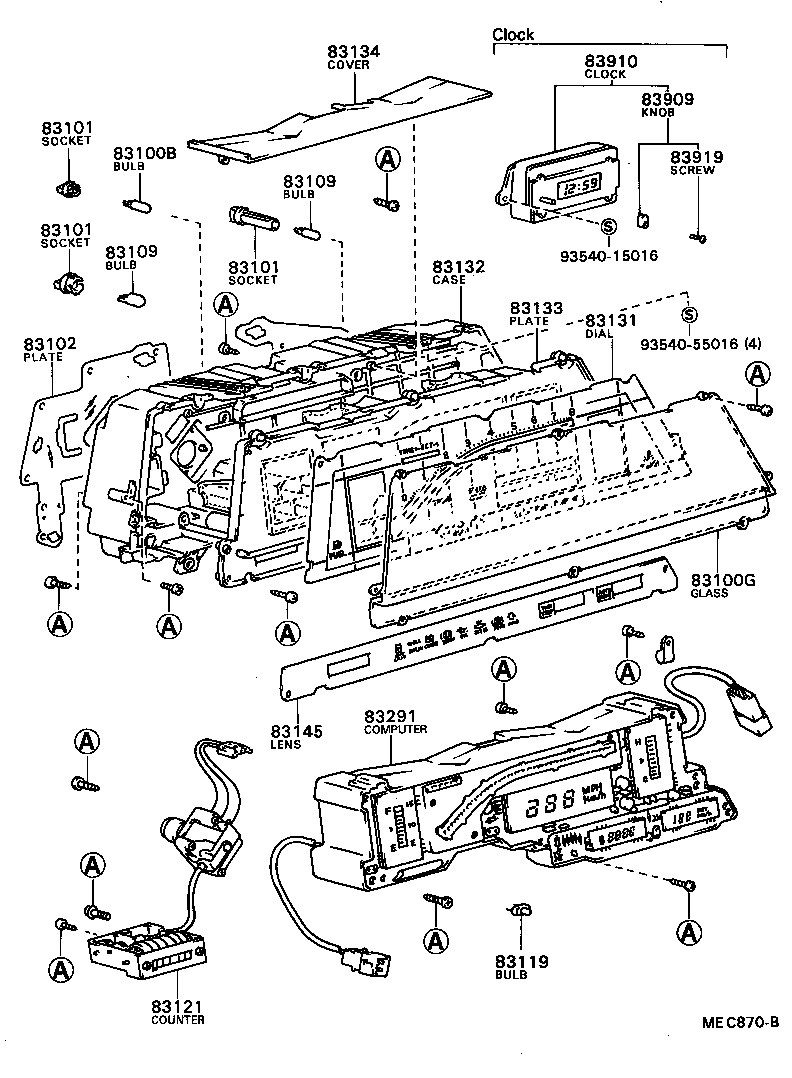

ILLUST NO. 1 OF 3(8302- )

Click highlighted areas on diagram

diagram 83100B 83100G 83101 83101 83101 83102 83109 83109 83119 83121 83131 83132 83133 83134 83145 83291 83909 83910 83919 9354015016 9354055016
Part # Description Qty Price
83100B - BULB, COMBINATION METER, NO.1
90981-11018

GZ10,MZ1#

12V 1.2W ｿｹｯﾄ無し,12V 1.4W

 11
83100G - GLASS, COMBINATION METER
83133-24130

GZ10,MZ1#

 1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030

GZ10,MZ1#

12V 3.4W,SHORT

 4
83101-14040

GZ10,MZ1#

12V 1.4W,SHORT

 13
83101-32010

GZ10,MZ1#

12V 1.4W,LONG

 2
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030

GZ10,MZ1#

12V 3.4W,SHORT

 4
83101-14040

GZ10,MZ1#

12V 1.4W,SHORT

 13
83101-32010

GZ10,MZ1#

12V 1.4W,LONG

 2
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030

GZ10,MZ1#

12V 3.4W,SHORT

 4
83101-14040

GZ10,MZ1#

12V 1.4W,SHORT

 13
83101-32010

GZ10,MZ1#

12V 1.4W,LONG

 2
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83247-24130

GZ10,MZ1#

 1
83247-24150

GZ10,MZ1#

 1
83247-24170

GZ10,MZ1#

 1
83247-24050

GZ10,MZ1#..GT,TBO,VR,VX

 1
83109 - BULB, COMBINATION METER, NO.2
83109-24020

GZ10,MZ1#..GT,TBO,VR,VX

12V 3.4W ｷｬｯﾌﾟ付き,12V 3.4W,W/GREEN CAP

 4
83109-24040

GZ10,MZ1#

12V 1.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,12V 1.4W,W/GREEN CAP

 4
83109-24010

GZ10,MZ1#..GT,TBO,VR,VX

12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ,12V 1.4W,W/GREEN CAP

 2
83109-24030

GZ10,MZ1#

12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,12V 3.4W,W/GREEN CAP

 2
83109 - BULB, COMBINATION METER, NO.2
83109-24020

GZ10,MZ1#..GT,TBO,VR,VX

12V 3.4W ｷｬｯﾌﾟ付き,12V 3.4W,W/GREEN CAP

 4
83109-24040

GZ10,MZ1#

12V 1.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,12V 1.4W,W/GREEN CAP

 4
83109-24010

GZ10,MZ1#..GT,TBO,VR,VX

12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ,12V 1.4W,W/GREEN CAP

 2
83109-24030

GZ10,MZ1#

12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,12V 3.4W,W/GREEN CAP

 2
83119 - BULB, COMBINATION METER, NO.3
83119-24010

GZ10,MZ1#..GT,TBO,VR,VX

12V 1.4W ｿｹｯﾄ付き,12V 1.4W

 2
83121 - COUNTER, TOTAL
83121-24030

GZ10,MZ1#

 1
83121-24010

GZ10,MZ1#..GT,TBO,VR,VX

 1
83131 - DIAL, METER, NO.1
83131-24110

GZ10..4FC..GT

 1
83131-24111

GZ10..4FC..GT

 1
83131-24190

GZ10..4FC..GT

 1
83132 - CASE, COMBINATION METER
83132-24030

GZ10,MZ1#..GT,TBO,VR,VX

 1
83132-24050

GZ10,MZ1#

 1
83133 - PLATE, COMBINATION METER, NO.1
83133-24150

GZ10,MZ12

 1
83133-24150

GZ10,MZ1#

 1
83133-24110

GZ10,MZ1#

 1
83134 - COVER, COMBINATION METER, NO.1
83146-24010

GZ10,MZ1#

 1
83145 - LENS, METER, NO.1
83145-24050

GZ10,MZ11,12..GT,GTL,VX

 1
83145-24010

GZ10,MZ11..GT,VX

 1
83291 - COMPUTER, COMBINATION METER
83291-24040

GZ10..4FC..GT

 1
83291-24041

GZ10..4FC..GT

 1
83291-24042

GZ10..4FC..GT

 1
Common parts
93540-15016
93540-55016
