GZ10-HCPQF (1983)

Toyota Soarer

Production Feb 1983 - Dec 1985
Engine 1GGEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8302- )1GGEU

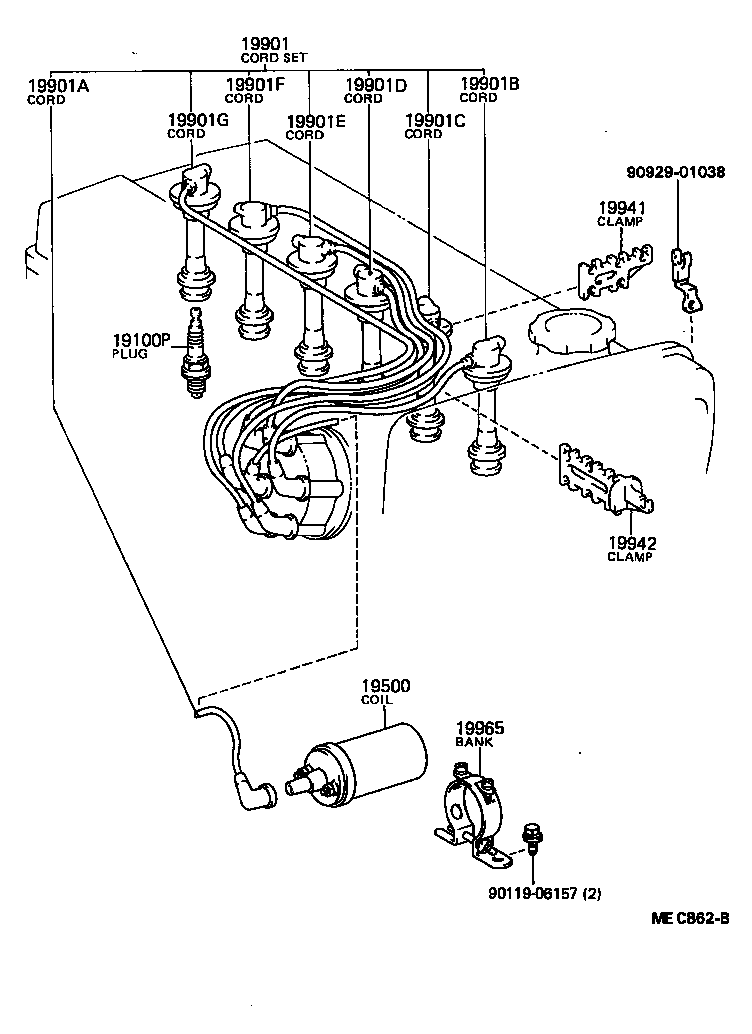

Click highlighted areas on diagram

diagram 19100P 19500 19901 19901A 19901B 19901C 19901D 19901E 19901F 19901G 19941 19942 19965 9011906157 9092901038
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01128

1GGEU..GZ10

BCPR6EP,BCPR6EP11(NGK)

 6
90919-01121

1GGEU..GZ10

PQ16R,PQ16R(DENSO)

 6
90919-01127

1GGEU..GZ10

PQ20R,PQ20R(DENSO)

 6
90919-01122

1GGEU..GZ10

BCPR5EP−11,BCPR5EP11(NGK)

 6
19500 - COIL ASSY, IGNITION
90919-02113

1G#..GZ10

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21318

1GGEU..GZ10

 1
19901A - CORD, COIL RESISTIVE
90919-13204

1GGEU..GZ10

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12451

1GGEU..GZ10

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12452

1GGEU..GZ10

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12453

1GGEU..GZ10

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12454

1GGEU..GZ10

 1
19901F - CORD, SPARK PLUG RESISTIVE, NO.5
90919-12455

1GGEU..GZ10

 1
19901G - CORD, SPARK PLUG RESISTIVE, NO.6
90919-12456

1GGEU..GZ10

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
90929-01044

1GGEU..GZ10

 1
19942 - CLAMP, RESISTIVE CORD, NO.2
90464-00307

1GGEU..GZ10

 1
19965 - BAND, IGNITION COIL, NO.1
90919-03086

1GGEU..GZ10

 1
Common parts
90119-06157
90929-01038
