GZ10-HCPNE (1981)

Toyota Soarer

Production Feb 1981 - Dec 1985
Engine 1GEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8102- )

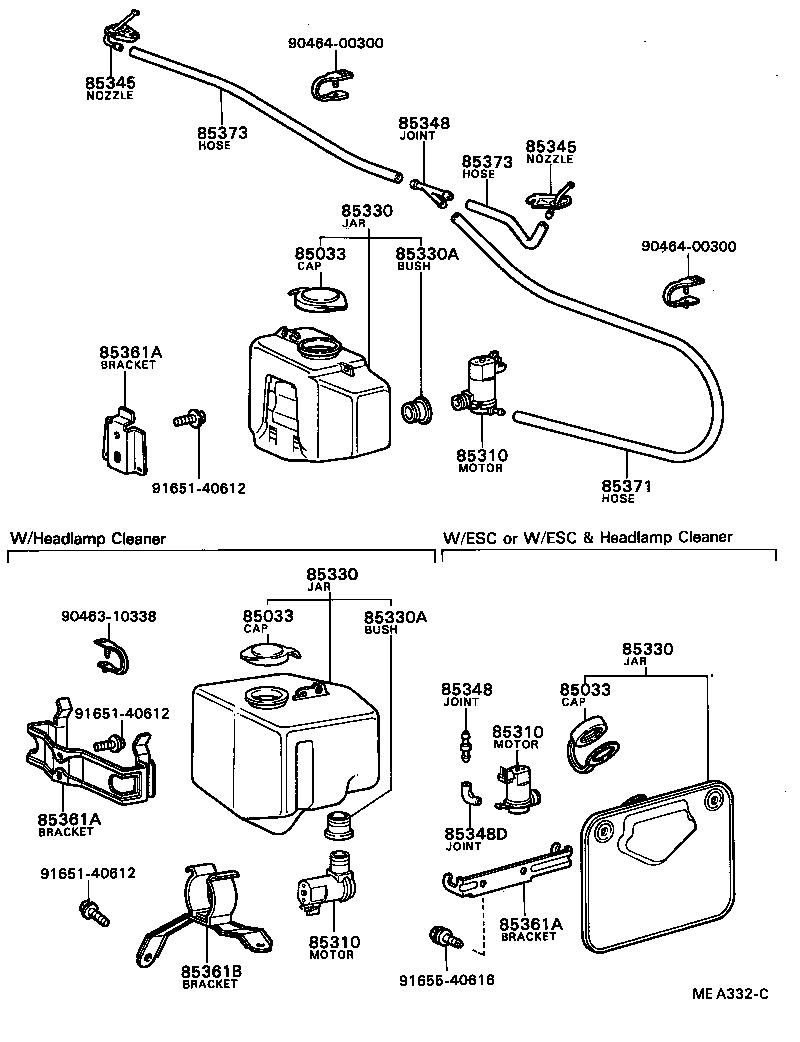

Click highlighted areas on diagram

diagram 85033 85033 85033 85310 85310 85310 85330 85330 85330 85330A 85330A 85345 85345 85348 85348 85348D 85361A 85361A 85361A 85361B 85371 85373 85373 9046310338 9046400300 9046400300 9165140612 9165140612 9165140612 9165540616
Part # Description Qty Price
85033 - CAP ASSY, WINDSHIELD WASHER
85332-16010

GZ10,MZ10,11

 1
85033 - CAP ASSY, WINDSHIELD WASHER
85332-16010

GZ10,MZ10,11

 1
85033 - CAP ASSY, WINDSHIELD WASHER
85332-16010

GZ10,MZ10,11

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-10130

GZ10,MZ1#

 1
85310-22080

GZ10,MZ1#

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-10130

GZ10,MZ1#

 1
85310-22080

GZ10,MZ1#

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-10130

GZ10,MZ1#

 1
85310-22080

GZ10,MZ1#

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-12100

GZ10,MZ10,11

 1
85330-24020

GZ10,MZ1#..GT,TBO,V2,VR,VX

W/*HC

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-12100

GZ10,MZ10,11

 1
85330-24020

GZ10,MZ1#..GT,TBO,V2,VR,VX

W/*HC

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-12100

GZ10,MZ10,11

 1
85330-24020

GZ10,MZ1#..GT,TBO,V2,VR,VX

W/*HC

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

GZ10,MZ10,11

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

GZ10,MZ10,11

 1
85345 - NOZZLE, WINDSHIELD WASHER
85346-24010

GZ10,MZ1#

LH

 1
85345-24010

GZ10,MZ1#

RH

 1
85345 - NOZZLE, WINDSHIELD WASHER
85346-24010

GZ10,MZ1#

LH

 1
85345-24010

GZ10,MZ1#

RH

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-14010

GZ10,MZ1#

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-14010

GZ10,MZ1#

 1
85361A - BRACKET, WINDSHIELD WASHER, NO.1
85361-24030

GZ10,MZ1#..GT,TBO,V2,VR,VX

W/*HC

 1
85361-24020

GZ10,MZ1#..GT,TBO,V1,V2,VR,VX

 1
85361A - BRACKET, WINDSHIELD WASHER, NO.1
85361-24030

GZ10,MZ1#..GT,TBO,V2,VR,VX

W/*HC

 1
85361-24020

GZ10,MZ1#..GT,TBO,V1,V2,VR,VX

 1
85361A - BRACKET, WINDSHIELD WASHER, NO.1
85361-24030

GZ10,MZ1#..GT,TBO,V2,VR,VX

W/*HC

 1
85361-24020

GZ10,MZ1#..GT,TBO,V1,V2,VR,VX

 1
85361B - BRACKET, WINDSHIELD WASHER, NO.2
85036-24010

GZ10,MZ1#..GT,TBO,V2,VR,VX

W/*HC

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33299

GZ10,MZ11

*H,L=950

 1
90099-33029

GZ10,MZ10,11

*H,L=900

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06013

GZ10,MZ1#

*H,L=500

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06013

GZ10,MZ1#

*H,L=500

 1
Common parts
90463-10338
90464-00300
91651-40612
91655-40616
