GZ10-HCPNE (1981)

Toyota Soarer

Production Feb 1981 - Dec 1985
Engine 1GEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8102-8302)

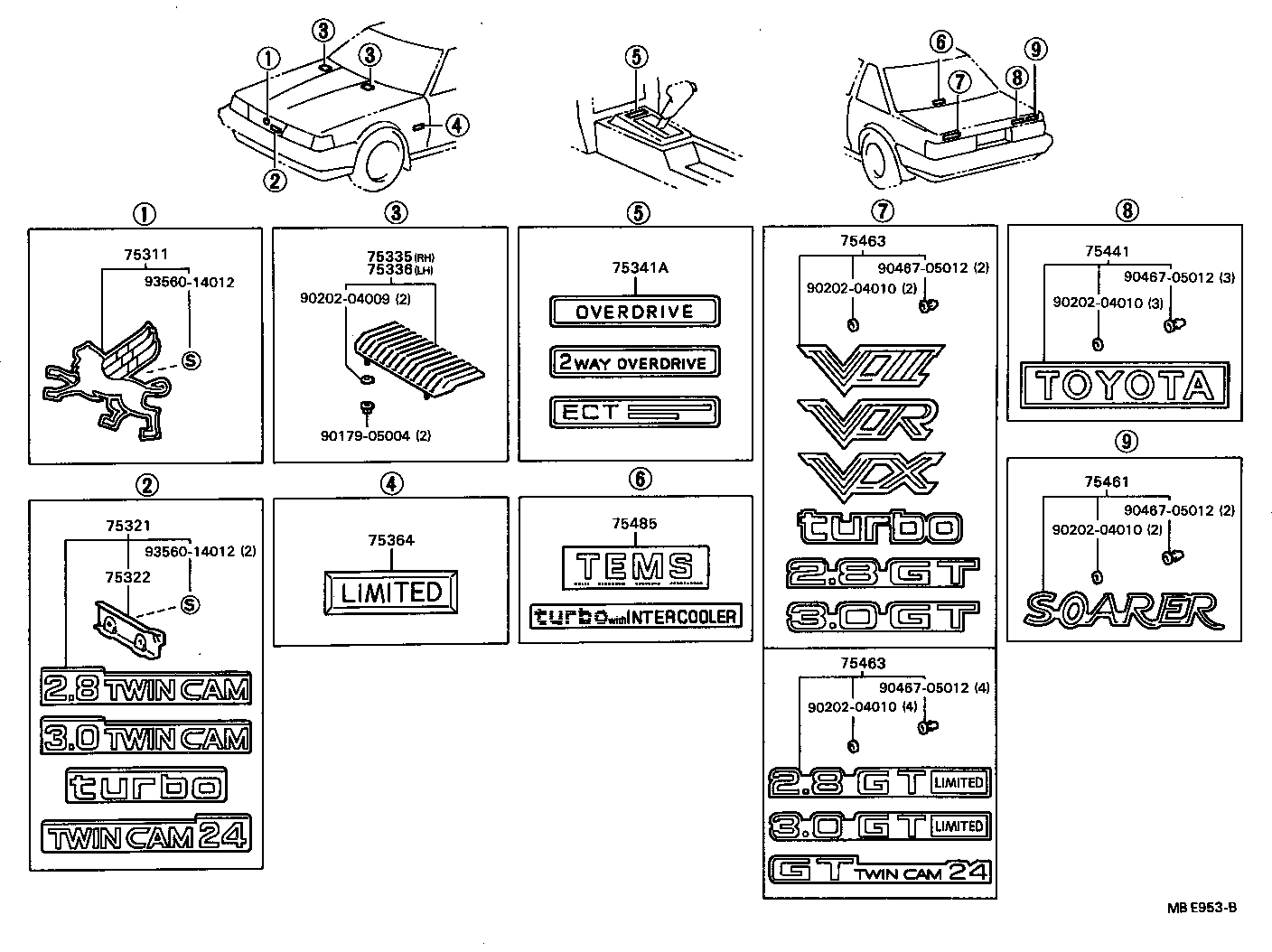

Click highlighted areas on diagram

diagram 75311 75321 75322 75335 75336 75341 75341A 75364 75441 75461 75463 75463 75465 75485 9017905004 9020204009 9020204010 9020204010 9020204010 9020204010 9020204010 9046705012 9046705012 9046705012 9046705012 9046705012 9356014012 9356014012
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-29266

GZ10,MZ1#

 1
75311-29265

GZ10,MZ1#

 1
75335 - ORNAMENT, HOOD RELIEF, RH
75335-2401001

GZ10,MZ1#

BLACK,BLACK,TRIM2#

 1
75335-2401013

GZ10,MZ1#

SUPER SILVER-M,GRAY

 1
75335-2401008

GZ10,MZ1#

SUPER WHITE,IVORY

 1
75335-2401005

GZ10,MZ1#

BEIGE-M,BEIGE,TRIM4#

 1
75335-2401015

GZ10,MZ1#

BEIGE,BEIGE,TRIM4#

 1
75335-2401038

GZ10,MZ1#

SUPER WHITE 2,XXXX

 1
75335-2401003

GZ10,MZ1#

SILVER GRAY-M,GRAY,TRIM1#

 1
75336 - ORNAMENT, HOOD RELIEF, LH
75336-2401005

GZ10,MZ1#

BEIGE-M,BEIGE,TRIM4#

 1
75336-2401001

GZ10,MZ1#

BLACK,BLACK,TRIM2#

 1
75336-2401003

GZ10,MZ1#

SILVER GRAY-M,GRAY,TRIM1#

 1
75336-2401038

GZ10,MZ1#

SUPER WHITE 2,XXXX

 1
75336-2401015

GZ10,MZ1#

BEIGE,BEIGE,TRIM4#

 1
75336-2401008

GZ10,MZ1#

SUPER WHITE,IVORY

 1
75336-2401013

GZ10,MZ1#

SUPER SILVER-M,GRAY

 1
75341A - PLATE, CONSOLE BOX NAME, NO.1
58835-24010

GZ10..4FC..(V2,VR,VX)

2 WAY OVER DRIVE

 1
75441 - PLATE, REAR NAME, NO.1
75441-24010

GZ10,MZ1#

TOYOTA

 1
75441-24011

GZ10,MZ1#

TOYOTA

 1
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75442-24010

GZ10,MZ1#

SOARER

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75443-24020

GZ10..V2

V2

 1
75443-24020

GZ10,MZ10..V2

V2

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75443-24020

GZ10..V2

V2

 1
75443-24020

GZ10,MZ10..V2

V2

 1
Common parts
90179-05004
90202-04009
90202-04010
90467-05012
93560-14012

(8302- )

Click highlighted areas on diagram

diagram 75311 75321 75322 75335 75336 75341A 75364 75441 75461 75463 75463 75485 9017905004 9020204009 9020204010 9020204010 9020204010 9020204010 9046705012 9046705012 9046705012 9046705012 9356014012 9356014012
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-29266

GZ10,MZ1#

 1
75311-29265

GZ10,MZ1#

 1
75335 - ORNAMENT, HOOD RELIEF, RH
75335-2401001

GZ10,MZ1#

BLACK,BLACK,TRIM2#

 1
75335-2401013

GZ10,MZ1#

SUPER SILVER-M,GRAY

 1
75335-2401008

GZ10,MZ1#

SUPER WHITE,IVORY

 1
75335-2401005

GZ10,MZ1#

BEIGE-M,BEIGE,TRIM4#

 1
75335-2401015

GZ10,MZ1#

BEIGE,BEIGE,TRIM4#

 1
75335-2401038

GZ10,MZ1#

SUPER WHITE 2,XXXX

 1
75335-2401003

GZ10,MZ1#

SILVER GRAY-M,GRAY,TRIM1#

 1
75336 - ORNAMENT, HOOD RELIEF, LH
75336-2401005

GZ10,MZ1#

BEIGE-M,BEIGE,TRIM4#

 1
75336-2401001

GZ10,MZ1#

BLACK,BLACK,TRIM2#

 1
75336-2401003

GZ10,MZ1#

SILVER GRAY-M,GRAY,TRIM1#

 1
75336-2401038

GZ10,MZ1#

SUPER WHITE 2,XXXX

 1
75336-2401015

GZ10,MZ1#

BEIGE,BEIGE,TRIM4#

 1
75336-2401008

GZ10,MZ1#

SUPER WHITE,IVORY

 1
75336-2401013

GZ10,MZ1#

SUPER SILVER-M,GRAY

 1
75341A - PLATE, CONSOLE BOX NAME, NO.1
58835-24010

GZ10..4FC..(V2,VR,VX)

2 WAY OVER DRIVE

 1
75441 - PLATE, REAR NAME, NO.1
75441-24010

GZ10,MZ1#

TOYOTA

 1
75441-24011

GZ10,MZ1#

TOYOTA

 1
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75442-24010

GZ10,MZ1#

SOARER

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75443-24020

GZ10..V2

V2

 1
75443-24020

GZ10,MZ10..V2

V2

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75443-24020

GZ10..V2

V2

 1
75443-24020

GZ10,MZ10..V2

V2

 1
Common parts
90179-05004
90202-04009
90202-04010
90467-05012
93560-14012
