GZ10-HCPGE (1981)
Toyota Soarer
Production
Feb 1981
-
Dec 1985
Engine
1GEU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8102-8302)

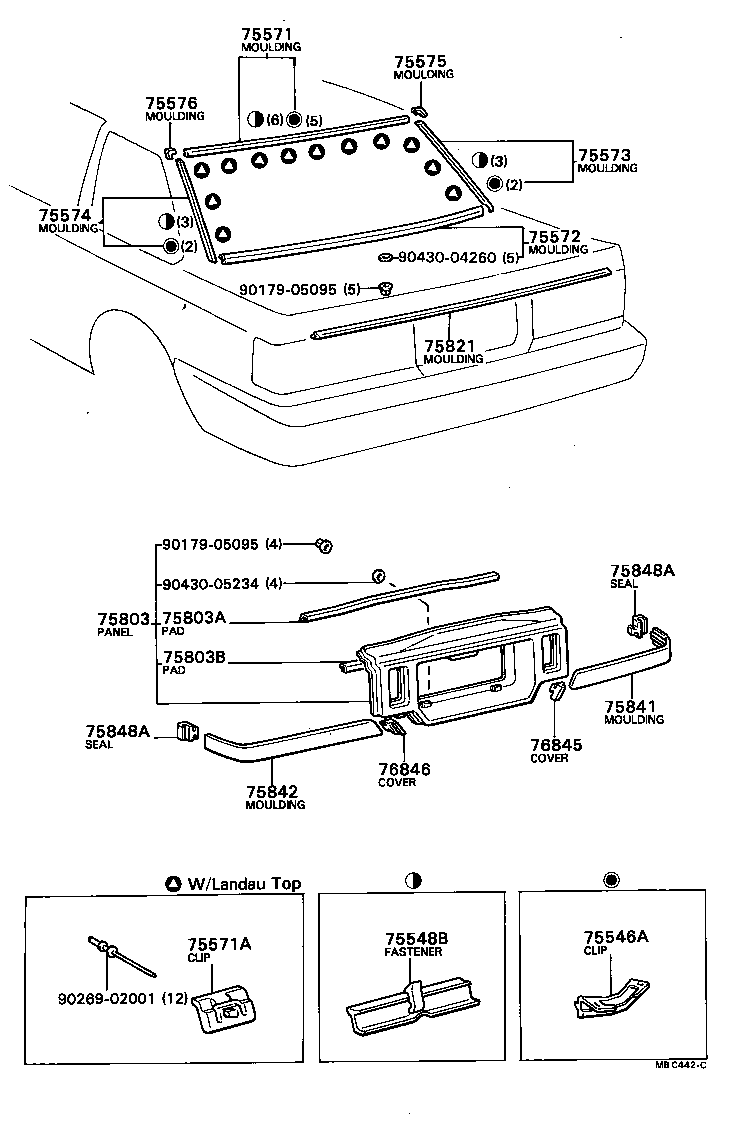

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75546A - CLIP, BACK WINDOW OUTSIDE MOULDING | ||||
| 75962-24020 |
GZ10,MZ1# |
9 | ||
| 75548B - FASTENER, BACK WINDOW OUTSIDE MOULDING | ||||
| 75548-24020 |
GZ10,MZ1# |
12 | ||
| 75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER | ||||
| 75571-24020 |
GZ10,MZ1# |
1 | ||
| 75571A - CLIP(FOR BACK WINDOW MOULDING SET) | ||||
| 75545-30050 |
GZ10,MZ11..GT,VX W/LANDAU TOP |
12 | ||
| 75572 - MOULDING, BACK WINDOW, LOWER | ||||
| 75507-24010 |
GZ10,MZ1# |
1 | ||
| 75573 - MOULDING, BACK WINDOW SIDE, RH | ||||
| 75573-24020 |
GZ10,MZ1# |
1 | ||
| 75574 - MOULDING, BACK WINDOW SIDE, LH | ||||
| 75574-24020 |
GZ10,MZ1# |
1 | ||
| 75575 - MOULDING, BACK WINDOW CORNER, UPPER RH | ||||
| 75581-24010 |
GZ10,MZ1# |
1 | ||
| 75576 - MOULDING, BACK WINDOW CORNER, UPPER LH | ||||
| 75581-24010 |
GZ10,MZ1# |
1 | ||
| 75803 - PANEL SUB-ASSY, BODY LOWER BACK FINISH CENTER | ||||
| 75082-29056 |
GZ10,MZ1# |
1 | ||
| 75082-29055 |
GZ10,MZ1# |
1 | ||
| 75803A - PAD, LOWER BACK PANEL MOULDING, NO.1 | ||||
| 75845-24010 |
GZ10,MZ1# |
1 | ||
| 75803B - PAD, LOWER BACK PANEL MOULDING, NO.2 | ||||
| 75847-24010 |
GZ10,MZ1# |
2 | ||
| 75847-24010 |
GZ10,MZ1# |
1 | ||
| 75821 - MOULDING, LUGGAGE COMPARTMENT DOOR BACK | ||||
| 75813-24011 |
GZ10,MZ1# |
1 | ||
| 75813-24010 |
GZ10,MZ1# |
1 | ||
| 75841 - MOULDING, BODY LOWER BACK PANEL, RH | ||||
| 75841-24010 |
GZ10,MZ1# |
1 | ||
| 75842 - MOULDING, BODY LOWER BACK PANEL, LH | ||||
| 75842-24010 |
GZ10,MZ1# |
1 | ||
| 75848A - SEAL, LOWER BACK PANEL MOULDING | ||||
| 75848-24010 |
GZ10,MZ1# |
2 | ||
| 75848A - SEAL, LOWER BACK PANEL MOULDING | ||||
| 75848-24010 |
GZ10,MZ1# |
2 | ||
| 76845 - COVER, LOWER BACK PANEL MOULDING, RH | ||||
| 76845-24010 |
GZ10,MZ1# |
1 | ||
| 76846 - COVER, LOWER BACK PANEL MOULDING, LH | ||||
| 76846-24010 |
GZ10,MZ1# |
1 | ||
| Common parts | ||||
| 90179-05095 | ||||
| 90269-02001 | ||||
| 90430-04260 | ||||
| 90430-05234 | ||||
(8302- )

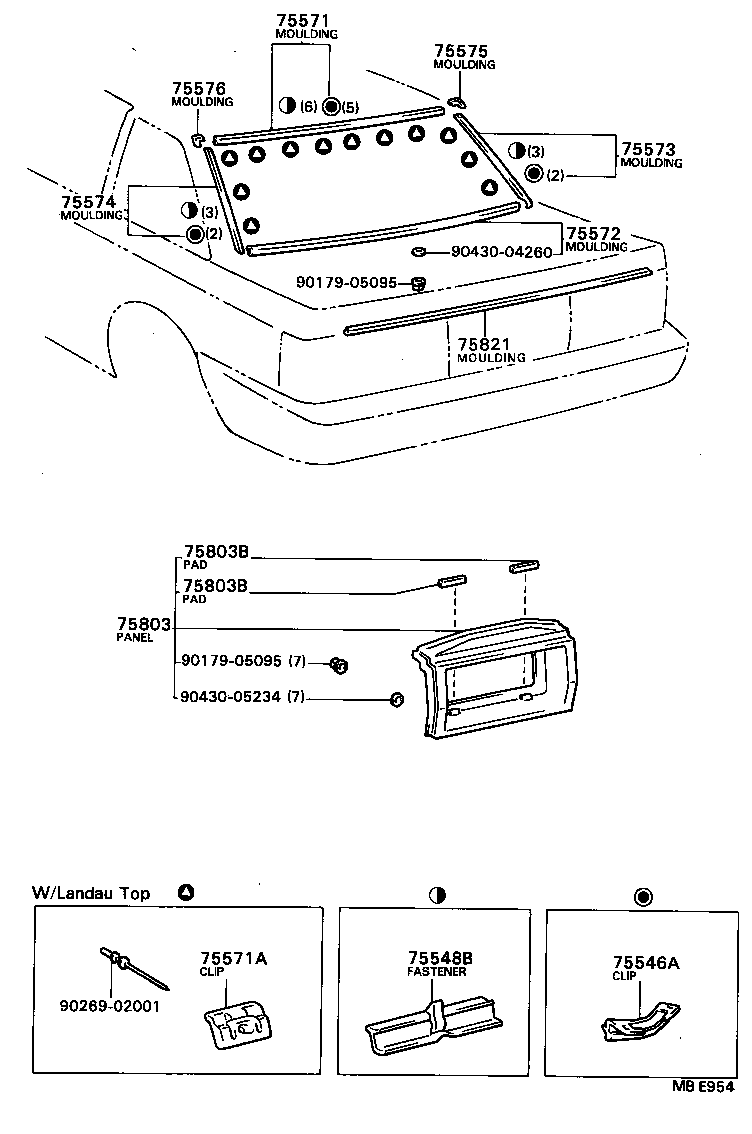

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75546A - CLIP, BACK WINDOW OUTSIDE MOULDING | ||||
| 75962-24020 |
GZ10,MZ1# |
9 | ||
| 75548B - FASTENER, BACK WINDOW OUTSIDE MOULDING | ||||
| 75548-24020 |
GZ10,MZ1# |
12 | ||
| 75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER | ||||
| 75571-24020 |
GZ10,MZ1# |
1 | ||
| 75571A - CLIP(FOR BACK WINDOW MOULDING SET) | ||||
| 75545-30050 |
GZ10,MZ11..GT,VX W/LANDAU TOP |
12 | ||
| 75572 - MOULDING, BACK WINDOW, LOWER | ||||
| 75507-24010 |
GZ10,MZ1# |
1 | ||
| 75573 - MOULDING, BACK WINDOW SIDE, RH | ||||
| 75573-24020 |
GZ10,MZ1# |
1 | ||
| 75574 - MOULDING, BACK WINDOW SIDE, LH | ||||
| 75574-24020 |
GZ10,MZ1# |
1 | ||
| 75575 - MOULDING, BACK WINDOW CORNER, UPPER RH | ||||
| 75581-24010 |
GZ10,MZ1# |
1 | ||
| 75576 - MOULDING, BACK WINDOW CORNER, UPPER LH | ||||
| 75581-24010 |
GZ10,MZ1# |
1 | ||
| 75803 - PANEL SUB-ASSY, BODY LOWER BACK FINISH CENTER | ||||
| 75082-29056 |
GZ10,MZ1# |
1 | ||
| 75082-29055 |
GZ10,MZ1# |
1 | ||
| 75803B - PAD, LOWER BACK PANEL MOULDING, NO.2 | ||||
| 75847-24010 |
GZ10,MZ1# |
2 | ||
| 75847-24010 |
GZ10,MZ1# |
1 | ||
| 75803B - PAD, LOWER BACK PANEL MOULDING, NO.2 | ||||
| 75847-24010 |
GZ10,MZ1# |
2 | ||
| 75847-24010 |
GZ10,MZ1# |
1 | ||
| 75821 - MOULDING, LUGGAGE COMPARTMENT DOOR BACK | ||||
| 75813-24011 |
GZ10,MZ1# |
1 | ||
| 75813-24010 |
GZ10,MZ1# |
1 | ||
| Common parts | ||||
| 90179-05095 | ||||
| 90269-02001 | ||||
| 90430-04260 | ||||
| 90430-05234 | ||||
