GZ10-HCPGE (1981)

Toyota Soarer

Production Feb 1981 - Dec 1985
Engine 1GEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8102- )

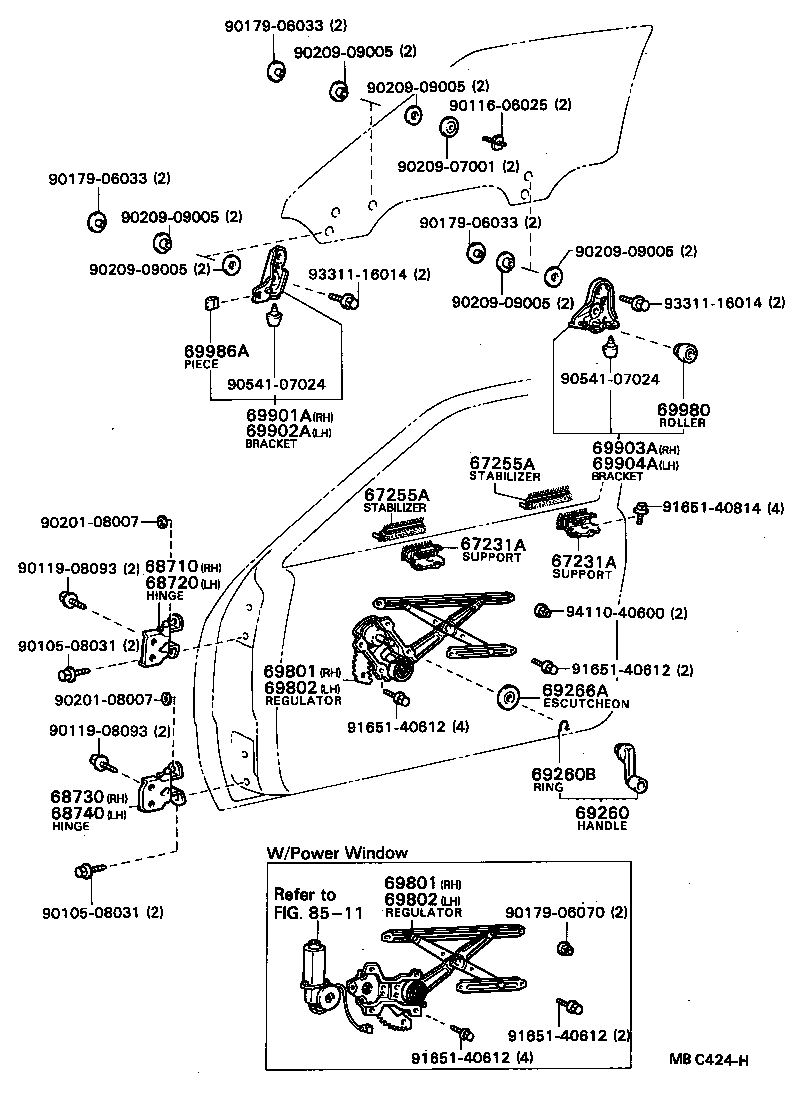

Click highlighted areas on diagram

diagram 67231A 67231A 67255A 67255A 68710 68720 68730 68740 69260 69260B 69266A 69801 69801 69802 69802 69901A 69902A 69903A 69904A 69980 69986A 8511 9010508031 9010508031 9011606025 9011908093 9011908093 9017906033 9017906033 9017906033 9017906070 9020108007 9020108007 9020907001 9020909005 9020909005 9020909005 9020909005 9020909005 9020909005 9054107024 9054107024 9165140612 9165140612 9165140612 9165140612 9165140814 9331116014 9331116014 9411040600
Part # Description Qty Price
67231A - SUPPORT, FRONT DOOR TRIM
67231-24010

GZ10,MZ1#

 4
67231A - SUPPORT, FRONT DOOR TRIM
67231-24010

GZ10,MZ1#

 4
67255A - STABILIZER, FRONT DOOR GLASS, OUTER
67255-24010

GZ10,MZ1#

 2
67255A - STABILIZER, FRONT DOOR GLASS, OUTER
67255-24010

GZ10,MZ1#

 2
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-24010

GZ10,MZ1#

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-24010

GZ10,MZ1#

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-24010

GZ10,MZ1#

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-24010

GZ10,MZ1#

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-24010

GZ10,MZ1#

 1
69801-24010

GZ10,MZ1#..GT,TBO,V2,VR,VX

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-24010

GZ10,MZ1#

 1
69801-24010

GZ10,MZ1#..GT,TBO,V2,VR,VX

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-24010

GZ10,MZ1#..GT,TBO,V2,VR,VX

 1
69802-24010

GZ10,MZ1#

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-24010

GZ10,MZ1#..GT,TBO,V2,VR,VX

 1
69802-24010

GZ10,MZ1#

 1
69901A - BRACKET SUB-ASSY, FRONT DOOR GLASS, RH
69951-24010

GZ10,MZ1#

 1
69902A - BRACKET SUB-ASSY, FRONT DOOR GLASS, LH
69952-24010

GZ10,MZ1#

 1
69903A - BRACKET SUB-ASSY, FRONT DOOR GLASS, REAR RH
69903-24010

GZ10,MZ1#

 1
69904A - BRACKET SUB-ASSY, FRONT DOOR GLASS, REAR LH
69904-24010

GZ10,MZ1#

 1
69980 - ROLLER ASSY, FRONT DOOR GLASS GUIDE
69981-14020

GZ10,MZ1#

 2
69981-30040

GZ10,MZ1#

 2
69986A - PIECE, FRONT DOOR GLASS GUIDE
69986-24010

GZ10,MZ1#

 2
Common parts
90105-08031
90116-06025
90119-08093
90179-06033
90179-06070
90201-08007
90209-07001
90209-09005
90541-07024
91651-40612
91651-40814
93311-16014
94110-40600
Linked diagrams
8511
