GZ10-HCPGE (1981)
Toyota Soarer
(8302- )GT,GTL,VX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-2401004 |
GZ10,MZ10..V1,V2,VX URETHANE,BLUE,BLUE,TRIM8# |
1 | ||
| 45100-2401002 |
GZ10,MZ10..V1,V2,VX URETHANE,TERRACOTTA,RED/MAROON,TRIM3# |
1 | ||
| 45100-2401001 |
GZ10,MZ10..V1,V2,VX URETHANE,BLACK,BLACK,TRIM2# |
1 | ||
| 45100-2405004 |
GZ10,MZ11,12..GT,GTL,VX BLUE,BLUE,TRIM8# |
1 | ||
| 45100-2405005 |
GZ10,MZ11,12..GT,GTL,VX BEIGE,BEIGE,TRIM4# |
1 | ||
| 45100-2401003 |
GZ10,MZ10..V2,VX URETHANE,GRAY,GRAY,TRIM1# |
1 | ||
| 45100-2405012 |
GZ10,MZ11,12..GT,GTL,VX DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-24010 |
GZ10,MZ1# |
1 | ||
| 45105-24020 |
GZ10,MZ11,12..GT,GTL,VX |
1 | ||
| 45105B - SPACER(FOR HORN BUTTON CONTACT PLATE) | ||||
| 90561-04006 |
GZ10,MZ1# |
4 | ||
| 45116 - ORNAMENT, STEERING WHEEL, NO.1 | ||||
| 45116-2401004 |
GZ10,MZ11..GT,VX BLUE,BLUE,TRIM8# |
1 | ||
| 45116-2401005 |
GZ10,MZ11..GT,VX BEIGE,BEIGE,TRIM4# |
1 | ||
| 45116-2401012 |
GZ10,MZ11,12..GT,GTL,VX DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 45126 - PLATE, STEERING WHEEL PAD SET | ||||
| 45126-24010 |
GZ10,MZ11,12..GT,GTL,VX |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-2401004 |
GZ10,MZ1# BLUE,BLUE,TRIM8# |
1 | ||
| 45130-2404004 |
GZ10,MZ11,12..GT,GTL,VX BLUE,BLUE,TRIM8# |
1 | ||
| 45130-2401001 |
GZ10,MZ1# BLACK,BLACK,TRIM2# |
1 | ||
| 45130-2404002 |
GZ10,MZ11,12..GT,GTL,VX DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 45130-2401002 |
GZ10,MZ1# TERRACOTTA,RED/MAROON,TRIM3# |
1 | ||
| 45130-2404005 |
GZ10,MZ11,12..GT,GTL,VX BEIGE,BEIGE,TRIM4# |
1 | ||
| 45130-2401003 |
GZ10,MZ1# GRAY,GRAY,TRIM1# |
1 | ||
| 45130A - SPRING, COMPRESSION(FOR HORN BUTTON) | ||||
| 90501-10040 |
GZ10,MZ1# |
4 | ||
| 45142 - SEAT, HORN BUTTON CONTACT, NO.1 | ||||
| 45142-24010 |
GZ10,MZ1# |
1 | ||
| 45142-24020 |
GZ10,MZ11,12..GT,GTL,VX |
1 | ||
| 45184 - COVER, STEERING WHEEL BOSS, LOWER | ||||
| 45184-2401003 |
GZ10,MZ1# GRAY,GRAY,TRIM1# |
1 | ||
| 45184-2401001 |
GZ10,MZ1# BLACK,BLACK,TRIM2# |
1 | ||
| 45184-2401002 |
GZ10,MZ1# TERRACOTTA,RED/MAROON,TRIM3# |
1 | ||
| 45184-2401005 |
MZ11,12;GZ10,MZ10..TBO,VR,VX BEIGE,BEIGE,TRIM4# |
1 | ||
| 45184-2401012 |
GZ10,MZ1# DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 45184-2401004 |
GZ10,MZ1# BLUE,BLUE,TRIM8# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12086 |
GZ10,MZ1# |
1 | ||
| 45207 - RING, HORN CONTACT | ||||
| 45176-20030 |
GZ10,MZ1# |
1 | ||
| Common parts | ||||
| 93315-14010 | ||||
| 93315-14025 | ||||
| 93510-13010 | ||||
| Linked diagrams | ||||
| 8408 | ||||

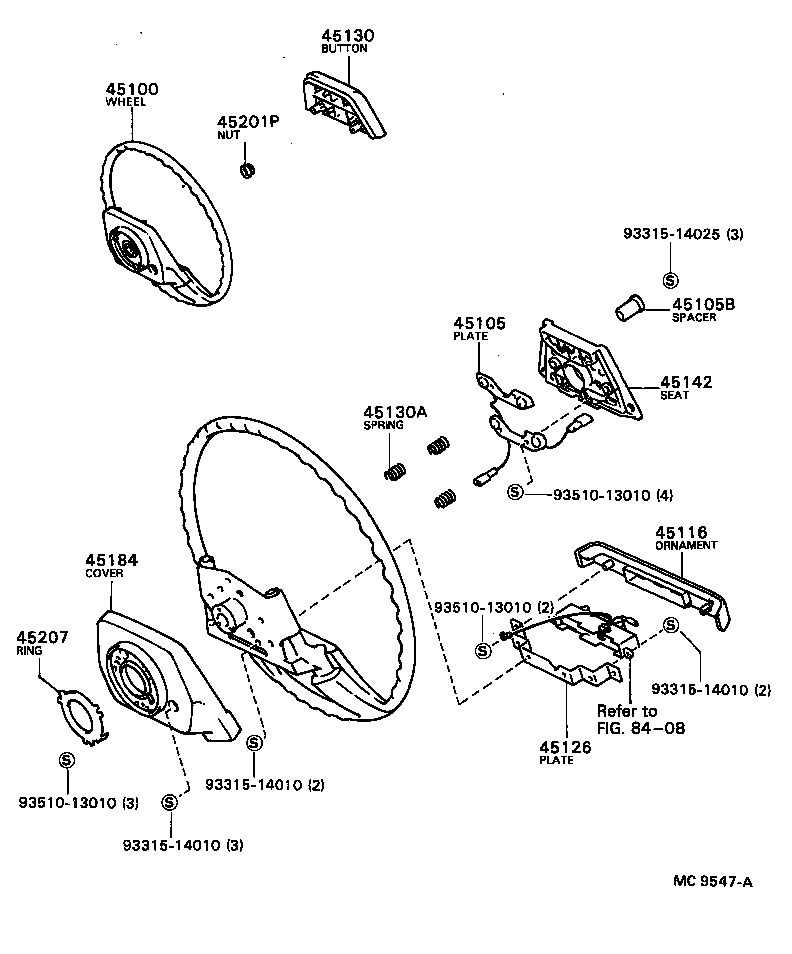

(8102-8302) ; (8302- )TBO,V2,VR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-2401004 |
GZ10,MZ10..V1,V2,VX URETHANE,BLUE,BLUE,TRIM8# |
1 | ||
| 45100-2401002 |
GZ10,MZ10..V1,V2,VX URETHANE,TERRACOTTA,RED/MAROON,TRIM3# |
1 | ||
| 45100-2401001 |
GZ10,MZ10..V1,V2,VX URETHANE,BLACK,BLACK,TRIM2# |
1 | ||
| 45100-2405004 |
GZ10,MZ11,12..GT,GTL,VX BLUE,BLUE,TRIM8# |
1 | ||
| 45100-2405005 |
GZ10,MZ11,12..GT,GTL,VX BEIGE,BEIGE,TRIM4# |
1 | ||
| 45100-2401003 |
GZ10,MZ10..V2,VX URETHANE,GRAY,GRAY,TRIM1# |
1 | ||
| 45100-2405012 |
GZ10,MZ11,12..GT,GTL,VX DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-24010 |
GZ10,MZ1# |
1 | ||
| 45105-24020 |
GZ10,MZ11,12..GT,GTL,VX |
1 | ||
| 45105B - SPACER(FOR HORN BUTTON CONTACT PLATE) | ||||
| 90561-04006 |
GZ10,MZ1# |
4 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-2401004 |
GZ10,MZ1# BLUE,BLUE,TRIM8# |
1 | ||
| 45130-2404004 |
GZ10,MZ11,12..GT,GTL,VX BLUE,BLUE,TRIM8# |
1 | ||
| 45130-2401001 |
GZ10,MZ1# BLACK,BLACK,TRIM2# |
1 | ||
| 45130-2404002 |
GZ10,MZ11,12..GT,GTL,VX DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 45130-2401002 |
GZ10,MZ1# TERRACOTTA,RED/MAROON,TRIM3# |
1 | ||
| 45130-2404005 |
GZ10,MZ11,12..GT,GTL,VX BEIGE,BEIGE,TRIM4# |
1 | ||
| 45130-2401003 |
GZ10,MZ1# GRAY,GRAY,TRIM1# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-2401004 |
GZ10,MZ1# BLUE,BLUE,TRIM8# |
1 | ||
| 45130-2404004 |
GZ10,MZ11,12..GT,GTL,VX BLUE,BLUE,TRIM8# |
1 | ||
| 45130-2401001 |
GZ10,MZ1# BLACK,BLACK,TRIM2# |
1 | ||
| 45130-2404002 |
GZ10,MZ11,12..GT,GTL,VX DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 45130-2401002 |
GZ10,MZ1# TERRACOTTA,RED/MAROON,TRIM3# |
1 | ||
| 45130-2404005 |
GZ10,MZ11,12..GT,GTL,VX BEIGE,BEIGE,TRIM4# |
1 | ||
| 45130-2401003 |
GZ10,MZ1# GRAY,GRAY,TRIM1# |
1 | ||
| 45130A - SPRING, COMPRESSION(FOR HORN BUTTON) | ||||
| 90501-10040 |
GZ10,MZ1# |
4 | ||
| 45130A - SPRING, COMPRESSION(FOR HORN BUTTON) | ||||
| 90501-10040 |
GZ10,MZ1# |
4 | ||
| 45142 - SEAT, HORN BUTTON CONTACT, NO.1 | ||||
| 45142-24010 |
GZ10,MZ1# |
1 | ||
| 45142-24020 |
GZ10,MZ11,12..GT,GTL,VX |
1 | ||
| 45142D - CUSHION(FOR HORN BUTTON CONTACT SEAT) | ||||
| 90540-08007 |
GZ10,MZ1# |
4 | ||
| 45184 - COVER, STEERING WHEEL BOSS, LOWER | ||||
| 45184-2401001 |
GZ10,MZ1# BLACK,BLACK,TRIM2# |
1 | ||
| 45184-2401002 |
GZ10,MZ1# TERRACOTTA,RED/MAROON,TRIM3# |
1 | ||
| 45184-2401003 |
GZ10,MZ1# GRAY,GRAY,TRIM1# |
1 | ||
| 45184-2401005 |
MZ11,12;GZ10,MZ10..TBO,VR,VX BEIGE,BEIGE,TRIM4# |
1 | ||
| 45184-2401012 |
GZ10,MZ1# DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 45184-2401004 |
GZ10,MZ1# BLUE,BLUE,TRIM8# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12086 |
GZ10,MZ1# |
1 | ||
| 45207 - RING, HORN CONTACT | ||||
| 45176-20030 |
GZ10,MZ1# |
1 | ||
| Common parts | ||||
| 90183-02002 | ||||
| 93315-14010 | ||||
| 93315-14025 | ||||
| 93316-14012 | ||||
| 93510-13010 | ||||
