GZ10-HCMZE (1981)
Toyota Soarer
Production
Feb 1981
-
Dec 1985
Engine
1GEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

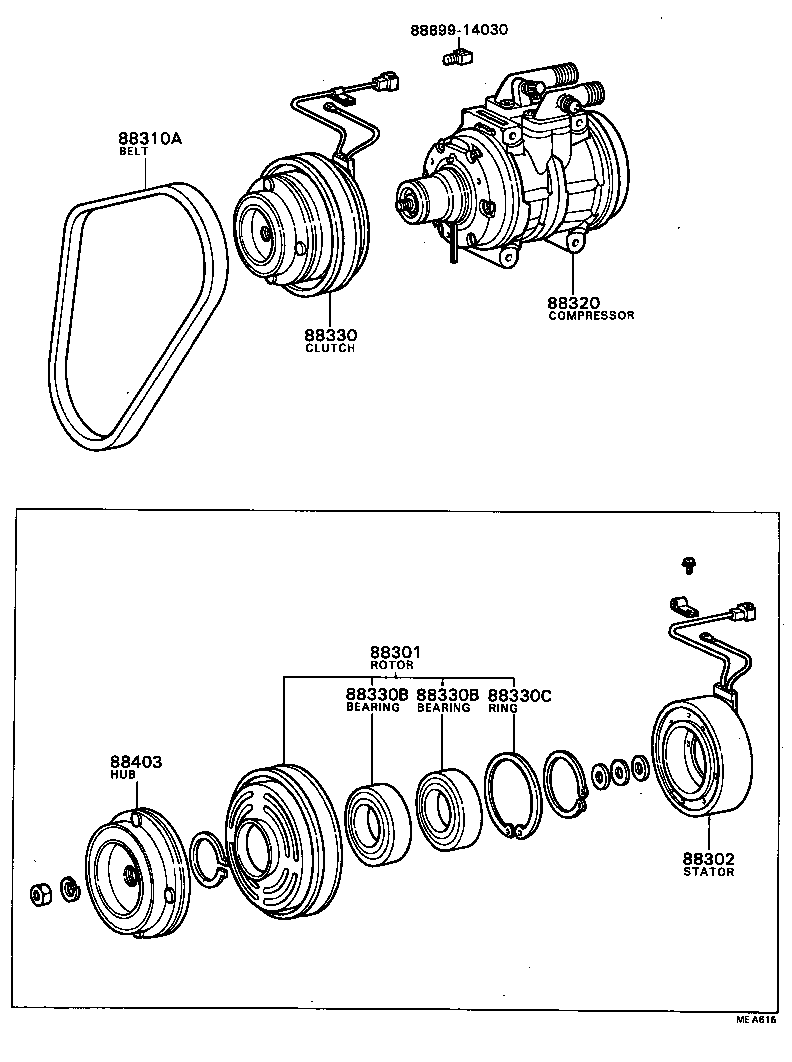

ILLUST NO. 1 OF 2(8102- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-14010 |
GZ10..V2,VR,VX |
1 | ||
| 88412-22050 |
GZ10 |
1 | ||
| 88412-12040 |
GZ10,MZ11 |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-22040 |
GZ10,MZ11 |
1 | ||
| 88411-14050 |
GZ10 |
1 | ||
| 88411-14050 |
GZ10..V2,VR,VX |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99322-00910 |
GZ10..V1,V2,VR,VX |
1 | ||
| 99364-00850 |
GZ10..V2,VR,VX 長さ=850 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-24010 |
GZ10 |
1 | ||
| 88320-22260 |
GZ10..V2,VR,VX |
1 | ||
| 88320-14400 |
GZ10..V2,VR,VX |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-22060 |
GZ10,MZ11 |
1 | ||
| 88410-22110 |
GZ10 |
1 | ||
| 88410-14090 |
GZ10..V2,VR,VX |
1 | ||
| 88410-22110 |
GZ10..V2,VR,VX |
1 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10117 |
GZ10,MZ11 |
2 | ||
| 90099-10133 |
GZ10,MZ11,12 |
1 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10117 |
GZ10,MZ11 |
2 | ||
| 90099-10133 |
GZ10,MZ11,12 |
1 | ||
| 88330C - RING, SNAP (FOR MAGNET CLUTCH) | ||||
| 90099-07094 |
GZ10,MZ11 |
1 | ||
| 90099-07114 |
GZ10..V2,VR,VX |
1 | ||
| 90099-07094 |
GZ10 |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-14030 |
GZ10,MZ11,12 |
1 | ||
| 88403-26030 |
GZ10,MZ11 |
1 | ||
| Common parts | ||||
| 88899-14030 | ||||

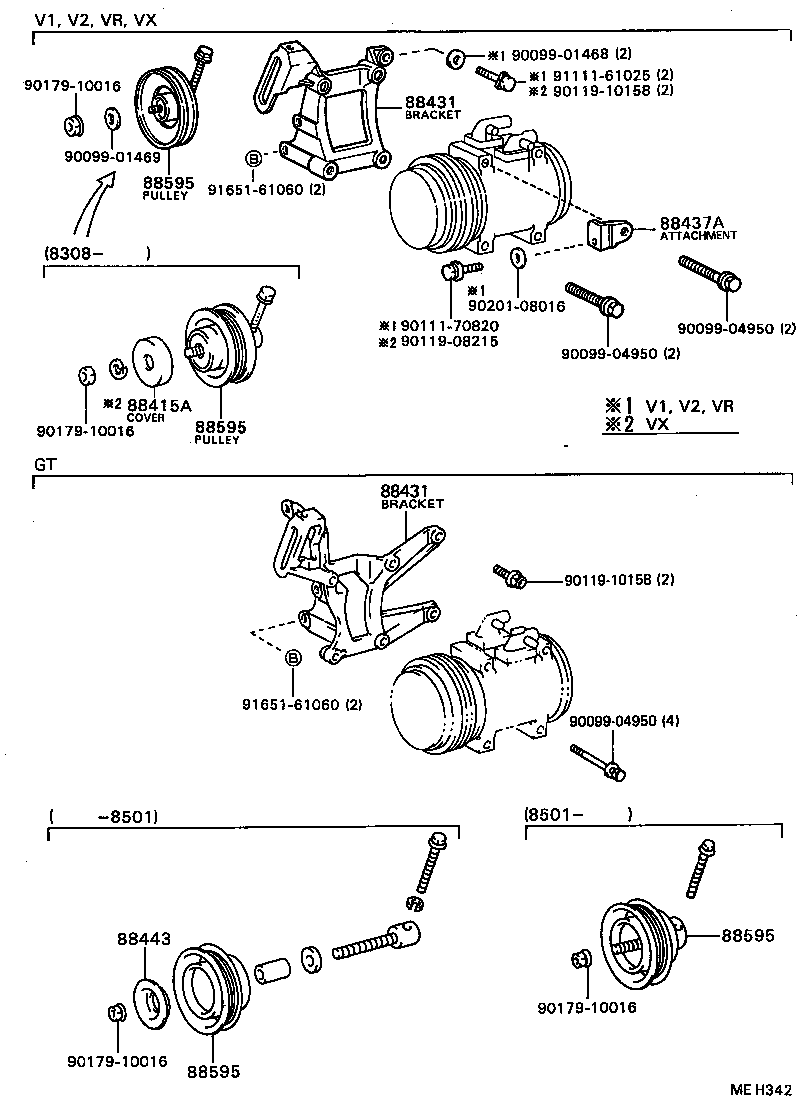

ILLUST NO. 2 OF 2(8102- )GZ10
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-24010 |
GZ10..V1,V2,VR,VX |
1 | ||
| 88431-22210 |
GZ10..V2,VR,VX |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-24010 |
GZ10..V1,V2,VR,VX |
1 | ||
| 88431-22210 |
GZ10..V2,VR,VX |
1 | ||
| 88437A - ATTACHMENT, COMPRESSOR | ||||
| 88437-24010 |
GZ10..V1,V2,VR,VX |
1 | ||
| 88437-22060 |
GZ10..V2,VR,VX |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-28030 |
GZ10..V2,VR |
1 | ||
| 88440-16010 |
GZ10..V1,V2,VR |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-28030 |
GZ10..V2,VR |
1 | ||
| 88440-16010 |
GZ10..V1,V2,VR |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-28030 |
GZ10..V2,VR |
1 | ||
| 88440-16010 |
GZ10..V1,V2,VR |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-28030 |
GZ10..V2,VR |
1 | ||
| 88440-16010 |
GZ10..V1,V2,VR |
1 | ||
| Common parts | ||||
| 90099-01468 | ||||
| 90099-01469 | ||||
| 90099-04950 | ||||
| 90111-70820 | ||||
| 90119-08215 | ||||
| 90119-10158 | ||||
| 90179-10016 | ||||
| 90201-08016 | ||||
| 91111-61025 | ||||
| 91651-61060 | ||||
