GZ10-HCMZE (1981)

Toyota Soarer

Production Feb 1981 - Dec 1985
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

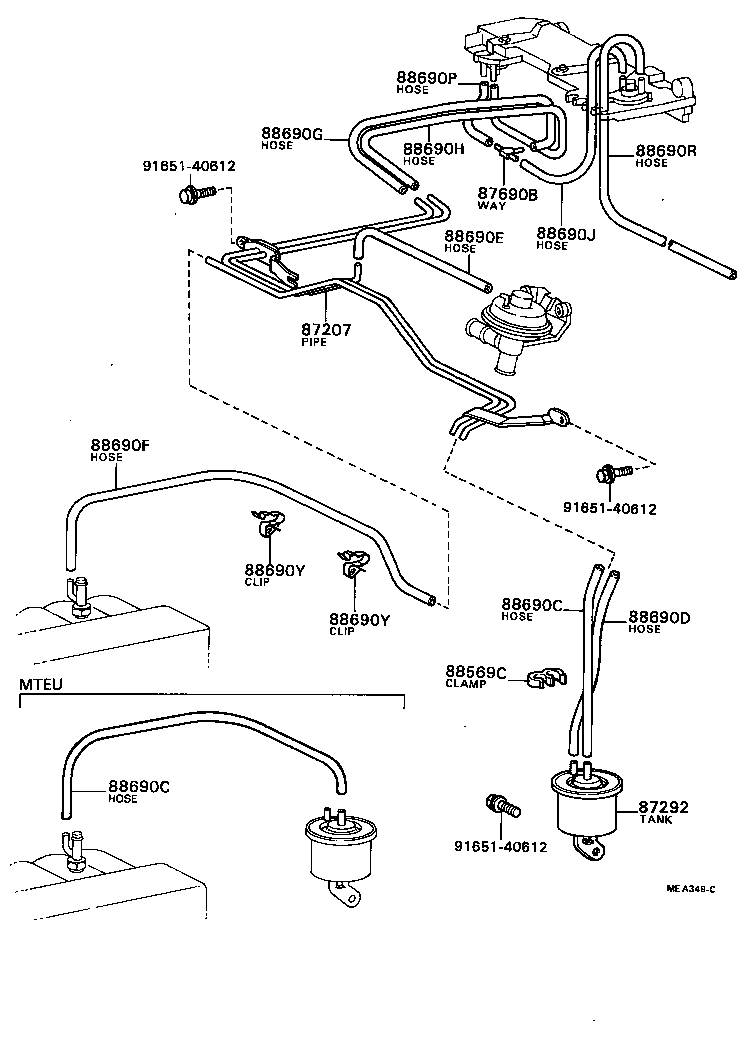

ILLUST NO. 1 OF 2(8102- )TBO,V1,V2,VR

Click highlighted areas on diagram

diagram 87207 87292 87690B 88569C 88690C 88690C 88690D 88690E 88690F 88690G 88690H 88690J 88690P 88690R 88690Y 88690Y 9165140612 9165140612 9165140612
Part # Description Qty Price
87207 - PIPE SUB-ASSY, VACUUM
87207-24010

GZ10,MZ10..TBO,V1,V2,VR

 1
87292 - TANK, VACUUM
87292-24010

GZ10,MZ1#

 1
87690B - WAY, 3
90413-04005

GZ10,MZ10..TBO,V1,V2,VR

 1
88569C - CLAMP, NO.1(FOR HEATER OR AIR CONDITIONER CONTROL)
90464-00082

GZ10,MZ1#

 3
88690C - HOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER)
95411-10030

GZ10

*H,L=260,ﾏｰｸ=#0

 1
88690C - HOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER)
95411-10030

GZ10

*H,L=260,ﾏｰｸ=#0

 1
88690D - HOSE, VACUUM, NO.2 (FOR HEATER OR AIR CONDITIONER)
95411-10130

GZ10..V1,V2,VR

*H,L=280,ﾏｰｸ=#1

 1
88690E - HOSE, VACUUM, NO.3 (FOR HEATER OR AIR CONDITIONER)
95411-10230

GZ10..V1,V2,VR

*H,L=120,ﾏｰｸ=#2

 1
88690F - HOSE, VACUUM, NO.4 (FOR HEATER OR AIR CONDITIONER)
95411-10060

GZ10..V1,V2,VR,VX

*H,L=570,ﾏｰｸ=#0

 1
88690G - HOSE, VACUUM, NO.5 (FOR HEATER OR AIR CONDITIONER)
95411-10130

GZ10,MZ10..TBO,V1,V2,VR

*H,L=280,ﾏｰｸ=#1

 1
88690H - HOSE, VACUUM, NO.6 (FOR HEATER OR AIR CONDITIONER)
95411-10260

GZ10,MZ10..TBO,V1,V2,VR

*H,L=480,ﾏｰｸ=#2

 1
88690J - HOSE, VACUUM, NO.7 (FOR HEATER OR AIR CONDITIONER)
95411-10330

GZ10,MZ10..TBO,V1,V2,VR

*H,L=120,MARK=#3

 1
88690P - HOSE, VACUUM, NO.8 (FOR HEATER OR AIR CONDITIONER)
95411-10430

GZ10,MZ10..TBO,V1,V2,VR

*H,L=200,MARK=#4

 1
88690R - HOSE, VACUUM, NO.9 (FOR HEATER OR AIR CONDITIONER)
95411-10795

GZ10,MZ10..TBO,V1,V2,VR

*H,L=650,MARK=#7

 1
88690Y - CLIP (FOR HEATER OR AIR CONDITIONER CONTROL)
90468-04039

GZ10

 2
90468-04021

GZ10..V1,V2,VR,VX

 2
88690Y - CLIP (FOR HEATER OR AIR CONDITIONER CONTROL)
90468-04039

GZ10

 2
90468-04021

GZ10..V1,V2,VR,VX

 2
Common parts
91651-40612

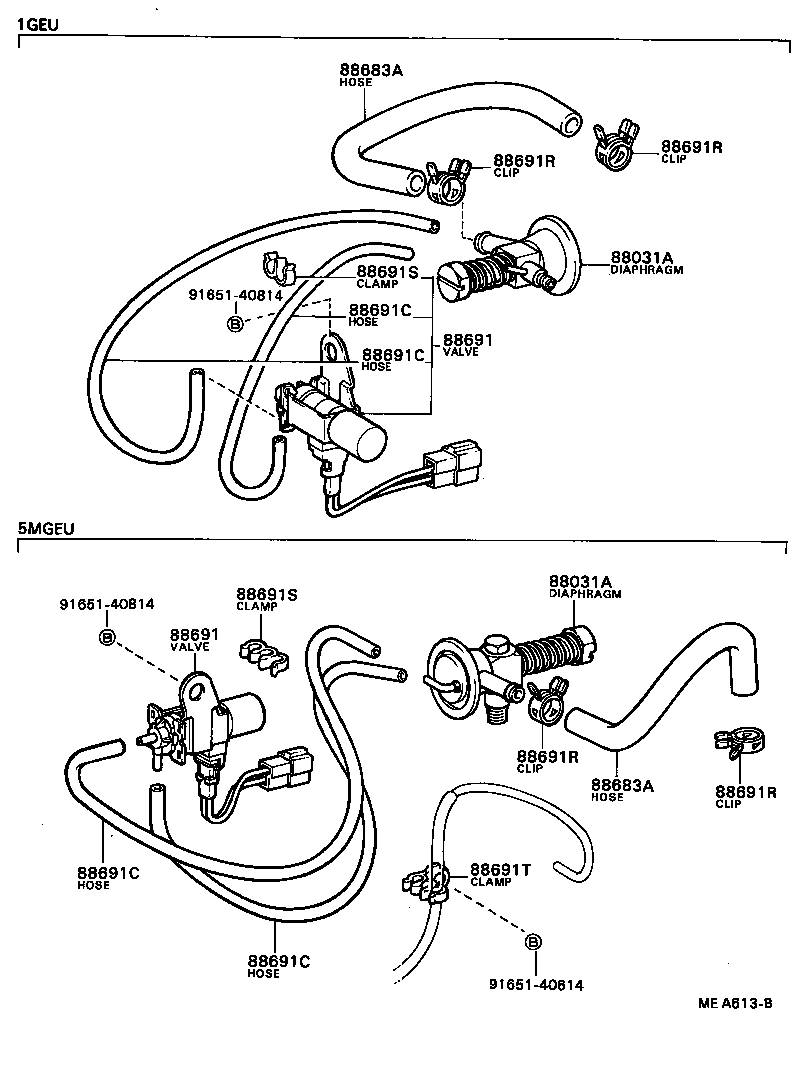

ILLUST NO. 2 OF 2(8203-8302)MZ11..5F ; (8203- )GZ10

Click highlighted areas on diagram

diagram 88031A 88031A 88683A 88683A 88691 88691 88691C 88691C 88691C 88691C 88691R 88691R 88691R 88691R 88691S 88691S 88691T 9165140614 9165140814 9165140814
Part # Description Qty Price
88031A - DIAPHRAGM SUB-ASSY, IDLE-UP ACTUATOR
88606-24010

GZ10

 1
88031A - DIAPHRAGM SUB-ASSY, IDLE-UP ACTUATOR
88606-24010

GZ10

 1
88683A - HOSE (ENGINE TO MAGNET VALVE)
88689-24010

GZ10

 1
88683A - HOSE (ENGINE TO MAGNET VALVE)
88689-24010

GZ10

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-24010

GZ10

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-24010

GZ10

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10030

GZ10

*H,L=200,ﾏｰｸ=#0

 1
95411-19930

GZ10

*H,L=260,ﾏｰｸ=#*

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10030

GZ10

*H,L=200,ﾏｰｸ=#0

 1
95411-19930

GZ10

*H,L=260,ﾏｰｸ=#*

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10030

GZ10

*H,L=200,ﾏｰｸ=#0

 1
95411-19930

GZ10

*H,L=260,ﾏｰｸ=#*

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10030

GZ10

*H,L=200,ﾏｰｸ=#0

 1
95411-19930

GZ10

*H,L=260,ﾏｰｸ=#*

 1
88691R - CLIP, HOSE (FOR IDLE UP DIVICE)
96132-30600

GZ10

 2
96132-30600

GZ10,MZ10

 2
96132-30600

GZ10,MZ1#

 2
88691R - CLIP, HOSE (FOR IDLE UP DIVICE)
96132-30600

GZ10

 2
96132-30600

GZ10,MZ10

 2
96132-30600

GZ10,MZ1#

 2
88691R - CLIP, HOSE (FOR IDLE UP DIVICE)
96132-30600

GZ10

 2
96132-30600

GZ10,MZ10

 2
96132-30600

GZ10,MZ1#

 2
88691R - CLIP, HOSE (FOR IDLE UP DIVICE)
96132-30600

GZ10

 2
96132-30600

GZ10,MZ10

 2
96132-30600

GZ10,MZ1#

 2
88691S - CLAMP (FOR IDLE UP DIVICE), NO.1
90464-00082

GZ10

 1
88691S - CLAMP (FOR IDLE UP DIVICE), NO.1
90464-00082

GZ10

 1
Common parts
91651-40614
91651-40814
