GZ10-HCMZE (1981)

Toyota Soarer

Production Feb 1981 - Dec 1985
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8102- )GZ10

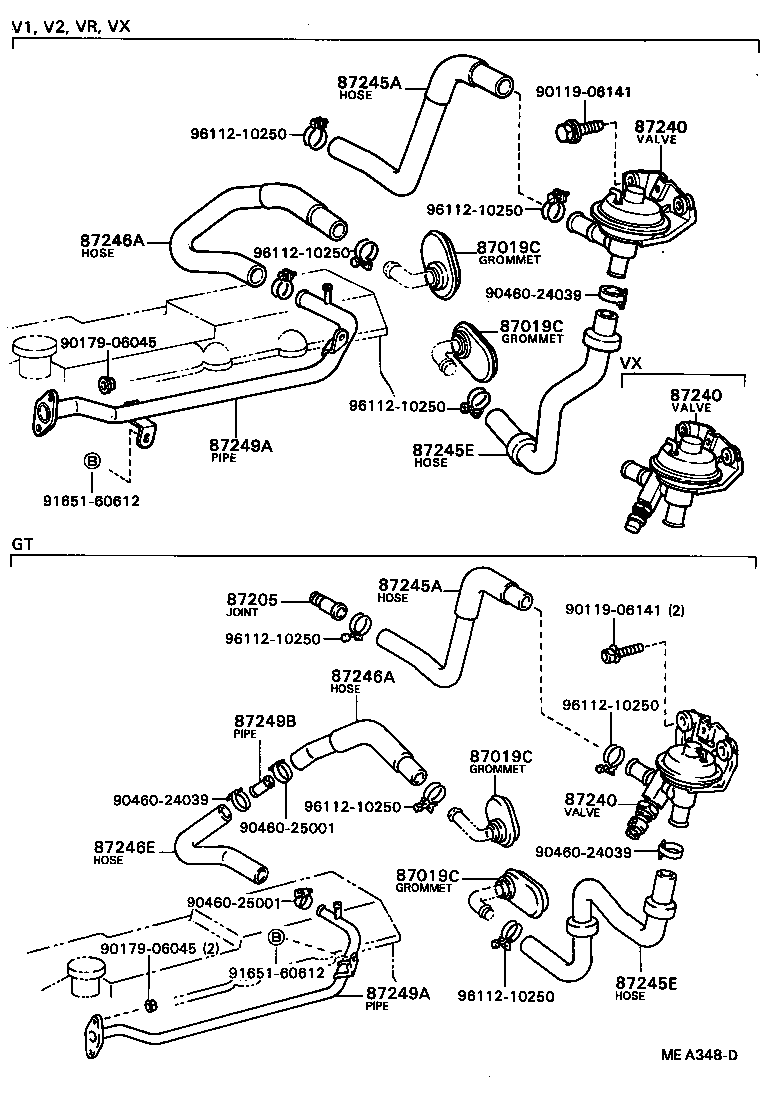

Click highlighted areas on diagram

diagram 87019C 87019C 87019C 87019C 87205 87240 87240 87240 87245A 87245A 87245E 87245E 87246A 87246A 87246E 87249A 87249A 87249B 9011906141 9011906141 9017906045 9017906045 9046024039 9046024039 9046024039 9046025001 9046025001 9165160612 9165160612 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-01015

GZ10,MZ1#

 2
87019C - GROMMET, HEATER HOSE
90480-01015

GZ10,MZ1#

 2
87019C - GROMMET, HEATER HOSE
90480-01015

GZ10,MZ1#

 2
87019C - GROMMET, HEATER HOSE
90480-01015

GZ10,MZ1#

 2
87240 - VALVE ASSY, HEATER WATER
87240-24010

GZ10,MZ10..TBO,V1,V2,VR

 1
87240 - VALVE ASSY, HEATER WATER
87240-24010

GZ10,MZ10..TBO,V1,V2,VR

 1
87240 - VALVE ASSY, HEATER WATER
87240-24010

GZ10,MZ10..TBO,V1,V2,VR

 1
87245A - HOSE, HEATER WATER, INLET A
87209-24020

GZ10..V1,V2,VR,VX

 1
87245A - HOSE, HEATER WATER, INLET A
87209-24020

GZ10..V1,V2,VR,VX

 1
87245E - HOSE, HEATER WATER, INLET E
87245-24010

GZ10,MZ1#

 1
87245-14750

GZ10,MZ1#

 1
87245E - HOSE, HEATER WATER, INLET E
87245-24010

GZ10,MZ1#

 1
87245-14750

GZ10,MZ1#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-24030

GZ10..V1,V2,VR,VX

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-24030

GZ10..V1,V2,VR,VX

 1
87249A - PIPE, HEATER WATER OUTLET, A
87208-22011

GZ10

 1
87208-22010

GZ10

 1
87249A - PIPE, HEATER WATER OUTLET, A
87208-22011

GZ10

 1
87208-22010

GZ10

 1
Common parts
90119-06141
90179-06045
90460-24039
90460-25001
91651-60612
96112-10250
