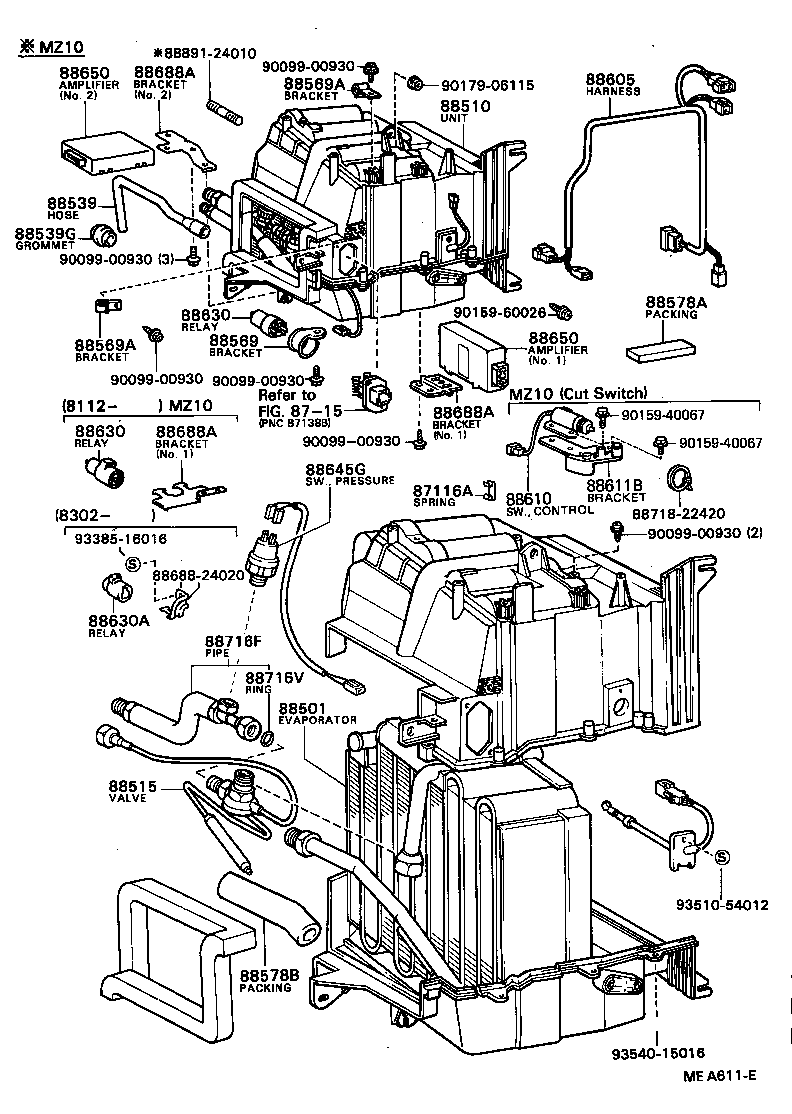

GZ10-HCMZE (1981)
Toyota Soarer
(8102- )TBO,V1,V2,VR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87116A - SPRING, HOLDING (FOR COOLER UNIT CASE) | ||||
| 87116-14010 |
GZ10,MZ1# |
4 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-24020 |
GZ10,MZ10..TBO,V1,V2,VR |
1 | ||
| 88501-24020 |
GZ10..V1,V2,VR |
1 | ||
| 88501-24021 |
GZ10,MZ10..TBO,V2,VR |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-24020 |
GZ10,MZ10..TBO,V1,V2,VR |
1 | ||
| 88510-24020 |
GZ10..V1,V2,VR |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-20040 |
GZ10..V1,V2,VR |
1 | ||
| 88515-16030 |
GZ10..V2,VR |
1 | ||
| 88515-20040 |
GZ10,MZ10..TBO,V1,V2,VR |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-24010 |
GZ10,MZ1# |
1 | ||
| 88539-24020 |
GZ10,MZ1# |
1 | ||
| 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) | ||||
| 90480-26004 |
GZ10,MZ1# |
1 | ||
| 88569 - CLAMP (FOR COOLER RELAY) | ||||
| 88718-20340 |
GZ10..V1,V2,VR |
1 | ||
| 88718-20340 |
GZ10,MZ10..TBO,V1,V2,VR |
1 | ||
| 88569A - CLAMP, NO.1(FOR COOLER WIRING HARNESS) | ||||
| 88718-24020 |
GZ10,MZ10..TBO,V1,V2,VR |
2 | ||
| 88569A - CLAMP, NO.1(FOR COOLER WIRING HARNESS) | ||||
| 88718-24020 |
GZ10,MZ10..TBO,V1,V2,VR |
2 | ||
| 88578A - PACKING, COOLER STABILIZER AMPLIFIER | ||||
| 88578-14020 |
GZ10..V1,V2,VR |
1 | ||
| 88578-14050 |
GZ10..V1,V2,VR |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-12100 |
GZ10..V1,V2,VR |
1 | ||
| 88578-12100 |
GZ10,MZ10..TBO,V1,V2,VR |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-24010 |
GZ10,MZ10..TBO,V1,V2,VR |
1 | ||
| 88605-24010 |
GZ10..V1,V2,VR |
1 | ||
| 88605-24100 |
GZ10..V2,VR |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-03001 |
GZ10,MZ1# |
1 | ||
| 90987-03001 |
GZ10,MZ11,12 |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-03001 |
GZ10,MZ1# |
1 | ||
| 90987-03001 |
GZ10,MZ11,12 |
1 | ||
| 88645G - SWITCH, PRESSURE | ||||
| 88645-22020 |
GZ10,MZ1# |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-14030 |
GZ10,MZ10..TBO,V1,V2,VR NO.1 |
1 | ||
| 88650-24080 |
GZ10..V2,VR NO.2 |
1 | ||
| 88650-14030 |
GZ10..V1,V2,VR NO.1 |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-14030 |
GZ10,MZ10..TBO,V1,V2,VR NO.1 |
1 | ||
| 88650-24080 |
GZ10..V2,VR NO.2 |
1 | ||
| 88650-14030 |
GZ10..V1,V2,VR NO.1 |
1 | ||
| 88688A - BRACKET, COOLER STABILIZER AMPLIFIER | ||||
| 88688-14320 |
GZ10,MZ10..TBO,V1,V2,VR NO.1 |
1 | ||
| 88688-14660 |
GZ10..V2,VR NO.2 |
1 | ||
| 88688-14320 |
GZ10..V1,V2,VR NO.1 |
1 | ||
| 88688A - BRACKET, COOLER STABILIZER AMPLIFIER | ||||
| 88688-14320 |
GZ10,MZ10..TBO,V1,V2,VR NO.1 |
1 | ||
| 88688-14660 |
GZ10..V2,VR NO.2 |
1 | ||
| 88688-14320 |
GZ10..V1,V2,VR NO.1 |
1 | ||
| 88688A - BRACKET, COOLER STABILIZER AMPLIFIER | ||||
| 88688-14320 |
GZ10,MZ10..TBO,V1,V2,VR NO.1 |
1 | ||
| 88688-14660 |
GZ10..V2,VR NO.2 |
1 | ||
| 88688-14320 |
GZ10..V1,V2,VR NO.1 |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-24010 |
GZ10,MZ1# |
1 | ||
| 88716V - RING, O(FOR COOLER UNIT) | ||||
| 90099-14044 |
GZ10,MZ1# |
1 | ||
| Common parts | ||||
| 88688-24020 | ||||
| 88718-22420 | ||||
| 88891-24010 | ||||
| 90099-00930 | ||||
| 90159-40067 | ||||
| 90159-60026 | ||||
| 90179-06115 | ||||
| 93385-16016 | ||||
| 93510-54012 | ||||
| 93540-15016 | ||||
| Linked diagrams | ||||
| 8715 | ||||
