GZ10-HCMZE (1981)

Toyota Soarer

Production Feb 1981 - Dec 1985
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

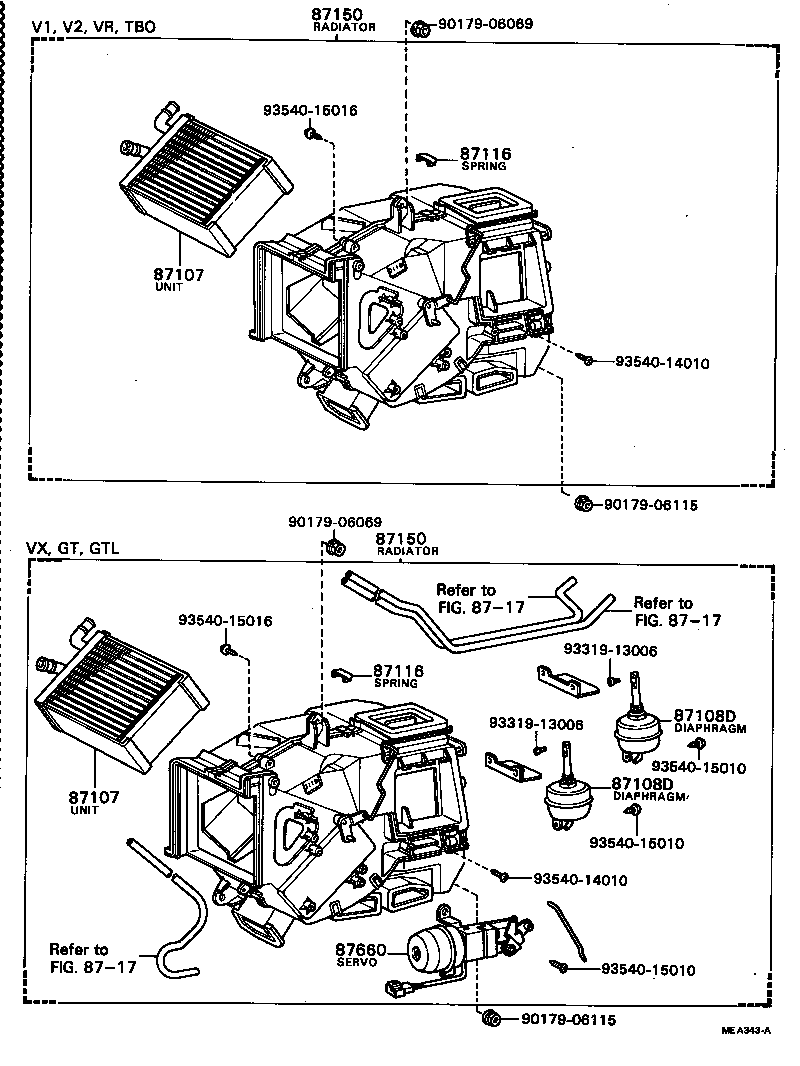

ILLUST NO. 1 OF 2(8102- )

Click highlighted areas on diagram

diagram 87107 87107 87108D 87108D 87116 87116 87150 87150 8717 8717 8717 87660 9017906069 9017906069 9017906115 9017906115 9331913006 9331913006 9354014010 9354014010 9354015010 9354015010 9354015010 9354015016 9354015016
Part # Description Qty Price
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-24010

GZ10,MZ1#

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-24010

GZ10,MZ1#

 1
87116 - SPRING, HEATER CASE FASTENING
87116-14010

GZ10,MZ1#

 10
87116 - SPRING, HEATER CASE FASTENING
87116-14010

GZ10,MZ1#

 10
87150 - RADIATOR ASSY, HEATER
87150-24010

GZ10,MZ10..TBO,V1,V2,VR

 1
87150 - RADIATOR ASSY, HEATER
87150-24010

GZ10,MZ10..TBO,V1,V2,VR

 1
Common parts
90179-06069
90179-06115
93319-13006
93540-14010
93540-15010
93540-15016
Linked diagrams
8717

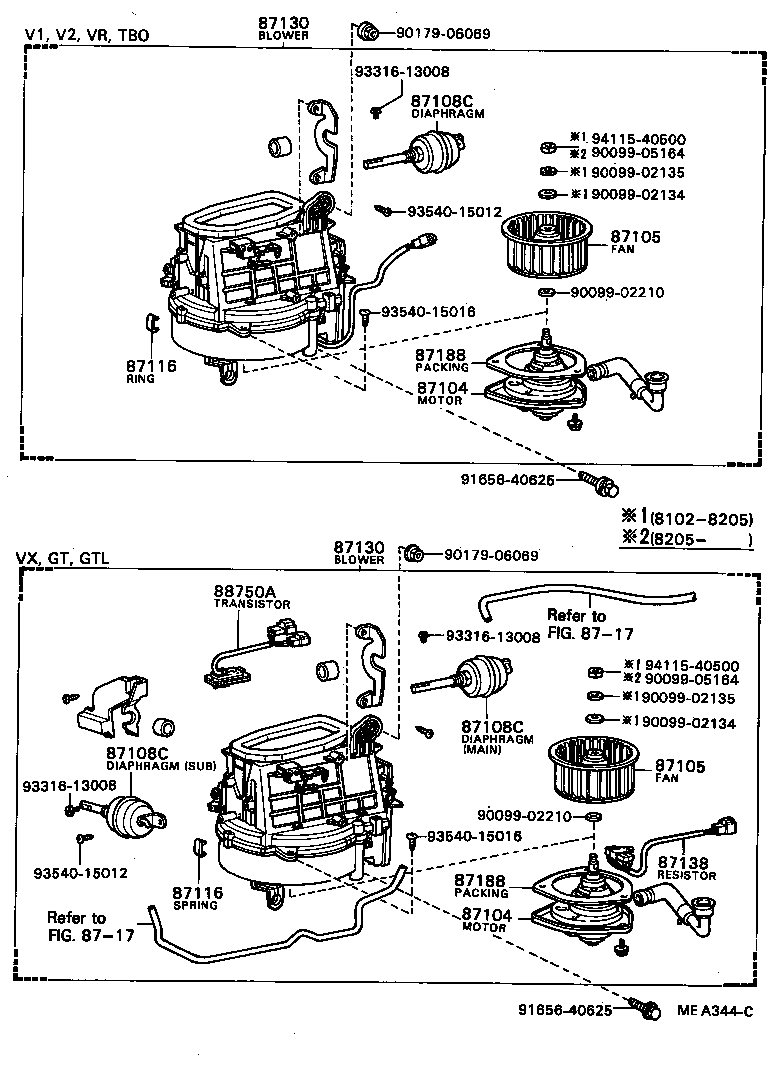

ILLUST NO. 2 OF 2(8102- )

Click highlighted areas on diagram

diagram 87104 87104 87105 87105 87108C 87108C 87108C 87116 87116 87130 87130 87138 8717 8717 87188 87188 88750A 9009902134 9009902134 9009902135 9009902135 9009902210 9009902210 9009905164 9009905164 9017906069 9017906069 9165640625 9165640625 9331613008 9331613008 9331613008 9354015012 9354015012 9354015016 9354015016 9411540500 9411540500
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-24010

GZ10,MZ1#

 1
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-24010

GZ10,MZ1#

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-14030

GZ10,MZ1#

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-14030

GZ10,MZ1#

 1
87108C - DIAPHRAGM SUB-ASSY, HEATER BLOWER DAMPER
87108-24010

GZ10,MZ1#

MAIN

 1
87108C - DIAPHRAGM SUB-ASSY, HEATER BLOWER DAMPER
87108-24010

GZ10,MZ1#

MAIN

 1
87108C - DIAPHRAGM SUB-ASSY, HEATER BLOWER DAMPER
87108-24010

GZ10,MZ1#

MAIN

 1
87116 - SPRING, HEATER CASE FASTENING
87116-14010

GZ10,MZ1#

 10
87116 - SPRING, HEATER CASE FASTENING
87116-14010

GZ10,MZ1#

 10
87130 - BLOWER ASSY, HEATER, FRONT
87130-24010

GZ10,MZ10..TBO,V1,V2,VR

 1
87130-24011

GZ10,MZ10..TBO,V2,VR

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-24010

GZ10,MZ10..TBO,V1,V2,VR

 1
87130-24011

GZ10,MZ10..TBO,V2,VR

 1
87188 - PACKING, HEATER BLOWER MOTOR
87127-14010

GZ10,MZ1#

 1
87188 - PACKING, HEATER BLOWER MOTOR
87127-14010

GZ10,MZ1#

 1
Common parts
90099-02134
90099-02135
90099-02210
90099-05164
90179-06069
91656-40625
93316-13008
93540-15012
93540-15016
94115-40500
Linked diagrams
8717
