GZ10-HCMZE (1981)

Toyota Soarer

Production Feb 1981 - Dec 1985
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8102-8308)GZ10..V1,V2,VR ; (8107-8401)MZ10

Click highlighted areas on diagram

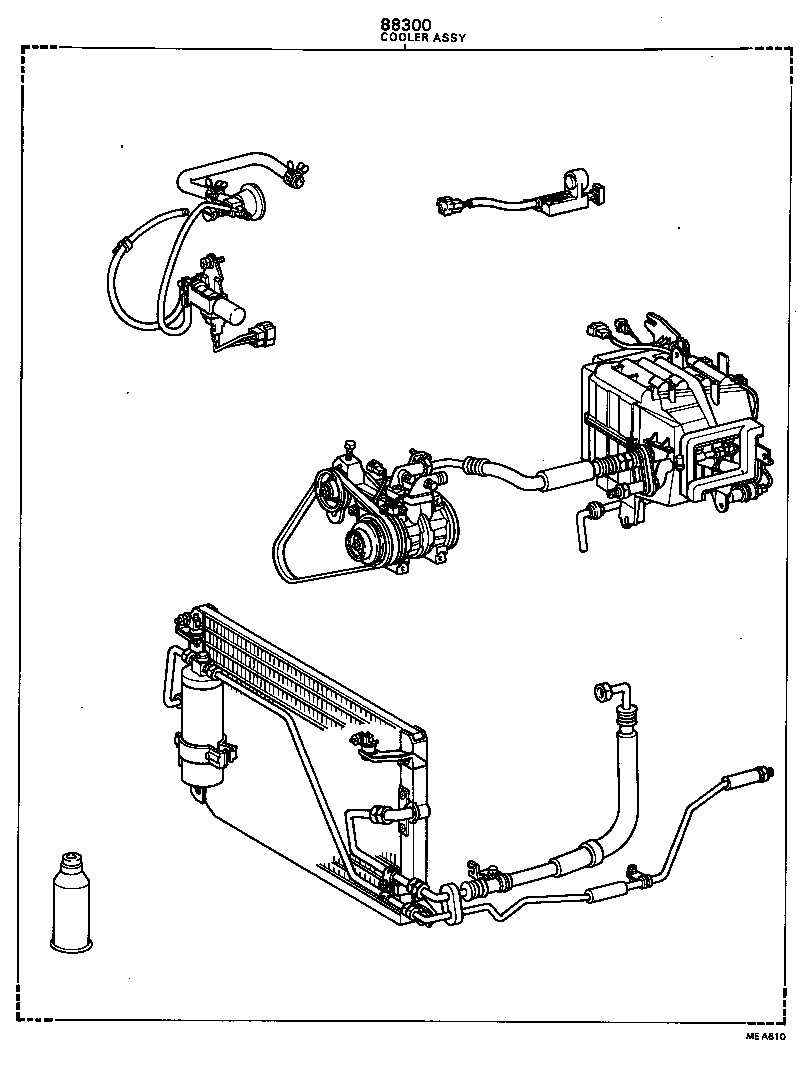

diagram 88300
Part # Description Qty Price
88300 - COOLER & ACCESSORY ASSY
88300-24012

GZ10..V2,VR

 1
88300-24011

GZ10..V2,VR

 1
88300-24010

GZ10..V1,V2,VR

 1

(8308- )V2,VR ; (8401- )MZ10

Click highlighted areas on diagram

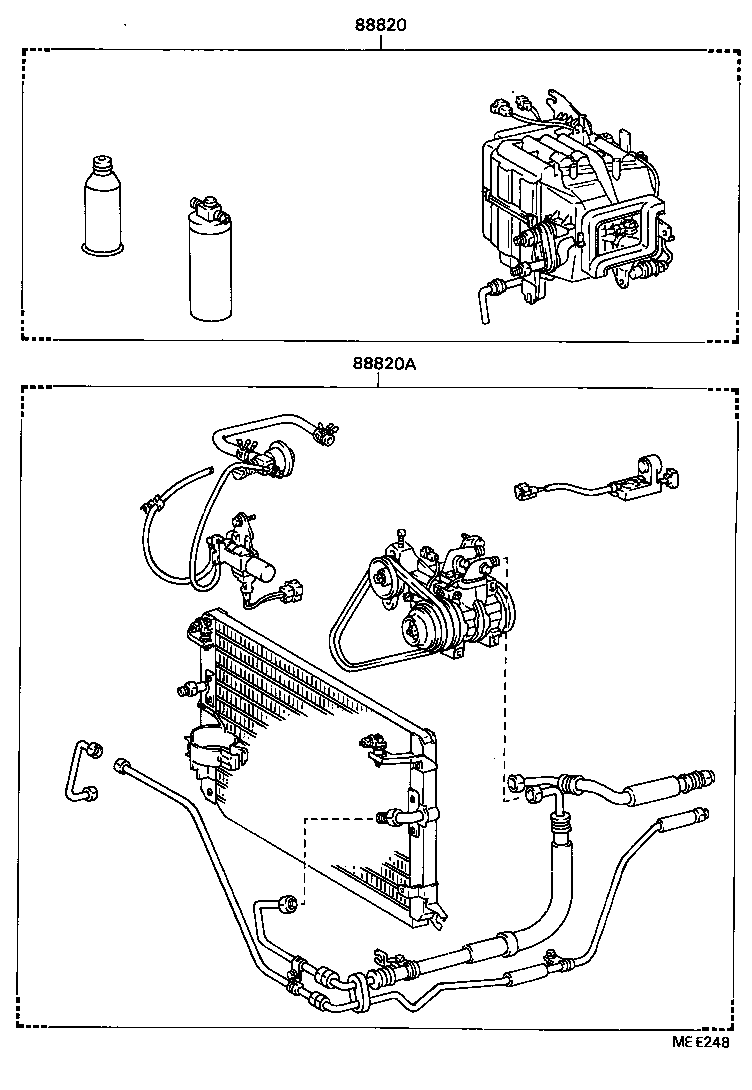

diagram 88820 88820A
Part # Description Qty Price
88820 - AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.1
88820-24020

GZ10..V2,VR

 1
88820A - AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.2
88830-24060

GZ10..V2,VR

 1
88830-24050

GZ10..V2,VR

 1
