GZ10-HCMZE (1981)

Toyota Soarer

Production Feb 1981 - Dec 1985
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8102- )GT,TBO,V1,V2,VR,VX

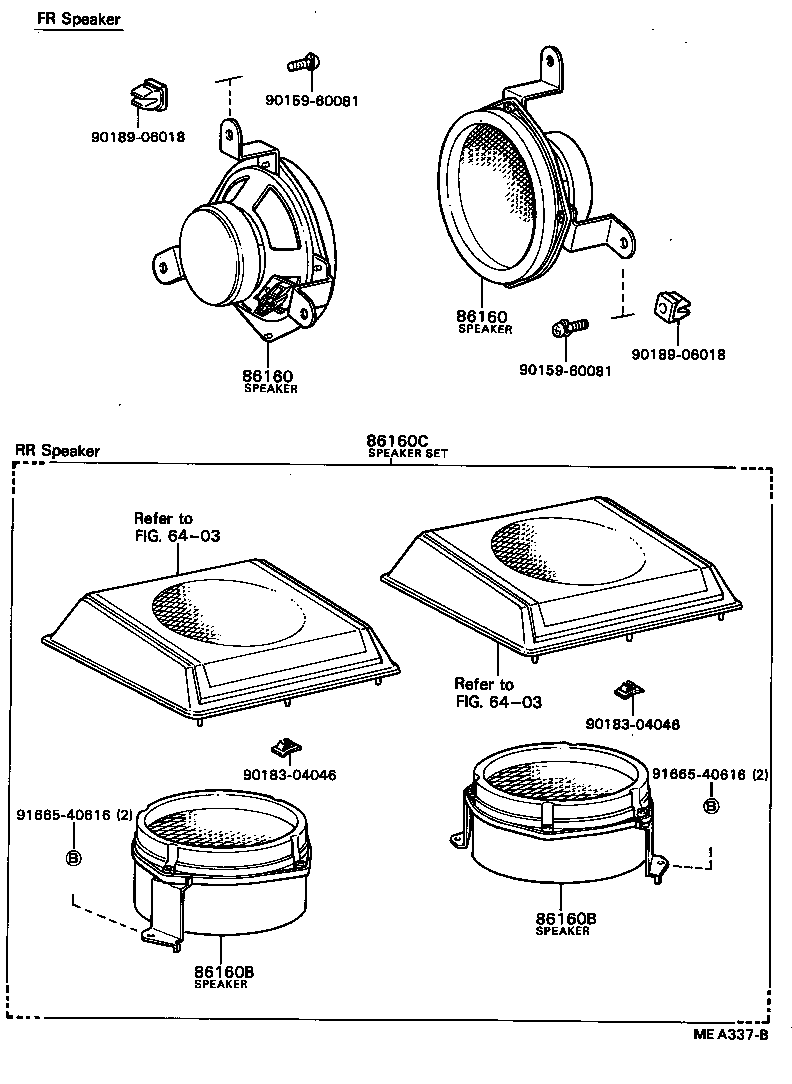

Click highlighted areas on diagram

diagram 6403 6403 86160 86160 86160B 86160B 86160C 9015960081 9015960081 9018304046 9018304046 9018906018 9018906018 9166540616 9166540616
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-24010

GZ10,MZ10,11

RH

 1
86160-24020

GZ10,MZ10,11

LH

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-24010

GZ10,MZ10,11

RH

 1
86160-24020

GZ10,MZ10,11

LH

 1
86160B - SPEAKER ASSY, REAR
86160-24030

GZ10,MZ1#

RH

 1
86160-24040

GZ10,MZ1#..GT,TBO,VR,VX

LH

 1
86160-24040

GZ10,MZ1#

LH

 1
86160-24030

GZ10,MZ1#..GT,TBO,VR,VX

RH

 1
86160B - SPEAKER ASSY, REAR
86160-24030

GZ10,MZ1#

RH

 1
86160-24040

GZ10,MZ1#..GT,TBO,VR,VX

LH

 1
86160-24040

GZ10,MZ1#

LH

 1
86160-24030

GZ10,MZ1#..GT,TBO,VR,VX

RH

 1
86160C - SPEAKER SET, REAR
86160-29315

GZ10,MZ1#

GRILLE=BLACK

 1
86160-29335

GZ10,MZ1#

GRILLE=TERRACOTTA

 1
86160-29655

GZ10,MZ1#..GT,TBO,VR,VX

GRILLE=DEEP MAROON

 1
86160-29325

GZ10,MZ1#

GRILLE=BLUE

 1
86160-29665

GZ10,MZ1#..GT,TBO,VR,VX

GRILLE=BEIGE

 1
Common parts
90159-60081
90183-04046
90189-06018
91665-40616
Linked diagrams
6403
