GZ10-HCMZE (1981)

Toyota Soarer

Production Feb 1981 - Dec 1985
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

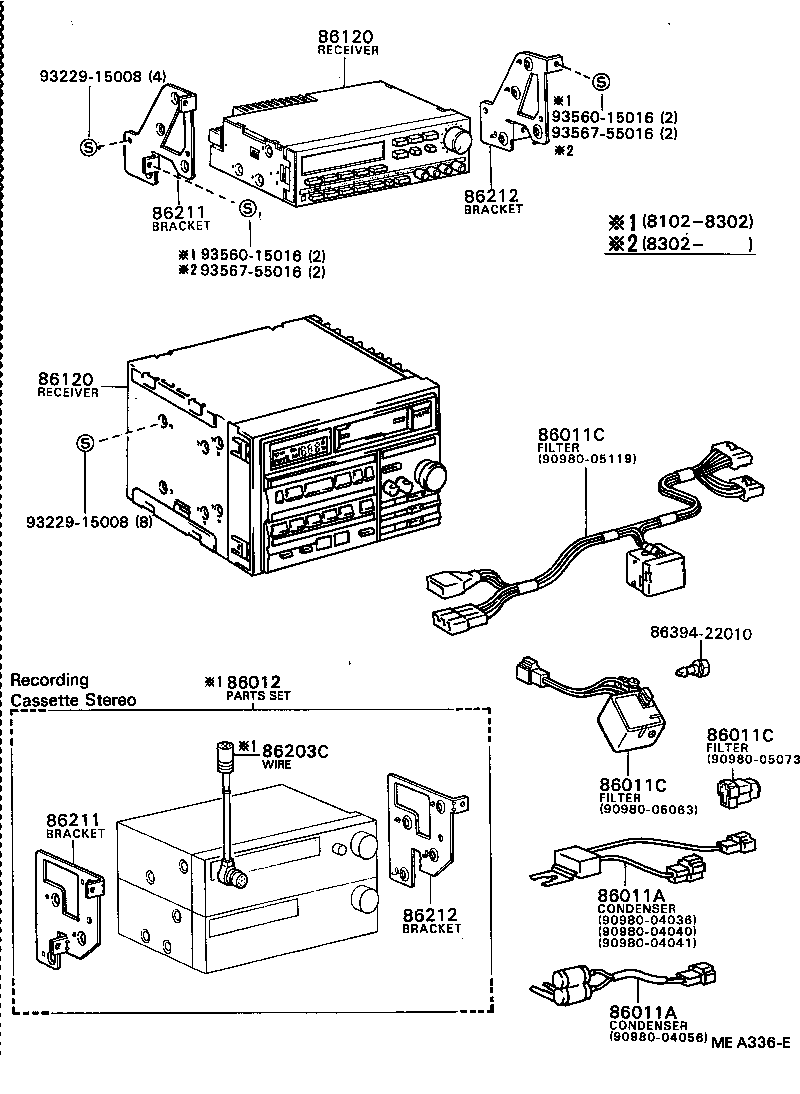

ILLUST NO. 1 OF 2(8102- )

Click highlighted areas on diagram

diagram 86011A 86011A 86011C 86011C 86011C 86012 86120 86120 86203C 86211 86211 86212 86212 8639422010 9098004036 9098004040 9098004041 9098004056 9098005063 9098005073 9322915008 9322915008 9356015016 9356015016 9356755016 9356755016
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04040

GZ10,MZ1#

DEFOGGER

 1
90980-04041

GZ10,MZ1#

IGNITION COIL

 1
90980-04056

GZ10,MZ1#

DEFOGGER

 1
90980-04036

GZ10,MZ1#

IGNITION COIL

 1
86011A - CONDENSER, RADIO SETTING
90980-04040

GZ10,MZ1#

DEFOGGER

 1
90980-04041

GZ10,MZ1#

IGNITION COIL

 1
90980-04056

GZ10,MZ1#

DEFOGGER

 1
90980-04036

GZ10,MZ1#

IGNITION COIL

 1
86011C - FILTER, NOISE
90980-05073

GZ10,MZ1#

STOP LAMP SW

 1
90980-05063

GZ10,MZ1#

DEFOGGER

 1
90980-05119

GZ10,MZ1#

RADIO

 1
86011C - FILTER, NOISE
90980-05073

GZ10,MZ1#

STOP LAMP SW

 1
90980-05063

GZ10,MZ1#

DEFOGGER

 1
90980-05119

GZ10,MZ1#

RADIO

 1
86011C - FILTER, NOISE
90980-05073

GZ10,MZ1#

STOP LAMP SW

 1
90980-05063

GZ10,MZ1#

DEFOGGER

 1
90980-05119

GZ10,MZ1#

RADIO

 1
86012 - PARTS SET, RADIO SETTING
86012-29065

GZ10,MZ1#

RECORDING CASSETTE STEREO

 1
86012-29065

GZ10,MZ1#..GT,TBO,VR,VX

RECORDING CASSETTE STEREO

 1
86120 - RECEIVER ASSY, RADIO
86120-24030

GZ10,MZ10..TBO,V1,V2,VR

*18

 1
86120-20480

GZ10,MZ10..TBO,VR,VX

*18

 1
86120-14561

GZ10,MZ11..GT,VR

*17

 1
86120-24030

GZ10,MZ10..TBO,VR

*18

 1
86120-24040

GZ10,MZ1#..GT,TBO,V2,VR,VX

*17

 1
86120-20480

GZ10,MZ10..TBO,VR

*18

 1
86120 - RECEIVER ASSY, RADIO
86120-24030

GZ10,MZ10..TBO,V1,V2,VR

*18

 1
86120-20480

GZ10,MZ10..TBO,VR,VX

*18

 1
86120-14561

GZ10,MZ11..GT,VR

*17

 1
86120-24030

GZ10,MZ10..TBO,VR

*18

 1
86120-24040

GZ10,MZ1#..GT,TBO,V2,VR,VX

*17

 1
86120-20480

GZ10,MZ10..TBO,VR

*18

 1
86203C - WIRE, TAPE PLAYER
86203-24010

GZ10,MZ1#

RECORDING CASSETTE STEREO

 1
86203-24010

GZ10,MZ1#..GT,TBO,VR,VX

RECORDING CASSETTE STEREO

 1
86211 - BRACKET, RADIO, NO.1
86211-24010

GZ10,MZ1#

RECORDING CASSETTE STEREO

 1
86211-22091

GZ10,MZ1#

 1
86211-22090

GZ10,MZ1#

 1
86211-22050

GZ10,MZ10

 1
86211-24010

GZ10,MZ1#..GT,TBO,VR,VX

RECORDING CASSETTE STEREO

 1
86211 - BRACKET, RADIO, NO.1
86211-24010

GZ10,MZ1#

RECORDING CASSETTE STEREO

 1
86211-22091

GZ10,MZ1#

 1
86211-22090

GZ10,MZ1#

 1
86211-22050

GZ10,MZ10

 1
86211-24010

GZ10,MZ1#..GT,TBO,VR,VX

RECORDING CASSETTE STEREO

 1
86212 - BRACKET, RADIO, NO.2
86212-22030

GZ10,MZ10

 1
86212-24010

GZ10,MZ1#

RECORDING CASSETTE STEREO

 1
86212-22071

GZ10,MZ1#

 1
86212-22070

GZ10,MZ1#

 1
86212-24010

GZ10,MZ1#..GT,TBO,VR,VX

RECORDING CASSETTE STEREO

 1
86212 - BRACKET, RADIO, NO.2
86212-22030

GZ10,MZ10

 1
86212-24010

GZ10,MZ1#

RECORDING CASSETTE STEREO

 1
86212-22071

GZ10,MZ1#

 1
86212-22070

GZ10,MZ1#

 1
86212-24010

GZ10,MZ1#..GT,TBO,VR,VX

RECORDING CASSETTE STEREO

 1
Common parts
86394-22010
90980-04036
90980-04040
90980-04041
90980-04056
90980-05063
90980-05073
93229-15008
93560-15016
93567-55016

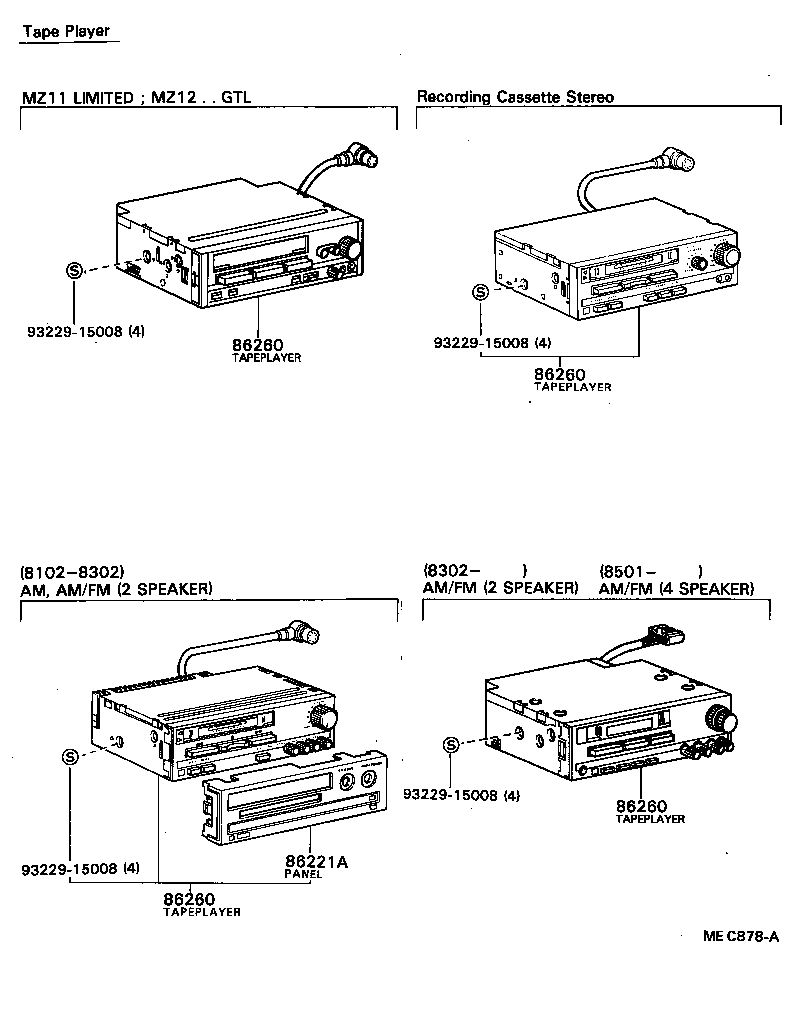

ILLUST NO. 2 OF 2(8102- )

Click highlighted areas on diagram

diagram 86221A 86260 86260 86260 86260 9322915008 9322915008 9322915008 9322915008
Part # Description Qty Price
86260 - TAPE PLAYER ASSY
86260-29045

GZ10,MZ1#

RECORDING,*17,*18

 1
86260-19065

GZ10,MZ10..TBO,VR

*18

 1
86260-19076

GZ10,MZ1#..GT,TBO,VR,VX

RECORDING,*17,*18

 1
86260-29046

GZ10,MZ1#..GT,TBO,VR,VX

RECORDING,*17,*18

 1
86260 - TAPE PLAYER ASSY
86260-29045

GZ10,MZ1#

RECORDING,*17,*18

 1
86260-19065

GZ10,MZ10..TBO,VR

*18

 1
86260-19076

GZ10,MZ1#..GT,TBO,VR,VX

RECORDING,*17,*18

 1
86260-29046

GZ10,MZ1#..GT,TBO,VR,VX

RECORDING,*17,*18

 1
86260 - TAPE PLAYER ASSY
86260-29045

GZ10,MZ1#

RECORDING,*17,*18

 1
86260-19065

GZ10,MZ10..TBO,VR

*18

 1
86260-19076

GZ10,MZ1#..GT,TBO,VR,VX

RECORDING,*17,*18

 1
86260-29046

GZ10,MZ1#..GT,TBO,VR,VX

RECORDING,*17,*18

 1
86260 - TAPE PLAYER ASSY
86260-29045

GZ10,MZ1#

RECORDING,*17,*18

 1
86260-19065

GZ10,MZ10..TBO,VR

*18

 1
86260-19076

GZ10,MZ1#..GT,TBO,VR,VX

RECORDING,*17,*18

 1
86260-29046

GZ10,MZ1#..GT,TBO,VR,VX

RECORDING,*17,*18

 1
Common parts
93229-15008
