GZ10-HCMZE (1981)

Toyota Soarer

Production Feb 1981 - Dec 1985
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8102-8203)GT,TBO,V2,VR,VX ; (8203- )GT,GTL

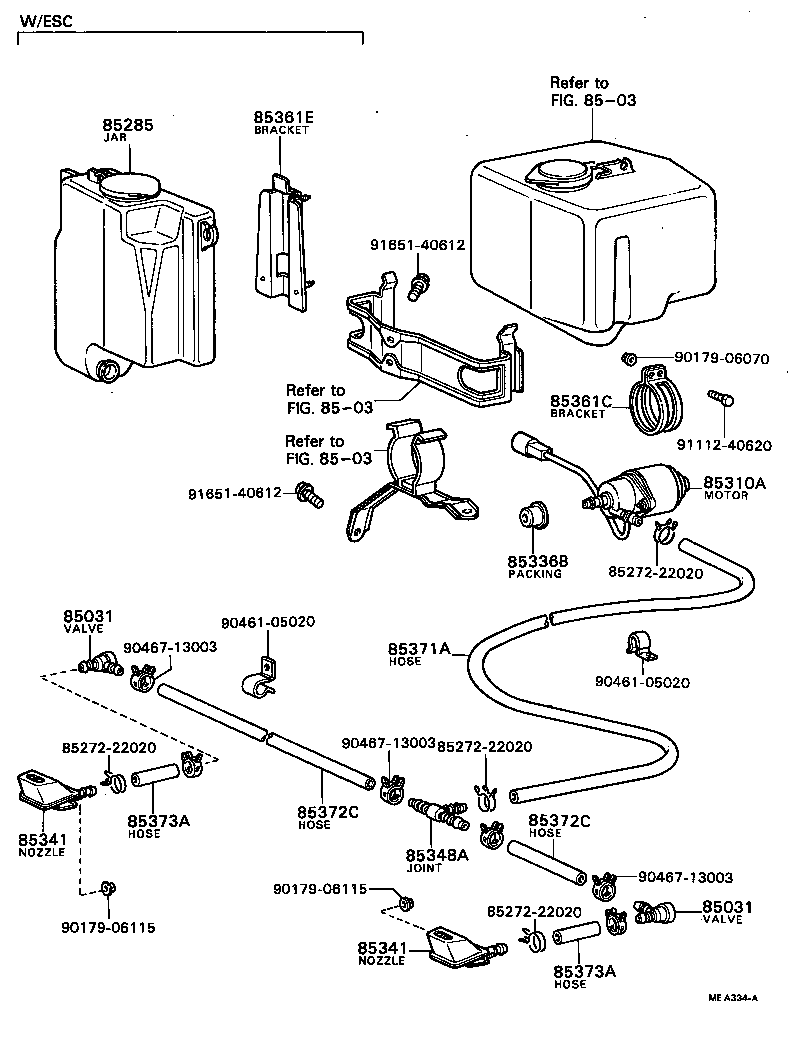

Click highlighted areas on diagram

diagram 8503 8503 8503 85031 85031 8527222020 8527222020 8527222020 8527222020 85285 85310A 85336B 85341 85341 85348A 85361C 85361E 85371A 85372C 85372C 85373A 85373A 9017906070 9017906115 9017906115 9046105020 9046105020 9046713003 9046713003 9046713003 9111240620 9165140612 9165140612
Part # Description Qty Price
85031 - VALVE, HEADLAMP CLEANER WASHER HOSE
85031-30020

GZ10,MZ1#..GT,TBO,V2,VR,VX

 2
85031 - VALVE, HEADLAMP CLEANER WASHER HOSE
85031-30020

GZ10,MZ1#..GT,TBO,V2,VR,VX

 2
85310A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER
85310-22070

GZ10,MZ1#..GT,TBO,V2,VR,VX

W/O ESC

 1
85336B - PACKING, HEADLAMP CLEANER WASHER
85336-10010

GZ10,MZ1#..GT,TBO,V2,VR,VX

 1
85341 - NOZZLE, HEADLAMP CLEANER WASHER
85035-24010

GZ10,MZ1#..GT,TBO,V2,VR,VX

 2
85341 - NOZZLE, HEADLAMP CLEANER WASHER
85035-24010

GZ10,MZ1#..GT,TBO,V2,VR,VX

 2
85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1
85352-12010

GZ10,MZ1#..GT,TBO,V2,VR,VX

 1
85361C - BRACKET, WASHER
85361-14100

GZ10,MZ1#..GT,TBO,V2,VR,VX

 1
85371A - HOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
90445-14072

GZ10,MZ1#..GT,TBO,V2,VR,VX

長さ=1320

 1
85372C - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO VALVE)
90445-14061

GZ10,MZ1#..GT,TBO,V2,VR,VX

*H,L=990

 1
90445-14060

GZ10,MZ1#..GT,TBO,V2,VR,VX

長さ=115

 1
85372C - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO VALVE)
90445-14061

GZ10,MZ1#..GT,TBO,V2,VR,VX

*H,L=990

 1
90445-14060

GZ10,MZ1#..GT,TBO,V2,VR,VX

長さ=115

 1
85373A - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)
90445-14055

GZ10,MZ1#..GT,TBO,V2,VR,VX

*H,L=60

 2
85373A - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)
90445-14055

GZ10,MZ1#..GT,TBO,V2,VR,VX

*H,L=60

 2
Common parts
85272-22020
90179-06070
90179-06115
90461-05020
90467-13003
91112-40620
91651-40612
Linked diagrams
8503
