GZ10-HCMZE (1981)
Toyota Soarer

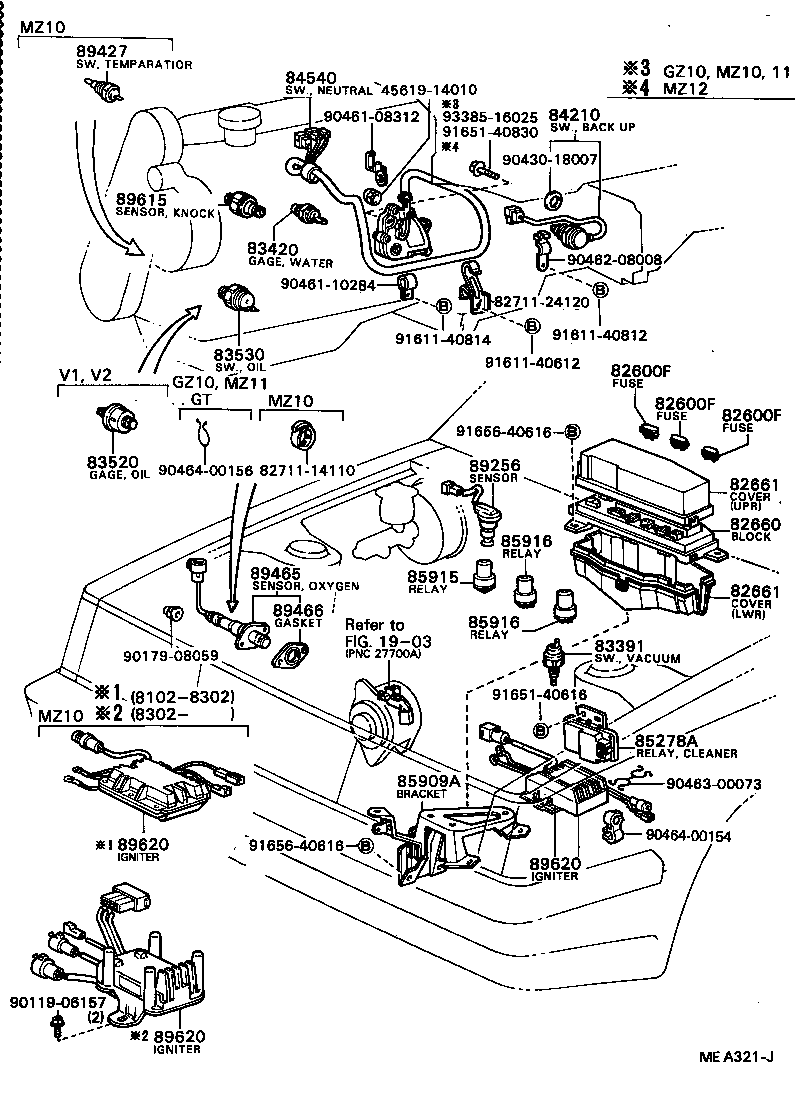

ILLUST NO. 1 OF 5(8102- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
GZ10,MZ1# 10A,10A |
1 | ||
| 90982-09003 |
GZ10,MZ1# 15A,15A |
1 | ||
| 90982-09005 |
GZ10,MZ1# 7.5A,7.5A |
1 | ||
| 90982-09004 |
GZ10,MZ1# 20A,黄,20A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
GZ10,MZ1# 10A,10A |
1 | ||
| 90982-09003 |
GZ10,MZ1# 15A,15A |
1 | ||
| 90982-09005 |
GZ10,MZ1# 7.5A,7.5A |
1 | ||
| 90982-09004 |
GZ10,MZ1# 20A,黄,20A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
GZ10,MZ1# 10A,10A |
1 | ||
| 90982-09003 |
GZ10,MZ1# 15A,15A |
1 | ||
| 90982-09005 |
GZ10,MZ1# 7.5A,7.5A |
1 | ||
| 90982-09004 |
GZ10,MZ1# 20A,黄,20A |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-22091 |
GZ10,MZ1# |
1 | ||
| 82660-20100 |
GZ10,MZ1# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-22030 |
GZ10,MZ1# LWR |
1 | ||
| 82661-22070 |
GZ10,MZ1# UPR |
1 | ||
| 82661-22011 |
GZ10,MZ1# UPR |
1 | ||
| 82661-20020 |
GZ10,MZ1# UPR |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-22030 |
GZ10,MZ1# LWR |
1 | ||
| 82661-22070 |
GZ10,MZ1# UPR |
1 | ||
| 82661-22011 |
GZ10,MZ1# UPR |
1 | ||
| 82661-20020 |
GZ10,MZ1# UPR |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16010 |
GZ10,MZ1# DENSO |
1 | ||
| 83420-20020 |
GZ10,MZ1# YAZAKI |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30042 |
GZ10,MZ1#..GT,TBO,VR,VX |
1 | ||
| 83530-30042 |
GZ10,MZ1# |
1 | ||
| 83530-30042 |
GZ10,MZ1# |
1 | ||
| 83530-30042 |
GZ10 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60010 |
GZ10,MZ11,12..5F |
1 | ||
| 85278A - RELAY ASSY, HEADLAMP CLEANER CONTROL | ||||
| 85276-20020 |
GZ10,MZ1#..GT,TBO,V2,VR,VX |
1 | ||
| 85909A - BRACKET SUB-ASSY, RELAY BLOCK | ||||
| 85909-24010 |
GZ10,MZ1# |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02002 |
GZ10,MZ1# DENSO |
1 | ||
| 90987-02004 |
GZ10,MZ1# MARUKO |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
GZ10,MZ1# TAIL |
1 | ||
| 90987-02006 |
GZ10,MZ1# HEAD |
1 | ||
| 90987-01003 |
GZ10,MZ1# TAIL & HEAD |
2 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
GZ10,MZ1# TAIL |
1 | ||
| 90987-02006 |
GZ10,MZ1# HEAD |
1 | ||
| 90987-01003 |
GZ10,MZ1# TAIL & HEAD |
2 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-29105 |
GZ10..V2,VR,VX |
1 | ||
| 89465-29026 |
GZ10 |
1 | ||
| 89465-19075 |
GZ10 |
1 | ||
| 89465-19075 |
GZ10..V2,VR,VX |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-30010 |
GZ10,MZ10..TBO,V1,V2,VR,VX |
1 | ||
| 89466-32010 |
GZ10 |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-30130 |
GZ10,MZ12 |
1 | ||
| 89620-24040 |
GZ10..V2,VR,VX |
1 | ||
| 89620-24010 |
GZ10 |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-30130 |
GZ10,MZ12 |
1 | ||
| 89620-24040 |
GZ10..V2,VR,VX |
1 | ||
| 89620-24010 |
GZ10 |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-30130 |
GZ10,MZ12 |
1 | ||
| 89620-24040 |
GZ10..V2,VR,VX |
1 | ||
| 89620-24010 |
GZ10 |
1 | ||
| Common parts | ||||
| 45619-14010 | ||||
| 82711-14110 | ||||
| 82711-24120 | ||||
| 90119-06157 | ||||
| 90179-08059 | ||||
| 90430-18007 | ||||
| 90461-08312 | ||||
| 90461-10284 | ||||
| 90462-08008 | ||||
| 90463-00073 | ||||
| 90464-00154 | ||||
| 90464-00156 | ||||
| 91611-40612 | ||||
| 91611-40812 | ||||
| 91611-40814 | ||||
| 91651-40616 | ||||
| 91651-40830 | ||||
| 91656-40616 | ||||
| 93385-16025 | ||||
| Linked diagrams | ||||
| 1903 | ||||

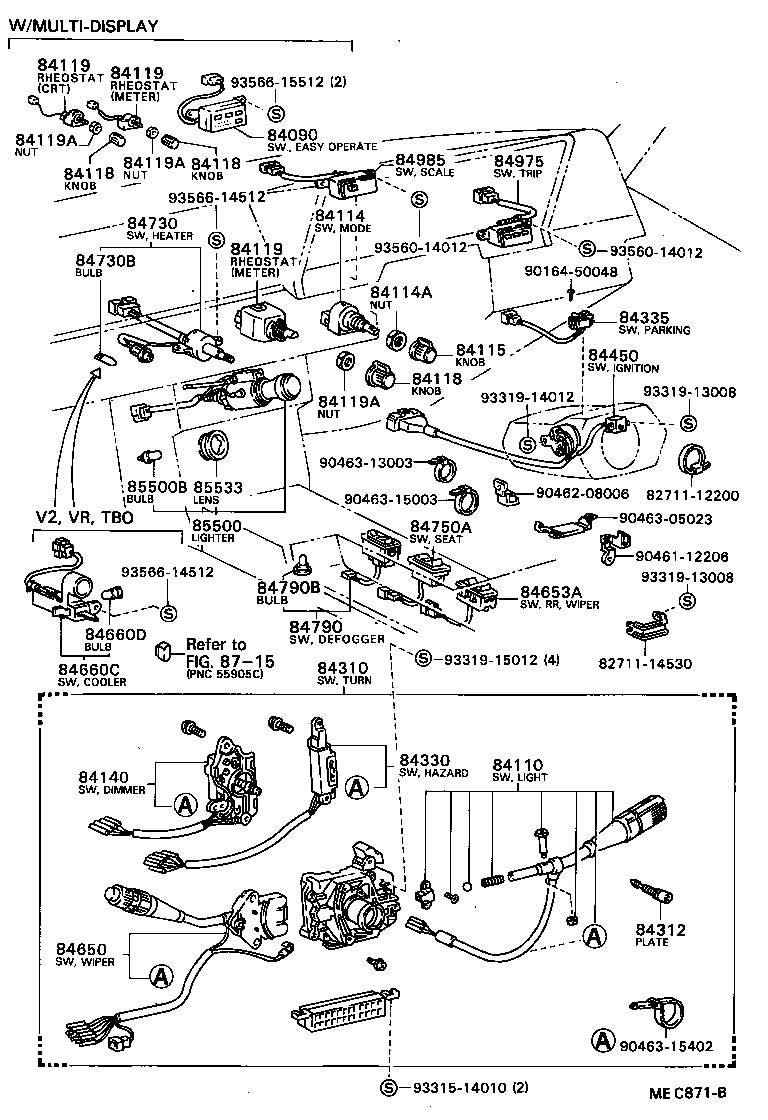

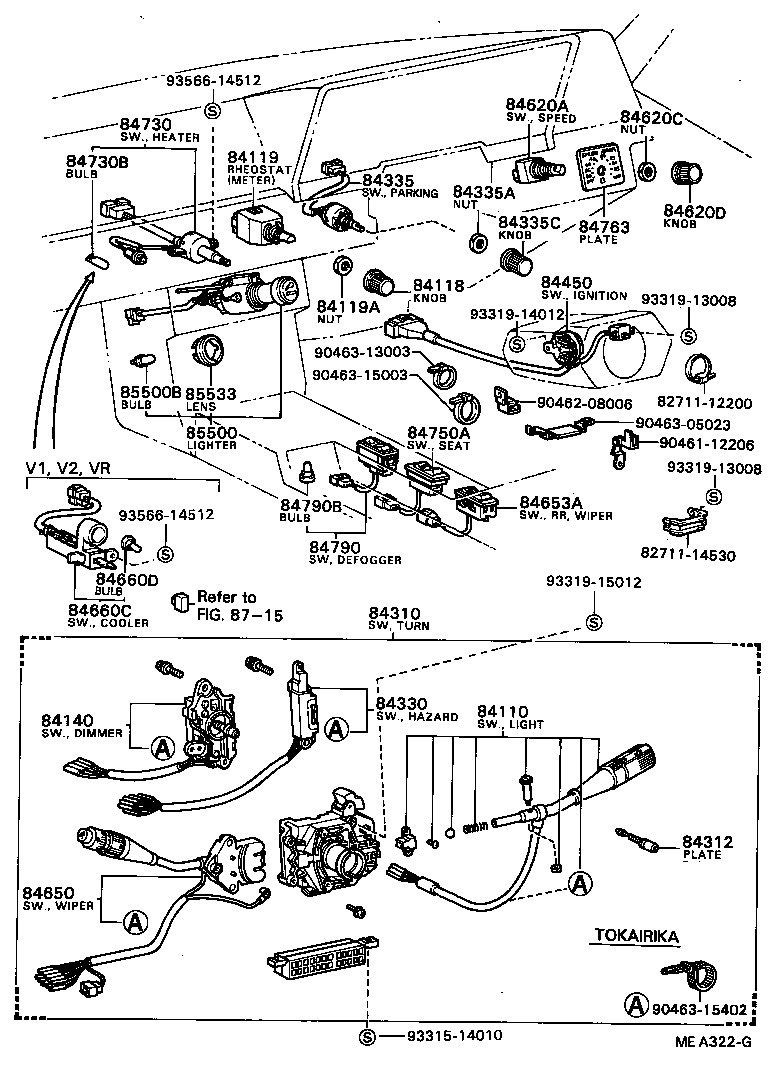

ILLUST NO. 2 OF 5(8102-8302)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-29236 |
GZ10,MZ1# TOKAIRIKA |
1 | ||
| 84112-19345 |
GZ10,MZ1# TOKAIRIKA |
1 | ||
| 84112-19285 |
GZ10,MZ1# MATSUSHITA |
1 | ||
| 84112-29235 |
GZ10,MZ11 TOKAIRIKA |
1 | ||
| 84112-29245 |
GZ10,MZ11 MATSUSHITA |
1 | ||
| 84112-29246 |
GZ10,MZ1# MATSUSHITA |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-24020 |
GZ10,MZ1# |
2 | ||
| 84331-24010 |
GZ10,MZ1# |
1 | ||
| 84115-24010 |
GZ10,MZ1# |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-24030 |
GZ10,MZ1# METER |
1 | ||
| 84119-24021 |
GZ10,MZ1# METER |
1 | ||
| 84119-24020 |
GZ10,MZ1#..GT,TBO,VR,VX METER |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90170-09002 |
GZ10,MZ1# |
2 | ||
| 90170-09167 |
GZ10,MZ1# |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-29105 |
GZ10,MZ11 MATSUSHITA |
1 | ||
| 84140-29095 |
GZ10,MZ11 TOKAIRIKA |
1 | ||
| 84140-19125 |
GZ10,MZ1# TOKAIRIKA |
1 | ||
| 84140-19145 |
GZ10,MZ1# MATSUSHITA |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-24012 |
GZ10,MZ1# |
1 | ||
| 84310-24011 |
GZ10,MZ1# |
1 | ||
| 84310-24010 |
GZ10,MZ11 |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20020 |
GZ10,MZ1# MATSUSHITA |
1 | ||
| 84312-20011 |
GZ10,MZ1# TOKAIRIKA |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-19095 |
GZ10,MZ1# TOKAIRIKA |
1 | ||
| 84332-29095 |
GZ10,MZ11 MATSUSHITA |
1 | ||
| 84332-19115 |
GZ10,MZ1# MATSUSHITA |
1 | ||
| 84332-39095 |
GZ10,MZ11 TOKAIRIKA |
1 | ||
| 84335 - SWITCH ASSY, PARKING LAMP | ||||
| 84330-24010 |
GZ10,MZ1# |
1 | ||
| 84330-24020 |
GZ10,MZ1# |
1 | ||
| 84335A - BOLT OR NUT, PARKING LAMP SWITCH SET | ||||
| 90170-09167 |
GZ10,MZ1# |
1 | ||
| 84335C - KNOB, PARKING LAMP SWITCH | ||||
| 84331-24010 |
GZ10,MZ1# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-22080 |
GZ10,MZ1#..GT,TBO,V2,VR,VX |
1 | ||
| 84450-22080 |
GZ10,MZ10 |
1 | ||
| 84620A - SWITCH ASSY, SPEED WARNING | ||||
| 84620-24010 |
GZ10,MZ1#..GT,TBO,VR,VX |
1 | ||
| 84620-24010 |
GZ10,MZ1# |
1 | ||
| 84620C - NUT, SPEED WARNING SWITCH | ||||
| 90170-09167 |
GZ10,MZ1# |
1 | ||
| 90170-09167 |
GZ10,MZ1#..GT,TBO,VR,VX |
1 | ||
| 84620D - KNOB, SPEED WARNING SWITCH | ||||
| 84331-24010 |
GZ10,MZ1#..GT,TBO,VR,VX |
1 | ||
| 84331-24010 |
GZ10,MZ1# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-29425 |
GZ10,MZ11 TOKAIRIKA |
1 | ||
| 84652-29435 |
GZ10,MZ11 MATSUSHITA |
1 | ||
| 84652-29426 |
GZ10,MZ1# TOKAIRIKA |
1 | ||
| 84652-29427 |
GZ10,MZ1# TOKAIRIKA |
1 | ||
| 84652-29436 |
GZ10,MZ1# MATSUSHITA |
1 | ||
| 84652-24022 |
GZ10,MZ1# MATSUSHITA |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-24010 |
GZ10,MZ10..TBO,V1,V2,VR |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-14020 |
GZ10,MZ10..TBO,V1,V2,VR 14V 1.4W |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-24010 |
GZ10,MZ10..TBO,V1,V2,VR |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
GZ10,MZ10..TBO,V1,V2,VR 14V 1.4W,14V 1.4KW |
1 | ||
| 84763 - PLATE, SWITCH | ||||
| 84763-24010 |
GZ10,MZ1# |
1 | ||
| 84763-24010 |
GZ10,MZ1#..GT,TBO,VR,VX |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-24010 |
GZ10,MZ11 |
1 | ||
| 84790-14150 |
GZ10,MZ1# |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10170 |
GZ10,MZ1# 12V 1.12W,12V 1.12W |
1 | ||
| 84999-10110 |
GZ10,MZ11 12V 1.12W,12V 1.12W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-24011 |
GZ10,MZ1# |
1 | ||
| 85500-24010 |
GZ10,MZ1# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
GZ10,MZ1# 14V 1.4W,12V 1.4W |
2 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-24010 |
GZ10,MZ1# |
1 | ||
| 85533-24011 |
GZ10,MZ1# |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-14530 | ||||
| 90461-12206 | ||||
| 90462-08006 | ||||
| 90463-05023 | ||||
| 90463-13003 | ||||
| 90463-15003 | ||||
| 90463-15402 | ||||
| 93315-14010 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
| 93566-14512 | ||||
| Linked diagrams | ||||
| 8715 | ||||

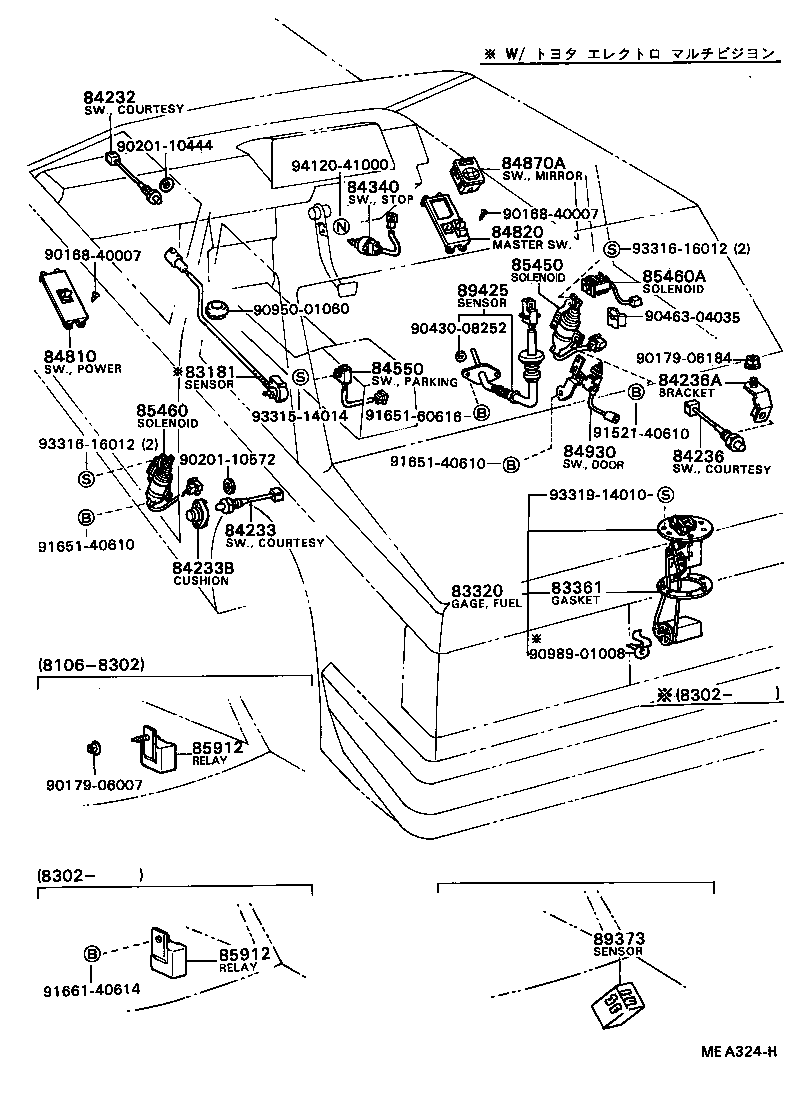

ILLUST NO. 5 OF 5(8102- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-29455 |
GZ10,MZ1# |
1 | ||
| 83320-29455 |
GZ10,MZ1#..GT,TBO,VR,VX |
1 | ||
| 83320-29456 |
GZ10,MZ1# |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 77169-14020 |
GZ10,MZ1# |
1 | ||
| 84232 - SWITCH ASSY, COURTESY LAMP (FOR GLOVE BOX) | ||||
| 84242-24010 |
GZ10,MZ1# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-20080 |
GZ10,MZ1# |
2 | ||
| 84231-20060 |
GZ10,MZ11 |
2 | ||
| 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84234-24010 |
GZ10,MZ1# |
2 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84230-22040 |
GZ10,MZ1# |
1 | ||
| 84236A - BRACKET, COURTESY SWITCH(FOR LUGGAGE COMPARTMENT ROOM) | ||||
| 84233-24020 |
GZ10,MZ1# |
1 | ||
| 84233-24010 |
GZ10,MZ1# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22072 |
GZ10,MZ1# |
1 | ||
| 84340-22072 |
GZ10,MZ10..TBO,V2,VR |
1 | ||
| 84340-22071 |
GZ10,MZ1# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-24010 |
GZ10,MZ1# |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-24010 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-24010 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-22040 |
GZ10,MZ1# |
1 | ||
| 84870-24010 |
GZ10,MZ1#..GT,TBO,V2,VR,VX |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84931-24010 |
GZ10,MZ1#..GT,TBO,VR,VX |
1 | ||
| 84931-24010 |
GZ10,MZ10 |
1 | ||
| 85460 - SOLENOID ASSY, DOOR CONTROL, FRONT LH | ||||
| 85450-22140 |
GZ10,MZ1#..GT,TBO,V2,VR,VX |
1 | ||
| 85450-22140 |
GZ10,MZ10 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02002 |
GZ10,MZ11 DENSO |
1 | ||
| 90987-02004 |
GZ10,MZ11 MARUKO |
1 | ||
| 85912-24010 |
GZ10,MZ1# |
1 | ||
| 85912-24011 |
GZ10,MZ1# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02002 |
GZ10,MZ11 DENSO |
1 | ||
| 90987-02004 |
GZ10,MZ11 MARUKO |
1 | ||
| 85912-24010 |
GZ10,MZ1# |
1 | ||
| 85912-24011 |
GZ10,MZ1# |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-24030 |
GZ10,MZ1# |
1 | ||
| 89373-24020 |
GZ10,MZ1# |
1 | ||
| 89373-24010 |
GZ10,MZ1# |
1 | ||
| 89373-24040 |
GZ10,MZ1# |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-29215 |
GZ10..V2,VR,VX |
1 | ||
| 89425-29215 |
GZ10,MZ11 |
1 | ||
| 89425-19265 |
GZ10..V2,VR,VX |
1 | ||
| Common parts | ||||
| 90168-40007 | ||||
| 90179-06007 | ||||
| 90179-06184 | ||||
| 90201-10444 | ||||
| 90201-10572 | ||||
| 90430-08252 | ||||
| 90463-04035 | ||||
| 90950-01060 | ||||
| 90989-01008 | ||||
| 91521-40610 | ||||
| 91651-40610 | ||||
| 91651-60616 | ||||
| 91661-40614 | ||||
| 93315-14014 | ||||
| 93316-16012 | ||||
| 93319-14010 | ||||
| 94120-41000 | ||||

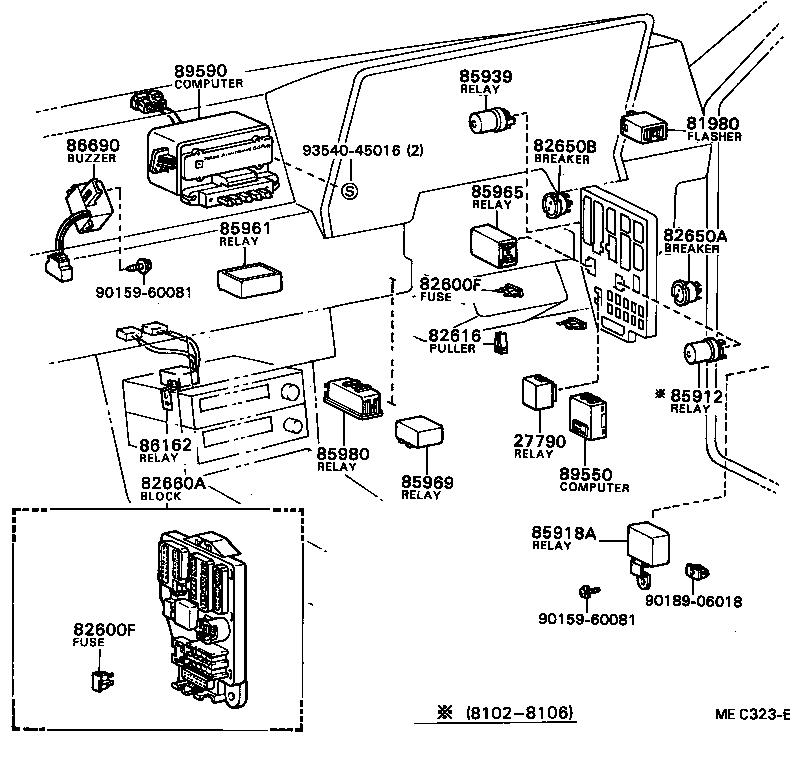

ILLUST NO. 3 OF 5(8102- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27790 - RELAY ASSY, CHARGE LAMP | ||||
| 27790-13010 |
1GEU,MTEU..GZ10,MZ10 |
1 | ||
| 27790-70010 |
1GEU,5MGEU,MTEU..GZ10,MZ1# |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22070 |
GZ10,MZ1# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
GZ10,MZ1# 10A,10A |
1 | ||
| 90982-09003 |
GZ10,MZ1# 15A,15A |
1 | ||
| 90982-09005 |
GZ10,MZ1# 7.5A,7.5A |
1 | ||
| 90982-09004 |
GZ10,MZ1# 20A,黄,20A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
GZ10,MZ1# 10A,10A |
1 | ||
| 90982-09003 |
GZ10,MZ1# 15A,15A |
1 | ||
| 90982-09005 |
GZ10,MZ1# 7.5A,7.5A |
1 | ||
| 90982-09004 |
GZ10,MZ1# 20A,黄,20A |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
GZ10,MZ1# |
1 | ||
| 82650A - BREAKER ASSY, WIRING CIRCUIT, NO.2 | ||||
| 82650-20010 |
GZ10,MZ1# DEFOGGER |
1 | ||
| 82650-32020 |
GZ10,MZ1# 30A,DEFOGGER,TOKAIRIKA |
1 | ||
| 82650-20011 |
GZ10,MZ1# 30A,DEFOGGER,MATSUSHITA |
1 | ||
| 82650B - BREAKER ASSY, WIRING CIRCUIT, NO.3 | ||||
| 82650-20010 |
GZ10,MZ1#..GT,TBO,V2,VR,VX *PW,SUN ROOF |
1 | ||
| 82650-32020 |
GZ10,MZ1# 30A,*PW,SUN ROOF,TOKAIRIKA |
1 | ||
| 82650-20011 |
GZ10,MZ1# 30A,*PW,SUN ROOF,MATSUSHITA |
1 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-24010 |
GZ10,MZ1# RH |
1 | ||
| 82660-22010 |
GZ10,MZ1# LH |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02002 |
GZ10,MZ11 DENSO |
1 | ||
| 90987-02004 |
GZ10,MZ11 MARUKO |
1 | ||
| 85912-24010 |
GZ10,MZ1# |
1 | ||
| 85912-24011 |
GZ10,MZ1# |
1 | ||
| 85918A - RELAY, DOOR CONTROL | ||||
| 85918-24010 |
GZ10,MZ1#..GT,TBO,V2,VR,VX |
1 | ||
| 85918-24010 |
GZ10,MZ10 |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90987-02004 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
1 | ||
| 85961 - RELAY, HEADLAMP RETAINER | ||||
| 85961-24010 |
GZ10,MZ1#..GT,GTL,TBO,VR,VX |
1 | ||
| 85965 - RELAY, ROOM LAMP CONTROL | ||||
| 85965-22021 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
1 | ||
| 85965-22020 |
GZ10,MZ11..GT,V2,VR,VX |
1 | ||
| 85969 - RELAY, LIGHT REMINDER | ||||
| 85969-22012 |
GZ10,MZ1#..GT,TBO,VR,VX |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-24010 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
1 | ||
| 86690 - BUZZER ASSY, SPEED INDICATOR | ||||
| 86650-22080 |
GZ10,MZ1# |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-24010 |
GZ10,MZ1# |
1 | ||
| 89550-14510 |
GZ10..V2,VR,VX |
1 | ||
| Common parts | ||||
| 90159-60081 | ||||
| 90189-06018 | ||||
| 93540-45016 | ||||
ILLUST NO. 2 OF 5(8302- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-29236 |
GZ10,MZ1# TOKAIRIKA |
1 | ||
| 84112-19345 |
GZ10,MZ1# TOKAIRIKA |
1 | ||
| 84112-19285 |
GZ10,MZ1# MATSUSHITA |
1 | ||
| 84112-29235 |
GZ10,MZ11 TOKAIRIKA |
1 | ||
| 84112-29245 |
GZ10,MZ11 MATSUSHITA |
1 | ||
| 84112-29246 |
GZ10,MZ1# MATSUSHITA |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-24020 |
GZ10,MZ1# |
2 | ||
| 84331-24010 |
GZ10,MZ1# |
1 | ||
| 84115-24010 |
GZ10,MZ1# |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-24020 |
GZ10,MZ1# |
2 | ||
| 84331-24010 |
GZ10,MZ1# |
1 | ||
| 84115-24010 |
GZ10,MZ1# |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-24020 |
GZ10,MZ1# |
2 | ||
| 84331-24010 |
GZ10,MZ1# |
1 | ||
| 84115-24010 |
GZ10,MZ1# |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-24030 |
GZ10,MZ1# METER |
1 | ||
| 84119-24021 |
GZ10,MZ1# METER |
1 | ||
| 84119-24020 |
GZ10,MZ1#..GT,TBO,VR,VX METER |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-24030 |
GZ10,MZ1# METER |
1 | ||
| 84119-24021 |
GZ10,MZ1# METER |
1 | ||
| 84119-24020 |
GZ10,MZ1#..GT,TBO,VR,VX METER |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-24030 |
GZ10,MZ1# METER |
1 | ||
| 84119-24021 |
GZ10,MZ1# METER |
1 | ||
| 84119-24020 |
GZ10,MZ1#..GT,TBO,VR,VX METER |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90170-09002 |
GZ10,MZ1# |
2 | ||
| 90170-09167 |
GZ10,MZ1# |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90170-09002 |
GZ10,MZ1# |
2 | ||
| 90170-09167 |
GZ10,MZ1# |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90170-09002 |
GZ10,MZ1# |
2 | ||
| 90170-09167 |
GZ10,MZ1# |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-29105 |
GZ10,MZ11 MATSUSHITA |
1 | ||
| 84140-29095 |
GZ10,MZ11 TOKAIRIKA |
1 | ||
| 84140-19125 |
GZ10,MZ1# TOKAIRIKA |
1 | ||
| 84140-19145 |
GZ10,MZ1# MATSUSHITA |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-24012 |
GZ10,MZ1# |
1 | ||
| 84310-24011 |
GZ10,MZ1# |
1 | ||
| 84310-24010 |
GZ10,MZ11 |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20020 |
GZ10,MZ1# MATSUSHITA |
1 | ||
| 84312-20011 |
GZ10,MZ1# TOKAIRIKA |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-19095 |
GZ10,MZ1# TOKAIRIKA |
1 | ||
| 84332-29095 |
GZ10,MZ11 MATSUSHITA |
1 | ||
| 84332-19115 |
GZ10,MZ1# MATSUSHITA |
1 | ||
| 84332-39095 |
GZ10,MZ11 TOKAIRIKA |
1 | ||
| 84335 - SWITCH ASSY, PARKING LAMP | ||||
| 84330-24010 |
GZ10,MZ1# |
1 | ||
| 84330-24020 |
GZ10,MZ1# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-22080 |
GZ10,MZ1#..GT,TBO,V2,VR,VX |
1 | ||
| 84450-22080 |
GZ10,MZ10 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-29425 |
GZ10,MZ11 TOKAIRIKA |
1 | ||
| 84652-29435 |
GZ10,MZ11 MATSUSHITA |
1 | ||
| 84652-29426 |
GZ10,MZ1# TOKAIRIKA |
1 | ||
| 84652-29427 |
GZ10,MZ1# TOKAIRIKA |
1 | ||
| 84652-29436 |
GZ10,MZ1# MATSUSHITA |
1 | ||
| 84652-24022 |
GZ10,MZ1# MATSUSHITA |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-24010 |
GZ10,MZ10..TBO,V1,V2,VR |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-14020 |
GZ10,MZ10..TBO,V1,V2,VR 14V 1.4W |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-24010 |
GZ10,MZ10..TBO,V1,V2,VR |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
GZ10,MZ10..TBO,V1,V2,VR 14V 1.4W,14V 1.4KW |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-24010 |
GZ10,MZ11 |
1 | ||
| 84790-14150 |
GZ10,MZ1# |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10170 |
GZ10,MZ1# 12V 1.12W,12V 1.12W |
1 | ||
| 84999-10110 |
GZ10,MZ11 12V 1.12W,12V 1.12W |
1 | ||
| 84975 - SWITCH, TRIP | ||||
| 84975-24010 |
GZ10,MZ1# |
1 | ||
| 84985 - SWITCH, SCALE CANGE | ||||
| 84985-24010 |
GZ10,MZ1# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-24011 |
GZ10,MZ1# |
1 | ||
| 85500-24010 |
GZ10,MZ1# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
GZ10,MZ1# 14V 1.4W,12V 1.4W |
2 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-24010 |
GZ10,MZ1# |
1 | ||
| 85533-24011 |
GZ10,MZ1# |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-14530 | ||||
| 90164-50048 | ||||
| 90461-12206 | ||||
| 90462-08006 | ||||
| 90463-05023 | ||||
| 90463-13003 | ||||
| 90463-15003 | ||||
| 90463-15402 | ||||
| 93315-14010 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
| 93560-14012 | ||||
| 93566-14512 | ||||
| 93566-15512 | ||||
| Linked diagrams | ||||
| 8715 | ||||
ILLUST NO. 4 OF 5(8102- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
GZ10,MZ1# 10A,10A |
1 | ||
| 90982-09003 |
GZ10,MZ1# 15A,15A |
1 | ||
| 90982-09005 |
GZ10,MZ1# 7.5A,7.5A |
1 | ||
| 90982-09004 |
GZ10,MZ1# 20A,黄,20A |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
GZ10,MZ1# 30A,HEATER,MATSUSHITA |
1 | ||
| 82650-20010 |
GZ10,MZ1# HEATER |
1 | ||
| 82650-32020 |
GZ10,MZ1# 30A,HEATER,TOKAIRIKA |
1 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-24010 |
GZ10,MZ1# RH |
1 | ||
| 82660-22010 |
GZ10,MZ1# LH |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01003 |
GZ10,MZ1# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-30020 |
GZ10,MZ1# |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-24020 |
GZ10,MZ1# |
1 | ||
| 85940-24010 |
GZ10,MZ1# |
1 | ||
| 85999 - BRACKET, COMBINATION RELAY | ||||
| 85999-24010 |
GZ10,MZ1# |
1 | ||
| Common parts | ||||
| 90119-06033 | ||||
| 90119-06056 | ||||
| 90179-06026 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
